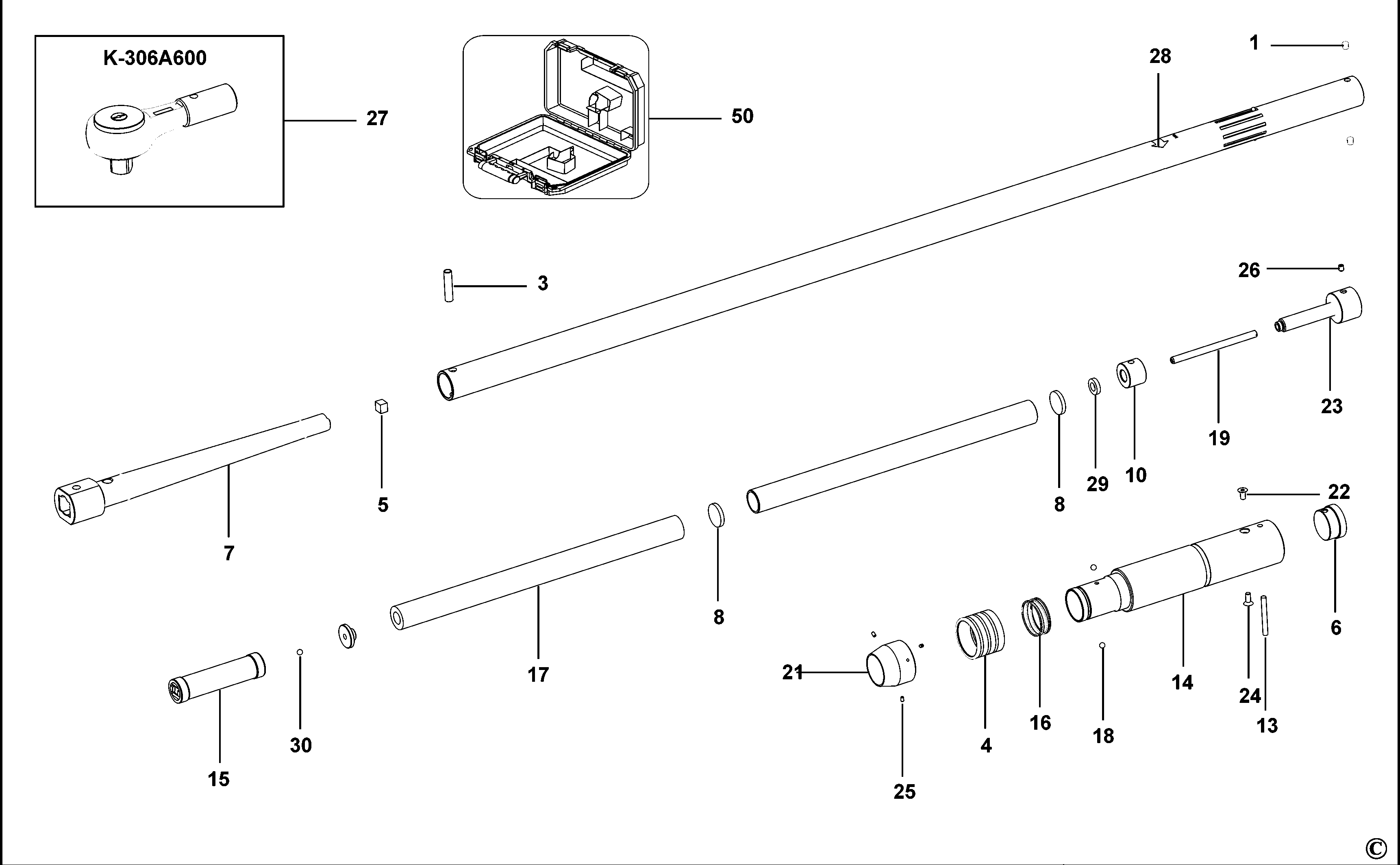

K.306-600D WRENCH Type 0 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | RC.6-6 | 2 | NEEDLE ROLLER | XJ |  |
||
| 3 | 949-002 | 1 | ROLL PIN | XJ | |
||
| 4 | K.315D32 | 1 | LOCKING RING | XJ | |
||
| 5 | K.315D05-820 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-940 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-790 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-960 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-840 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-850 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-830 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-780 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-880 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-930 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-870 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-900 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-810 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-950 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-910 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-770 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-800 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-860 | 1 | ROCKER | XJ |  |
||
| 5 | K.315D05-920 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-970 | 1 | ROCKER | XJ | |
||
| 5 | K.315D05-890 | 1 | ROCKER | XJ | |
||
| 6 | K.315D-31 | 1 | CAP | XJ | |
||
| 7 | 778-037UHF | 1 | ARM | XJ | |
||
| 8 | K.315D08 | 2 | DISC | XJ | |
||
| 10 | K.315D12 | 1 | LOCK NUT | XJ | |
||
| 13 | 908-004 | 1 | PIN | XJ | |
||
| 14 | K.315D30 | 1 | HANDLE | XJ | |
||
| 15 | 778-065 | 1 | PUSHER | XJ | |
||
| 16 | K.315D15 | 1 | SPRING | XJ | |
||
| 17 | K.315D07 | 1 | SPRING | XJ | |
||
| 18 | N411-15 | 2 | BALL STEEL 4MM | XJ | |
||
| 19 | K.315D14 | 1 | PUSHROD | XJ | |
||
| 21 | K.315D09 | 1 | VERNIER | XJ | |
||
| 22 | FHC.M5-12 | 1 | SCREW | XJ | |
||
| 23 | K.315D16 | 1 | CONTROL SCREW | XJ | |
||
| 24 | FHC.M5-10 | 1 | SCREW | XJ | |
||
| 25 | VIS.STHC.M3-5.4 | 3 | GRUB SCREW | XJ | |
||
| 26 | VIS.STHC.M5-6 | 1 | GRUB SCREW | XJ | |
||
| 28 | K.315D21 | 1 | LABEL | XJ | |
||
| 29 | S.325D10 | 1 | NUT RH | XJ | |
||
| 30 | RB.5.556 | 1 | BALL STEEL | XJ | |
||
| 50 | BP.D600 | 1 | KITBOX | XJ | |
