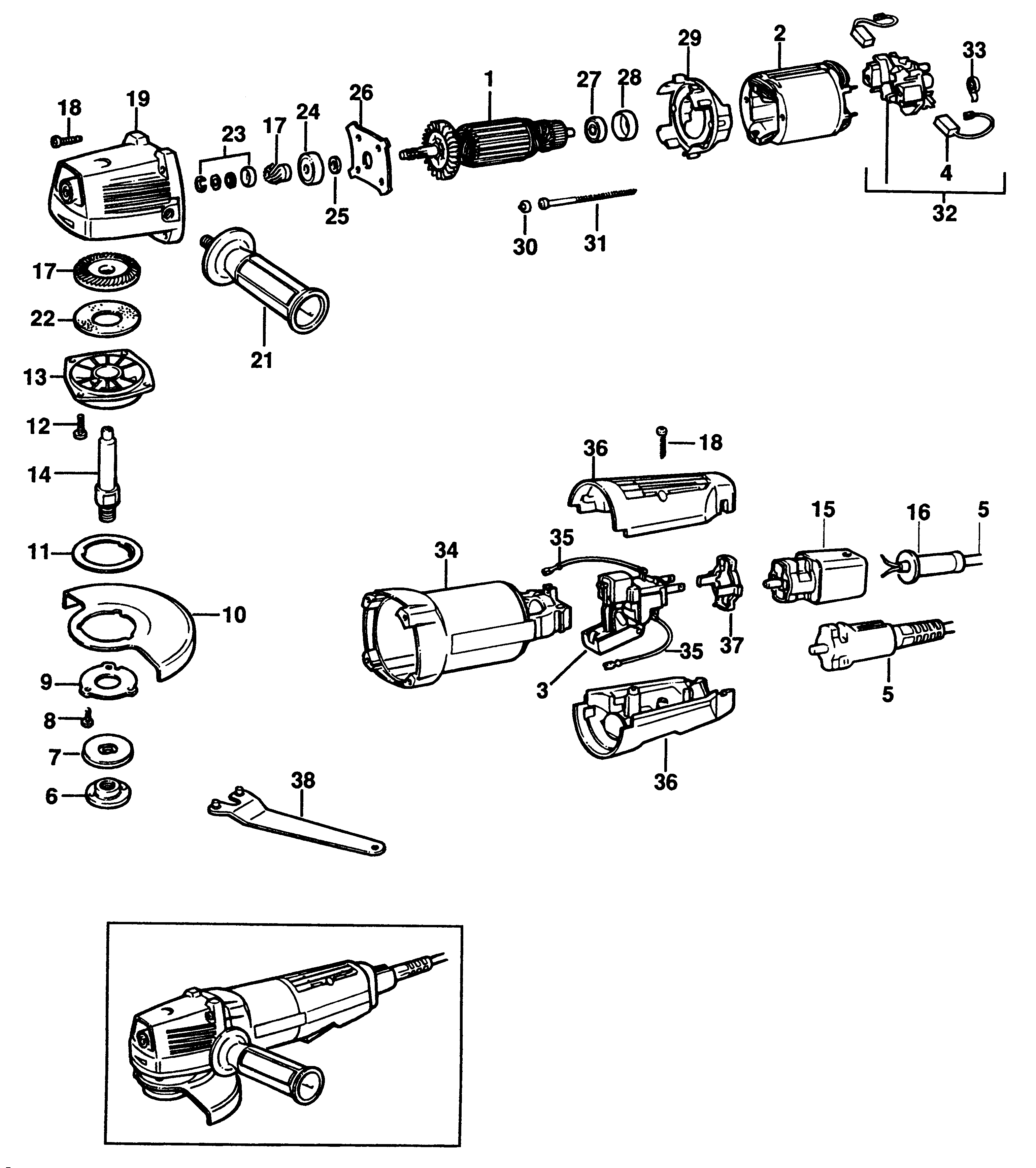

BD11 ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 949846-02 | 1 | ARMATURE | GB |  |
||
| 1 | 949846-03 | 1 | ARMATURE 115V | MX-PA 115V | GB | |
|
| 1 | 949846-03 | 1 | ARMATURE 115V | AE-VE 115V | GB | |
|
| 2 | 868629-02 | 1 | FIELD | GB | |
||
| 2 | 949847-09 | 1 | FIELD 115V | MX-PA 115V | GB | |
|
| 2 | 949847-09 | 1 | FIELD 115V | AE-VE 115V | GB | |
|
| 3 | 939587 | 1 | SWITCH | MX-PA 115V | GB | ||
| 3 | 939587 | 1 | SWITCH | AE-VE 115V | GB | ||
| 3 | 930716 | 1 | SWITCH | GB | |
||
| 3 | 949822-03 | 1 | SWITCH | GB | |
||
| 4 | 930897-00 | 2 | BRUSH 115-120V | MX-PA 115V | GB | |
|
| 4 | 930897-00 | 2 | BRUSH 115-120V | AE-VE 115V | GB | |
|
| 5 | 949842-20 | 1 | CORDSET | GB | |
||
| 5 | 949842-09 | 1 | CABLE | MX-PA 115V | GB | |
|
| 5 | 949842-09 | 1 | CABLE | AE-VE 115V | GB | |
|
| 6 | 403430-00 | 1 | OUTER FLANGE | GB | |
||
| 7 | 930771-00 | 1 | INNER FLANGE | GB | |
||
| 8 | 930251-00 | 3 | SCREW | GB | |
||
| 10 | 937411-00 | 1 | GUARD | GB | |
||
| 11 | 938272 | 1 | RING | GB | |
||
| 12 | 930770-00 | 4 | SCREW | GB | |
||
| 13 | 944055 | 1 | GEARCASE COVER SA | GB | |
||
| 14 | 946412-00 | 1 | SPINDLE | BD11C | GB | |
|
| 14 | 946414-00 | 1 | SPINDLE | BD11 A2 | GB | |
|
| 17 | 932592 | 1 | GEAR & PINION | GB | |
||
| 18 | 930079-01 | 6 | SCREW | GB | |
||
| 19 | 946129-00 | 1 | GEARCASE | GB | |
||
| 22 | 946418-00 | 1 | FELT | GB | |
||
| 23 | 937668 | 1 | CIRCLIP SA | GB | |
||
| 24 | 577745-00 | 1 | BEARING | GB |  |
||
| 25 | 930753-00 | 1 | WASHER | GB | |
||
| 27 | 330003-34 | 1 | BEARING | GB | |
||
| 28 | 930029-00 | 1 | HOLDER BEARING | GB | |
||
| 29 | 946134-00 | 1 | BAFFLE | GB | |
||
| 30 | 933657-00 | 2 | CAP | GB | |
||
| 31 | 930077-00 | 2 | SCREW | GB | |
||
| 32 | 949860-10 | 1 | BRUSH HOLDER 115V | MX-PA 115V | GB | ||
| 32 | 949860-10 | 1 | BRUSH HOLDER 115V | AE-VE 115V | GB | ||
| 33 | 930090-00 | 2 | BRUSH SPRING | GB | |
||
| 34 | 930811-01 | 1 | FIELDCASE | GB | |
||
| 35 | 930728-00 | 2 | LEAD | GB | |
||
| 36 | 930793-01 | 1 | HANDLE | GB | |||
| 37 | 930761 | 1 | RING | MX-PA 115V | GB | |
|
| 37 | 930761 | 1 | RING | AE-VE 115V | GB | |
|
| 37 | 930761 | 1 | RING | GB | |
||
| 38 | 947830-06 | 1 | WRENCH SPECIAL | GB | |
