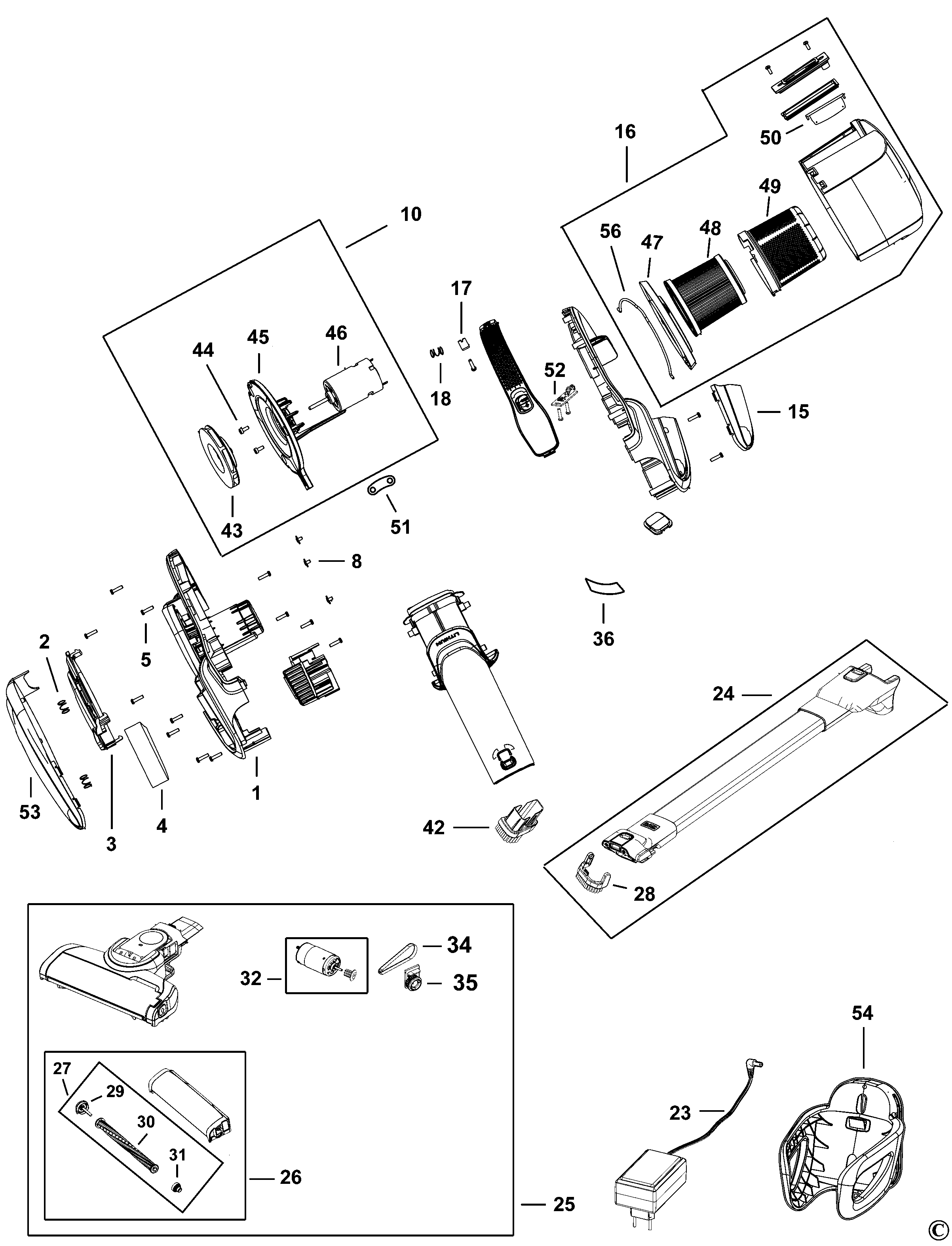

FEJ520JF STICK-VAC Type H2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | FEJ520JF | GB | ||
| 2 | 90627528 | 2 | SPRING | GB |  |
||
| 3 | 90606955-06 | 1 | LEVER RELEASE | FEJ520JFS | GB | |
|
| 3 | 90606955-03 | 1 | LEVER RELEASE | FEJ520JF | GB | |
|
| 4 | 90605950 | 1 | EXHAUST | GB | |
||
| 5 | 90571477-01 | 17 | SCREW | GB | |
||
| 8 | 90627524 | 3 | SCREW | GB | |
||
| 10 | 90621178-07 | 1 | MOTOR SA | GB | |||
| 15 | 90620997 | 1 | COVER | GB | |
||
| 16 | 90621435-02 | 1 | BOWL | FEJ520JF | GB | ||
| 16 | 90621435-01 | 1 | BOWL | FEJ520JFS | GB | ||
| 17 | 90624626 | 1 | RELEASE | GB | |
||
| 18 | 90627527 | 1 | SPRING | GB | |
||
| 23 | 90617601 | 1 | CHARGER | 14.4-18V - 0.4A | GB | |
|
| 24 | 90621437-01 | 1 | TUBE | GB | |||
| 25 | N570283 | 1 | FOOT SA | GB | |||
| 26 | N569254 | 1 | ROLLER SA | GB | |||
| 27 | 90600921 | 1 | ROLLER SA | GB | |||
| 28 | 90608984-11 | 1 | BRUSH | GB | |
||
| 29 | 90628362 | 1 | DRIVE SHAFT | GB | |||
| 30 | 90608574-03 | 1 | ROLLER | GB | |
||
| 31 | N545745 | 1 | END CAP SA | GB | |||
| 32 | N925465 | 1 | MOTOR SA | GB | |
||
| 32 | N569250 | 1 | MOTOR SA 12V | GB | |||
| 34 | N563936 | 1 | BELT | GB | |
||
| 35 | N569251 | 1 | GEAR | GB | |||
| 36 | N574190 | 1 | RATING PLATE | FEJ520JFS | GB | |
|
| 42 | 90627690 | 1 | BRUSH | GB | |
||
| 43 | 90562789-04 | 1 | FAN | GB | |
||
| 43 | 90562789-04 | 1 | FAN | GB | |
||
| 44 | 311940-01 | 2 | SCREW | GB | |
||
| 45 | 90626637 | 1 | SUPPORT | GB | |
||
| 46 | 90553498-03 | 1 | MOTOR | GB | |
||
| 47 | N519708 | 1 | FRAME | GB | |
||
| 48 | 90606058-01 | 1 | FILTER | GB | |
||
| 49 | 90606057-01 | 1 | PRE-FILTER | FEJ520JFS | GB | |
|
| 49 | 90606057 | 1 | PRE-FILTER | FEJ520JF | GB | |
|
| 50 | 90615870 | 1 | FLAP | GB | |
||
| 51 | 90626425 | 1 | RETAINER | GB | |
||
| 52 | 90620562-01 | 1 | PCB | GB | |
||
| 53 | 90614011 | 1 | COVER | GB | |
||
| 54 | 90621192 | 1 | BRACKET SA | GB | |||
| 56 | 90621658 | 1 | HANDLE | GB | |
