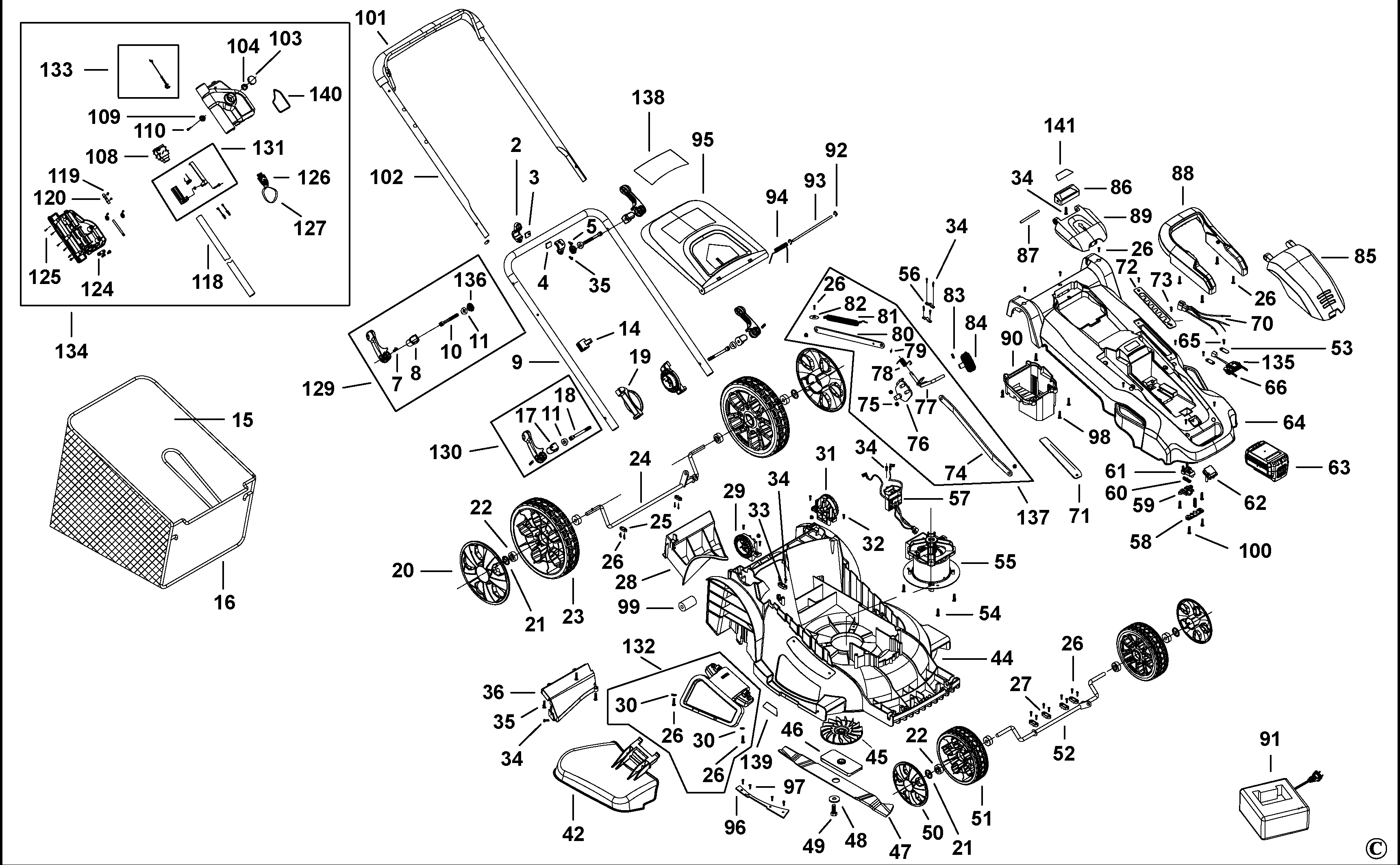

CLMA4820L2 ROTARY MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 1004705-83 | 1 | COVER | GB |  |
||
| 3 | 1004705-84 | 2 | GASKET | GB | |
||
| 4 | 1004705-85 | 1 | COVER | GB | |
||
| 5 | 1004705-86 | 1 | SCREW | GB | |
||
| 7 | 1004705-88 | 4 | PIN | GB | |
||
| 8 | 1004705-89 | 2 | Seat | CLAMP | GB | |
|
| 9 | 1004705-90 | 1 | LOWER HANDLE | GB | |
||
| 10 | 1004705-91 | 1 | CONNECTING ROD | GB | |
||
| 11 | 1004705-92 | 4 | PAD | GB | |
||
| 14 | 1004705-95 | 1 | CABLE GUIDE | GB | |
||
| 15 | 1004705-96 | 1 | GRASSBAG | GB | |
||
| 16 | 1004705-97 | 1 | FRAME | GB | |
||
| 17 | 1004705-98 | 2 | Seat | CLAMP | GB | |
|
| 18 | 1004706-00 | 1 | CONNECTING ROD | GB | |
||
| 19 | 1004706-01 | 2 | ADJUSTER | GB | |
||
| 20 | 1004706-02 | 2 | COVER | WHEEL - REAR | GB | |
|
| 21 | 1004706-03 | 4 | RETAINER | GB |  |
||
| 22 | 1004706-04 | 8 | COLLAR | GB | |
||
| 23 | 1004706-05 | 2 | WHEEL REAR | GB | |
||
| 24 | 1004706-06 | 1 | AXLE REAR | GB | |
||
| 25 | 1004706-07 | 2 | RETAINING PLATE | GB | |
||
| 26 | 1004706-08 | 32 | SCREW | GB | |
||
| 27 | 1004706-07 | 4 | RETAINING PLATE | GB | |
||
| 28 | 1004706-10 | 1 | INSERT | GB | |
||
| 29 | 1004706-11 | 1 | GEAR | RIGHT | GB | |
|
| 30 | 1004706-12 | 2 | WASHER | GB | |
||
| 31 | 1004706-13 | 1 | GEAR | LEFT | GB | |
|
| 32 | 1004706-14 | 4 | SCREW | GB | |
||
| 33 | 1004706-15 | 1 | CORD CLAMP | GB | |
||
| 34 | 1004706-16 | 9 | SCREW | GB | |
||
| 35 | 1004706-17 | 4 | SCREW | GB | |
||
| 36 | 1004706-18 | 1 | GUIDE | GB | |
||
| 42 | 1004706-24 | 1 | SIDE EXTRUSION | GB | |
||
| 44 | 1004706-26 | 1 | HOUSING | GB | |
||
| 45 | 1004706-27 | 1 | FAN | GB | |
||
| 46 | 1004706-28 | 1 | PLATE LOCK | GB | |
||
| 47 | 1004706-29 | 1 | BLADE | GB | |
||
| 48 | 1004706-30 | 1 | WASHER | GB | |
||
| 49 | 1004706-31 | 1 | BOLT | GB | |
||
| 50 | 1004706-32 | 2 | COVER | WHEEL | GB | |
|
| 51 | 1004706-33 | 2 | WHEEL FRONT | GB | |
||
| 52 | 1004706-34 | 1 | AXLE FRONT | GB | |
||
| 53 | 1004706-35 | 2 | RETAINING PLATE | GB | |
||
| 54 | 1004706-36 | 3 | SCREW | GB | |
||
| 55 | 1004706-37 | 1 | MOTOR SA | GB | |
||
| 56 | 1004706-38 | 1 | RETAINING PLATE | GB | |
||
| 57 | 1004706-39 | 1 | ELECTRONIC SA | GB | |
||
| 58 | 1004706-40 | 1 | BLOCK | GB | |
||
| 59 | 1004706-41 | 1 | PLATE | GB | |
||
| 60 | 1004706-42 | 1 | SPRING | GB | |
||
| 61 | 1004706-43 | 1 | COVER | GB | |
||
| 62 | 1004706-44 | 1 | BUTTON | GB | |
||
| 63 | N694215 | 2 | BATTERY 36V - 2.0AH - 72WH | Li-Ion - BL20362 | GB | |
|
| 63 | N694215 | 2 | BATTERY 36V - 2.0AH - 72WH | Li-Ion - BL20362 | GB | |
|
| 64 | 1004706-46 | 1 | COVER-TOP | GB | |
||
| 65 | 1004706-47 | 4 | SCREW | GB | |
||
| 66 | 1004706-48 | 2 | SPRING | GB | |
||
| 70 | 1004706-52 | 1 | CONNECTING WIRE | BATTERY TERMINAL | GB | |
|
| 71 | 1004706-53 | 1 | SLEEVE | GB | |
||
| 72 | 1004706-54 | 1 | ADJUSTER PLATE | GB | |
||
| 73 | 1004706-55 | 2 | SCREW | GB | |
||
| 74 | 1004706-56 | 1 | CONNECTING ROD | GB | |
||
| 75 | 1004706-57 | 4 | NUT | GB | |
||
| 76 | 1004706-58 | 1 | SUPPORT PLATE | GB | |
||
| 77 | 1004706-59 | 1 | LINK | GB | |
||
| 78 | 1004706-60 | 1 | SPRING TORSION | GB | |
||
| 79 | 1004706-61 | 1 | COTTER PIN | GB | |
||
| 80 | 1004706-62 | 1 | CONNECTING ROD | GB | |
||
| 81 | 1004706-63 | 1 | SPRING TORSION | GB | |
||
| 82 | 1004706-64 | 1 | WASHER | GB | |
||
| 83 | 1004706-65 | 1 | SCREW | GB | |
||
| 84 | 1004706-66 | 1 | ELEVATING HANDLE | GB | |
||
| 85 | 1004706-67 | 1 | BATTERY COVER | GB | |
||
| 86 | 1004706-68 | 1 | COVER | GB | |
||
| 87 | 1004706-69 | 1 | SHAFT | GB | |
||
| 88 | 1004706-70 | 1 | LOOP HANDLE | GB | |
||
| 89 | 1004706-71 | 1 | BATTERY COVER | REAR | GB | |
|
| 90 | 1004706-72 | 1 | PLASTIC INSERT | GB | |
||
| 91 | 90616337-02 | 1 | CHARGER 36V | UA CHARGER 36V | GB | |
|
| 92 | 1004706-74 | 2 | CIRCLIP | GB | |
||
| 93 | 1004706-75 | 1 | SHAFT | GB | |
||
| 94 | 1004706-83 | 1 | SPRING TORSION | GB | |
||
| 95 | 1004706-84 | 1 | COVER REAR | GB | |
||
| 96 | 1004706-78 | 1 | PLATE | GB | |
||
| 97 | 1004706-79 | 4 | SCREW | GB | |
||
| 98 | 1004706-80 | 2 | SCREW | GB | |
||
| 99 | 1004706-81 | 1 | CHOKE | GB | |
||
| 100 | 1004706-82 | 4 | SCREW | GB | |
||
| 101 | 1004705-56 | 1 | FOAM | GB | |
||
| 102 | 1004705-57 | 1 | HANDLE SA | GB | |
||
| 103 | 1004705-58 | 1 | BUTTON | GB | |
||
| 104 | 1004705-59 | 1 | SPRING | GB | |
||
| 108 | 1004705-63 | 1 | SWITCH | GB | |
||
| 109 | 1004705-64 | 1 | BOTTOM PLATE | GB | |
||
| 110 | 1004705-65 | 1 | SCREW | GB | |
||
| 118 | 1004705-73 | 1 | CABLE | GB | |
||
| 119 | 1004705-74 | 4 | SCREW | GB | |
||
| 120 | 1004705-75 | 1 | GUIDE | GB | |
||
| 124 | 1004705-79 | 1 | CABLE CLAMP | GB | |
||
| 125 | 1004705-80 | 8 | SCREW | GB | |
||
| 126 | 1004705-81 | 1 | KEY | GB | |
||
| 127 | 1004705-82 | 1 | STRAP | GB | |
||
| 129 | 1004707-28 | 1 | CLAMP SA | UPPER | GB | |
|
| 130 | 1004707-29 | 1 | CLAMP SA | LOWER | GB | |
|
| 131 | 1004707-34 | 1 | SWITCH LOCK-ON | GB | |
||
| 132 | 1004707-35 | 1 | OUTLET | GB | |
||
| 133 | 1004707-36 | 1 | CABLE SA | GB | |
||
| 134 | 1004707-37 | 1 | SWITCH SA | GB | |
||
| 135 | 1004707-38 | 1 | BATTERY CONNECTOR | GB | |
||
| 136 | 1004707-39 | 1 | LOCK KNOB | GB | |
||
| 137 | 1004707-40 | 1 | ADJUSTER HEIGHT | SA | GB | |
|
| 138 | 1004705-77 | 1 | RATING PLATE | GB | |
||
| 139 | 1004707-82 | 1 | LABEL | "EDGEMAX" | GB | |
|
| 140 | 1004707-83 | 1 | LABEL | INSTRUCTION | GB | |
|
| 141 | 1004707-84 | 1 | LABEL | INFORMATION | GB | |
