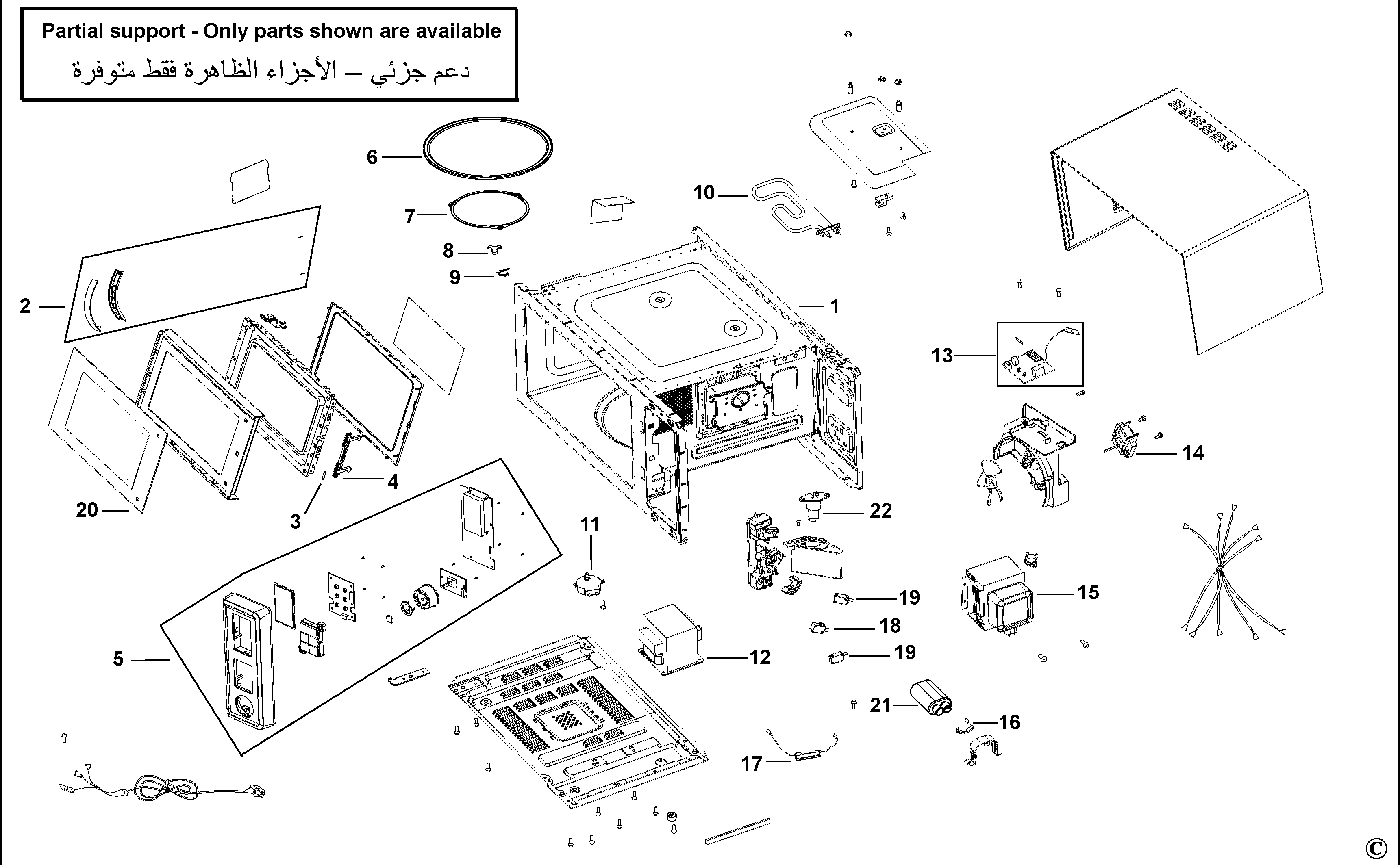

MZ2310PG MICROWAVE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XJ | |||
| 2 | 6010394-55 | 1 | HANDLE SA | XJ |  |
||
| 2 | 750075 | 1 | CASING | H1E,H1F,H1G | XJ | ||
| 3 | 6010394-42 | 1 | SPRING | XJ | |
||
| 4 | 6010394-41 | 1 | LATCH | XJ | |
||
| 5 | 6010394-40 | 1 | CONTROL BOX SA | XJ | |
||
| 5 | 325928-00 | 1 | GUIDE | XJ | |||
| 6 | 6010394-53 | 1 | TRAY | XJ | |
||
| 6 | 567832-00 | 1 | BEARING | BLADE H1,A,B,C,D | XJ | |
|
| 7 | 6010394-52 | 1 | RING SA | XJ | |
||
| 8 | 6010394-60 | 1 | COUPLING | XJ | |
||
| 8 | 1003297-00 | 1 | SWITCH | XJ | |||
| 9 | 6010394-57 | 1 | THERMOSTAT | XJ | |
||
| 10 | 6010394-48 | 1 | HEATING ELEMENT | XJ | |
||
| 11 | 6010393-59 | 1 | MOTOR | XJ | |
||
| 11 | 325928-00 | 1 | GUIDE | BUILT BEFORE 1996 | XJ | ||
| 12 | 6010394-44 | 1 | TRANSFORMER | XJ | |
||
| 12 | 833876 | 9 | ELEMENT | XJ | |||
| 13 | 6010394-58 | 1 | NOISE FILTER PCB | XJ | |
||
| 14 | 6010393-63 | 1 | MOTOR | XJ | |
||
| 14 | 6010113-06 | 5 | COVER | COVER REAR | BUILT FROM 1996 | XJ | |
| 14 | 849256 | 5 | SCREW | BUILT BEFORE 1996 | XJ | |
|
| 15 | 6010394-43 | 1 | MAGNETRON | XJ | |
||
| 15 | 328531-49 | 2 | BLADEDRUM SA | XJ | |||
| 16 | 6010393-54 | 1 | DIODE | XJ | |
||
| 16 | 829193-07 | 1 | CABLE & PLUG | XJ | |
||
| 17 | 6010394-56 | 1 | FUSE SA | XJ | |
||
| 17 | 833876 | 3 | ELEMENT | XJ | |||
| 18 | 6010394-50 | 1 | MICRO SWITCH | XJ | |
||
| 19 | 6010394-49 | 2 | MICRO SWITCH | XJ | |
||
| 19 | 6010027-20 | 1 | ATTACHMENT | WHISKING ATTACHMENT | XJ | |
|
| 20 | 6010394-59 | 1 | SCREEN | XJ | |
||
| 20 | 590698-00 | 1 | CLAMP OUTER | XJ | |
||
| 21 | 6010394-45 | 1 | CAPACITOR | XJ | |
||
| 21 | 806165-04 | 2 | FIELD | XJ | |
||
| 22 | 6010394-46 | 1 | LAMP | XJ | |
||
| 22 | 378189 | 2 | GEAR & SPINDLE SA | XJ | |
||
| 24 | 560450-00 | 1 | SPRING | XJ | |
||
| 25 | 171050300 | 1 | LABEL | XJ | |
||
| 26 | 935840 | 2 | GEAR SA | XJ | |
||
| 27 | 860077-01 | 2 | WASHER | XJ |  |
||
| 28 | 279805-00 | 2 | SPINDLE | XJ | |
||
| 29 | 935014 | 5 | GEARBOX SA | XJ | |
||
| 30 | 6010081-01 | 5 | BODY | TOP | XJ | |
|
| 31 | 378965-10 | 1 | FRAME | XJ | |
||
| 32 | 379368 | 3 | SUPPORT | XJ | |
||
| 33 | 934538 | 1 | BRUSH | XJ | |||
| 34 | 817305 | 1 | GUARD SA | PARTS NOT DRAWN | XJ | |
