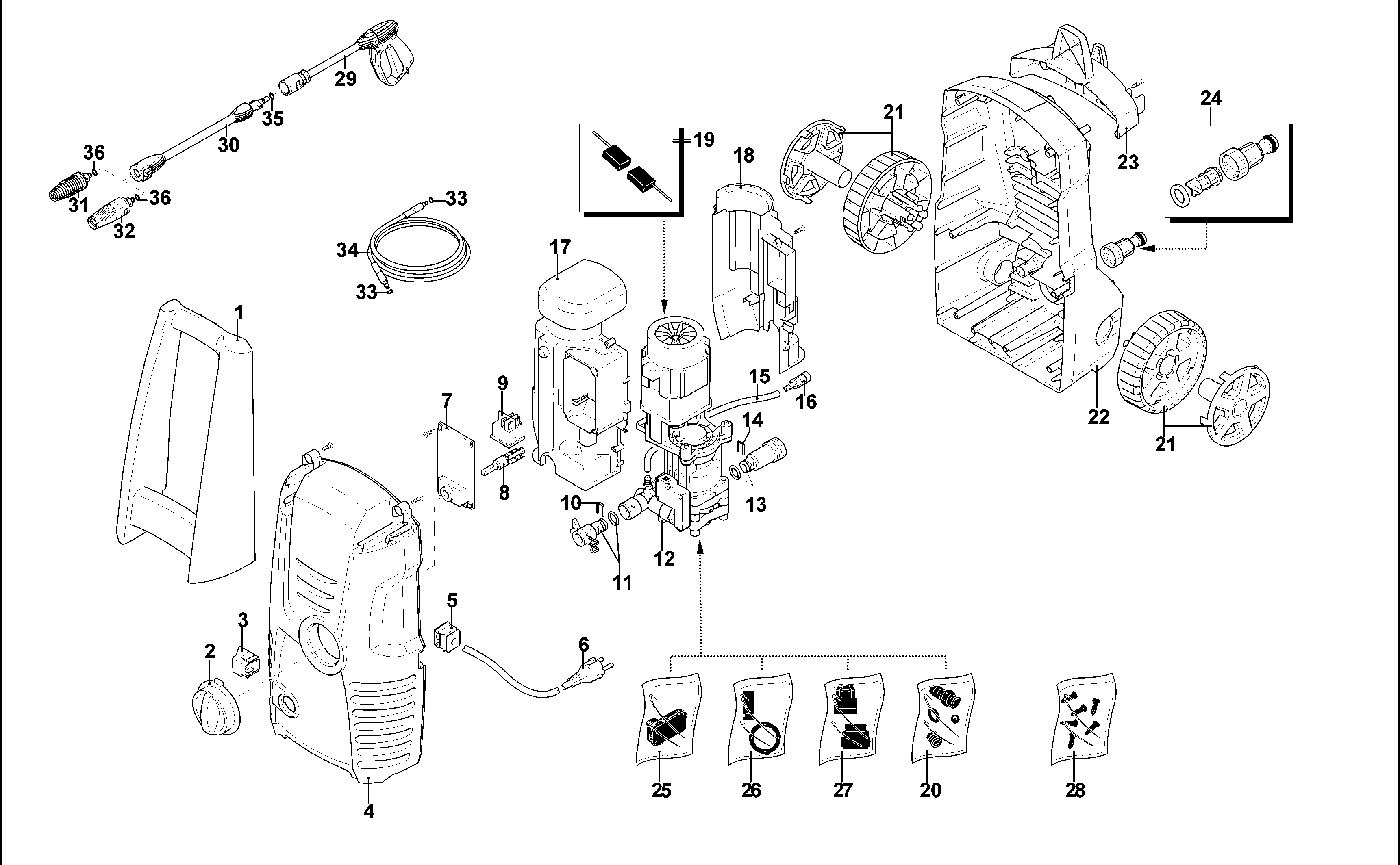

PW1500S PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004700-84 | 1 | HANDLE | GB |  |
||
| 2 | 1004700-62 | 1 | KNOB | GB | |
||
| 3 | 1004700-63 | 1 | LEVER | GB | |
||
| 4 | 1004700-64 | 1 | CLAMSHELL | GB | |
||
| 5 | 1004455-07 | 1 | GLAND | GB |  |
||
| 6 | 1004690-87 | 1 | CORDSET | GB PLUG | GB | |
|
| 7 | 1004700-65 | 1 | COVER | GB | |
||
| 8 | 1004700-66 | 1 | PIN | GB | |
||
| 9 | 1004700-67 | 1 | SWITCH SA | GB | |
||
| 10 | 1004512-08 | 1 | FORK | GB | |
||
| 11 | 1004700-68 | 1 | COUPLING SA | GB | |
||
| 12 | 1004700-85 | 1 | PUMP SA | GB | |
||
| 13 | 1004512-17 | 1 | SUCTION GROUP | GB | |
||
| 14 | 1004512-19 | 1 | FORK | GB | |
||
| 15 | 1004700-70 | 1 | PIPE | GB | |
||
| 16 | 1004700-71 | 1 | FILTER | GB | |
||
| 17 | 1004700-72 | 1 | CONVEYOR | GB | |
||
| 18 | 1004700-73 | 1 | CONVEYOR | GB | |
||
| 19 | 1004512-06 | 1 | BRUSH KIT | GB | |
||
| 20 | 1004700-80 | 1 | SUCTION GROUP | GB | |
||
| 21 | 1004700-87 | 2 | WHEEL | GB | |
||
| 22 | 1004700-75 | 1 | CLAMSHELL | GB | |
||
| 23 | 1004700-76 | 1 | GUARD | GB | |
||
| 24 | 1004700-77 | 1 | COUPLING SA | GB | |
||
| 25 | 1004700-78 | 1 | SERVICE KIT | TSS KIT | GB | |
|
| 26 | 1004512-11 | 1 | PISTONS & SEALS KIT | GB | |
||
| 27 | 1004512-12 | 1 | VALVES & SEALS KIT | GB | |
||
| 28 | 1004700-79 | 1 | SCREW KIT | GB | |
||
| 29 | 3082280 | 1 | HANDLE SA | GB | |
||
| 30 | 1004700-82 | 1 | EXTENSION | GB | |
||
| 31 | 1004700-88 | 1 | HEAD SA | GB | |
||
| 32 | 1004700-89 | 1 | HEAD SA | Lance | GB | |
|
| 33 | 3083400 | 2 | O RING | GB | |
||
| 34 | 1004512-26 | 1 | HOSE SA | GB | |
||
| 35 | 3083700 | 1 | O RING | GB | |
||
| 36 | 3083370 | 1 | O RING | GB | |
