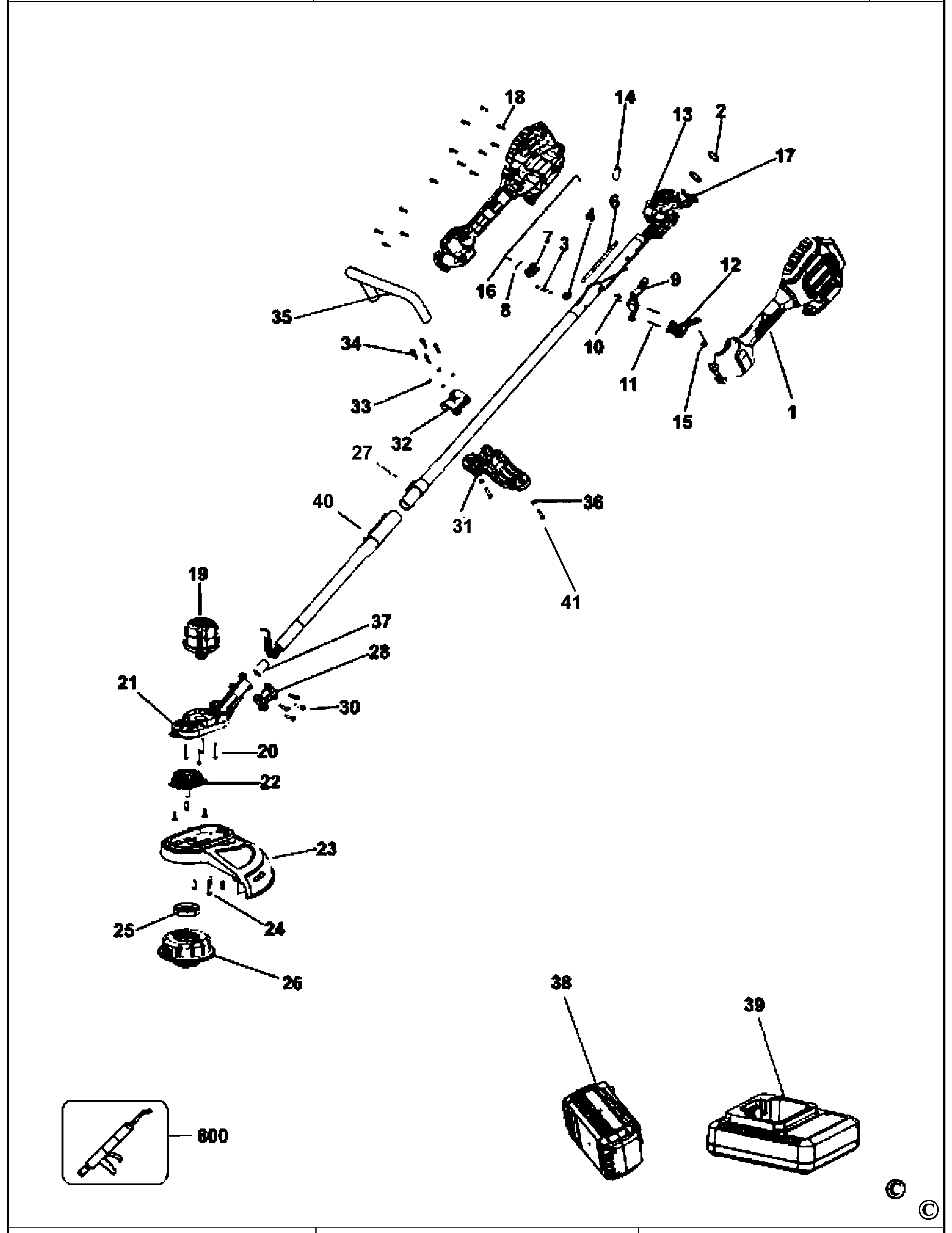

DCM561L1S STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90613418-01 | 1 | HANDLE SA | XJ |  |
||
| 2 | 90602632 | 2 | RUBBER | XJ |  |
||
| 3 | 90608944 | 1 | PIN | XJ | |
||
| 4 | 90600458 | 1 | SWITCH | XJ | |
||
| 5 | 90608663-01 | 1 | WIRE HARNESS | XJ | |
||
| 6 | 90609633 | 1 | COVER | XJ | |
||
| 7 | 90602320 | 1 | ACTUATOR | XJ | |
||
| 8 | N014681 | 1 | LEAF SPRING | XJ | |
||
| 9 | 90623756 | 1 | ACTUATOR | XJ | |
||
| 10 | 90602633 | 1 | SPRING | XJ | |
||
| 11 | 90608942 | 2 | PIN | XJ | |
||
| 12 | 90599030 | 1 | TRIGGER | XJ | |
||
| 13 | 90623025 | 1 | INDUCTOR | XJ | |
||
| 14 | 90623338 | 1 | WASHER | FERRITE BEAD | XJ | |
|
| 15 | 90602634 | 1 | SPRING | XJ | |
||
| 16 | 90614754 | 1 | LINKAGE SA | XJ | |
||
| 17 | 90635511 | 1 | MODULE | XJ | |
||
| 17 | 90616309-01 | 1 | MODULE | Control | XJ | ||
| 18 | 90614124-02 | 13 | SCREW | XJ | |
||
| 19 | 90640981 | 1 | MOTOR & PINION | XJ | |
||
| 20 | 330019-15 | 4 | SCREW | XJ | |
||
| 21 | 90613424SV | 1 | GEARCASE SA | XJ | |
||
| 22 | 90615764SV | 1 | GEAR CASE SA | XJ | |
||
| 23 | 90624364 | 1 | GUARD 13" | XJ | |
||
| 24 | 90614124-06 | 7 | SCREW | XJ | |
||
| 25 | 90607066 | 1 | SPINDLE LOCK | XJ | |
||
| 26 | 90599025 | 1 | SPOOL SA | DT20656 | XJ | |
|
| 27 | 90617532-01 | 1 | HANDLE TUBE SA | XJ | |
||
| 28 | 90615950 | 1 | CLAMP | XJ | |
||
| 30 | 90614124-04 | 6 | SCREW | XJ | |
||
| 31 | 90603784 | 1 | HANDLE FRAME KIT | XJ | |
||
| 32 | 90608998 | 1 | CLAMP | XJ | |
||
| 33 | 330016-15 | 4 | WASHER | XJ | |
||
| 34 | 90614038 | 4 | SCREW | XJ | |
||
| 35 | 90603783 | 1 | HANDLE | XJ | |
||
| 36 | 90615599 | 2 | WASHER | XJ | |
||
| 37 | 90623337 | 1 | WASHER | FERRITE BEAD | XJ | |
|
| 800 | 585381-00 | 1 | GREASE | 0.6G | XJ | ||
| 800 | N108694 | 1 | GREASE | NYE Nyogel 760G 30ml | XJ |
