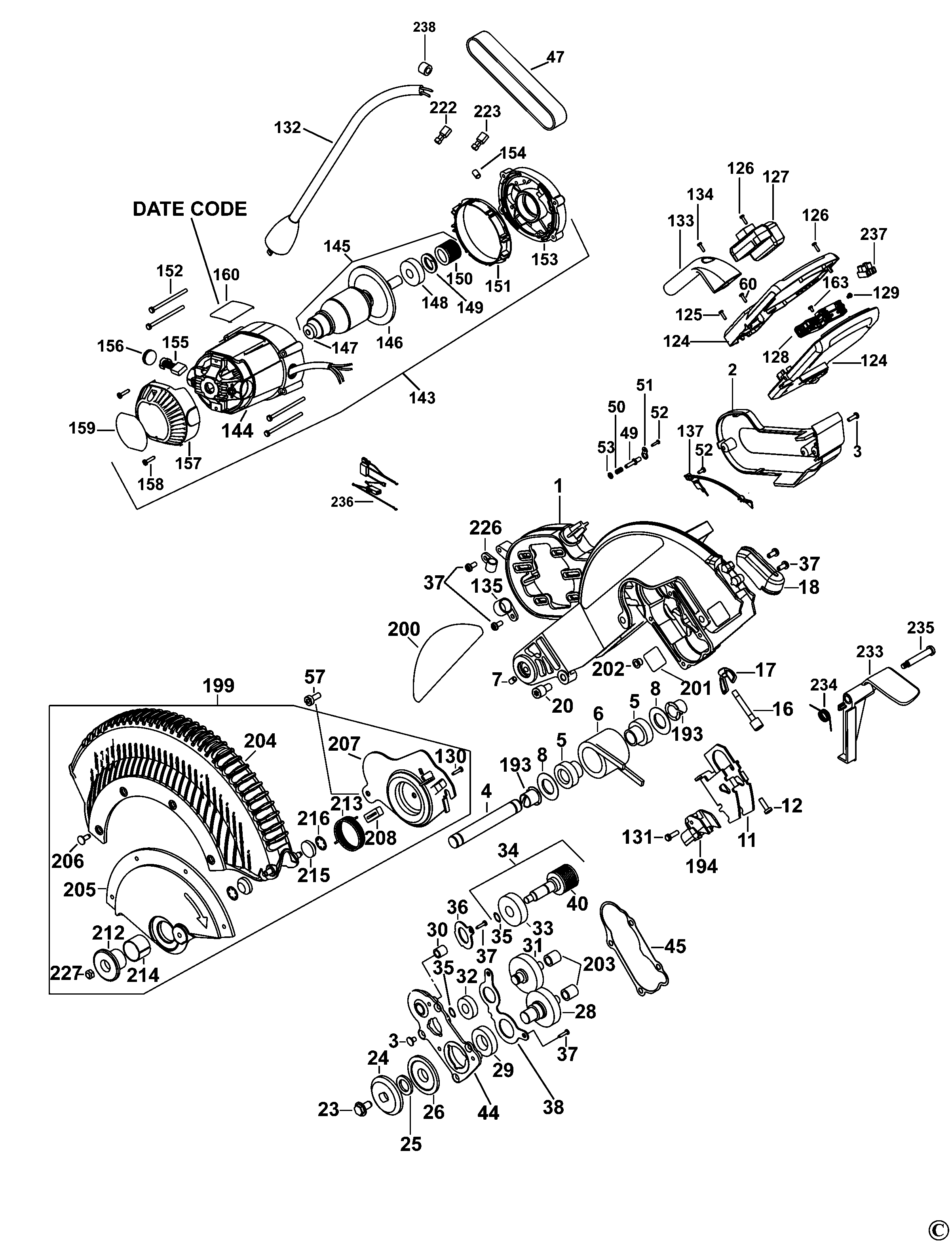

DWS780 MITRE SAW Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 618193-00 | 1 | BELT COVER | XJ |  |
||
| 3 | 330045-14 | 5 | SCREW | XJ | |
||
| 4 | 146751-00 | 1 | SHAFT | XJ | |
||
| 5 | 146732-00 | 2 | SPACER | XJ | |
||
| 6 | N039404 | 1 | SPRING | XJ | |
||
| 7 | 150075-00 | 2 | SCREW | XJ | |
||
| 8 | 148296-00 | 2 | WASHER | XJ | |
||
| 9 | 387130-00 | 1 | LOCKING PIN | XJ | |
||
| 10 | 34158-00 | 1 | SEAL | XJ | |
||
| 11 | N058304 | 1 | GUARD REAR | XJ | |
||
| 12 | 330045-23 | 7 | SCREW | XJ | |
||
| 13 | 153603-01 | 1 | PAWL | XJ | |
||
| 14 | 153639-00 | 5 | SCREW | XJ | |
||
| 15 | 153655-00 | 4 | WASHER | XJ | |
||
| 17 | 150718-00 | 1 | NUT WING | XJ | |
||
| 20 | 618198-00 | 1 | SCREW | XJ | |
||
| 29 | 330003-66 | 1 | BEARING,BALL | XJ | |
||
| 30 | 391616-00 | 1 | BEARING NEEDLE | XJ | |
||
| 33 | 605040-33 | 1 | BEARING | XJ | |
||
| 37 | 330045-49 | 12 | SCREW | XJ | |
||
| 38 | 391310-00 | 1 | BEARING PLATE | XJ | |
||
| 44 | N272402 | 1 | GEARCASE COVER SA | XJ | |
||
| 45 | 391315-00 | 1 | GASKET | XJ | |
||
| 49 | 153561-00 | 1 | LOCKING PIN | XJ | |
||
| 50 | 448176-00 | 1 | SPRING | XJ | |
||
| 51 | 393071-00 | 1 | PLATE | XJ | |
||
| 52 | 330045-45 | 4 | SCREW | XJ | |
||
| 53 | 153559-00 | 1 | WASHER | XJ | |
||
| 56 | 146740-00 | 2 | SLEEVE | XJ | |
||
| 60 | 330045-15 | 5 | SCREW | M5 X 20 | XJ | |
|
| 62 | N080677 | 1 | KNOB | M8x1.0 THD | XJ | |
|
| 68 | N058308 | 1 | POINTER | XJ | |
||
| 69 | N058309 | 1 | POINTER | XJ | |
||
| 70 | N080199 | 1 | KNOB | XJ | |
||
| 72 | 60325-01 | 1 | RING | XJ | |||
| 74 | 330045-06 | 7 | SCREW | XJ | |
||
| 76 | N090294 | 1 | BEVEL SCALE | XJ | |
||
| 80 | N043045 | 1 | PAWL | XJ | |
||
| 83 | N049689 | 1 | STOP RH | XJ | |
||
| 85 | N051519 | 1 | STOP LH | XJ | |
||
| 91 | 860083-14 | 1 | NUT | XJ | |
||
| 92 | N058312 | 2 | SCREW | XJ | |
||
| 94 | N528183 | 1 | PLATE | XJ | |
||
| 95 | N057391 | 2 | PLATE | XJ | |||
| 97 | N401778 | 1 | COVER | XJ | |
||
| 99 | 49787-00 | 1 | O RING | XJ | |
||
| 100 | N058318 | 1 | SCREW | XJ | |
||
| 102 | 153792-00 | 2 | WASHER | XJ | |
||
| 103 | N059784 | 1 | PLATE | XJ | |
||
| 104 | 604410-00 | 4 | SCREW | XJ | |
||
| 107 | N057963 | 1 | POINTER | XJ | |
||
| 108 | N050755 | 1 | ACTUATOR | XJ | |
||
| 109 | N066280 | 2 | PLATE | XJ | |
||
| 112 | N488468 | 1 | DETENT | XJ | |
||
| 113 | 618176-00 | 1 | SPRING COMPRESSION | COMPRESSION | XJ | |
|
| 114 | 093128-00 | 2 | BEARING NEEDLE | XJ | |
||
| 115 | 618254-00 | 1 | RETAINER | XJ | |
||
| 116 | N082785 | 1 | LEVER | XJ | |
||
| 117 | N057386 | 1 | PIN | XJ | |
||
| 118 | 624460-00 | 1 | PIN | XJ | |
||
| 119 | 624461-00 | 1 | SLEEVE | XJ | |
||
| 120 | 618186-00 | 1 | ROD | XJ | |
||
| 121 | 618185-00 | 1 | BLOCK | XJ | |
||
| 122 | 385915-03 | 1 | SCREW | XJ | |
||
| 123 | 618253-00 | 1 | SPRING COMPRESSION | XJ | |
||
| 125 | 330045-18 | 4 | SCREW | XJ | |
||
| 126 | 330019-32 | 5 | SCREW | XJ | |
||
| 128 | N548978V | 1 | SWITCH | XJ | |
||
| 129 | 384127-01 | 4 | SCREW | XJ | |
||
| 130 | 330045-25 | 3 | SCREW.TEMP | M6x25 MTL THD FMG | XJ | |
|
| 131 | 330019-12 | 2 | SCREW | XJ | |
||
| 133 | N083060 | 1 | HANDLE | XJ | |
||
| 135 | 398443-00 | 1 | CABLE CLAMP | XJ | |
||
| 137 | N030322 | 1 | COVER | XJ | |
||
| 142 | 098105-03 | 5 | SCREW | XJ | |
||
| 147 | 330003-60 | 1 | BEARING | XJ | |
||
| 148 | 605040-32 | 1 | BEARING | XJ | |
||
| 149 | 144803-00 | 1 | CIRCLIP | XJ | |
||
| 151 | 614366-00 | 1 | BAFFLE FAN | XJ | |
||
| 152 | 614375-00 | 4 | SCREW | XJ | |
||
| 153 | N137554 | 1 | MOUNTING BRACKET | XJ | |||
| 154 | 394034-00 | 1 | SCREW | XJ | |
||
| 156 | 614368-00 | 2 | BRUSH CAP | XJ | |
||
| 158 | 330019-11 | 4 | SCREW | M4.55x13 T20 | XJ | |
|
| 159 | 391325-00 | 1 | IDENTITY LABEL | XJ |  |
||
| 163 | 330019-12 | 1 | SCREW | XJ | |
||
| 171 | 603390-00 | 8 | SCREW | XJ | |
||
| 172 | 628591-00 | 2 | GUIDE | XJ | |
||
| 173 | 153576-04 | 1 | SCREW | XJ | |
||
| 174 | 613497-00 | 1 | THRUST PLATE | XJ | |
||
| 175 | N058314 | 4 | SCREW | XJ | |
||
| 177 | N051244 | 2 | BUMPER | XJ | |
||
| 178 | 659919-00 | 1 | SPRING | XJ | |
||
| 179 | 612008-00 | 1 | SCREW | XJ | |
||
| 180 | N056883 | 1 | LOCK HANDLE | XJ | |
||
| 181 | 330016-04 | 1 | WASHER | XJ | |
||
| 183 | N095579 | 1 | LEVER SA | XJ | |
||
| 184 | 167785-00 | 1 | SPRING | XJ | |
||
| 185 | N834068 | 1 | PIN | XJ | |
||
| 187 | 153797-00 | 2 | BOLT | 5/16-18 x 35mm | XJ | |
|
| 188 | N058315 | 2 | SCREW.SPECIAL | XJ | |
||
| 190 | N043046 | 1 | PAWL | XJ | |
||
| 192 | 153797-04 | 2 | SCREW | HEX HEAD | XJ | |
|
| 193 | N377514 | 2 | BUSHING | XJ | |
||
| 195 | 153451-00 | 1 | BEARING THRUST | XJ | |
||
| 203 | 386780-00 | 2 | BEARING | XJ | |
||
| 204 | N599317 | 1 | GUARD LOWER | XJ | |||
| 205 | N020822 | 1 | PLATE | XJ | |
||
| 206 | 385915-01 | 8 | SCREW | XJ | |
||
| 208 | 146768-00 | 1 | BUMPER | XJ | |
||
| 212 | N390418 | 1 | FSO KIT | SB193 | XJ | |
|
| 214 | 148295-00 | 1 | SLEEVE | XJ | |
||
| 215 | 625825-00 | 2 | ROLLER | XJ | |
||
| 216 | 142273-00 | 2 | RING | XJ | |
||
| 218 | 146760-02 | 1 | STUD | XJ | |
||
| 219 | 153666-00 | 2 | SCREW | set screw M8 x 8mm long | XJ | |
|
| 220 | 656400-00 | 2 | WARNING LABEL | XJ | |||
| 232 | 330019-14 | 1 | SCREW | XJ | |
||
| 234 | 386196-00 | 1 | SPRING | XJ | |
||
| 235 | 152852-00 | 1 | BOLT | XJ | |
||
| 237 | 393520-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 238 | 388414-01 | 1 | BUSH | XJ | |
||
| 239 | N126162 | 1 | DUST BAG SA | XJ | |
||
| 241 | N482412 | 1 | PLATE | XJ | |
||
| 800 | 93488-00 | 1 | GREASE | XJ | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XJ | |
|
| 837 | 559626-99 | 1 | S.T.SQUARE | XJ | |
||
| 856 | N114019 | 1 | SCREW KIT | CROWN STOP FIXING | XJ | |
|
| 857 | N813146 | 1 | SERVICE KIT | XJ | |
