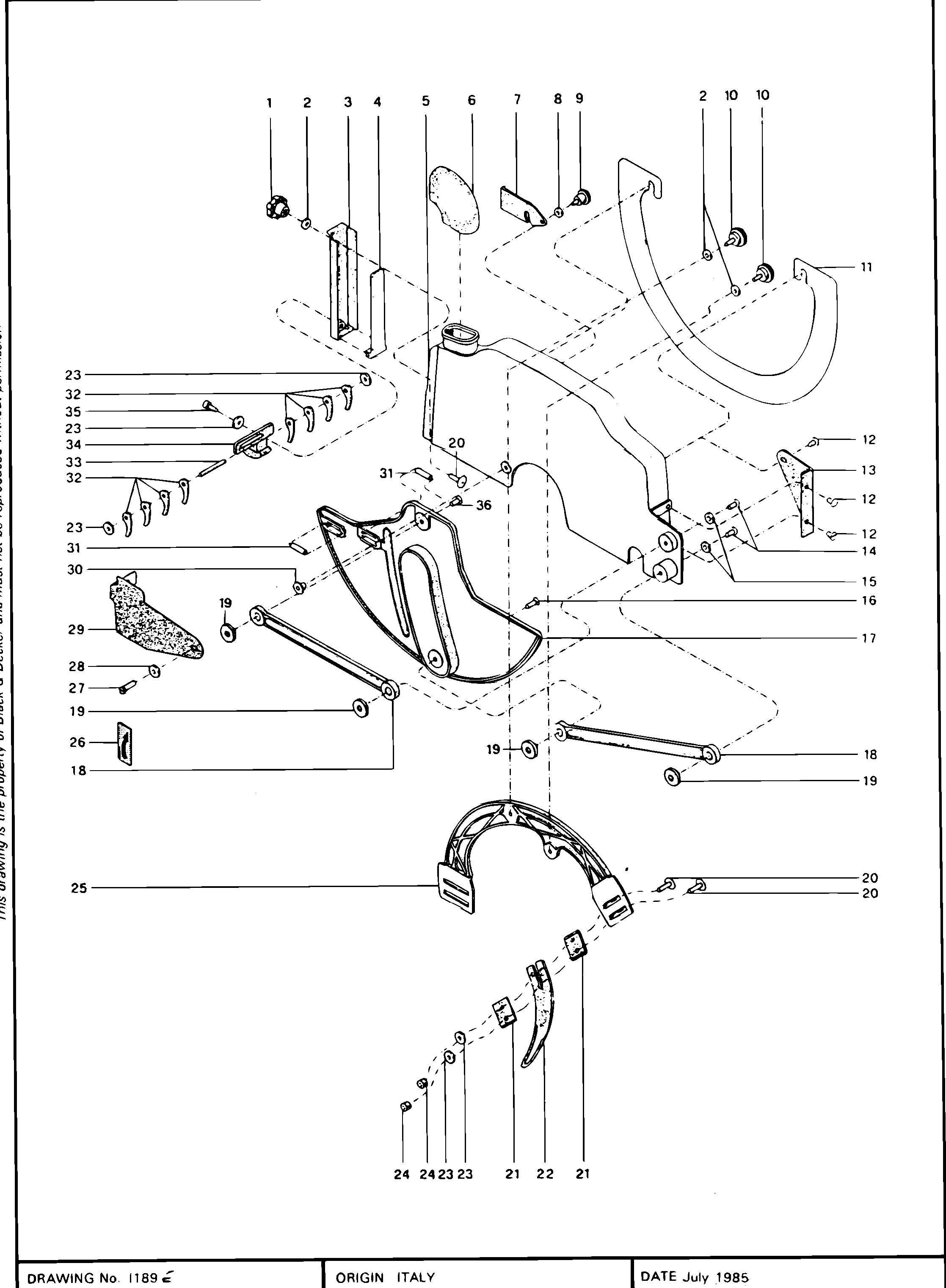

DW8103----F RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 946469-00 | 99 | KNOB | BLADE GUARD | XJ |  |
|
| 2 | 720959-00 | 3 | WASHER | BLADE GUARD | XJ | |
|
| 3 | 863709-00 | 1 | SUPPORT | BLADE GUARD | XJ |  |
|
| 4 | 863703-00 | 1 | PROTECTOR | BLADE GUARD | XJ | |
|
| 5 | 176513 | 1 | GUARD | BLADE GUARD | XJ | |
|
| 6 | 864095-00 | 1 | TUBE EXTRACTION | BLADE GUARD | XJ | |
|
| 7 | 863708-00 | 1 | SQUARE | BLADE GUARD | XJ | |
|
| 8 | 860074-01 | 1 | WASHER | BLADE GUARD | XJ | |
|
| 9 | 861842-01 | 1 | KNOB | BLADE GUARD | XJ | |
|
| 10 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 11 | 32691 | 1 | PROTECTOR | BLADE GUARD | XJ | |
|
| 12 | 760273-00 | 3 | SCREW | BLADE GUARD | XJ | |
|
| 13 | 863707-01 | 1 | BRACKET | BLADE GUARD | XJ | |
|
| 14 | 760998-00 | 2 | SCREW | BLADE GUARD | XJ | |
|
| 15 | 860073-01 | 2 | WASHER | BLADE GUARD | XJ | |
|
| 16 | 949888-06 | 1 | SCREW | BLADE GUARD | XJ | |
|
| 17 | 862426-00 | 1 | GUARD | BLADE GUARD | XJ | |
|
| 18 | 862082-00 | 2 | LEVER | BLADE GUARD | XJ | |
|
| 19 | 864053-00 | 4 | WASHER | BLADE GUARD | XJ | |
|
| 20 | 860301-00 | 2 | SCREW | BLADE GUARD | XJ | |
|
| 21 | 864086-00 | 2 | SHIM | BLADE GUARD | XJ | |
|
| 22 | 863271-00 | 1 | RIVING KNIFE | BLADE GUARD | XJ | |
|
| 23 | 860074-02 | 2 | WASHER | BLADE GUARD | XJ | |
|
| 24 | 860083-03 | 2 | NUT | BLADE GUARD | XJ | |
|
| 25 | 862081-00 | 1 | BRACKET | BLADE GUARD | XJ | |
|
| 26 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 27 | 941518-00 | 1 | SCREW | BLADE GUARD | XJ | |
|
| 28 | 860075-00 | 1 | WASHER | BLADE GUARD | XJ | |
|
| 29 | 31452 | 1 | SQUARE | BLADE GUARD | XJ | |
|
| 30 | 863705-00 | 1 | BUSH | BLADE GUARD | XJ | |
|
| 31 | 864054-00 | 2 | ROLLER | BLADE GUARD | XJ | |
|
| 32 | 864013-00 | 8 | FINGER | BLADE GUARD | XJ | |
|
| 34 | 945632-90 | 1 | BRACKET | BLADE GUARD | XJ | |
|
| 35 | 760219-00 | 1 | SCREW | BLADE GUARD | XJ | |
|
| 36 | 249412-20 | 1 | SCREW | BLADE GUARD | XJ | |
|
| 37 | 864325-60 | 1 | GUARD SA | PARTS NOT DRAWN | XJ | |
|
| 38 | 131862 | 1 | PROTECTOR | PARTS NOT DRAWN | XJ | ||
| 39 | 863320-00 | 1 | LEVER | PARTS NOT DRAWN | XJ | |
|
| 40 | 863073-00 | 1 | CAP | PARTS NOT DRAWN | XJ | |
|
| 41 | 760483-00 | 1 | SPRING | PARTS NOT DRAWN | XJ | |
|
| 42 | 860083-04 | 1 | NUT | PARTS NOT DRAWN | XJ | |
|
| 43 | 949891-03 | 1 | SCREW | PARTS NOT DRAWN | XJ | |
|
| 44 | 860073-03 | 2 | WASHER M8 | PARTS NOT DRAWN | XJ | |
|
| 45 | 860085-03 | 1 | BOLT | PARTS NOT DRAWN | XJ | |
|
| 46 | 860092-01 | 1 | NUT | PARTS NOT DRAWN | XJ | |
