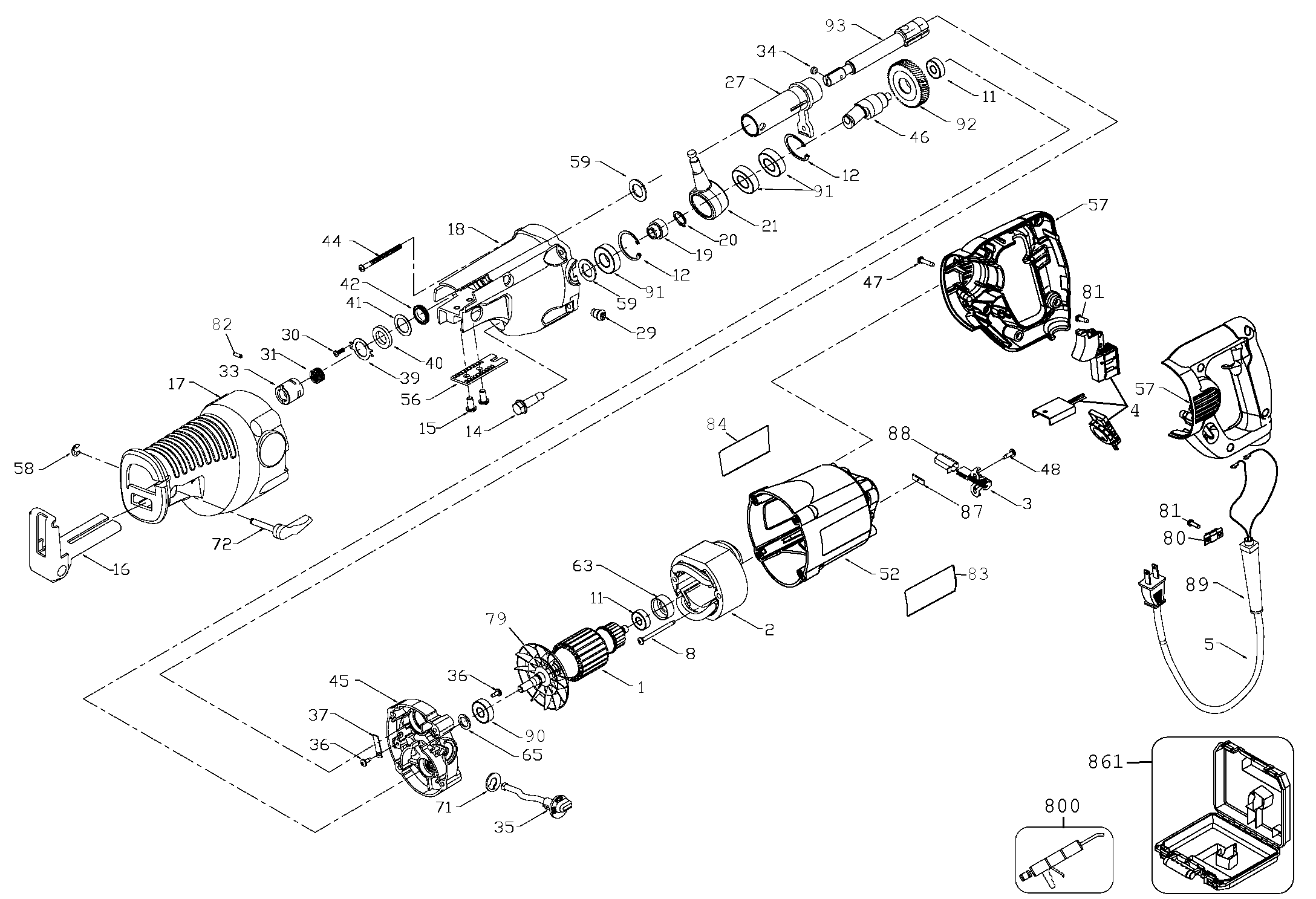

DW311K RECIPROCATING SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | A05447 | 1 | ARMATURE 230V | 230V | INCL. 79 | GB |  |
| 2 | N073671SV | 1 | FIELD SA 230V | GB | |
||
| 3 | 874289 | 2 | BRUSH & HOLDER SA | GB | |
||
| 4 | N025444 | 1 | SWITCH SA 230V | GB | |
||
| 5 | N060731 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 8 | 882704 | 2 | SCREW | GB | |
||
| 11 | 330003-05 | 2 | BEARING | GB | |||
| 12 | 802302 | 2 | RING | GB | |
||
| 14 | 879421 | 1 | SCREW | GB | |
||
| 15 | 906952 | 2 | SCREW | 1/4-20x1/2SOC BTN HD | GB | |
|
| 16 | 911450SV | 1 | SHOE SA | GB | |
||
| 17 | 906725 | 1 | COVER | GB | |
||
| 18 | 906701 | 1 | HOUSING FRONT | GB | |
||
| 19 | 879429 | 1 | SPACER | GB | |
||
| 20 | 853246 | 1 | RING | GB | |
||
| 21 | 890819 | 1 | PLATE | GB | |
||
| 27 | 883098 | 1 | CARRIER | GB | |
||
| 29 | 879408 | 2 | SCREW | GB | |
||
| 30 | 882255 | 2 | SCREW | GB | |
||
| 31 | N003376 | 1 | SPRING | GB | |
||
| 33 | N003058 | 1 | COLLAR | GB | |
||
| 34 | N003059 | 1 | LOCK PIN | GB | |
||
| 35 | 632169-00 | 1 | SELECTOR | GB | |
||
| 36 | 882187 | 2 | SCREW | 8-32x3/8 TAPTITE T20 | GB | |
|
| 37 | 847418 | 1 | SPRING | GB | |
||
| 39 | 879458 | 1 | PLATE | GB | |
||
| 40 | 879457 | 1 | FELT SEAL | GB | |
||
| 41 | 684931 | 1 | WASHER | GB | |
||
| 42 | 902998 | 1 | SEAL | GB | |
||
| 44 | 330019-19 | 4 | SCREW | GB | |
||
| 45 | 906705 | 1 | PLATE | GB | |
||
| 46 | 883097SV | 1 | DRIVE SHAFT | GB | |
||
| 47 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 48 | 882703 | 4 | SCREW | GB | |
||
| 52 | 631342-01 | 1 | FIELDCASE | GB | |
||
| 56 | 906043 | 1 | PLATE | GB |  |
||
| 57 | N066298 | 1 | CLAMSHELL SET | GB | |
||
| 58 | 697965 | 1 | RETAINER | GB | |
||
| 59 | 882348 | 2 | FELT SEAL | GB | |
||
| 63 | 694432 | 1 | HOLDER BEARING | GB | |
||
| 65 | 801852 | 1 | SEAL | GB | |
||
| 71 | 908873 | 1 | FELT SEAL | GB | |
||
| 72 | 651021-00 | 1 | LEVER | GB | |
||
| 79 | 878904SV | 1 | FAN | GB | |
||
| 80 | 450877-00 | 1 | CORD CLAMP | GB | |
||
| 81 | 330019-02 | 3 | SCREW | GB | |
||
| 82 | 638557-00 | 1 | SPIROL PIN | GB | |
||
| 83 | 636945-00 | 1 | IDENTITY LABEL | GB | |
||
| 84 | N077723 | 1 | RATING PLATE | DW311-GB TY.2 | GB | |
|
| 87 | 865321 | 2 | INSULATOR | GB | |
||
| 88 | 865323 | 2 | BRUSH HOLDER | GB | |
||
| 89 | 330005-01 | 1 | CORD PROTECTOR | GB | |||
| 90 | 330003-17 | 1 | BEARING | GB | |
||
| 91 | 879431 | 3 | BEARING | GB | |
||
| 92 | 879401 | 1 | GEAR | GB | |
||
| 93 | N074353 | 1 | DRIVE SHAFT | GB | |
||
| 800 | 5140061-28 | 1 | GREASE | GB | |
||
| 800 | 5140061-28 | 1 | GREASE | 5 1/2 OZ. | GB | |
|
| 861 | N009458 | 1 | KITBOX | GB | |
