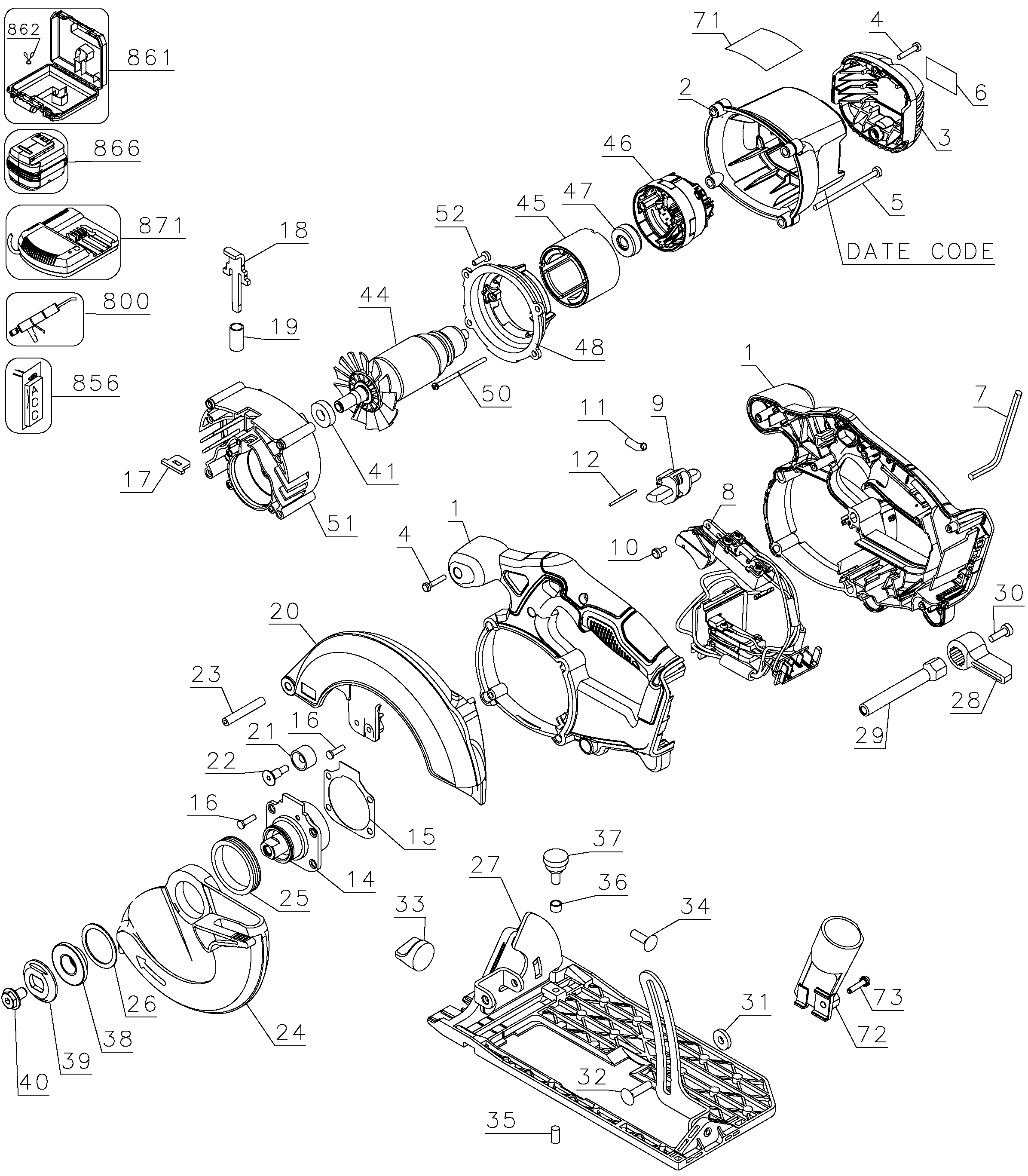

DCS391N CORDLESS CIRCULAR SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N064324 | 1 | CLAMSHELL SET | XJ | |||
| 2 | N054423 | 1 | MOTOR COVER | XJ | |||
| 3 | N173219 | 1 | END CAP | XJ |  |
||
| 4 | 330019-04 | 8 | SCREW | XJ | |
||
| 5 | 398987-00 | 4 | SCREW | XJ | |
||
| 6 | N094673 | 1 | BRAND LABEL | XJ | |
||
| 7 | 098000-11 | 1 | HEX KEY | XJ | |
||
| 8 | N414115 | 1 | SWITCH SA | DCS391 EU EMI 4P58 | XJ | |
|
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 10 | 330019-40 | 1 | SCREW | XJ | |
||
| 11 | 389120-00 | 1 | SPRING | XJ | |
||
| 12 | 388531-00 | 1 | PIN | XJ | |
||
| 14 | 659417-00SV | 1 | SPINDLE SA | XJ | |
||
| 15 | 605081-01 | 1 | GASKET | XJ | |
||
| 16 | 613783-00 | 8 | SCREW | XJ | |
||
| 17 | 605094-00 | 1 | WIPER | XJ | |
||
| 18 | 629444-00 | 1 | SPINDLE LOCK | XJ | |
||
| 19 | 058698-00 | 1 | SPRING | XJ | |
||
| 20 | N086228 | 1 | GUARD UPPER | XJ | |
||
| 21 | N248899 | 1 | BUMPER | XJ | |
||
| 22 | 610134-00 | 1 | SCREW | XJ | |
||
| 23 | 614048-00 | 1 | SPIROL PIN | XJ | |
||
| 24 | 611925-00 | 1 | GUARD LOWER | XJ | |
||
| 25 | N035365 | 1 | SPRING | XJ | |
||
| 26 | 150383-00 | 1 | RETAINER | XJ | |
||
| 27 | N491713 | 1 | SHOE SA | XJ | |
||
| 28 | 605105-00 | 1 | LEVER | XJ | |
||
| 29 | 618901-00 | 1 | SHAFT | XJ | |
||
| 30 | 330045-14 | 1 | SCREW | XJ | |
||
| 31 | N112241 | 1 | WASHER | XJ | |
||
| 32 | 098128-85 | 1 | CARRIAGE BOLT | XJ | |
||
| 33 | 395889-00 | 1 | KNOB | XJ | |
||
| 34 | N022876 | 1 | CARRIAGE BOLT | M6x1.0x25 NYLOCK | XJ | |
|
| 35 | 381069-00 | 1 | SCREW | XJ | |
||
| 36 | 058287-00 | 1 | SPRING | XJ | |
||
| 37 | 396992-02 | 1 | KNOB | MALE, 1/4-20 THD | XJ | |
|
| 38 | 610046-00 | 1 | WASHER INNER CLAMP | XJ | |
||
| 39 | N621119 | 1 | WASHER OUTER CLAMP | XJ | |
||
| 40 | 648697-00 | 1 | BLADE BOLT | XJ | |
||
| 41 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | XJ | |
|
| 44 | N415907 | 1 | ARMATURE SA | 4-Pole Motor | XJ | |
|
| 45 | N436044 | 1 | MAGNET | XJ | |
||
| 46 | N412223 | 1 | BRUSH HOLDER SA | XJ | |
||
| 47 | N330639 | 1 | BEARING,BALL | XJ | |
||
| 48 | N333139 | 1 | BAFFLE | XJ | |
||
| 50 | N389143 | 2 | SCREW | XJ | |
||
| 51 | N068175SV | 1 | GEARCASE SA | XJ | |
||
| 52 | 330045-45 | 4 | SCREW | XJ | |
||
| 71 | N408151 | 1 | RATING LABEL | DCS391 ty 2 | XJ | ||
| 72 | N104672 | 1 | DUST PORT | XJ | |
||
| 73 | N106370 | 1 | SCREW | M4 X 18 Cap Hd. | XJ | |
|
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | XJ | ||
| 856 | 381091-01 | 1 | GUIDE FENCE | metric | XJ | |
|
| 861 | N153976 | 1 | KITBOX | Not Incl. w/unit | XJ | |
|
| 862 | 605265-00 | 1 | SPRING CLIP | Not Incl. w/unit | XJ | |
