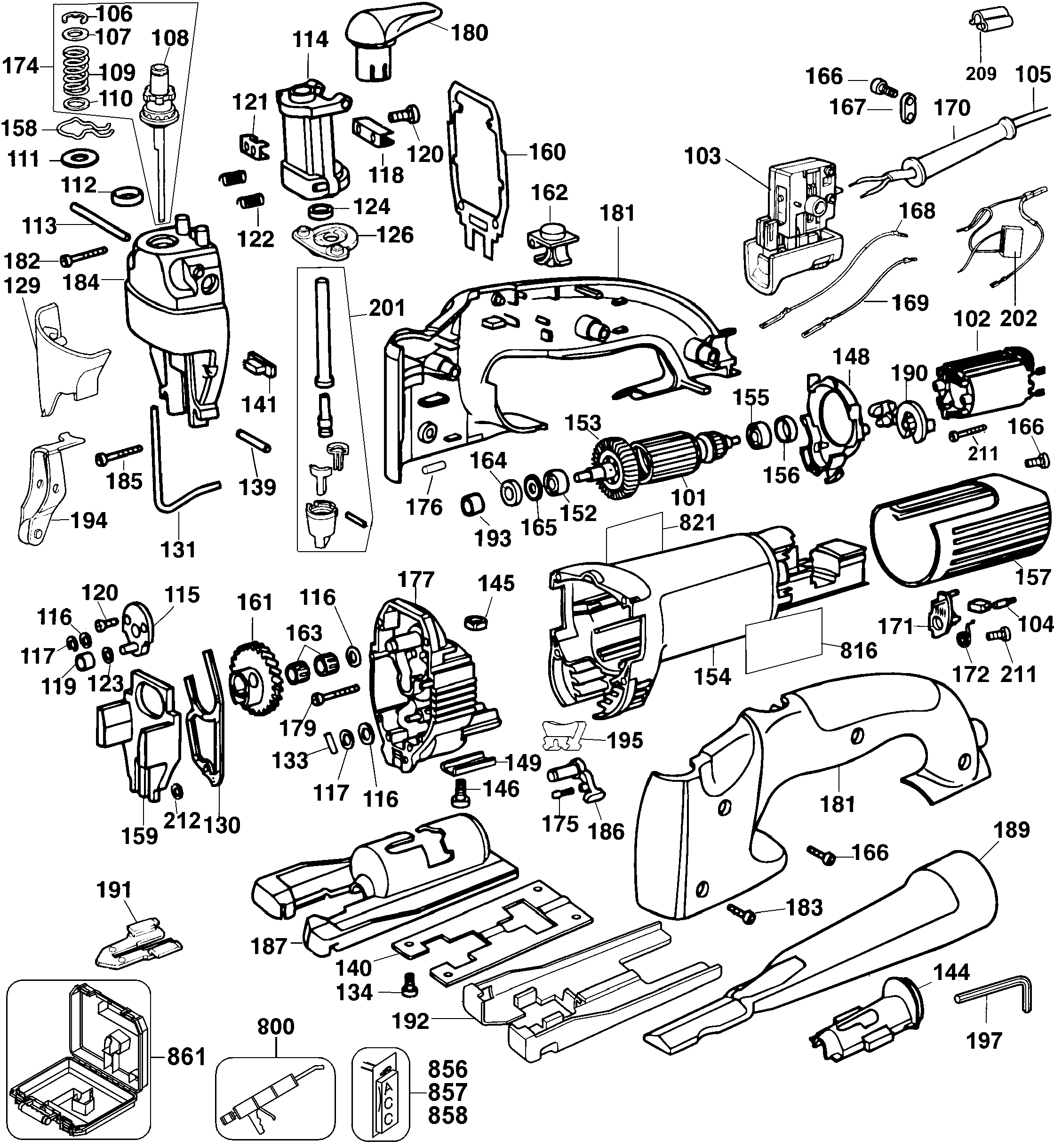

DW321K JIGSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 387658-02 | 1 | ARMATURE 115V | LX |  |
||
| 102 | 402051-01 | 1 | FIELD 115V | LX | |
||
| 103 | 402182-01 | 1 | SWITCH VARIABLE | LX | |
||
| 104 | 930897-00 | 2 | BRUSH 115-120V | LX | |
||
| 105 | 330061-04 | 1 | CORDSET (M/PLUG) | LX |  |
||
| 106 | 860322-01 | 1 | CIRCLIP | LX | |
||
| 107 | 606410-00 | 1 | WASHER | LX | |||
| 108 | 402960-00SV | 1 | CLUTCH | LX | |||
| 109 | 402110-00 | 1 | SPRING | LX | |
||
| 110 | 388957-00 | 1 | WASHER | LX | |
||
| 111 | 949876-21 | 1 | WASHER | LX | |
||
| 112 | 402154-00 | 1 | RUBBER | LX | |
||
| 113 | 402105-00 | 1 | PIN | LX | |
||
| 114 | 402153-00 | 1 | SUPPORT | LX | |
||
| 115 | 402161-00SV | 1 | ECCENTRIC SA | LX | |||
| 116 | 932302-00 | 3 | WASHER | LX | |
||
| 117 | 949728-04 | 2 | CIRCLIP | LX | |
||
| 118 | 402118-00 | 1 | YOKE | LX | |
||
| 119 | 402155-00 | 1 | BUSH | LX | |
||
| 120 | 603215-00 | 4 | SCREW.SPECIAL | TORX WITH LOCTITE | LX | |
|
| 121 | 399146-00 | 1 | CLAMP | LX | |
||
| 122 | 933524-00 | 2 | SPRING | LX | |
||
| 123 | 949876-20 | 1 | WASHER | LX | |
||
| 124 | 949400-00 | 1 | FELT | LX | |
||
| 126 | 402177-00 | 1 | SEAL SA | LX | |
||
| 129 | 389599-00 | 1 | SCREEN | LX | |
||
| 130 | 402097-00 | 1 | CAM | LX | |
||
| 131 | 402116-00 | 2 | GUARD | LX | |
||
| 133 | 330041-08 | 1 | PIN | LX | |
||
| 134 | 389235-00 | 4 | SCREW | M4 x 0.7 x 9.0mm T20 | LX | ||
| 139 | 330041-29 | 1 | PIN | LX | |
||
| 140 | 389652-01 | 1 | SOLE PLATE | LX | |
||
| 141 | 402151-00 | 1 | RUBBER | LX | |
||
| 144 | 402176-00 | 1 | ADAPTOR | LX | |
||
| 145 | 860310-00 | 1 | NUT | LX | |
||
| 146 | 390908-00 | 1 | SCREW | LX | |
||
| 148 | 388968-01 | 1 | BAFFLE | LX | |
||
| 149 | 402652-00 | 1 | PLATE | LX | |
||
| 152 | 330003-59 | 1 | BEARING | LX | |
||
| 153 | 176838-00 | 1 | FAN | LX | |
||
| 154 | 402059-03 | 1 | FIELDCASE | LX | |
||
| 155 | 330003-56 | 1 | BEARING | LX | |
||
| 156 | 930029-00 | 1 | HOLDER BEARING | LX | |
||
| 157 | 402186-03 | 1 | END CAP | LX | |
||
| 158 | 402111-00 | 1 | SPRING | LX | |
||
| 159 | 402098-00 | 1 | COUNTERWEIGHT | LX | |
||
| 160 | 402112-00 | 1 | GASKET | LX | |
||
| 161 | 611147-00 | 1 | GEAR SA | 46T | LX | |
|
| 162 | 402067-01 | 1 | BUTTON LOCK-ON | LX | |
||
| 163 | 330004-06 | 2 | BEARING NEEDLE | 14MM O.D. | LX | |
|
| 163 | 611147-00 | 2 | GEAR SA | 46T | LX | |
|
| 164 | 949400-03 | 1 | FELT | LX | |
||
| 165 | 402125-00 | 1 | COVER | LX | |
||
| 166 | 330065-07 | 6 | SCREW | LX | |
||
| 167 | 935616-00 | 1 | CORD CLAMP | LX | |
||
| 168 | 949801-90 | 1 | LEAD BLUE | LX | |
||
| 169 | 949801-93 | 1 | LEAD BLACK | LX | |
||
| 170 | 330005-01 | 1 | CORD PROTECTOR | LX | |||
| 171 | 949880-05 | 2 | BRUSH HOLDER SA | INCL. SPRING | LX | |
|
| 172 | 930090-00 | 2 | BRUSH SPRING | LX | |
||
| 173 | 330019-02 | 2 | SCREW | LX | |
||
| 174 | 402158-03SV | 1 | CLUTCH SA | LX | |
||
| 175 | 326467-00 | 2 | DETENT | LX | |
||
| 176 | 941374-01 | 1 | RUBBER | LX | |
||
| 177 | 387850-00 | 1 | GEARCASE SA | LX | |
||
| 179 | 930079-01 | 2 | SCREW | LX | |
||
| 180 | 402137-00SV | 1 | KNOB | LX | |
||
| 181 | 603477-00 | 1 | HANDLE SET | LX | |||
| 182 | 330045-09 | 2 | SCREW | M4x30 T20 MTLTHDFMG | LX | |
|
| 183 | 330045-06 | 2 | SCREW | LX | |
||
| 184 | 389870-02 | 1 | GEARCASE COVER | LX | |
||
| 185 | 930082-01 | 2 | SCREW | LX | |
||
| 186 | 329977-00 | 1 | LEVER | LX | |
||
| 187 | 389649-00 | 1 | SHOE | LX | |
||
| 189 | 402138-00 | 1 | TUBE | LX | |
||
| 190 | 329979-01 | 1 | LEVER | LX | |
||
| 191 | 402140-00 | 1 | ANTI SPLINTER DEVICE | LX | |
||
| 192 | 329982-00 | 1 | PLATE | LX | |
||
| 193 | 607973-00 | 1 | BUSHING | LX | |||
| 194 | 388577-00 | 1 | SUPPORT SA | LX | |
||
| 195 | 388911-00 | 1 | SUPPORT | LX | |
||
| 197 | 930574-00 | 1 | HEX KEY 5 MM | LX | |
||
| 201 | 948603-00SV | 1 | SPINDLE | LX | |
||
| 202 | 402655-00 | 1 | CAPACITOR | LX | |
||
| 209 | 403192-00 | 1 | CLIP CABLE | LX | |
||
| 211 | 330065-06 | 2 | SCREW | LX | |
||
| 212 | 609364-00 | 1 | SPACER | LX | |
||
| 220 | 429802-01 | 1 | REPAIR KIT | LX | |
||
| 221 | 429909-00 | 1 | REPAIR KIT | LX | |
||
| 222 | 326573-01 | 1 | SCREW WING | LX | |
||
| 223 | 868082-00 | 1 | SPRING | LX | |
||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | LX | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | LX | ||
| 816 | 946194-00 | 1 | BRAND LABEL | LX | |
||
| 821 | 387984-02 | 1 | NP:DW321L-XW T2 | LX | |||
| 861 | 393455-00 | 1 | KITBOX | LX |
