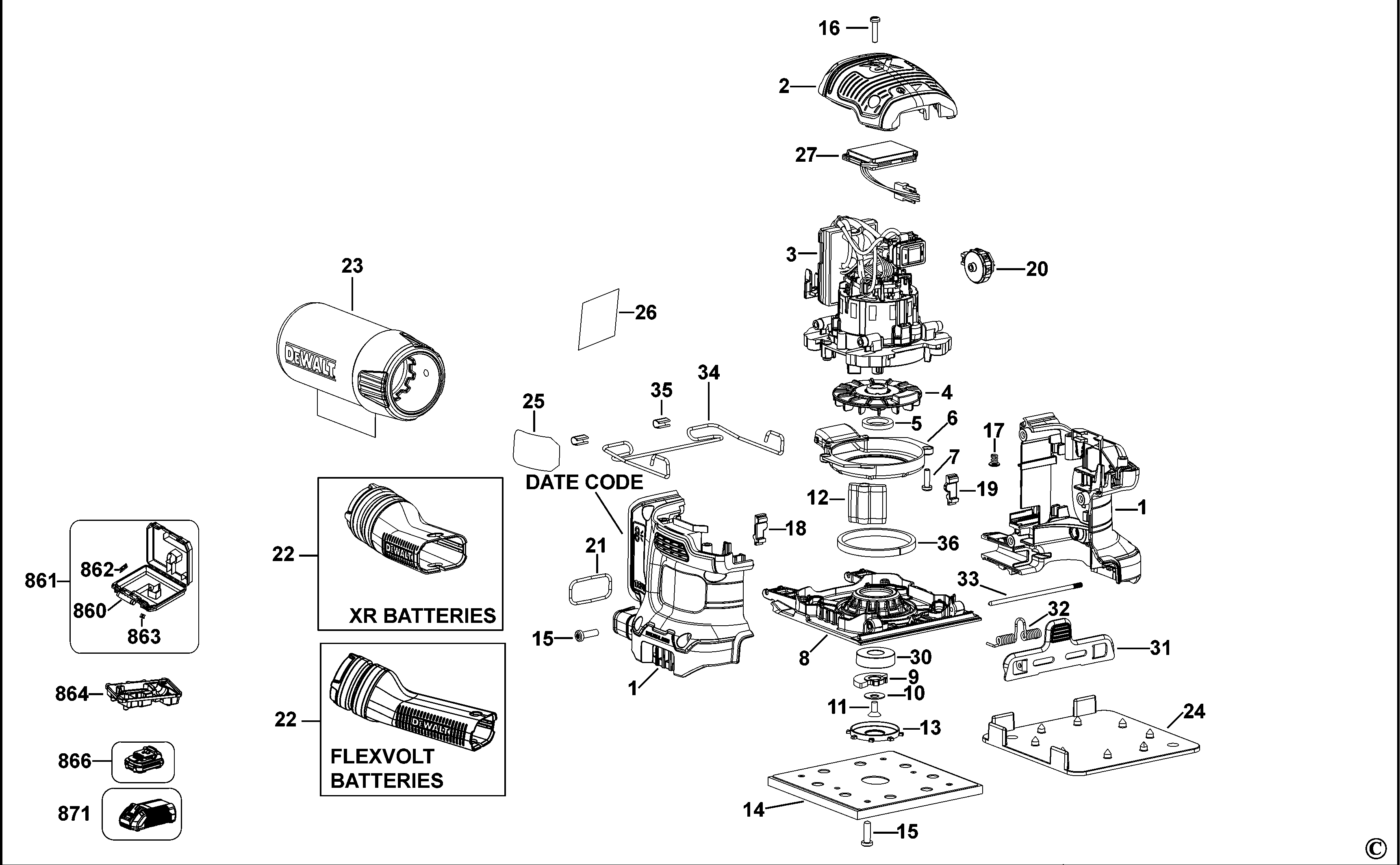

DCW200 RANDOM ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N697716 | 1 | CLAMSHELL SET | DCW200N | GB |  |
|
| 2 | N603948 | 1 | HOUSING TOP | DCW200N | GB | |
|
| 3 | N755561 | 1 | MOTOR SA | EU QS Sander | GB | ||
| 4 | N689070 | 1 | FAN | GB | |
||
| 5 | N416160 | 1 | SEAL | FAN | GB | |
|
| 6 | N596411 | 1 | BAFFLE FAN | GB | |
||
| 7 | 330019-02 | 2 | SCREW | GB | |
||
| 8 | N346319 | 1 | BASE | GB | |||
| 9 | N360702 | 1 | COUNTERWEIGHT | GB | |
||
| 10 | N345099 | 1 | WASHER | GB | |
||
| 11 | 098012-11 | 1 | SCREW | GB | |
||
| 12 | N472412 | 4 | LEG | Pckgd N389235 | GB | |
|
| 13 | N402677 | 1 | END CAP | GB | |
||
| 14 | N492998 | 1 | PAD SA | HOOK & LOOP | GB | |
|
| 15 | 330019-12 | 11 | SCREW | GB | |
||
| 16 | 330019-03 | 4 | SCREW | GB | |
||
| 17 | N453948 | 1 | SPRING | GB | |
||
| 18 | N239159 | 1 | BUMPER | GB | |
||
| 19 | N239160 | 1 | BUMPER | GB | |
||
| 20 | N581601 | 1 | SPEED REGULATOR | GB | |
||
| 21 | N129171 | 1 | O RING | GB | |
||
| 22 | N637726 | 1 | DUST PORT | SHORT | XR BATTERY | GB | |
| 23 | N273733 | 1 | DUST BAG SA | GB | |
||
| 24 | 144954-00 | 1 | PUNCH | GB | |
||
| 25 | N684722 | 1 | RATING PLATE | DCW200N | GB | |
|
| 26 | N684723 | 1 | LABEL | GB |  |
||
| 27 | N747818 | 1 | MODULE | GB | |
||
| 30 | 605040-24 | 1 | BEARING | GB | |
||
| 31 | N464703 | 1 | CLAMP | FRONT Pck'd N415395 | GB | |
|
| 32 | N360481 | 1 | SPRING | GB | |
||
| 33 | N396569 | 1 | PIN | GB | |
||
| 34 | N366359 | 1 | CLAMP | GB | |
||
| 35 | N369879 | 2 | CLIP | GB | |
||
| 36 | N372479 | 1 | SEAL | PLATEN | GB | |
|
| 860 | H1400196008 | 2 | HANDLE | DCW200P2-NT | GB | ||
| 861 | N279261 | 1 | KITBOX | DCW200P2-NT | GB | |
|
| 862 | H1500082520 | 2 | LATCH | DCW200P2-NT | GB | ||
| 863 | P910190 | 2 | LATCH | DCW200P2-NT | GB | |
|
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCW200P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | DCW200P2 | GB | |
