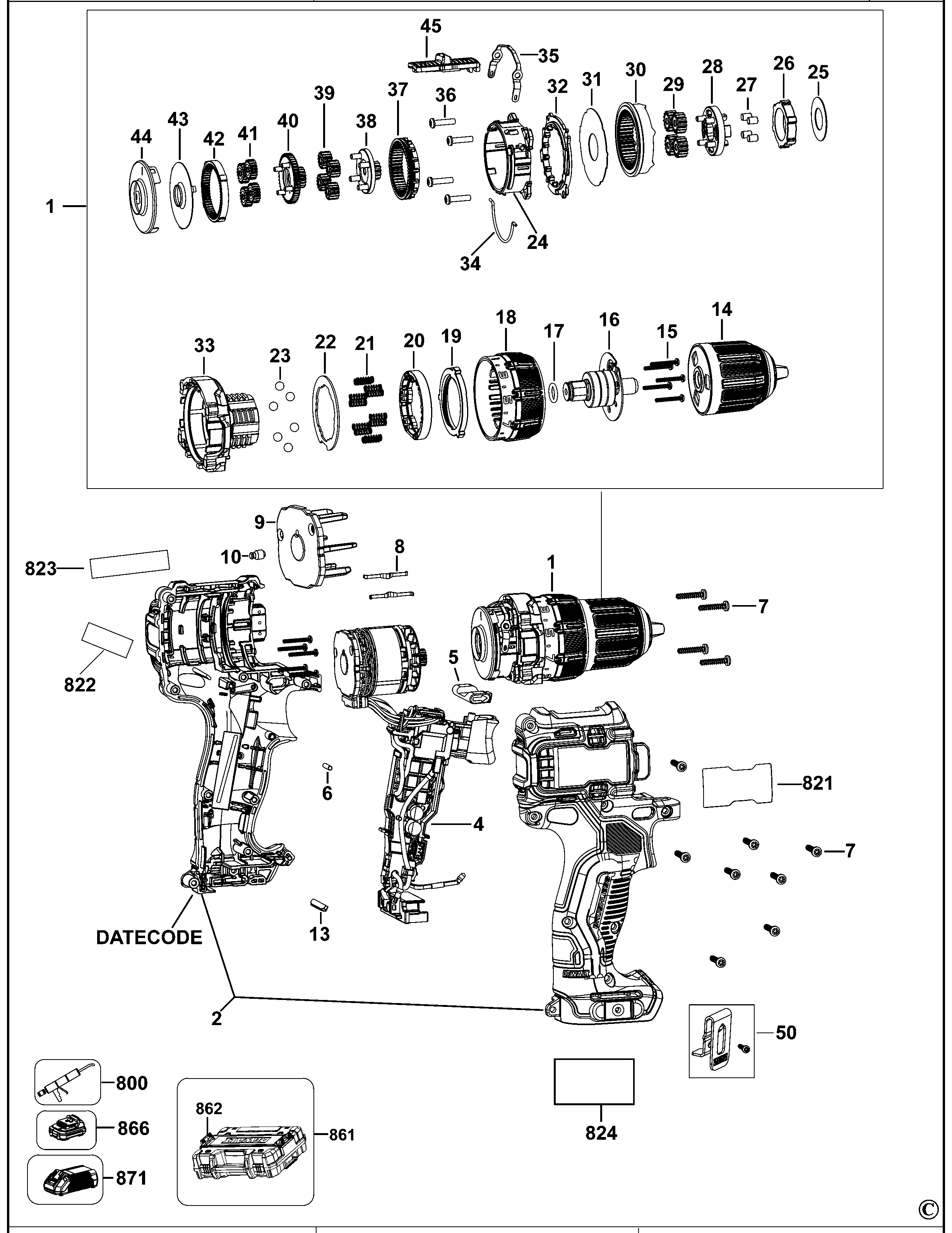

DCD701 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N681261 | 1 | TRANSMISSION SA | GB |  |
||
| 2 | N569260 | 1 | CLAMSHELL SET | GB | |
||
| 4 | N681272 | 1 | MOTOR & SWITCH SA | GB | |
||
| 5 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 6 | N071836 | 1 | ROLL PIN | GB | |
||
| 7 | N463678 | 12 | SCREW | GB | |
||
| 8 | N014681 | 2 | LEAF SPRING | GB | |
||
| 9 | N552144 | 1 | PLASTIC ADAPTOR | GB | |
||
| 10 | N593131 | 1 | PLUG | GB | |
||
| 13 | N660916 | 1 | PIN | GB | |
||
| 14 | N607312 | 1 | CHUCK KEYLESS | GB | |
||
| 15 | N039795 | 5 | SCREW | GB | |
||
| 16 | N681262 | 1 | SPINDLE SA | GB | |
||
| 17 | N638045 | 1 | O RING | GB | |
||
| 18 | N529547 | 1 | COLLAR | GB | |
||
| 19 | N527880 | 1 | ADJUSTER TORQUE | GB | |
||
| 20 | N527879 | 1 | SPRING | GB | |
||
| 21 | N527878 | 12 | SPRING | GB | |
||
| 22 | N527877 | 1 | WASHER | GB | |
||
| 23 | 386690-00 | 6 | BALL | STEEL, 5MM | GB | |
|
| 24 | N531638 | 1 | HOUSING | GB | |
||
| 25 | N527659 | 1 | WASHER LOCK | GB | |
||
| 26 | N543525 | 1 | LOCKING RING | GB | |
||
| 27 | N647513 | 4 | PIN | GB | |
||
| 28 | N681264 | 1 | CARRIER SA | GB | |
||
| 29 | N532276 | 4 | GEAR | GB | |
||
| 30 | N531435 | 1 | GEAR | GB | |
||
| 31 | N531627 | 1 | WASHER | GB | |
||
| 32 | N531634 | 1 | RING | GB |  |
||
| 33 | N527876 | 1 | HOUSING | GB | |
||
| 34 | N552206 | 1 | WIRE STEEL | GB | |
||
| 35 | N551526 | 1 | LINK | GB | |
||
| 36 | N075506 | 4 | SCREW | GB | |
||
| 37 | N531632 | 1 | GEAR | GB | |
||
| 38 | N681265 | 1 | CARRIER SA | GB | |
||
| 39 | N531633 | 4 | GEAR | GB | |
||
| 40 | N681266 | 1 | CARRIER SA | GB | |
||
| 41 | N531637 | 4 | GEAR | GB | |
||
| 42 | N549298 | 1 | GEAR | GB | |
||
| 43 | N550764 | 1 | WASHER | GB | |
||
| 44 | N549069 | 1 | PLATE | GB | |
||
| 45 | N702960 | 1 | SELECTOR SA | GB | |
||
| 50 | N702958 | 1 | HOOK SA | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 821 | N650894 | 1 | RATING PLATE | GB | |
||
| 822 | N658202 | 1 | LABEL | GB | |
||
| 823 | N658203 | 1 | BRAND LABEL | GB | |
||
| 824 | N665614 | 1 | LABEL | GB | |
||
| 861 | N614791 | 1 | KITBOX | GB | |
||
| 862 | H1500082008 | 2 | LATCH | GB | |||
| 866 | N757624 | 1 | BATTERY 12V-2AH-24WH | DCB122-XJ | DCD701D2 | GB | |
| 866 | N752771 | 1 | BATTERY 12V-3AH-36WH | DCB124-XJ | DCD701L2 | GB | |
| 871 | N394632 | 1 | CHARGER 10.8V - 18V | DCB112-GB - 2.0A | GB | |
