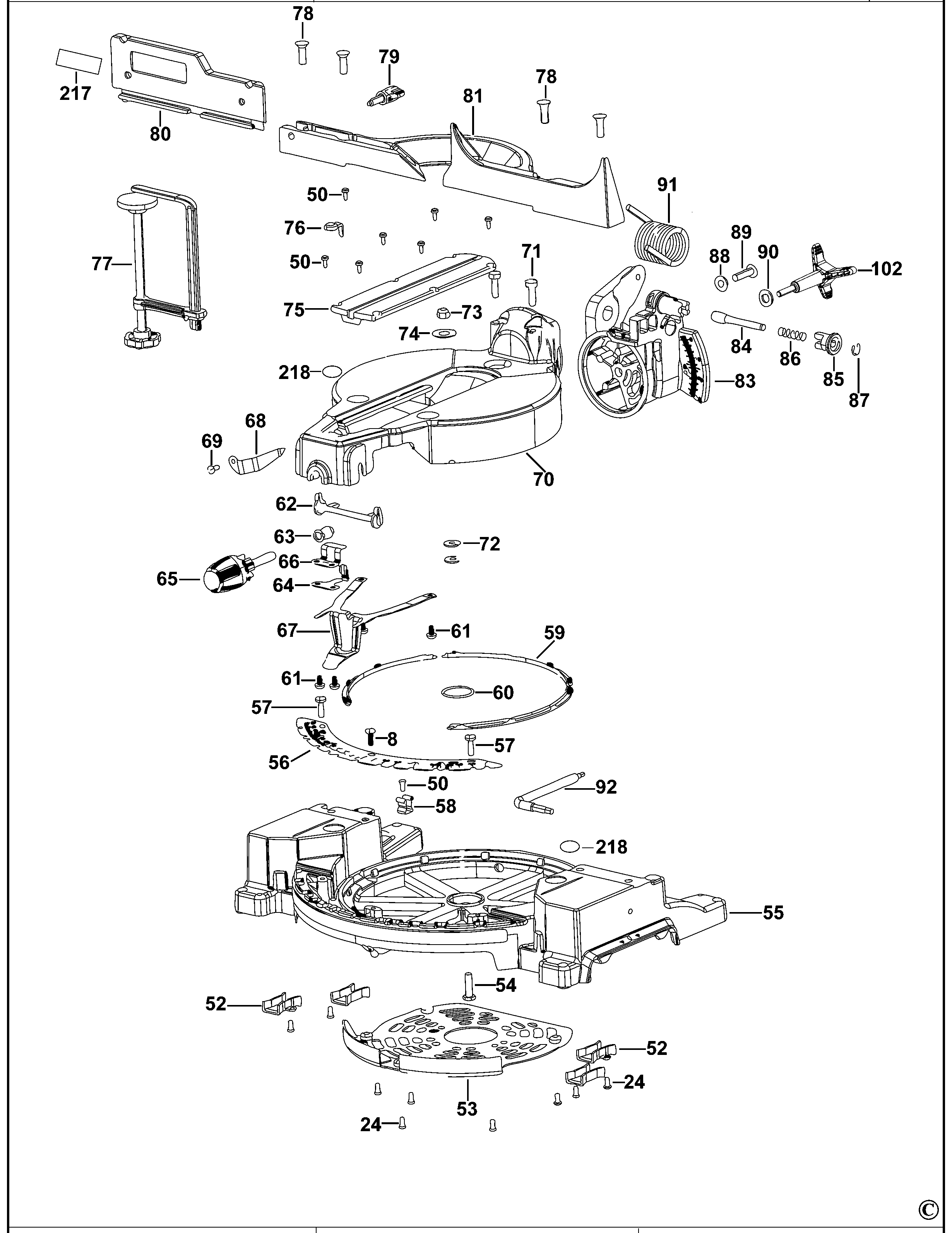

DWS713 MITRE SAW Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N298367 | 4 | SCREW | XJ |  |
||
| 2 | N643684 | 1 | GUARD LOWER | XJ | |
||
| 3 | N126157 | 1 | GUARD PLATE | XJ | |
||
| 4 | N041989 | 1 | PLATE | XJ | |
||
| 5 | 146750-01 | 1 | RETAINING PLATE | XJ | |
||
| 6 | 148295-00 | 1 | SLEEVE | XJ | |
||
| 7 | 146768-00 | 1 | BUMPER | XJ | |
||
| 8 | 330045-23 | 3 | SCREW | XJ | |
||
| 9 | 146774-00 | 1 | ROLLER | XJ | |
||
| 10 | 603232-00 | 1 | CIRCLIP | EXTERNAL | XJ | |
|
| 11 | 391630-00 | 1 | LINK | XJ | |
||
| 12 | 399042-00 | 1 | BUSHING | XJ | |
||
| 13 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | XJ | |
|
| 14 | 146740-01 | 1 | BUSH | XJ | |
||
| 15 | 398735-00 | 1 | SPRING | XJ |  |
||
| 16 | 145350-03 | 1 | BUTTON | XJ | |
||
| 17 | 146714-00 | 1 | LOCK | XJ | |
||
| 18 | 398736-00 | 1 | SPRING | XJ | |
||
| 19 | N542996 | 1 | WASHER INNER CLAMP | XJ | |
||
| 20 | N542995 | 1 | CLAMP OUTER | XJ | |
||
| 21 | N600011 | 1 | BLADE BOLT | XJ | |
||
| 22 | 391573-00 | 1 | GEARCASE COVER | XJ | |
||
| 23 | 392628-00 | 1 | SPINDLE & GEAR | XJ | |
||
| 24 | 330045-13 | 12 | SCREW | M5x0.8x10 MTL THDFMG | XJ | |
|
| 25 | 330003-29 | 1 | BEARING,BALL | XJ | |
||
| 26 | 391632-00 | 1 | GASKET | XJ | |
||
| 27 | 394589-01 | 2 | SCREW | XJ | |
||
| 28 | 330045-14 | 5 | SCREW | XJ | |
||
| 29 | 150075-00 | 2 | SCREW | XJ | |
||
| 30 | N377514 | 2 | BUSHING | XJ | |
||
| 31 | N126153 | 1 | PIVOT SHAFT | XJ | |
||
| 32 | 146732-00 | 2 | SPACER | XJ | |
||
| 33 | 153669-00 | 1 | CORD CLAMP | XJ | |
||
| 35 | N126158 | 1 | CHUTE | XJ | |
||
| 39 | 330019-12 | 1 | SCREW | XJ | |
||
| 40 | N555136 | 1 | HANDLE SA | XJ | |
||
| 41 | 330019-32 | 4 | SCREW | XJ | |
||
| 42 | 330045-08 | 4 | SCREW | XJ | |
||
| 43 | 330019-22 | 2 | SCREW | M5.74x32 | XJ | |
|
| 44 | 396375-01 | 1 | HANDLE | XJ | |
||
| 45 | 330019-11 | 2 | SCREW | M4.55x13 T20 | XJ | |
|
| 46 | N448947 | 2 | WASHER | XJ | |
||
| 47 | 614375-00 | 4 | SCREW | XJ | |
||
| 48 | N543000 | 1 | GUARD REAR | XJ | |
||
| 49 | 146710-00 | 1 | WIPER | XJ | |
||
| 50 | 330045-05 | 9 | SCREW | XJ | |
||
| 51 | N458834 | 4 | SCREW | 6-32 x 5.55mm | XJ | |
|
| 52 | N542847 | 4 | HOLDER | XJ | |
||
| 53 | N542842 | 1 | GUARD | XJ | |
||
| 54 | N058318 | 1 | SCREW | XJ | |
||
| 55 | N540816 | 1 | BASE | XJ | |
||
| 56 | N542798 | 1 | BEVEL SCALE | XJ | |
||
| 57 | 604410-00 | 1 | SCREW | XJ | |
||
| 58 | 391358-01 | 1 | HOLDER | XJ | |
||
| 59 | N571400 | 1 | PLATE | XJ | |
||
| 60 | 49787-00 | 1 | O RING | XJ | |
||
| 61 | 330045-22 | 4 | SCREW | M6X10, T30 | XJ | |
|
| 62 | N542735 | 1 | CAM | XJ | |
||
| 63 | N366384 | 1 | BUSHING | XJ | |
||
| 64 | N543960 | 1 | PLATE | XJ | |
||
| 65 | N542431 | 1 | KNOB SA | XJ | |
||
| 66 | N582377 | 1 | PLATE | XJ | |
||
| 67 | N542736 | 1 | DETENT | XJ | |
||
| 68 | 391631-00 | 1 | POINTER | XJ | |
||
| 69 | 153460-00 | 1 | SCREW | XJ | |
||
| 71 | N606924 | 2 | SCREW | M8 X 1.25 X 25 | XJ | |
|
| 72 | 153792-00 | 2 | WASHER | XJ | |
||
| 73 | 330021-02 | 1 | NUT | XJ | |
||
| 74 | N556926 | 1 | CAP | XJ | |
||
| 75 | N542862 | 1 | COVERPLATE | XJ | |
||
| 76 | N542738 | 1 | POINTER | XJ | |
||
| 77 | N543041 | 1 | CLAMP SA | XJ | |
||
| 78 | 098105-03 | 4 | SCREW | XJ | |
||
| 79 | N480602 | 1 | KNOB SA | XJ | |
||
| 80 | N646419 | 1 | FENCE SA | INCL 217 | XJ | |
|
| 81 | N542430 | 1 | FENCE | XJ | |
||
| 83 | N542888 | 1 | TRUNNION | XJ | |
||
| 84 | N562266 | 1 | PIN | XJ | |
||
| 85 | N562268 | 1 | KNOB | XJ | |
||
| 86 | N562267 | 1 | SPRING | XJ | |
||
| 87 | 624038-00 | 1 | RETAINER | EXTERNAL | XJ | |
|
| 88 | 330016-13 | 1 | WASHER | XJ | |
||
| 89 | 612008-00 | 1 | SCREW | XJ | |
||
| 90 | 330016-04 | 1 | WASHER | XJ | |
||
| 91 | N639012 | 1 | SPRING | XJ | |
||
| 92 | N600007 | 1 | SPANNER | XJ | |
||
| 94 | 330003-13 | 1 | BEARING | XJ | |
||
| 96 | 605040-06 | 1 | BEARING,BALL | XJ | |
||
| 98 | 614368-00 | 2 | BRUSH CAP | XJ | |
||
| 100 | N171521 | 1 | END CAP | XJ | |
||
| 102 | N542863 | 1 | KNOB SA | XJ | |
||
| 104 | 701297-00 | 1 | SEAL | XJ | |
||
| 106 | 393868-00 | 1 | ADAPTOR | XJ | |
||
| 120 | 003618-00 | 1 | CORD CLAMP | XJ | |
||
| 122 | 388414-01 | 1 | BUSH | XJ | |
||
| 125 | N625165 | 1 | BRAND LABEL | XJ | |
||
| 126 | 330005-02 | 1 | CORD PROTECTOR | XJ | |
||
| 207 | 614366-00 | 1 | BAFFLE FAN | XJ | |
||
| 217 | N497365 | 1 | WARNING LABEL | XJ | |
||
| 218 | 394976-00 | 4 | LABEL | WARNING | XJ | |
|
| 237 | 393520-00 | 1 | TERMINAL BLOCK | XJ | |
||
| 300 | N627027 | 1 | BRAND LABEL | XJ | |
||
| 800 | 93488-00 | 1 | GREASE | XJ | |
||
| 800 | 5140061-28 | 1 | GREASE | XJ | |
