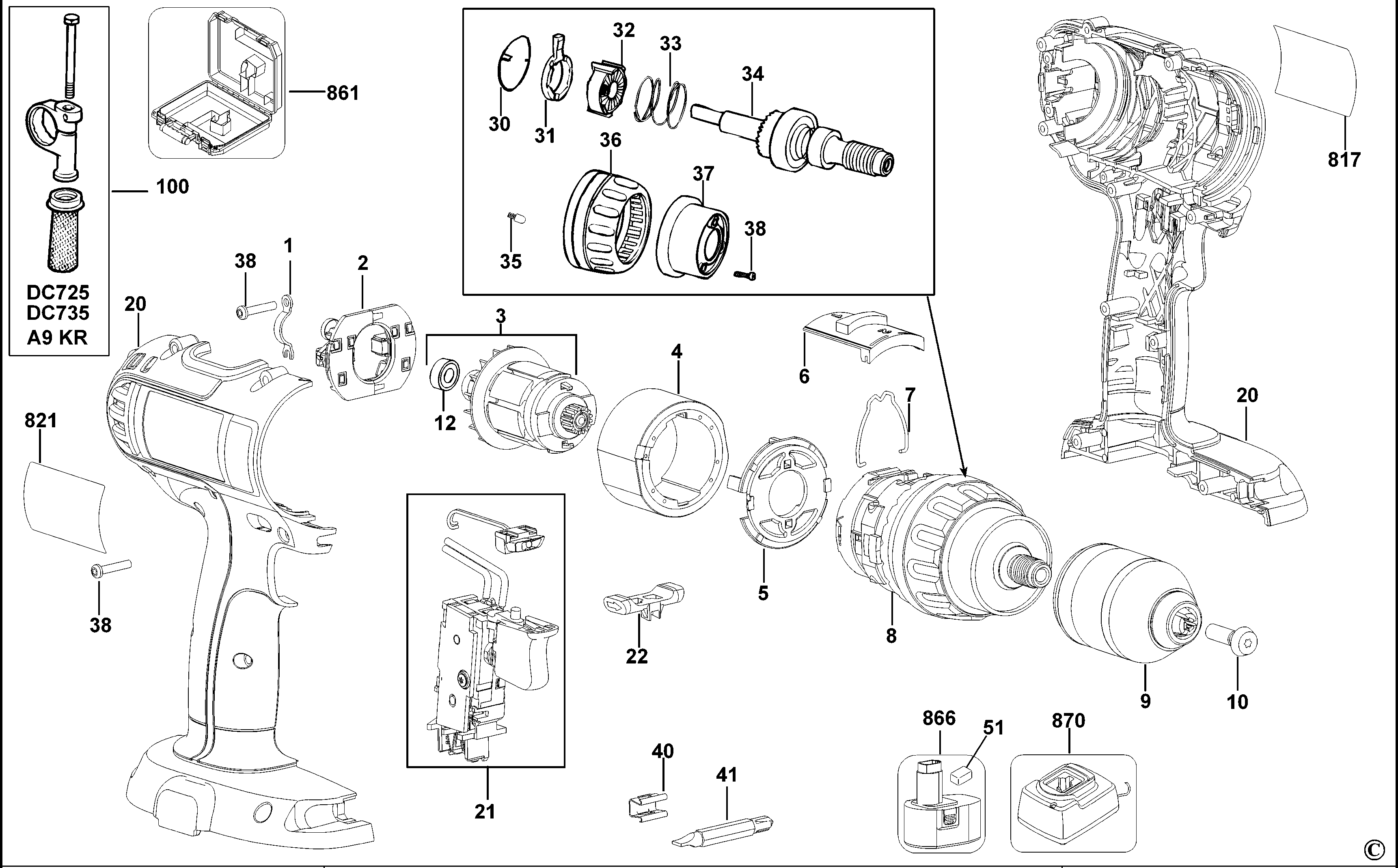

DC725K CORDLESS DRILL Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 645373-00 | 1 | CLAMP | GB |  |
||
| 2 | 1007801-00 | 1 | BRUSH & PLATE | GB | |
||
| 3 | 1007802-00 | 1 | ARMATURE SA | GB | |
||
| 4 | 1007805-00 | 1 | MAGNET SA | GB |  |
||
| 5 | 632733-00 | 1 | ADAPTOR | GB | |
||
| 6 | 656309-00 | 1 | SLIDER | GB | |
||
| 7 | 391896-00 | 1 | SPRING CLIP | GB | |
||
| 8 | 1007806-00 | 1 | TRANSMISSION SA | GB | |
||
| 9 | 330075-86 | 1 | CHUCK KEYLESS | GB | |
||
| 10 | 605256-02 | 1 | SCREW | GB | |
||
| 12 | N110357 | 1 | BEARING | GB | |
||
| 20 | 1007811-00 | 1 | HOUSING PAIR | GB | |
||
| 21 | N076359 | 1 | SWITCH SA | GB | |
||
| 22 | 642891-00 | 1 | REVERSER | GB | |
||
| 30 | 643139-00 | 1 | SPRING | GB | |
||
| 31 | N104679 | 1 | RATCHET | GB | |
||
| 32 | 643132-00 | 1 | WHEEL RATCHET | GB | |
||
| 33 | 646476-00 | 1 | SPRING COMPRESSION | GB | |
||
| 34 | 1007817-00 | 1 | SPINDLE SA | GB | |
||
| 35 | 326467-00 | 2 | DETENT | GB | |
||
| 36 | N007429 | 1 | COLLAR SA | GB | |
||
| 36 | N007429 | 1 | COLLAR SA | GB | |
||
| 37 | 656057-00 | 1 | END CAP | GB | |
||
| 38 | 682211-00 | 12 | SCREW | GB | |
||
| 40 | 148354-03 | 1 | HOLDER | GB | |
||
| 41 | 297757-02 | 1 | BIT PHILLIPS | GB | |
||
| 51 | 645221-00 | 1 | CAP | GB | |
||
| 817 | 650190-00 | 1 | IDENTITY LABEL | GB | |
||
| 821 | N044715 | 1 | RATING PLATE | GB | |
||
| 861 | 652211-01 | 1 | KITBOX | GB | |
||
| 866 | 1006623-00 | 2 | BATTERY 18V - 2.0AH - 36WH | DC725KA | GB | |
|
| 866 | 1006623-00 | 3 | BATTERY 18V - 2.0AH - 36WH | DC725KAV | GB | |
|
| 866 | 1006628-00 | 2 | BATTERY 18V - 2.6AH | DC725KB | GB | |
|
| 870 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
