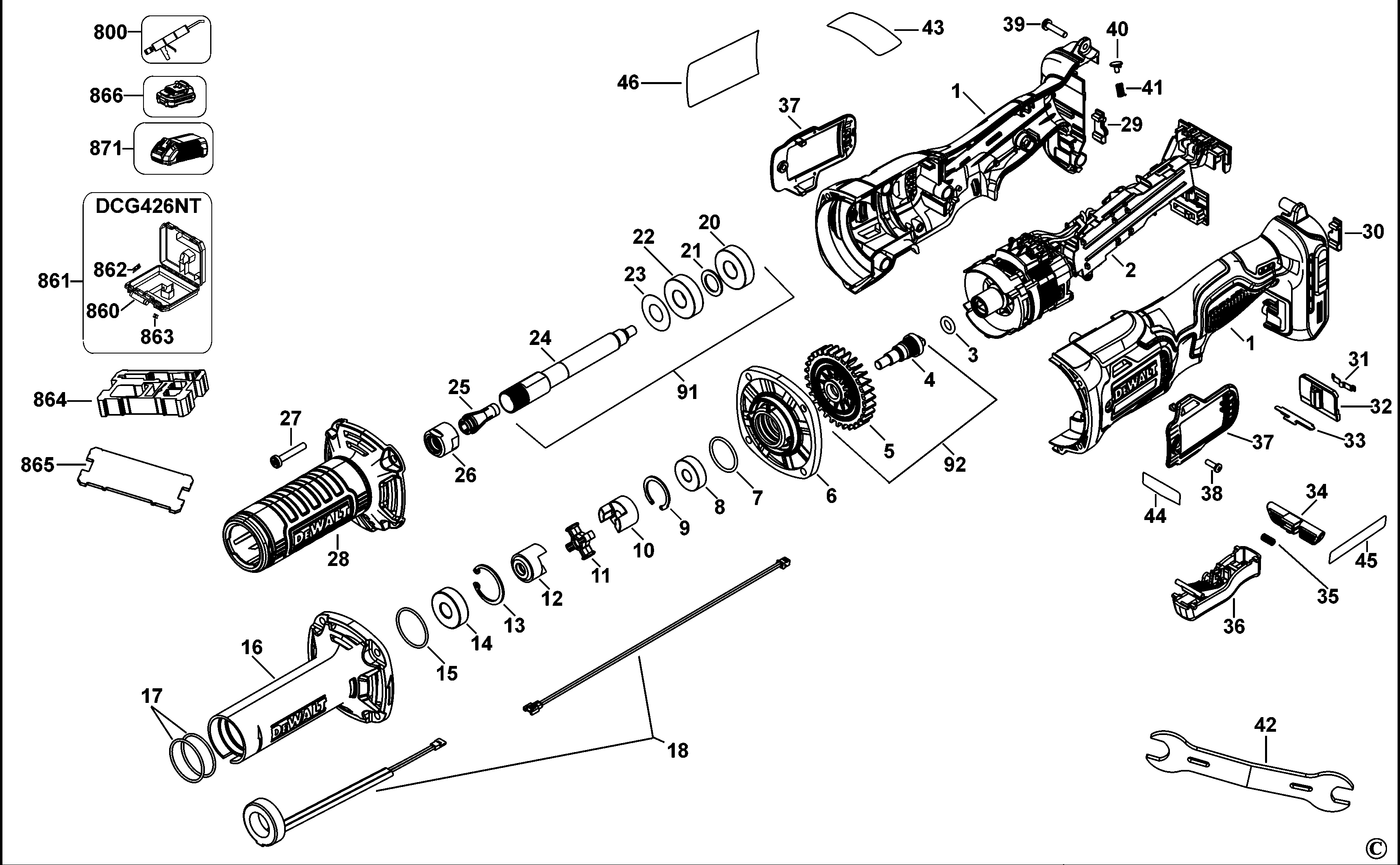

DCG426 DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N464397 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | N545146 | 1 | MOTOR SA | 18V BRUSHLESS | GB |  |
|
| 3 | N511068 | 1 | O RING | GB | |
||
| 4 | N480257 | 1 | SHAFT | GB | |
||
| 5 | N349500 | 1 | FAN | GB | |
||
| 6 | N283650 | 1 | STATOR | GB | |
||
| 7 | N119639 | 1 | O RING | GB | |
||
| 8 | N175104 | 1 | BEARING | GB | |
||
| 9 | N286522 | 1 | RING | GB | |
||
| 10 | N275349 | 1 | COUPLING | GB | |
||
| 11 | N275347 | 1 | DRIVER | GB | |
||
| 12 | N275349 | 1 | COUPLING | GB | |
||
| 13 | N184706 | 1 | RETAINER | GB | |
||
| 14 | 605040-17 | 1 | BEARING BALL | GB | |
||
| 15 | N308579 | 1 | O RING | GB | |
||
| 16 | N490647 | 1 | NOSE | GB | |
||
| 17 | N398026 | 2 | O RING | GB | |
||
| 18 | N494120 | 1 | LED LIGHT | GB | |||
| 20 | 878190 | 1 | BEARING | GB | |
||
| 21 | N403100 | 1 | WASHER | GB | |
||
| 22 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 23 | 638229-00 | 1 | WASHER | GB | |
||
| 24 | N499547 | 1 | OUTPUT SHAFT | GB | |
||
| 25 | N382457 | 1 | COLLET | GB | |
||
| 26 | N382458 | 1 | NUT | GB | |
||
| 27 | N354900 | 4 | SCREW | GB | |
||
| 28 | N489771 | 1 | COVER | GB | |||
| 29 | N438438 | 1 | INSERT | GB | |
||
| 30 | N438439 | 1 | INSERT | GB | |
||
| 31 | N599474 | 1 | DETENT | GB | |
||
| 32 | N046201 | 1 | SELECTOR | GB | |
||
| 33 | N467560 | 1 | PLATE | GB | |
||
| 34 | N464399 | 1 | BUTTON LOCK-OFF | GB | |
||
| 35 | N165498 | 1 | SPRING | GB | |
||
| 36 | N368300 | 1 | TRIGGER | GB | |
||
| 37 | N486699 | 2 | COVER | GB | |
||
| 38 | N042665 | 2 | SCREW | GB | |
||
| 39 | 330019-03 | 7 | SCREW | GB | |
||
| 40 | N122099 | 1 | BLOCK | GB | |
||
| 41 | N461735 | 1 | SPRING | GB | |
||
| 42 | N332459 | 2 | SPANNER | GB | |
||
| 43 | N306579 | 1 | LABEL | GB | |
||
| 44 | N504130 | 1 | LABEL | GB | |
||
| 45 | N504129 | 1 | BRAND LABEL | 18V | GB | |
|
| 46 | N514690 | 1 | RATING PLATE | EURO | GB | ||
| 91 | N523773 | 1 | OUTPUT SHAFT SA | GB | |
||
| 92 | N523943 | 1 | FAN SA | GB | |
||
| 860 | H1400196008 | 1 | HANDLE | GB | |||
| 861 | N279261 | 1 | KITBOX | GB | |
||
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 864 | N499331 | 1 | INSERT | GB | |
||
| 865 | N483180 | 1 | INSERT | GB | |
||
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCG426-M2 | GB | |
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCG426-P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
