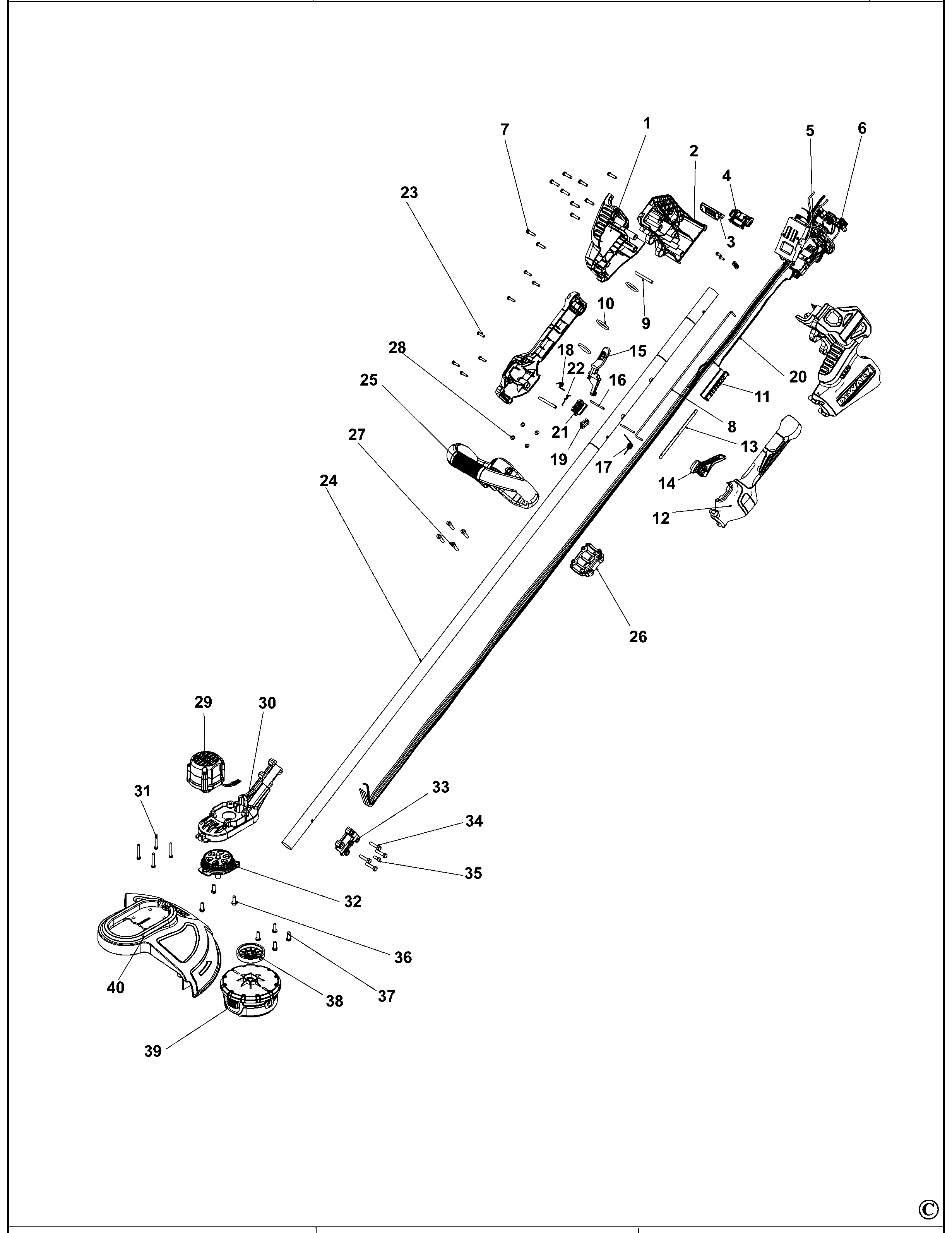

DCST5812N STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N534516 | 1 | HOUSING SA | XJ |  |
||
| 2 | N512888 | 1 | TERMINAL SA | XJ | |
||
| 3 | 90606556 | 1 | BUTTON | XJ | |
||
| 4 | 90632550 | 1 | LATCH | SA | XJ | |
|
| 5 | N528885 | 1 | MODULE | XJ | |
||
| 6 | 90629425 | 2 | SPRING | XJ |  |
||
| 7 | 90614124-02 | 10 | SCREW | XJ | |
||
| 8 | 90599031 | 1 | SWITCH | XJ | |
||
| 9 | 90608944 | 2 | PIN | XJ | |
||
| 10 | 90602632 | 3 | RUBBER | XJ | |
||
| 11 | 90603845 | 1 | COVER | XJ | |
||
| 12 | N545765 | 1 | HANDLE SA | XJ | |
||
| 13 | 90609633 | 1 | COVER | XJ | |
||
| 14 | 90599030 | 1 | TRIGGER | XJ | |
||
| 15 | 90623756 | 1 | ACTUATOR | XJ | |
||
| 16 | 90608942 | 2 | PIN | XJ | |
||
| 17 | 90602634 | 1 | SPRING | XJ | |
||
| 18 | 90602633 | 1 | SPRING | XJ | |
||
| 19 | 90600458 | 1 | SWITCH | XJ | |
||
| 20 | 90608663 | 1 | HARNESS | WIRE | XJ | |
|
| 21 | 90608663 | 1 | HARNESS | WIRE | XJ | |
|
| 22 | N014681 | 1 | LEAF SPRING | XJ | |
||
| 23 | 90614124-05 | 7 | SCREW | XJ | |
||
| 24 | N535315 | 1 | TUBE SA | XJ | |
||
| 25 | 90626610-01 | 1 | HANDLE SA | XJ | |
||
| 26 | 90626615 | 1 | CLAMP | XJ | |
||
| 27 | 90614038 | 4 | SCREW | XJ | |
||
| 28 | 330016-15 | 4 | WASHER | XJ | |
||
| 29 | N535258 | 1 | MOTOR SA | XJ | |
||
| 30 | 90613424SV | 1 | GEARCASE SA | XJ | |
||
| 31 | 330019-15 | 4 | SCREW | XJ | |
||
| 32 | 90615764SV | 1 | GEAR CASE SA | XJ | |
||
| 33 | N534586 | 1 | CLAMP | XJ | |
||
| 34 | 90614124-04 | 4 | SCREW | XJ | |
||
| 35 | 90614124-07 | 1 | SCREW | M4.55X13 T20 | XJ | |
|
| 36 | 90614124-06 | 3 | SCREW | XJ | |
||
| 37 | 90614124-06 | 4 | SCREW | XJ | |
||
| 38 | 90607066 | 1 | SPINDLE LOCK | XJ | |
||
| 39 | N508388 | 1 | SPOOL SA | XJ | |
||
| 40 | 90624364 | 1 | GUARD 13" | XJ | |
||
| 800 | N553953 | 1 | RATING LABEL | XJ | |
