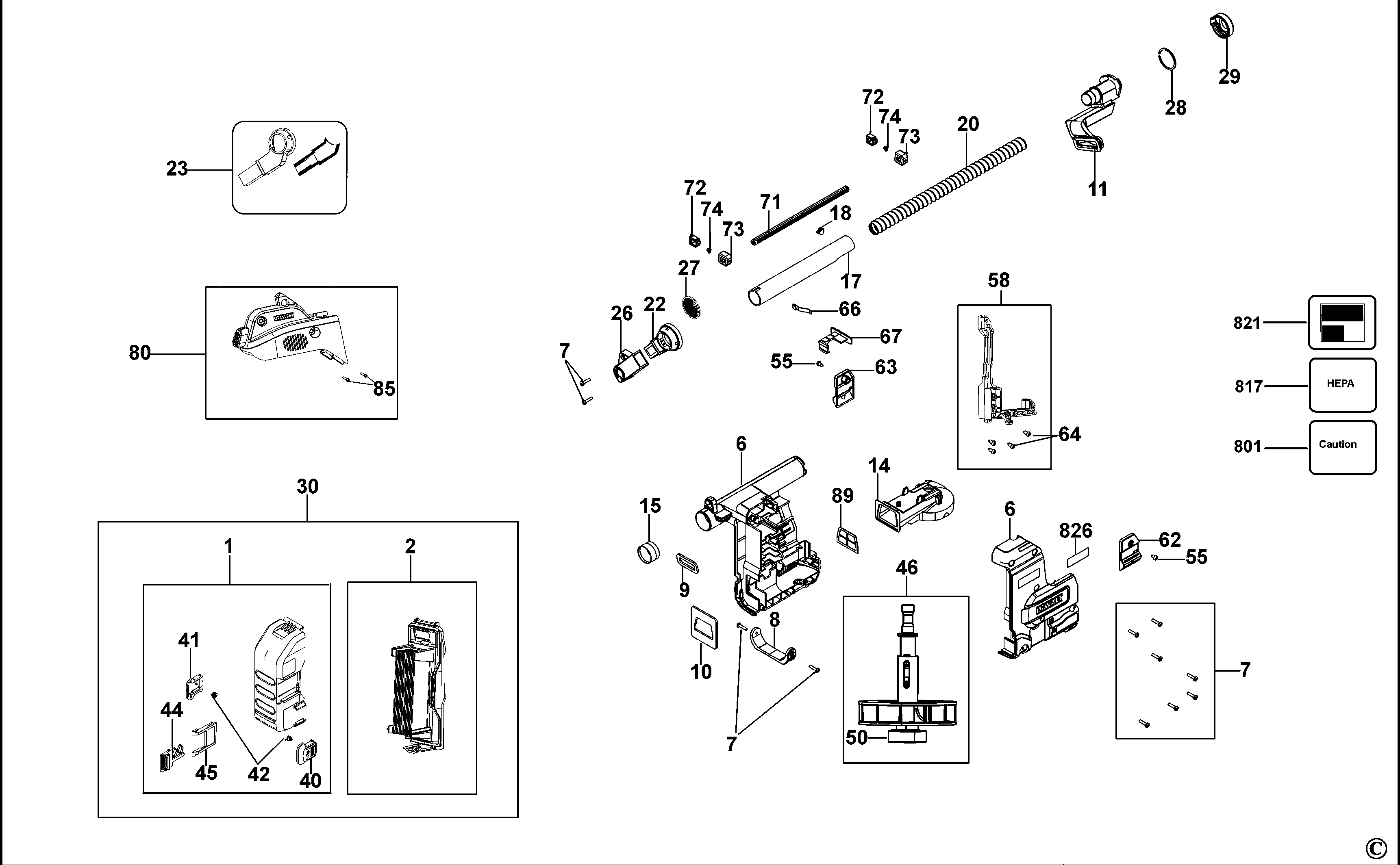

D25304DH DUST EXTRACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N548032 | 1 | CANISTER | + Buttons | XJ |  |
|
| 2 | N548037 | 1 | FILTER SA | XJ | |
||
| 6 | N442601 | 1 | CLAMSHELL | Pair | XJ | |
|
| 7 | 330065-08 | 11 | SCREW | M4x18 T20 | XJ | |
|
| 8 | N406485 | 1 | CLAMP | XJ | |
||
| 9 | N416875 | 1 | SEAL | XJ | |
||
| 10 | N466814 | 1 | SEAL | Air Out | XJ | |
|
| 11 | N483828 | 1 | HOUSING SA | Airduct | XJ | |
|
| 14 | N451316 | 1 | TUBE EXTRACTION | XJ | |
||
| 15 | N484262 | 1 | TUBE | Telescope Alignment | XJ | |
|
| 17 | N483936 | 1 | TUBE | XJ | |
||
| 18 | N388456 | 1 | INSERT | XJ | |
||
| 20 | N404443 | 1 | TUBE | XJ | |
||
| 22 | N515831 | 1 | HEAD SA | EXTRACTION | XJ | |
|
| 23 | N490675 | 2 | HEAD SA | XJ | |
||
| 26 | N515926 | 1 | HOLDER | XJ | |
||
| 27 | N490104 | 1 | BRUSH | XJ | |
||
| 28 | N414801 | 1 | CIRCLIP | XJ | |
||
| 29 | N489938 | 1 | END CAP | Rubber | XJ | |
|
| 30 | N501619 | 1 | FILTER SA | Dustbox | XJ | |
|
| 40 | N398724 | 1 | LATCH | Left | XJ | |
|
| 41 | N398726 | 1 | LATCH | Right | XJ | |
|
| 42 | N440706 | 2 | SPRING | XJ | |
||
| 44 | N511561 | 1 | BUTTON | XJ | |
||
| 45 | N511562 | 1 | FRAME | XJ | |
||
| 46 | N453707 | 1 | FAN SA | inc Bearing | XJ | |
|
| 50 | N103974 | 1 | BEARING | XJ | |||
| 55 | 330065-05 | 2 | SCREW | XJ | |
||
| 58 | N482839 | 1 | EJECTOR | XJ | |
||
| 62 | N466560 | 1 | BUTTON | Right | XJ | |
|
| 63 | N453649 | 1 | BUTTON | Left | XJ | |
|
| 64 | 330065-06 | 4 | SCREW | XJ | |
||
| 66 | N466460 | 1 | SPRING | Flat | XJ | |
|
| 67 | N460229 | 1 | RELEASE | XJ | |
||
| 71 | N486724 | 1 | ADJUSTER | XJ | |
||
| 72 | 580261-00 | 2 | KNOB | XJ | |
||
| 73 | 580262-00 | 2 | HOUSING | XJ | |
||
| 74 | 584458-00 | 2 | SPRING | XJ | |
||
| 80 | N457480 | 1 | ADJUSTER HEIGHT | XJ | |
||
| 85 | 330065-35 | 2 | SCREW | XJ | |
||
| 89 | N511177 | 1 | FILTER | XJ | |
||
| 801 | N517523 | 1 | WARNING LABEL | Filter Caution | XJ | |
|
| 817 | N517844 | 1 | LABEL | Hepa | XJ | |
|
| 821 | N522988 | 1 | RATING LABEL | XJ | |
||
| 826 | N196274 | 1 | LABEL | PERFORM & PROTECT | XJ | |
