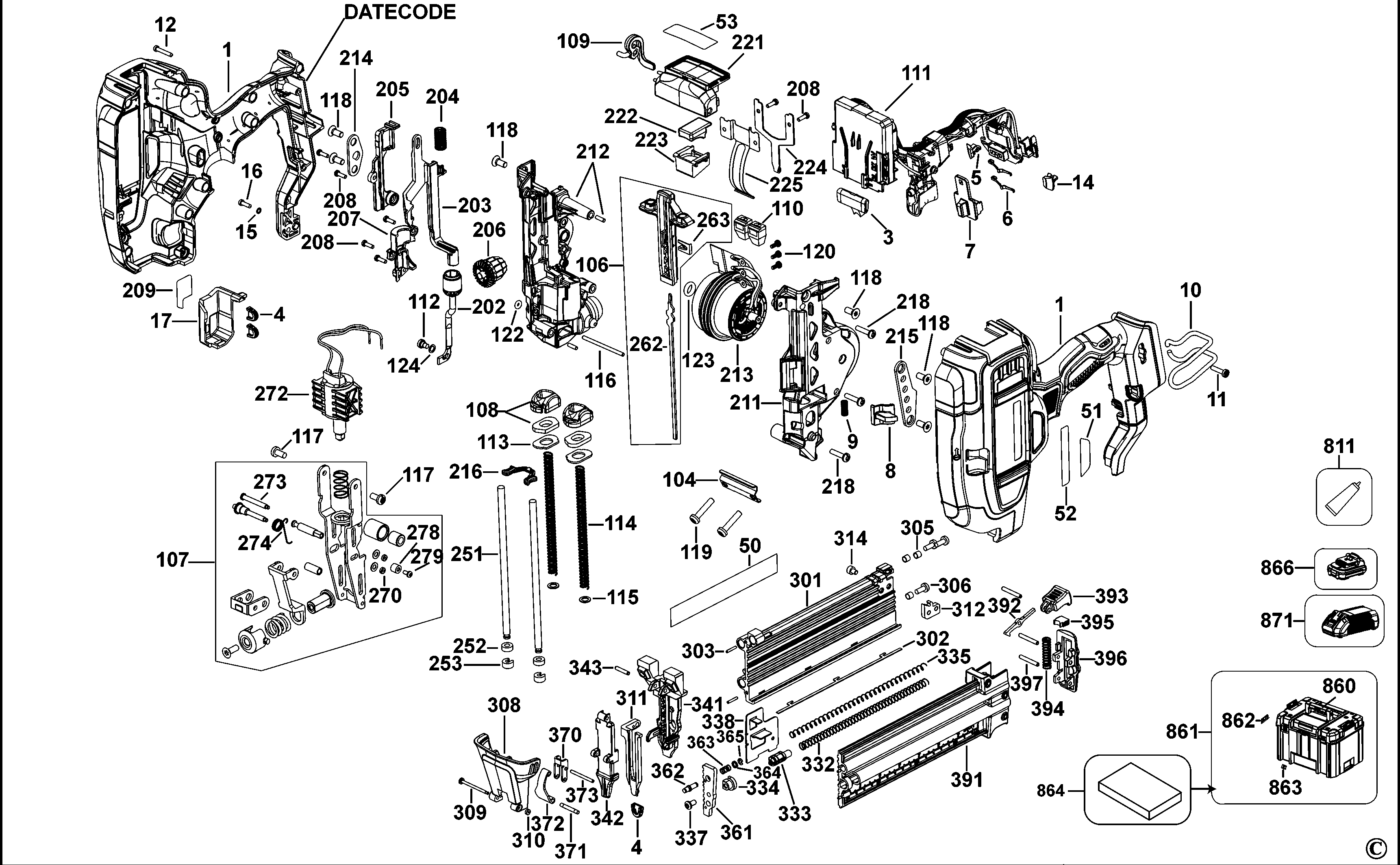

DCN680 BRAD NAILER 18 GAUGE Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N530570 | 1 | CLAMSHELL SET | DCN680 | XJ |  |
|
| 3 | N468738 | 1 | BUTTON LOCK-OFF | XJ |  |
||
| 4 | N569446 | 3 | NO MAR TIP | PZL | XJ | |
|
| 5 | N471571 | 1 | LENS | RIGHT | XJ | |
|
| 6 | N388602 | 2 | LEAF SPRING | XJ | |
||
| 7 | N466948 | 1 | SELECTOR | 18 Gauge | XJ | |
|
| 8 | N505465 | 1 | BUTTON RELEASE | STALL RELEASE | XJ | |
|
| 9 | N411486 | 1 | SPRING COMPRESSION | XJ | |
||
| 10 | N410943 | 1 | HOOK | XJ | |
||
| 11 | 330019-52 | 1 | SCREW | XJ | |
||
| 12 | 330019-24 | 12 | SCREW | XJ | |
||
| 14 | N468840 | 1 | LENS | LEFT | XJ | |
|
| 15 | 180504 | 1 | WASHER | ID 4.30 x OD 8.0 x 1.00 Black Oxide | XJ | ||
| 16 | 174069 | 1 | SCREW | XJ | |
||
| 17 | N468112 | 1 | SHROUD | DEPTH ADJUST | XJ | |
|
| 50 | N836170 | 1 | RATING LABEL | XJ | |||
| 51 | N496807 | 1 | LABEL | "FLYWHEEL" 18 Ga. | XJ | |
|
| 52 | N502011 | 1 | LABEL | 18V XR Brushless | XJ | |
|
| 53 | N515515 | 1 | LABEL | REAR 18 Ga. | XJ | |
|
| 104 | N465881 | 1 | PLATE | XJ | |
||
| 106 | N531786 | 1 | DRIVER SA | XJ | |
||
| 107 | N568371 | 1 | CARRIAGE SA | w/o Solenoid | XJ | |
|
| 108 | N446577 | 2 | SERVICE KIT | XJ | |
||
| 109 | N532613 | 1 | ACTUATOR | XJ | |
||
| 110 | 650974-00 | 2 | CONNECTOR | XJ | |
||
| 112 | N499064 | 1 | SCREW | M4 x 0.7P x 6mm T20 | XJ | |
|
| 113 | N376891 | 2 | PLATE | XJ | |
||
| 114 | N446578 | 1 | SPRING | x2 | XJ | |
|
| 115 | N383361 | 2 | WASHER | XJ | |
||
| 116 | N410969 | 1 | PIN | 3x50.5 | XJ | |
|
| 117 | N491757 | 2 | SCREW | M4 x 10mm T20 Pan Hd | XJ | |
|
| 118 | N386788 | 10 | SCREW | M5x12, MAGFORM | XJ | |
|
| 119 | N383360 | 2 | SCREW | M5x24 PAN HD MAGFORM | XJ | |
|
| 120 | N403241 | 3 | SCREW | M3x0.5x8 MACHINE | XJ | |
|
| 122 | N439188 | 1 | O RING | 2.0mm | XJ | |
|
| 123 | N407991 | 1 | O RING | ID 7.59mm, Dia. 2.62 | XJ | |
|
| 124 | N527579 | 1 | WASHER | ID 5 x OD 8 x 0.2 Th | XJ | |
|
| 202 | N561939 | 1 | TRIP SA | intermediate | XJ | |
|
| 203 | N587377 | 1 | TRIP SA | XJ | |
||
| 204 | N378115 | 1 | SPRING COMPRESSION | XJ | |
||
| 205 | N378116 | 1 | COVER | XJ | |
||
| 206 | N367663 | 1 | ADJUSTER DEPTH | XJ | |
||
| 207 | N367666 | 1 | COVER | XJ | |
||
| 208 | N379045 | 7 | SCREW | M3x10 PAN HD MAGFORM | XJ | |
|
| 209 | N496809 | 1 | LABEL | XJ | |
||
| 211 | N377231 | 1 | FRAME LH | XJ | |
||
| 212 | N496177 | 1 | FRAME RH | XJ | |
||
| 213 | N590301 | 1 | MOTOR SA | XJ | |
||
| 214 | N378063 | 1 | LOCATOR | MOTOR, RIGHT FRAME | XJ | |
|
| 215 | N377923 | 1 | LOCATOR | MOTOR, LEFT FRAME | XJ | |
|
| 216 | N376266 | 1 | RETAINER | XJ | |
||
| 218 | 613619-00 | 3 | SCREW | XJ | |
||
| 221 | N378032 | 1 | SUPPORT | REAR BUMPER | XJ | |
|
| 222 | N515311 | 1 | BUMPER | BACK DOUBLE ENDED | XJ | |
|
| 223 | N515810 | 1 | RETAINER | BACK BUMPER | XJ | |
|
| 224 | N367683 | 1 | PLATE | SKID | XJ | |
|
| 225 | N455371 | 1 | LIFTER | Profile | XJ | |
|
| 251 | N439725 | 2 | RAIL | XJ | |
||
| 252 | N378014 | 2 | BUMPER | XJ | |
||
| 253 | N402150 | 2 | CLIP | XJ | |
||
| 262 | N455722 | 1 | DRIVER | XJ | |
||
| 263 | 392206-00 | 1 | CLIP | XJ | |
||
| 270 | 391814-00 | 2 | GROMMET | XJ | |
||
| 272 | N446579 | 1 | SOLENOID ASSEMBLY | XJ | |
||
| 273 | 633207-00 | 1 | PIN | XJ | |
||
| 274 | N377077 | 1 | SPRING TORSION | XJ | |
||
| 278 | N377076 | 1 | SLEEVE | XJ | |
||
| 279 | N491759 | 1 | SCREW | M3 x 0.5P x 6mm T10 | XJ | ||
| 301 | N465442 | 1 | MAGAZINE | FIXED | XJ | |
|
| 302 | N468132 | 1 | LINER | XJ | |
||
| 303 | 180490 | 4 | PIN | XJ | |
||
| 305 | 395505-00 | 3 | BUSHING | XJ | |
||
| 306 | 330045-69 | 3 | SCREW | M4 X 10 T20 | XJ | |
|
| 308 | N469100 | 1 | COVER | XJ | |
||
| 309 | N469099 | 1 | PIN | XJ | |
||
| 310 | N469155 | 1 | GROMMET | XJ | |
||
| 311 | N465274 | 1 | CONTACT | FRONT | XJ | |
|
| 312 | 180500 | 1 | BACKPLATE | XJ | |
||
| 314 | N476406 | 1 | SCREW | M4 X 0.7 X5 | XJ | |
|
| 332 | 180495 | 1 | SPRING | XJ | |
||
| 333 | 9R208925 | 1 | PUSHER | XJ | |
||
| 334 | 180238 | 1 | NUT | XJ | |
||
| 335 | 180496 | 1 | SPRING | XJ | |
||
| 337 | 9R196691 | 1 | SCREW | XJ | |
||
| 338 | N467369 | 1 | PUSHER | XJ | |
||
| 341 | N465938 | 1 | NOSE | XJ | |
||
| 342 | N464378 | 1 | DOOR | XJ | |
||
| 343 | 181920 | 1 | PIN | XJ | |
||
| 361 | 175662 | 1 | PLATE | XJ | |
||
| 362 | N466494 | 1 | PIN | XJ | |
||
| 363 | 180492 | 1 | SPRING | XJ | |
||
| 364 | 180493 | 1 | SPACER | XJ | |
||
| 365 | 180494 | 1 | CIRCLIP | XJ | |
||
| 370 | 180553 | 1 | BRACKET | XJ | |
||
| 371 | 9R205606 | 1 | PIN | M3 X 22 | XJ | |
|
| 372 | 9R196740 | 1 | SPRING | XJ | |
||
| 373 | 195327 | 1 | SPIROL PIN | XJ | |
||
| 391 | 181915 | 1 | MAGAZINE | XJ | |||
| 392 | 180501 | 1 | LATCH | XJ | |
||
| 393 | 9R208926 | 1 | COVER | XJ | |
||
| 394 | 180502 | 1 | SPRING | XJ | |
||
| 395 | 180319 | 1 | SUPPORT | XJ | |
||
| 396 | 175665 | 1 | END CAP | XJ | |
||
| 397 | 180503 | 3 | PIN | XJ | |
||
| 811 | 851325 | 1 | LOCTITE 271 | XJ | |
||
| 860 | H1400196008 | 1 | HANDLE | XJ | |||
| 861 | N445186 | 1 | KITBOX | XJ | |
||
| 862 | H1500082520 | 2 | LATCH | XJ | |||
| 863 | P910190 | 2 | LATCH | XJ | |
||
| 864 | N433995 | 1 | INSERT | TSTAK-VI | XJ | |
