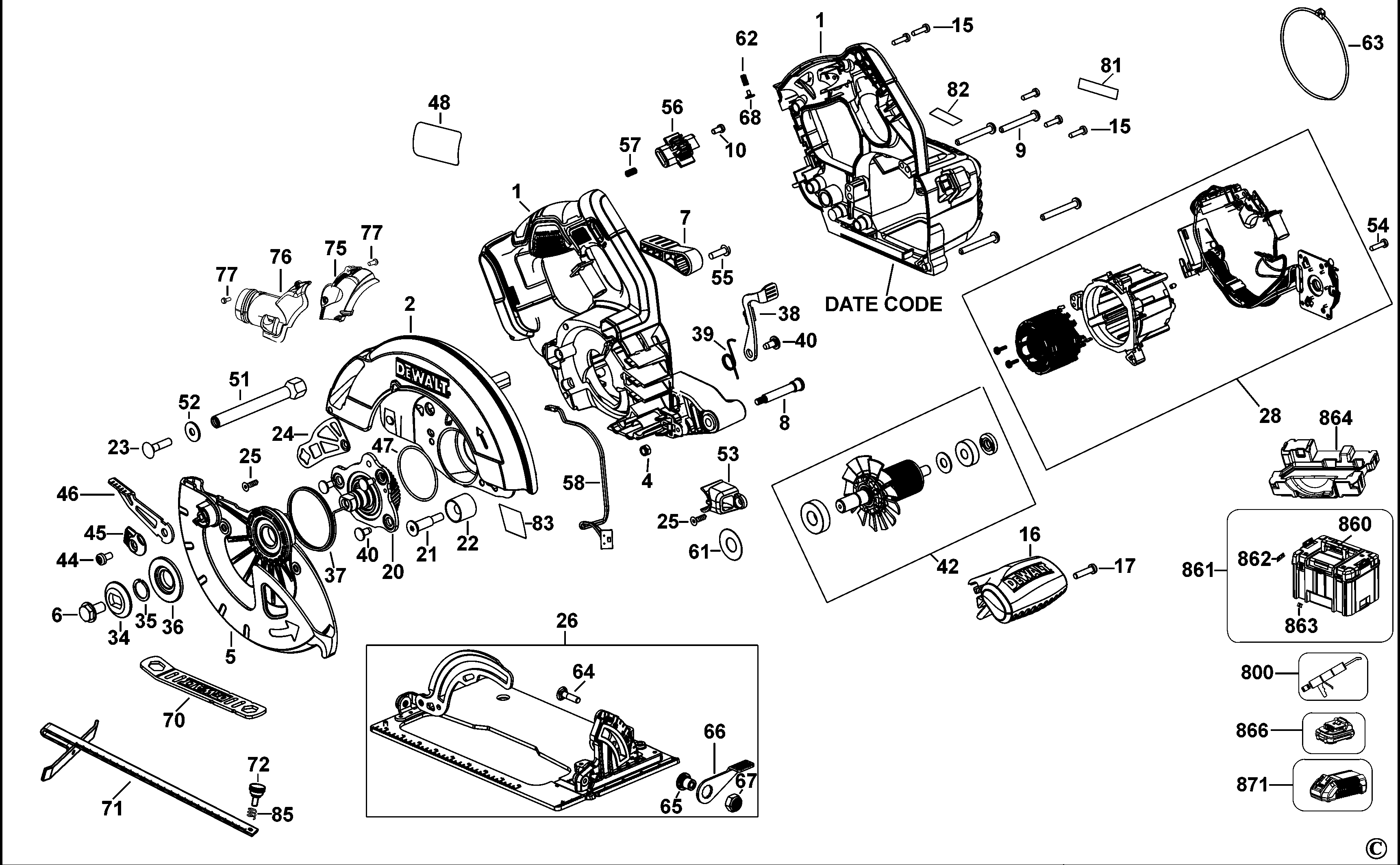

DCS570 CORDLESS CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N462731 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | N499337 | 1 | GEARCASE SA | GB | |
||
| 4 | N123103 | 1 | STOP NUT | GB | |
||
| 5 | N378852 | 1 | GUARD LOWER | GB | |
||
| 6 | 145344-00 | 1 | SCREW.SPECIAL | GB | |
||
| 7 | N419350 | 1 | LEVER | DEPTH ADJUST | GB | |
|
| 8 | N099101 | 1 | BOLT | GB | |
||
| 9 | 330045-19 | 4 | SCREW | GB | |
||
| 10 | 330019-10 | 1 | SCREW | GB | |
||
| 15 | 330019-03 | 7 | SCREW | GB | |
||
| 16 | N115554 | 1 | HANDLE | GB | |
||
| 17 | 330019-13 | 1 | SCREW | M4X19 T20 | GB | |
|
| 20 | N472351 | 1 | SPINDLE SA | PKG'D N435271 | GB | |
|
| 21 | N086135 | 1 | SCREW | GB | |
||
| 22 | 381066-00 | 1 | BUMPER | GB | |
||
| 23 | 098128-90 | 1 | CARRIAGE BOLT | GB | |
||
| 24 | N135988 | 1 | STRAP | GB | |
||
| 25 | 593515-00 | 2 | SCREW | M4 X 1.7 | GB | |
|
| 26 | N505911 | 1 | SHOE SA | METRIC | GB | |
|
| 28 | N863841 | 1 | SERVICE KIT | INCL TYPE2 #28 & #42 | TYPE 1 | GB | |
| 34 | 145343-01 | 1 | WASHER OUTER CLAMP | GB | |
||
| 35 | N120426 | 1 | RETAINER | GB | |
||
| 36 | N084137 | 1 | WASHER INNER CLAMP | INNER | GB | |
|
| 37 | N100006 | 1 | SPRING | GB | |
||
| 38 | N090570 | 1 | LEVER LOCK | SPINDLE | GB | |
|
| 39 | N100123 | 1 | SPRING | GB | |
||
| 40 | 385915-04 | 4 | SCREW | GB | |
||
| 42 | N863841 | 1 | SERVICE KIT | INCL TYPE2 #28 & #42 | TYPE 1 | GB | |
| 44 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | GB | |
|
| 45 | N094953 | 1 | LEVER | GB | |
||
| 46 | N086628 | 1 | LEVER | GB | |
||
| 47 | N361499 | 1 | O RING | GB | |
||
| 48 | N490068 | 1 | RATING PLATE | GB | |
||
| 51 | N420031 | 1 | SHAFT | DEPTH ADJUST | GB | |
|
| 52 | N434869 | 1 | WASHER | ID M6 OD 17, 1.5 Thk | GB | ||
| 53 | N421358 | 1 | COVER | LED | GB | |
|
| 54 | N034545 | 4 | SCREW | M3x1.0x10mm T10 sec. | GB | |
|
| 55 | 330045-14 | 1 | SCREW | GB | |
||
| 56 | N422878 | 1 | BUTTON LOCK-OFF | GB | |
||
| 57 | N433343 | 1 | SPRING | GB | |
||
| 58 | N363247 | 1 | LED LIGHT | 60V Circ Saw | GB | |
|
| 61 | N447499 | 1 | WASHER FIBRE | RED | GB | |
|
| 62 | N461735 | 1 | SPRING | GB | |
||
| 63 | 90504014 | 1 | CABLE TIE | QS780 | GB | |
|
| 64 | 098128-90 | 1 | CARRIAGE BOLT | GB | |
||
| 65 | N094731 | 1 | SCREW | TOP HAT | GB | |
|
| 66 | 145347-00 | 1 | LEVER | GB | |
||
| 67 | N117921 | 1 | STOP NUT | ELASTIC 7/16-20 | GB | |
|
| 68 | N122099 | 1 | BLOCK | GB | |
||
| 70 | N493688 | 1 | SPANNER | GB | |
||
| 71 | N074939 | 1 | FENCE | GB | |
||
| 72 | N287119 | 1 | SCREW | GB | |
||
| 75 | N168420 | 1 | DUST PORT | GB | |
||
| 76 | N108974 | 1 | DUST PORT | GB | |
||
| 77 | 370748 | 2 | SCREW | GB | |
||
| 81 | N498793 | 1 | BRAND LABEL | 18V | GB | |
|
| 82 | N522902 | 1 | LABEL | BRUSHLESS | GB | |
|
| 83 | N466984 | 1 | LABEL | BRAKE | GB | |
|
| 85 | 058287-00 | 1 | SPRING | GB | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 860 | H1400196008 | 1 | HANDLE | DCS575NT | GB | ||
| 861 | N445186 | 1 | KITBOX | DCS575NT | GB | |
|
| 862 | H1500082520 | 2 | LATCH | DCS575NT | GB | ||
| 863 | P910190 | 2 | LATCH | DCS575NT | GB | |
|
| 864 | N498615 | 1 | TRAY | DCS575NT | GB | |
|
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCS570P1+P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
