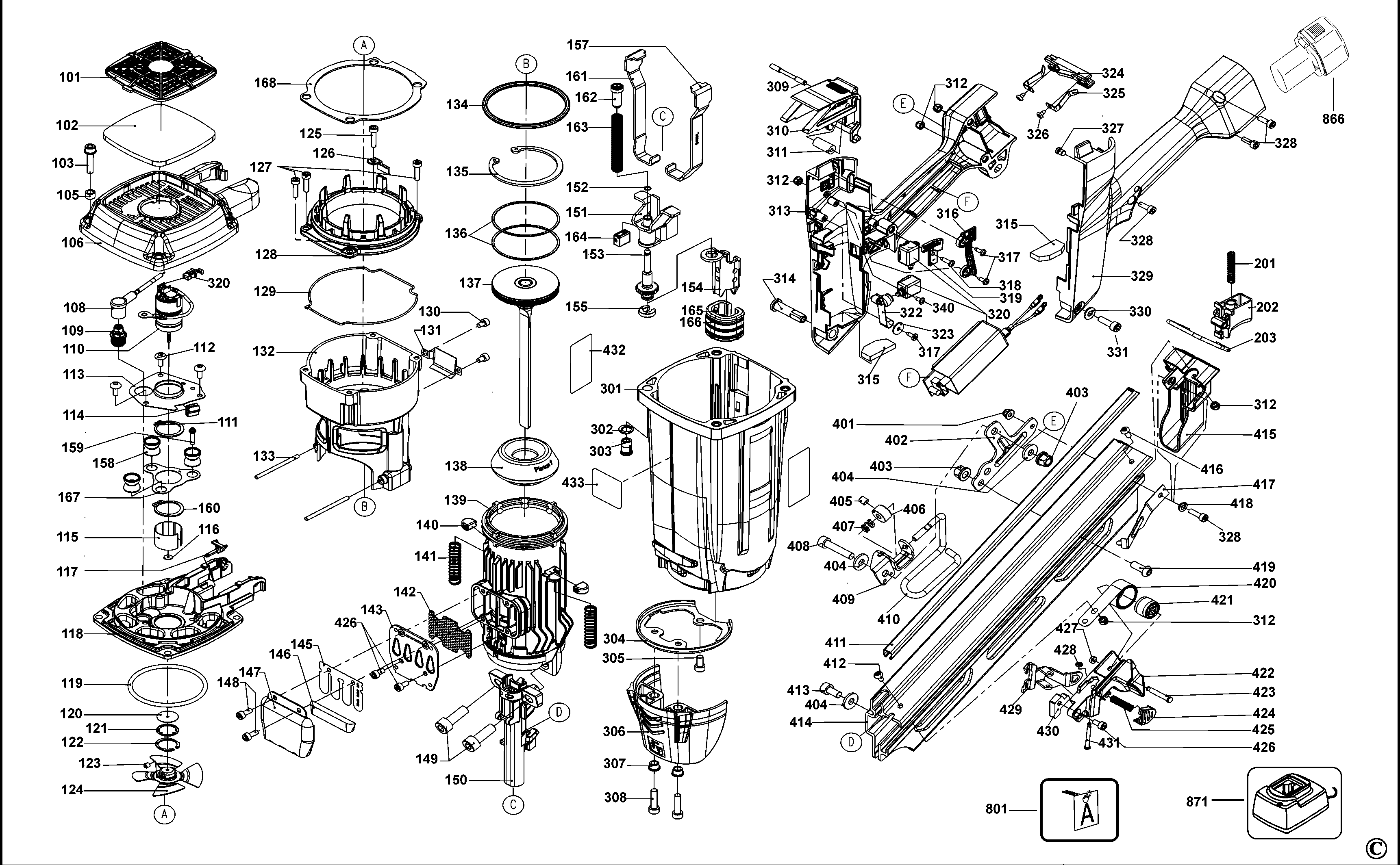

DGN9033 CORDLESS NAILER Type REV A | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 11371-1154705 | 1 | DEFLECTOR | XJ |  |
||
| 102 | 1121N-1150002 | 1 | FILTER | XJ | |
||
| 103 | 2040100-03130 | 4 | BOLT | XJ | |
||
| 105 | 1136P-1154701 | 4 | WASHER | XJ | |
||
| 106 | 11369-1154702 | 1 | CAP | XJ | |
||
| 108 | 11216-1150003 | 1 | CABLE SA | XJ | |
||
| 109 | 1120D-1154701 | 1 | CONNECTOR | XJ | |
||
| 110 | 1120N-1150003 | 1 | MOTOR SA | XJ | |
||
| 111 | 2040301-17010 | 1 | RING | XJ | |
||
| 112 | 2040102-02043 | 3 | BOLT | XJ | |
||
| 113 | 1131J-1154701 | 1 | PLATE | XJ | |
||
| 114 | 1136H-1154704 | 1 | BRACKET | XJ | |
||
| 115 | 11398-1150002 | 1 | SLEEVE | XJ | |
||
| 116 | 11380-1150001 | 1 | WASHER | XJ | |
||
| 117 | 113A6-1151101 | 1 | ADAPTOR | XJ | |
||
| 118 | 1139U-1150002 | 1 | END CAP | XJ | |
||
| 119 | 2041108-06131 | 1 | O RING | XJ | |
||
| 120 | 1136X-1150001 | 1 | SEAL | XJ | |
||
| 121 | 11323-1150003 | 1 | SEAL | XJ | |
||
| 122 | 2040303-35010 | 1 | RING | XJ | |
||
| 123 | 2040104-02010 | 1 | SCREW | XJ | |
||
| 124 | 1120C-1150001 | 1 | FAN SA | XJ | |
||
| 125 | 2040101-02090 | 1 | BOLT | XJ | |
||
| 126 | 1135B-1150002 | 1 | GUIDE | XJ | |
||
| 127 | 2040101-02080 | 3 | BOLT | XJ | |
||
| 128 | 113AE-1150002 | 1 | HOUSING UPPER | XJ | |
||
| 129 | 1132M-1150901 | 1 | SEAL | XJ | |
||
| 130 | 2040101-02020 | 2 | BOLT | XJ | |
||
| 131 | 1139B-1150001 | 1 | WASHER | XJ | |
||
| 132 | 1139V-1150002 | 1 | HOUSING LOWER | XJ | |
||
| 133 | 1131K-1150001 | 2 | PIN | XJ | |
||
| 134 | 2041104-07061 | 1 | O RING | XJ | |
||
| 135 | 2040300-14010 | 1 | RING | XJ | |
||
| 136 | 11350-1154701 | 2 | PISTON RING | XJ | |
||
| 137 | 11204-1154706 | 1 | DRIVER | XJ | |
||
| 138 | 11327-1154701 | 1 | BUMPER | XJ | |
||
| 139 | 11320-1150006 | 1 | CYLINDER | XJ | |
||
| 140 | 1134W-1154705 | 2 | BUMPER | XJ | |
||
| 141 | 11337-1154701 | 2 | SPRING | XJ | |
||
| 142 | 1139W-1150001 | 1 | EXHAUST | XJ | |
||
| 143 | 113A0-1150001 | 1 | BAFFLE | XJ | |
||
| 145 | 1139X-1150001 | 1 | VALVE REED | XJ | |
||
| 146 | 1139L-1150001 | 1 | Muffler | XJ | |
||
| 147 | 113A3-1150001 | 1 | DEFLECTOR | XJ | |
||
| 148 | 2040101-02040 | 2 | BOLT | XJ | |
||
| 149 | 2040101-05090 | 2 | BOLT | XJ | |
||
| 150 | 11382-1154702 | 1 | NOSE SA | XJ | |
||
| 151 | 11256-1154702 | 1 | ACTUATOR | XJ | |
||
| 152 | 2040309-00010 | 1 | LOCK-NUT | XJ | |
||
| 153 | 11249-1154701 | 1 | SPINDLE & GEAR | XJ | |
||
| 154 | 11331-1154707 | 1 | ACTUATOR | XJ | |
||
| 155 | 1131C-1154703 | 1 | RING | XJ | |
||
| 157 | 11330-1154704 | 1 | GUIDE | XJ | |
||
| 158 | 1134W-1154706 | 3 | BUMPER | XJ | |
||
| 159 | 113CK-1150001 | 1 | SHAFT | XJ | |
||
| 160 | 2040301-25010 | 1 | RING | XJ | |
||
| 161 | 11330-1154705 | 1 | GUIDE | XJ | |
||
| 162 | 11395-1154701 | 1 | ROD | XJ | |
||
| 163 | 11337-1154702 | 1 | SPRING | XJ | |
||
| 164 | 1134W-1154703 | 1 | BUMPER | XJ | |
||
| 165 | 11339-1154702 | 1 | HOUSING | XJ | |
||
| 166 | 1131G-1154702 | 1 | RING | XJ | |
||
| 167 | 1133X-1150001 | 1 | SPACER | XJ | |
||
| 168 | 1133X-1154702 | 1 | SPACER | XJ | |
||
| 201 | 11319-1154701 | 1 | SPRING | XJ | |
||
| 202 | 11316-1154705 | 1 | TRIGGER | XJ | |
||
| 203 | 11335-1150005 | 1 | ARM | XJ | |
||
| 301 | 11384-115B301 | 1 | HOUSING | XJ | |
||
| 302 | 11380-1154702 | 4 | WASHER | XJ | |
||
| 303 | 11398-1150001 | 4 | NUT | XJ | |
||
| 304 | 11323-1154704 | 1 | BRACKET | XJ | |
||
| 305 | 2040101-03040 | 1 | BOLT | XJ | |
||
| 306 | 1137A-1154702 | 1 | COVER | XJ | |
||
| 307 | 11398-1154702 | 2 | WASHER | XJ | |
||
| 308 | 2040101-03080 | 2 | BOLT | XJ | |
||
| 309 | 11325-1154702 | 1 | PIN | XJ | |
||
| 310 | 113A7-1154701 | 1 | ACTUATOR | XJ | |
||
| 311 | 11398-1154701 | 1 | ACTUATOR | XJ | |
||
| 312 | 2040500-02010 | 5 | LOCK NUT | XJ | |
||
| 313 | 11233-1154719 | 1 | HANDLE | XJ | |
||
| 314 | 11325-1154701 | 1 | BOLT | XJ | |
||
| 315 | 1138W-1150001 | 1 | SPACER | XJ | |
||
| 316 | 11323-1154706 | 1 | BRACKET | XJ | |
||
| 317 | 2040108-01020 | 3 | BOLT | XJ | |
||
| 318 | 2040108-01040 | 1 | BOLT | XJ | |
||
| 319 | 11323-1154707 | 1 | CABLE GUIDE | XJ | |
||
| 320 | 1120G-1150005 | 1 | PCB SA | XJ | |
||
| 322 | 1120R-1150001 | 1 | SWITCH | XJ | |
||
| 323 | 2040201-01040 | 1 | WASHER | XJ | |
||
| 324 | 1136H-1154701 | 1 | BRACKET | XJ | |
||
| 325 | 113A8-1150001 | 2 | CONTACT | XJ | |
||
| 326 | 2040107-01040 | 2 | BOLT | XJ | |
||
| 327 | 113AP-1150001 | 4 | COVER | XJ | |
||
| 328 | 2040101-02070 | 1 | BOLT | XJ | |
||
| 329 | 11233-1154720 | 1 | HANDLE | XJ | |
||
| 330 | 2040201-03040 | 1 | WASHER | XJ | |
||
| 331 | 2040101-03070 | 1 | BOLT | XJ | |
||
| 340 | 2040108-01030 | 1 | BOLT | XJ | |
||
| 401 | 2040501-02020 | 1 | BOLT | XJ | |
||
| 402 | 11323-1154705 | 1 | BRACKET | XJ | |
||
| 403 | 2040501-04010 | 2 | NUT | XJ | |
||
| 404 | 2040202-04010 | 3 | WASHER | XJ | |
||
| 405 | 2040104-04010 | 1 | SCREW | XJ | |
||
| 406 | 1136C-1154702 | 1 | RING | XJ | |
||
| 407 | 1138J-1154701 | 1 | SPRING | XJ | |
||
| 408 | 2040101-04110 | 1 | BOLT | XJ | |
||
| 409 | 1136H-1154703 | 1 | BRACKET | XJ | |
||
| 410 | 1133D-1154703 | 1 | HOOK | XJ | |
||
| 411 | 11396-0644707 | 1 | RAIL | XJ | |
||
| 412 | 2040102-02010 | 1 | BOLT | XJ | |
||
| 413 | 2040101-04020 | 1 | BOLT | XJ | |
||
| 414 | 11389-1154702 | 1 | MAGAZINE | XJ | |
||
| 415 | 11390-1154701 | 1 | COVER | XJ | |
||
| 416 | 2040102-02040 | 1 | BOLT | XJ | |
||
| 417 | 1130S-0644703 | 1 | STOP PLATE | XJ | |
||
| 418 | 11380-1154701 | 1 | GASKET | XJ | |
||
| 419 | 2040102-04030 | 1 | BOLT | XJ | |
||
| 420 | 11372-0830001 | 1 | SPRING | XJ | |
||
| 421 | 11386-0370002 | 1 | ROLLER | XJ | |
||
| 422 | 1136E-1154701 | 1 | COVER | XJ | |
||
| 423 | 11385-0644701 | 1 | PIN | XJ | |
||
| 424 | 1138B-0644701 | 1 | CAP | XJ | |
||
| 425 | 1136F-0644701 | 1 | SPRING | XJ | |
||
| 426 | 2040101-02030 | 1 | BOLT | XJ | |
||
| 427 | 1135H-0790001 | 1 | RETAINER | XJ | |
||
| 428 | 9R189935 | 1 | RETAINER | XJ | |
||
| 429 | 11363-0644705 | 1 | PUSHER | XJ | |
||
| 430 | 1136G-1154701 | 1 | SQUARE | XJ | |
||
| 431 | 11318-0084701 | 1 | PIN | XJ | |
||
| 432 | 9R212094 | 2 | BRAND LABEL | XJ | |
||
| 433 | 9R212095 | 1 | LABEL | XJ | |
||
| 801 | 7UKST-3115007 | 1 | ADAPTOR SA | XJ | |
||
| 866 | 7UKST-3115001 | 1 | BATTERY 6V - 1.6AH - 9.6WH | XJ | |
||
| 871 | 7UKST-3115002 | 1 | CHARGER 6V | XJ | |
