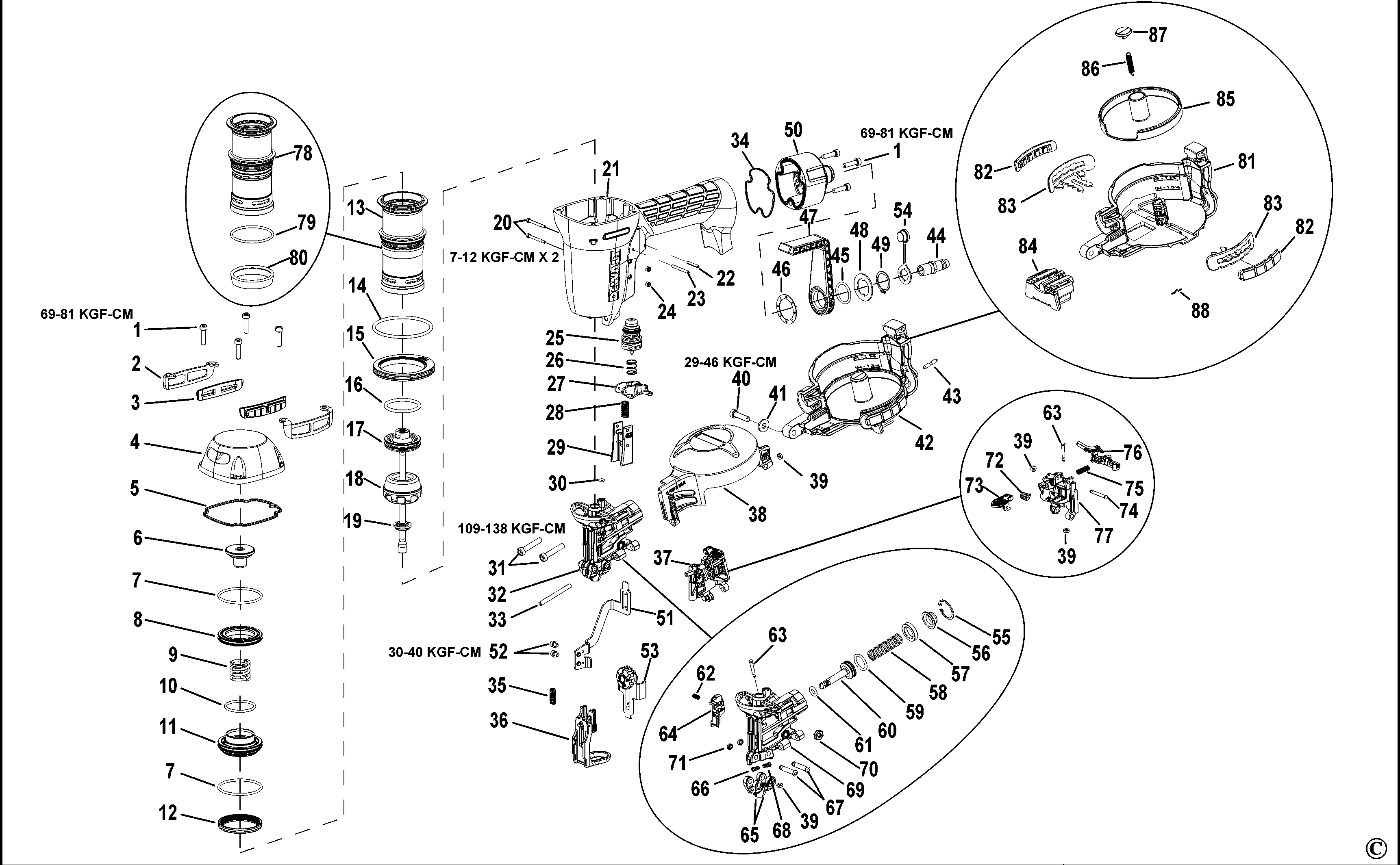

DPN46RN NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | MSC5080-20 | 7 | SCREW | M5x20mm | XJ | ||
| 2 | 149833 | 2 | PLATE | XJ |  |
||
| 3 | 149819 | 2 | GUIDE | XJ | |
||
| 4 | 9R209580 | 1 | CAP | XJ | |
||
| 5 | 149832 | 1 | SEAL | XJ | |
||
| 6 | 149838 | 1 | VALVE | XJ | |
||
| 7 | 149828 | 2 | O RING | XJ | |
||
| 8 | 149836 | 1 | VALVE BODY | XJ | |
||
| 9 | 149806 | 1 | SPRING | XJ | |
||
| 10 | 149842 | 1 | O RING | 1.299 x 0.103 | XJ | |
|
| 11 | 149839 | 1 | VALVE BODY | XJ | |
||
| 12 | 149840 | 1 | SEAL | XJ | |
||
| 13 | 9R217792 | 1 | SLEEVE SA | XJ | |
||
| 14 | 850766 | 1 | O RING | XJ | |
||
| 15 | 149814 | 1 | RING | XJ | |
||
| 16 | 850607 | 1 | O RING | XJ | |
||
| 17 | 9R195148 | 1 | PISTON SA | XJ | |
||
| 18 | 191777 | 1 | BUMPER | XJ | |
||
| 19 | 149820 | 1 | GUIDE | XJ | |
||
| 20 | 105811 | 2 | SCREW | XJ | |
||
| 21 | 9R209582 | 1 | FRAME | XJ | |
||
| 22 | MPP030020 | 1 | PIN | M3x20mm | XJ | |
|
| 23 | 100298 | 1 | PIN | XJ | |
||
| 24 | MHE3050-100 | 2 | NUT | XJ | |
||
| 25 | TVA11 | 1 | VALVE | KIT | XJ | |
|
| 26 | 100387 | 1 | SPRING | XJ | |
||
| 27 | 107582 | 1 | TRIGGER | XJ | |
||
| 28 | 149871 | 1 | SPRING | XJ | |
||
| 29 | 107522 | 1 | GUIDE | XJ | |
||
| 30 | 149885 | 1 | O RING | 0.145 x 0.070 | XJ | |
|
| 31 | MSC6100-30 | 2 | SCREW | M6 x 1.00 x 20 | XJ | |
|
| 33 | 149905 | 1 | PIN | XJ | |
||
| 34 | 149816 | 1 | SEAL | XJ | |
||
| 35 | 149874 | 1 | SPRING | XJ | |
||
| 36 | 9R193689 | 1 | ARM LINK | XJ | |
||
| 37 | 9R195146 | 1 | DOOR | SA | XJ | |
|
| 38 | 161234 | 1 | COVER | XJ |  |
||
| 39 | N12112 | 4 | RETAINER | XJ | |
||
| 40 | MSC6100-25 | 1 | BOLT | M6x1.00x0.0025mm | XJ | |
|
| 41 | MPW6.2 | 1 | WASHER | XJ | |
||
| 42 | 149939 | 1 | CANISTER | XJ | |
||
| 43 | 149907 | 1 | PIN | XJ | |
||
| 44 | 159977 | 1 | ADAPTOR | XJ | |
||
| 45 | 175557 | 1 | O RING | XJ | |
||
| 46 | 175582 | 1 | SEAL | XJ | |
||
| 47 | 175583 | 1 | HOOK | XJ | |
||
| 48 | 175585 | 1 | CAP | XJ | |
||
| 49 | 175586 | 1 | RING | XJ | |
||
| 50 | 193702 | 1 | END CAP | XJ | |
||
| 51 | 9R195374 | 1 | ARM LINK | XJ | |
||
| 52 | 9R195377 | 2 | SCREW | M4x0.7 | XJ | |
|
| 53 | 9R199758 | 1 | CONTACT SA | XJ | |
||
| 54 | 9R195380 | 1 | COVER | 1/4NPT | XJ | |
|
| 55 | 149854 | 1 | RETAINER | XJ | |
||
| 56 | 149853 | 1 | COLLAR | XJ | |
||
| 57 | 149855 | 1 | STOP | XJ | |
||
| 58 | 149887 | 1 | SPRING | XJ | |
||
| 59 | 88998 | 1 | O RING | XJ | |
||
| 60 | 149852 | 1 | PISTON | XJ | |
||
| 61 | 149883 | 1 | O RING | 0.299 x 0.103 | XJ | |
|
| 62 | 149859 | 1 | SPRING | XJ | |
||
| 63 | 149882 | 2 | PIN | XJ | |
||
| 64 | 9R205576 | 1 | PAWL | XJ | |
||
| 66 | 9R195371 | 1 | SPRING | XJ | |
||
| 67 | 9R193692 | 2 | PIN | XJ | |
||
| 68 | 9R195372 | 1 | SPRING | XJ | |
||
| 69 | 9R195141 | 1 | NOSE | XJ | |
||
| 70 | MHE6100-100 | 1 | NUT | M6x1 | XJ | |
|
| 71 | 9R195750 | 2 | PIN | XJ | |
||
| 72 | 9R205484 | 1 | SPRING TORSION | XJ | |
||
| 73 | 149861 | 1 | LATCH | XJ | |
||
| 74 | 149886 | 1 | PIN | XJ | |
||
| 75 | 149898 | 1 | SPRING | XJ | |
||
| 77 | 195150 | 1 | DOOR | XJ | |
||
| 78 | 9R207543 | 1 | SLEEVE | XJ | |||
| 79 | 149829 | 1 | O RING | 1.862 x 0.103 | XJ | |
|
| 80 | 149812 | 1 | SEAL | XJ | |
||
| 81 | 9R201803 | 1 | PLATFORM | XJ | |
||
| 82 | 149866 | 2 | PAD | XJ | |
||
| 83 | 161236 | 2 | GUARD | XJ | |
||
| 84 | 149940 | 1 | CABLE GUIDE | XJ | |
||
| 85 | 149908 | 1 | CANISTER | XJ | |
||
| 86 | 101773 | 1 | SPRING | XJ | |
||
| 87 | 149910 | 1 | CAP | XJ | |
||
| 88 | 149909 | 1 | RETAINER | XJ | |
