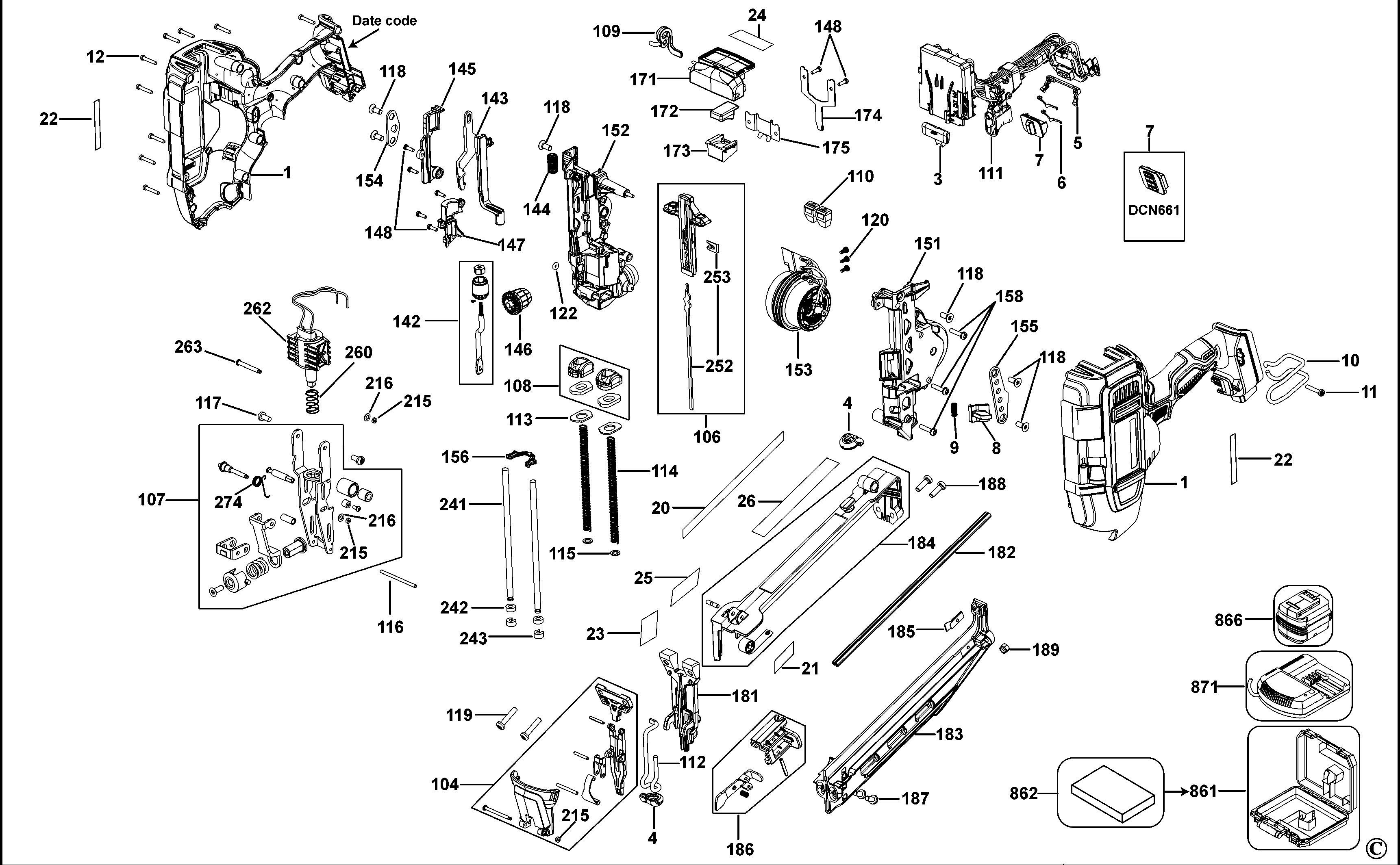

DCN661 FINISH NAILER 16 GAUGE Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N446581 | 1 | HOUSING PAIR | XJ |  |
||
| 3 | N411320 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 4 | N383365 | 2 | BOOT | CONTACT TRIP | XJ | |
|
| 5 | N382272 | 1 | PRISM | XJ | |
||
| 6 | N388602 | 2 | LEAF SPRING | XJ | |
||
| 8 | N393495 | 1 | BUTTON RELEASE | XJ | |
||
| 9 | N411486 | 1 | SPRING COMPRESSION | XJ | |
||
| 10 | N410943 | 1 | HOOK | XJ | |
||
| 11 | 330019-52 | 1 | SCREW | XJ | |
||
| 12 | 330019-24 | 10 | SCREW | XJ | |
||
| 21 | N411618 | 1 | LABEL | Reload label | XJ | |
|
| 22 | N407584 | 2 | IDENTITY LABEL | XJ | |
||
| 23 | N433093 | 1 | LABEL | Do not oil | XJ | |
|
| 24 | N413309 | 1 | BRAND LABEL | 18v | XJ | |
|
| 25 | N433089 | 1 | LABEL | Depth Adjust | XJ | |
|
| 26 | N433090 | 1 | WARNING LABEL | XJ | |
||
| 104 | N446574 | 1 | DOOR | SA | XJ | |
|
| 106 | N690269 | 1 | DRIVER SA | XJ | |
||
| 107 | N812432 | 1 | AXIS & CARRIAGE SA | XJ | |
||
| 108 | N446577 | 1 | SERVICE KIT | XJ | |
||
| 109 | N532613 | 1 | ACTUATOR | XJ | |
||
| 110 | 650974-00 | 2 | CONNECTOR | XJ | |
||
| 112 | N367669 | 1 | TRIP SA | FRONT | XJ | |
|
| 113 | N376891 | 2 | PLATE | XJ | |
||
| 114 | N446578 | 1 | SPRING | x2 | XJ | |
|
| 115 | N383361 | 2 | WASHER | XJ | |
||
| 116 | N410969 | 1 | PIN | 3x50.5 | XJ | |
|
| 117 | 613619-03 | 2 | SCREW | XJ | |
||
| 118 | N386788 | 6 | SCREW | M5x12, MAGFORM | XJ |  |
|
| 119 | N383360 | 2 | SCREW | M5x24 PAN HD MAGFORM | XJ | |
|
| 120 | N403241 | 3 | SCREW | M3x0.5x8 MACHINE | XJ | |
|
| 122 | N439188 | 1 | O RING | 2.0mm | XJ | |
|
| 142 | N446571 | 1 | CONTACT SA | XJ | |
||
| 143 | N587377 | 1 | TRIP SA | XJ | |
||
| 144 | N378115 | 1 | SPRING COMPRESSION | XJ | |
||
| 145 | N378116 | 1 | COVER | XJ | |
||
| 146 | N367663 | 1 | ADJUSTER DEPTH | XJ | |
||
| 147 | N367666 | 1 | COVER | XJ | |
||
| 148 | N379045 | 7 | SCREW | M3x10 PAN HD MAGFORM | XJ | |
|
| 151 | N377231 | 1 | FRAME LH | XJ | |
||
| 152 | N496177 | 1 | FRAME RH | XJ | |
||
| 153 | N590300 | 1 | MOTOR SA | XJ | |
||
| 154 | N378063 | 1 | LOCATOR | MOTOR, RIGHT FRAME | XJ | |
|
| 155 | N377923 | 1 | LOCATOR | MOTOR, LEFT FRAME | XJ | |
|
| 156 | N376266 | 1 | RETAINER | XJ | |
||
| 158 | 613619-00 | 3 | SCREW | XJ | |
||
| 171 | N378032 | 1 | SUPPORT | REAR BUMPER | XJ | |
|
| 172 | N528907 | 1 | BUMPER | INVERTED | XJ | |
|
| 173 | N528908 | 1 | RETAINER | BACK BUMPER | XJ | |
|
| 174 | N367683 | 1 | PLATE | SKID | XJ | |
|
| 175 | N455371 | 1 | LIFTER | Profile | XJ | |
|
| 181 | N457374 | 1 | NOSE | XJ | |
||
| 182 | 392193-01 | 1 | LINER | STRAIGHT | XJ | |
|
| 183 | N367675 | 1 | MAGAZINE | LOWER | XJ | |
|
| 184 | N446572 | 1 | MAGAZINE SA | XJ | |
||
| 185 | N383367 | 1 | RETAINER | NAIL | XJ | |
|
| 186 | N446573 | 1 | PUSHER | SA | XJ | |
|
| 187 | 609932-00 | 2 | SCREW | XJ | |
||
| 188 | N383358 | 2 | SCREW | M5x16 PAN HD | XJ | |
|
| 189 | N383359 | 2 | LOCK NUT | M5x0.8 | XJ | |
|
| 215 | 391814-00 | 3 | GROMMET | XJ | |
||
| 216 | 330016-26 | 2 | WASHER | XJ | |
||
| 241 | N439725 | 2 | RAIL | XJ | |
||
| 242 | N378014 | 2 | BUMPER | XJ | |
||
| 243 | N402150 | 2 | CLIP | XJ | |
||
| 252 | N563610 | 1 | BLADE | XJ | |
||
| 253 | 392206-00 | 2 | CLIP | XJ | |
||
| 260 | N415948 | 1 | SPRING COMPRESSION | XJ | |
||
| 262 | N446579 | 1 | SOLENOID ASSEMBLY | XJ | |
||
| 263 | 633207-00 | 1 | PIN | XJ | |
||
| 274 | N377077 | 1 | SPRING TORSION | XJ | |
||
| 861 | N428571 | 1 | KIT BOX | XJ | |
