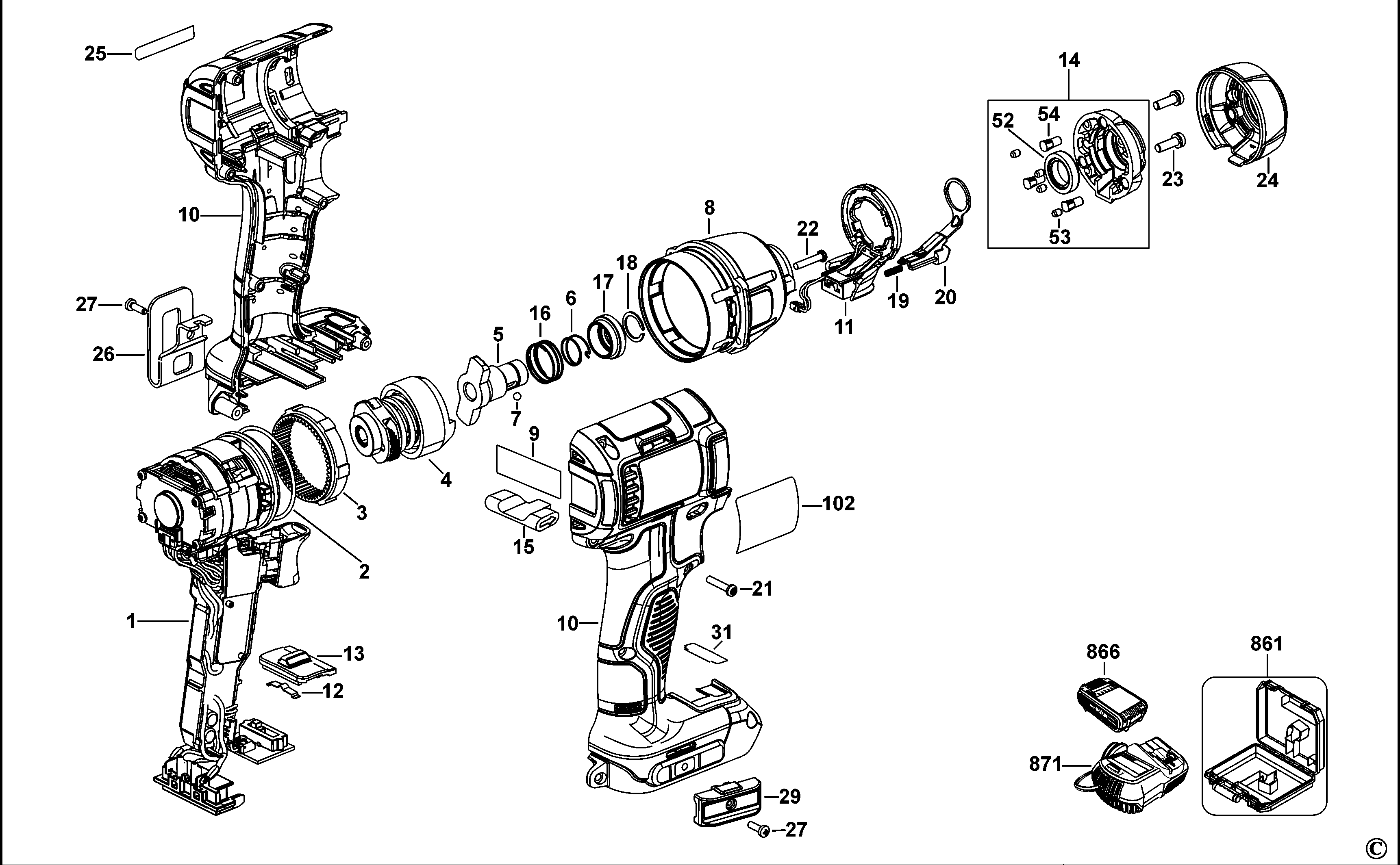

DCF895 IMPACT DRIVER Type 11 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N434185 | 1 | MOTOR & SWITCH SA | GB |  |
||
| 2 | N075339 | 1 | O RING | GB | |
||
| 3 | N112877 | 1 | GEAR | GB | |
||
| 4 | N334879 | 1 | IMPACTOR | GB |  |
||
| 5 | N072216 | 1 | ANVIL | GB | |
||
| 6 | N076032 | 1 | SPRING | GB | |
||
| 7 | N089668 | 1 | BALL STEEL | GB | |
||
| 8 | N173898 | 1 | NOSE SA | GB | |
||
| 9 | N153226 | 1 | LABEL | GB | |
||
| 10 | N381042 | 1 | CLAMSHELL SET | GB | |
||
| 11 | N395794 | 1 | LED LIGHT | GB | |
||
| 12 | N087259 | 1 | DETENT | GB | |
||
| 13 | N046201 | 1 | SELECTOR | GB | |
||
| 14 | N173899 | 1 | CAP SA | GB | |
||
| 15 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 16 | N041808 | 1 | SPRING | GB | |
||
| 17 | N072175 | 1 | SLEEVE | GB | |
||
| 18 | N091014 | 1 | RETAINER | GB | |
||
| 19 | N041809 | 1 | SPRING | GB | |
||
| 20 | N044869 | 1 | ACTUATOR | GB | |
||
| 21 | 682211-00 | 6 | SCREW | GB | |
||
| 22 | N130792 | 4 | SCREW | GB | |
||
| 23 | 562160-12 | 2 | SCREW | GB | |
||
| 24 | N048058 | 1 | COVER | GB | |
||
| 25 | N416357 | 1 | BRAND LABEL | GB | |
||
| 26 | N086039 | 1 | HOOK | GB | |
||
| 27 | N042665 | 2 | SCREW | GB | |
||
| 29 | N095778 | 1 | HOLDER BIT | GB | |
||
| 31 | N098119 | 1 | LABEL | GB | |
||
| 52 | N084674 | 1 | SLEEVE BEARING | GB | |
||
| 53 | 613372-00 | 4 | RUBBER | GB | |
||
| 54 | N125828 | 4 | GUIDE | GB | |
||
| 102 | N431410 | 1 | RATING PLATE | EURO | GB | |
|
| 861 | N068611 | 1 | KITBOX | GB | |
||
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCF895M2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
