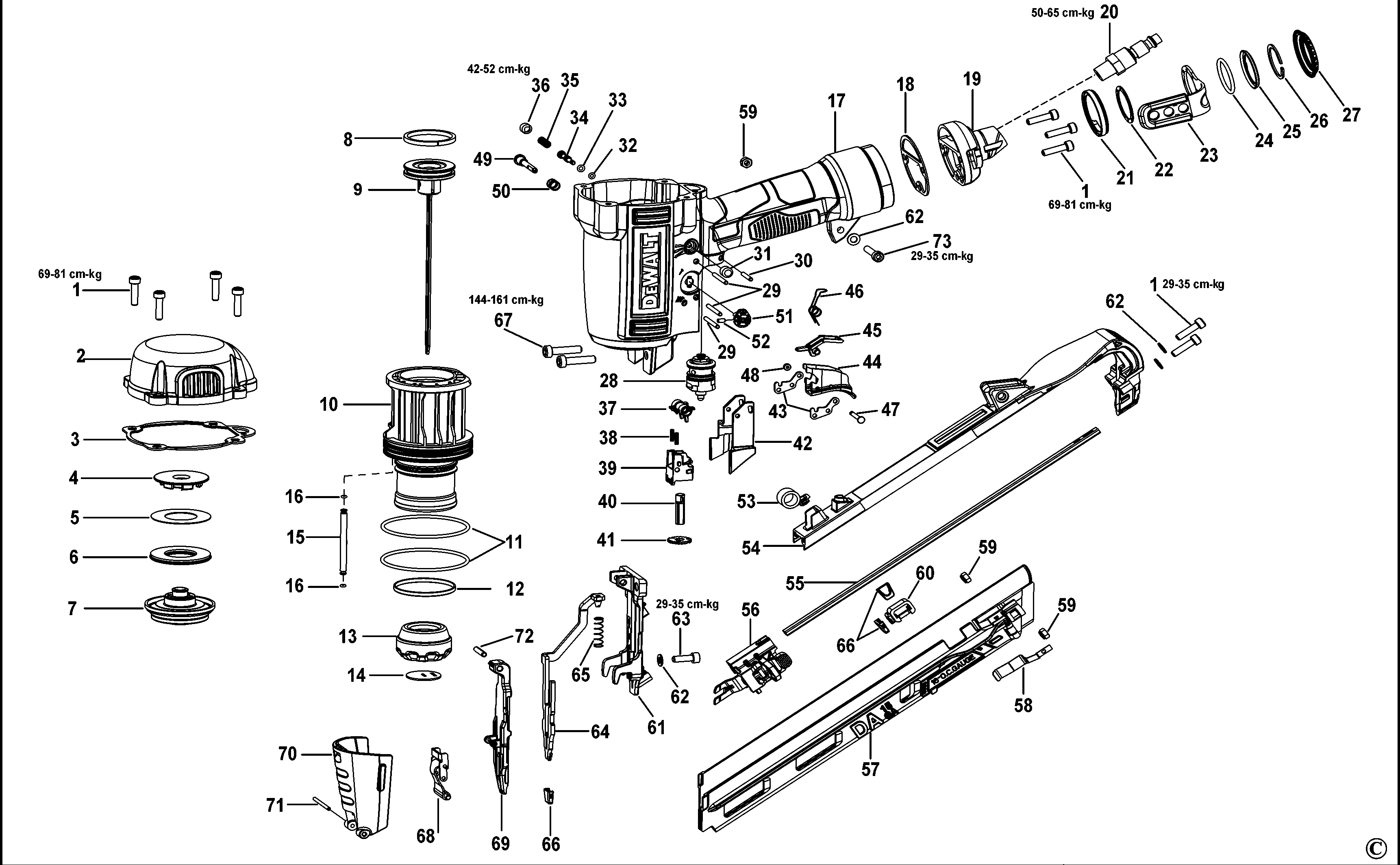

DPN1564APP NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | MSC5080-20 | 9 | SCREW | M5x20mm | XJ | ||
| 2 | 9R205678 | 1 | END CAP | XJ |  |
||
| 3 | 9R203831 | 1 | GASKET | XJ |  |
||
| 4 | 9R188810 | 1 | COVER & SEAL | XJ | |
||
| 5 | 9R188852 | 1 | PLATE | XJ | |
||
| 6 | 9R188849 | 1 | SEAL | XJ | |
||
| 7 | 9R188859 | 1 | VALVE | SA | XJ | |
|
| 8 | 9R188846 | 1 | PISTON RING | XJ | |
||
| 9 | 9R203880 | 1 | PISTON SA | XJ | |
||
| 10 | 9R192035 | 1 | CYLINDER | XJ | |
||
| 11 | 9R188836 | 2 | O RING | 64.1x2.5 | XJ | |
|
| 12 | 9R188835 | 1 | SEAL | XJ | |
||
| 13 | 9R188807 | 1 | BUMPER | XJ | |
||
| 14 | 9R188847 | 1 | GUIDE | XJ | |
||
| 15 | 9R192036 | 1 | TUBE OUTLET | XJ | |
||
| 16 | 166797 | 2 | O RING | 0.056x0.60 | XJ | |
|
| 17 | 9R203802 | 1 | FRAME | XJ | |
||
| 18 | 9R192039 | 1 | GASKET | XJ | |
||
| 19 | 9R192034 | 1 | END CAP | XJ | |
||
| 20 | 159977 | 1 | ADAPTOR | XJ | |
||
| 21 | 188829 | 1 | HOUSING | XJ | |
||
| 22 | 9R188830 | 1 | PLATE | XJ | |
||
| 23 | 9R188815 | 1 | HOOK | XJ | |
||
| 24 | 174309 | 1 | O RING | 1.049x0.103 | XJ | |
|
| 25 | 9R188812 | 1 | CAP | XJ | |
||
| 26 | 9R188811 | 1 | CIRCLIP | 26mm EXT | XJ | |
|
| 27 | 9R188828 | 1 | COVER | XJ | |
||
| 28 | 9R196764 | 1 | VALVE | XJ | |
||
| 29 | 9R203788 | 3 | SPIROL PIN | M3X30 MM | XJ | |
|
| 30 | 180475 | 1 | PIN | XJ | |
||
| 31 | 9R188824 | 1 | BUTTON | XJ | |
||
| 32 | MRG002514 | 1 | O RING | XJ | |
||
| 33 | 9R188768 | 1 | O RING | 3x1.5 | XJ | |
|
| 34 | 9R188823 | 1 | ROD | XJ | |||
| 35 | 9R188832 | 1 | SPRING | XJ | |
||
| 36 | 9R188837 | 1 | SCREW | M8x1.25x6mm | XJ | |
|
| 37 | 9R201813 | 1 | PAWL | XJ | |
||
| 38 | 9R201809 | 2 | SPRING | XJ | |
||
| 39 | 9R205579 | 1 | GUIDE | XJ | |
||
| 40 | 9R203784 | 1 | PIN SA | XJ | |
||
| 41 | 9R203952 | 1 | WHEEL ADJUSTER | XJ | |
||
| 42 | 9R203817 | 1 | COVER | XJ | |
||
| 43 | 9R201812 | 2 | BRACKET | XJ | |
||
| 44 | 9R205611 | 1 | TRIGGER | XJ | |
||
| 45 | 9R205614 | 1 | ROCKER | XJ | |
||
| 46 | 9R205607 | 1 | SPRING | XJ | |
||
| 47 | 9R196682 | 1 | PIN | XJ | |
||
| 48 | 391814-00 | 1 | GROMMET | XJ | |
||
| 49 | 9R205605 | 1 | PIN | XJ | |
||
| 50 | 9R188850 | 1 | SPRING | XJ | |
||
| 51 | 9R208907 | 1 | BUTTON | XJ | |
||
| 52 | 9R198788 | 1 | GRUB SCREW | XJ | |
||
| 53 | 9R188831 | 1 | SPRING | XJ | |
||
| 54 | 9R192012 | 1 | MAGAZINE | XJ | |
||
| 55 | 9R192015 | 1 | LINER | XJ | |
||
| 56 | 9R203871 | 1 | PUSHER | SA | XJ | |
|
| 57 | 9R203861 | 1 | MAGAZINE SA | XJ | |
||
| 58 | 9R188801 | 1 | STOP | XJ | |
||
| 59 | MHE5080-100 | 3 | LOCK NUT | XJ | |
||
| 60 | 9R203923 | 1 | ADAPTOR | XJ | |
||
| 61 | 9R203885 | 1 | NOSE | XJ | |
||
| 62 | 180569 | 4 | WASHER | XJ | |
||
| 63 | 188771 | 1 | SCREW | M5X0.8X16 | XJ | |
|
| 64 | 9R203891 | 1 | TRIP SA | XJ | |
||
| 65 | 9R203787 | 1 | SPRING | XJ | |
||
| 66 | 9R203869 | 1 | FOOT | XJ | |
||
| 67 | MSC6100-25 | 2 | BOLT | M6x1.00x0.0025mm | XJ | |
|
| 68 | 9R203887 | 1 | DOOR | XJ | |
||
| 69 | 9R188794 | 1 | PLATE SA | XJ | |
||
| 70 | 9R203814 | 1 | COVER | XJ | |
||
| 71 | 9R203790 | 1 | PIN | XJ | |
||
| 72 | 103858 | 1 | PIN | XJ | |
||
| 73 | MSC5080-25 | 1 | SCREW | XJ | |
