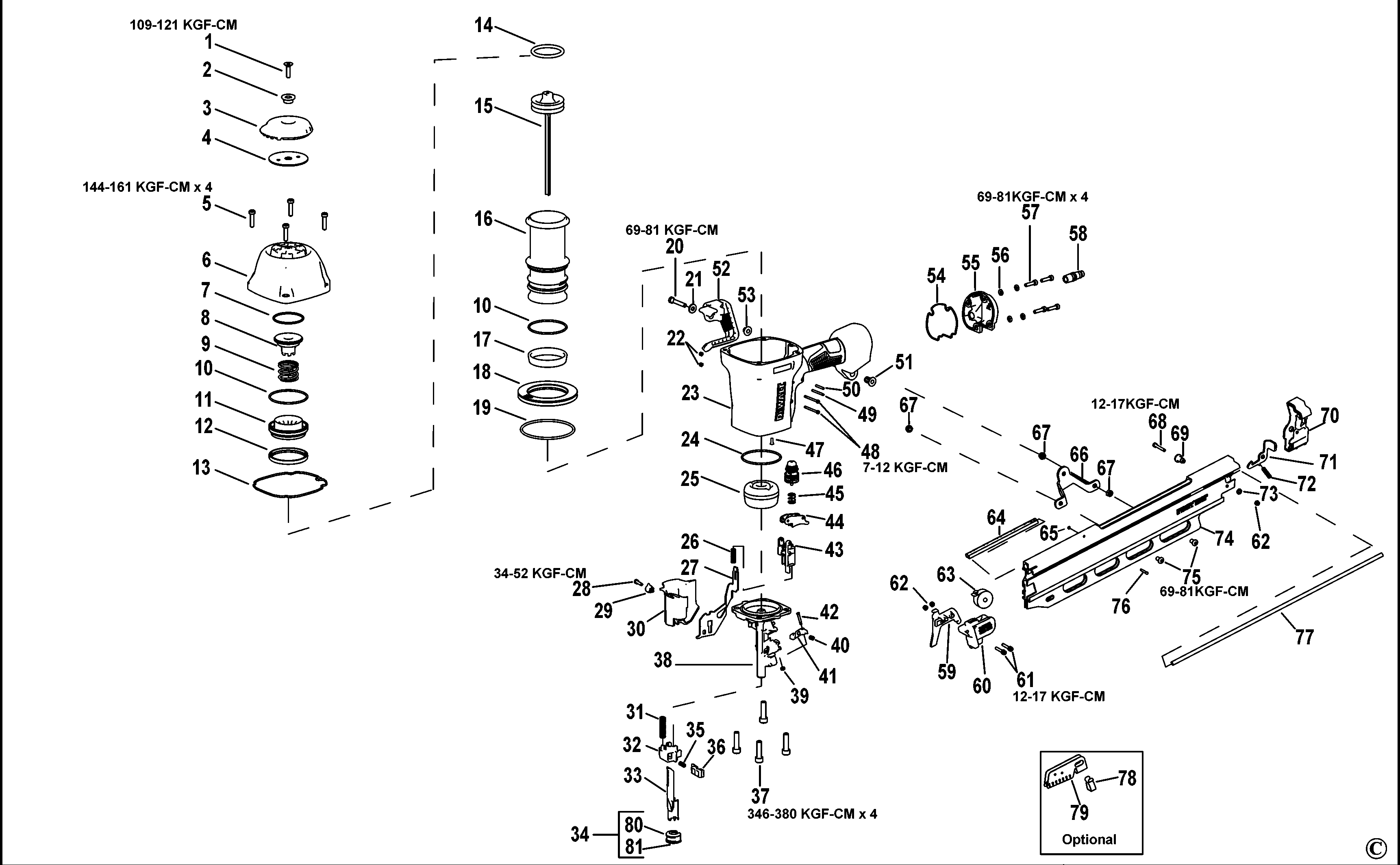

DPN9021PL NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | MSF6100-25 | 1 | SCREW | XJ |  |
||
| 2 | 163859 | 1 | BUSHING | XJ | |
||
| 3 | 163818 | 1 | EXHAUST | XJ | |
||
| 4 | 163830 | 1 | PLATE | XJ | |
||
| 5 | MSC6100-25 | 4 | BOLT | M6x1.00x0.0025mm | XJ | |
|
| 6 | 9R207477 | 1 | CAP | XJ | |
||
| 7 | 105814 | 1 | O RING | XJ | |
||
| 8 | 163820 | 1 | BUMPER | XJ | |
||
| 9 | 163844 | 1 | SPRING | XJ | |
||
| 10 | 163822 | 2 | O RING | XJ | |
||
| 11 | 163821 | 1 | VALVE BODY | XJ | |
||
| 12 | 163823 | 1 | SEAL | XJ | |
||
| 13 | 163845 | 1 | SEAL | XJ | |
||
| 14 | 851606-S | 1 | O RING | XJ | |
||
| 15 | 163921 | 1 | PISTON SA | XJ | |
||
| 16 | 163824 | 1 | SLEEVE | XJ | |
||
| 17 | 175520 | 1 | SEAL | XJ | |
||
| 18 | 163855 | 1 | RING | XJ | |
||
| 19 | 108718 | 1 | O RING | 3.48x0.139 | XJ | |
|
| 20 | MSC6100-35 | 1 | SCREW | M6x1.00x35 | XJ | |
|
| 22 | MHE3050-100 | 2 | NUT | XJ | |
||
| 23 | 9R207410 | 1 | FRAME | XJ | |
||
| 24 | 89673 | 1 | O RING | XJ | |
||
| 25 | 107231 | 1 | BUMPER | XJ | |
||
| 26 | 166781 | 1 | SPRING | XJ | |
||
| 27 | 163900 | 1 | ARM | XJ | |
||
| 28 | MSC4070-16 | 1 | SCREW | XJ | |
||
| 29 | 163903 | 1 | BUSHING | XJ | |
||
| 30 | 171338 | 1 | COVER | XJ | |
||
| 31 | 166772 | 1 | SPRING | XJ | |
||
| 32 | 166791 | 1 | CASTING | XJ | |
||
| 33 | 108227 | 1 | CONTACT | XJ | |
||
| 34 | 121072 | 1 | FOOT SA | XJ | |
||
| 35 | 115230 | 1 | SPRING | XJ | |
||
| 36 | 166777 | 1 | CASTING | XJ | |
||
| 37 | MSC8125-30 | 4 | SCREW | XJ | |
||
| 38 | 166790 | 1 | NOSE | XJ | |
||
| 39 | 854004 | 1 | WASHER | XJ | |
||
| 40 | 163878 | 1 | SPRING | XJ | |
||
| 41 | 163877 | 1 | PAWL | XJ | |
||
| 42 | 149882 | 1 | PIN | XJ | |
||
| 43 | 163883 | 1 | GUIDE | XJ | |
||
| 44 | SEQ7 | 1 | SWITCH KIT | Sequential trip | XJ | |
|
| 45 | 100387 | 1 | SPRING | XJ | |
||
| 46 | TVA6 | 1 | VALVE | KIT | XJ | |
|
| 47 | 163858 | 1 | PLUG | XJ | |
||
| 48 | 108562 | 2 | SCREW | XJ | |
||
| 49 | 100298 | 1 | PIN | XJ | |
||
| 50 | MPP030020 | 1 | PIN | M3x20mm | XJ | |
|
| 51 | 123859 | 1 | BUSHING | XJ | |
||
| 52 | 171354 | 1 | HOOK | XJ | |
||
| 53 | 171342 | 1 | WASHER | XJ | |
||
| 54 | 163856 | 1 | SEAL | XJ | |
||
| 55 | 163843 | 1 | END CAP | XJ | |
||
| 56 | T50118 | 4 | WASHER | XJ | |
||
| 57 | MSC5080-20 | 4 | SCREW | M5x20mm | XJ | ||
| 58 | 159977 | 1 | ADAPTOR | XJ | |
||
| 59 | 166770 | 1 | PUSHER | XJ | |
||
| 60 | 163902 | 1 | HANDLE | XJ | |
||
| 61 | 121052 | 2 | SCREW | XJ | |
||
| 62 | MHE4070-100 | 3 | NUT | XJ | |
||
| 63 | 115143 | 1 | SPRING | XJ | |
||
| 64 | 9R204232 | 1 | GUIDE | XJ | |
||
| 65 | 166797 | 1 | O RING | 0.056x0.60 | XJ | |
|
| 66 | 166786 | 1 | BRACKET | XJ | |
||
| 67 | MHE6100-100 | 3 | NUT | M6x1 | XJ | |
|
| 68 | 100261 | 1 | SCREW | M4 X 30 | XJ | |
|
| 69 | 121472 | 1 | SPACER | XJ | |
||
| 70 | 163912 | 1 | END CAP | XJ | |
||
| 71 | 166778 | 1 | LATCH | XJ | |
||
| 72 | 120878 | 1 | SPRING | XJ | |
||
| 73 | MPW4 | 1 | WASHER | M4 | XJ | |
|
| 74 | 9R209641 | 1 | MAGAZINE | XJ |  |
||
| 75 | MSB6100-12 | 2 | BOLT | XJ | |
||
| 76 | 121407 | 1 | PIN | XJ | |
||
| 77 | 163866 | 1 | GUIDE ROD | XJ | |
||
| 78 | 112631 | 1 | SPRING | XJ | |
||
| 79 | 112630 | 1 | SHIELD | XJ | |
||
| 80 | 121071 | 1 | CLIP | XJ | |
||
| 81 | 121070 | 1 | FOOT | XJ | |
