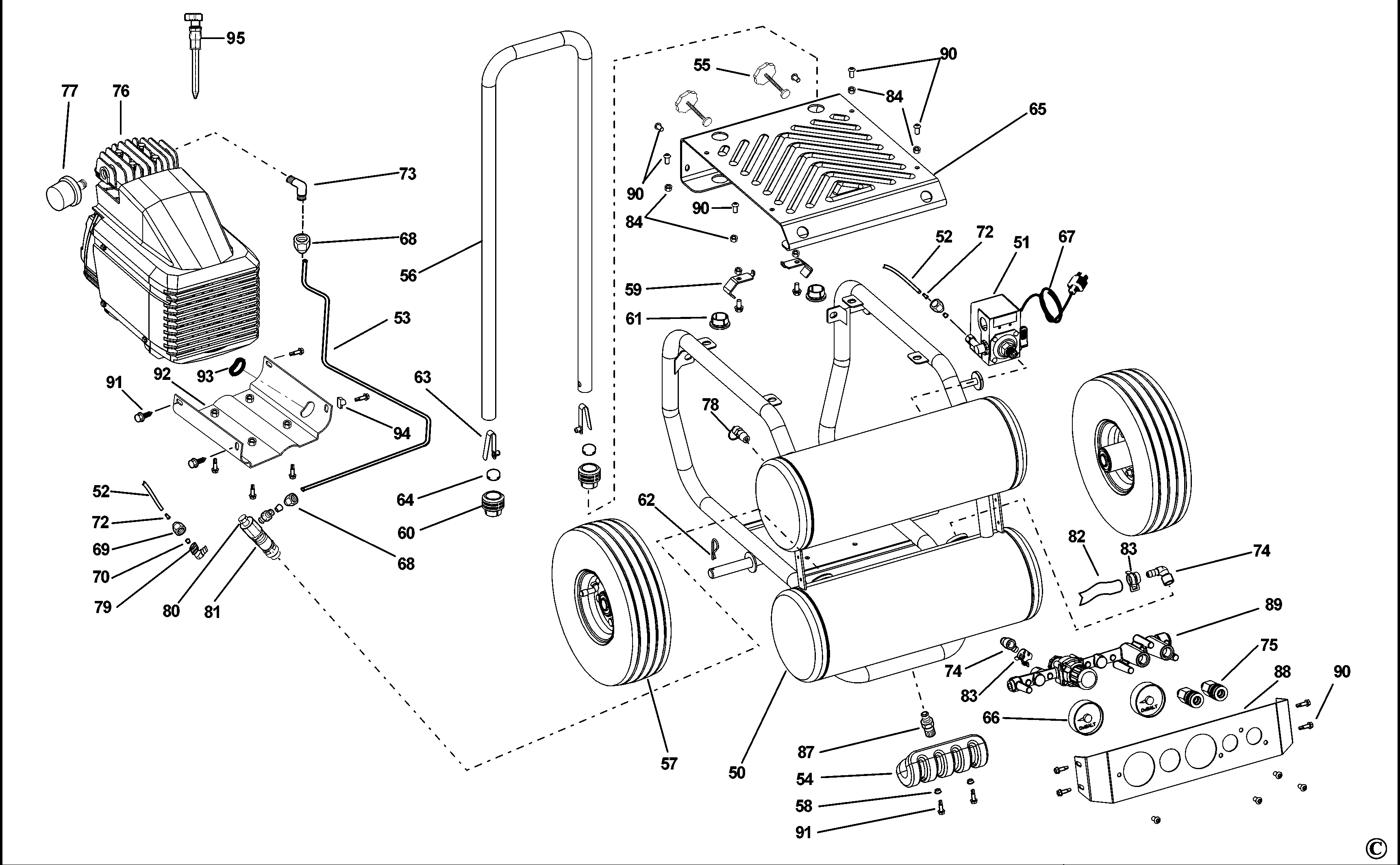

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
50	9413502022	1	TANK			LX
51	9063157	1	SWITCH			LX
52	9417693	1	TUBE		0.42mtr	LX
53	9043656	1	PIPE			LX
54	4105845	1	FOOT			LX
55	4105846	2	KNOB			LX
56	4105927021	1	HANDLE			LX
57	4105848	2	WHEEL			LX
58	127QC4009	2	WASHER			LX
59	127QC4010	2	PLATE			LX
60	4105853	2	SLEEVE			LX
61	4105854	2	SLEEVE			LX
62	4105855	2	CLEVIS PIN			LX
63	127QC4020	2	BUTTON RELEASE			LX
64	4105928	2	STOP			LX
65	4105858021	1	COVER			LX
66	4100610	2	GAUGE			LX
67	9065984	1	CORDSET			LX
68	4105716	1	LOCK NUT			LX
68	4105716	1	LOCK NUT			LX
69	127HQ0111	1	LOCK NUT			LX
70	127HQ0121	1	PISTON RING			LX
72	9053420	2	INSERT			LX
73	4105358	1	CONNECTOR			LX
74	127QC0181	2	JOINT			LX
75	9047068	1	COUPLING	1/4" M ROHS		LX
76	9417410SGL	1	MOTOR & PUMP SA 115V			LX
76	41P0308SGL	1	MOTOR & PUMP SA 240V			LX
77	4105164	1	FILTER SA			LX
78	9049152	1	VALVE			LX
79	9050372	1	ELBOW TUBE			LX
80	4101047	1	VALVE			LX
81	9048120	1	VALVE		Check Valve	LX
82	9270051	1	HOSE		0.22mtr	LX
83	127QC0290	2	CLAMP			LX
84	127HQ0138	10	NUT			LX
87	9047078	1	DRAIN COCK			LX
88	127QC0244	1	FRONT BRACKET			LX
89	9050668	1	MANIFOLD ASSEMBLY			LX
90	127QC0012	20	SCREW			LX
91	9114284	4	SCREW			LX
92	4105729022	1	BASEPLATE			LX
93	4105715	1	CORD PROTECTOR			LX
94	4105869	1	CABLE CLAMP			LX
95	4105028	1	DIPSTICK	SA		LX
