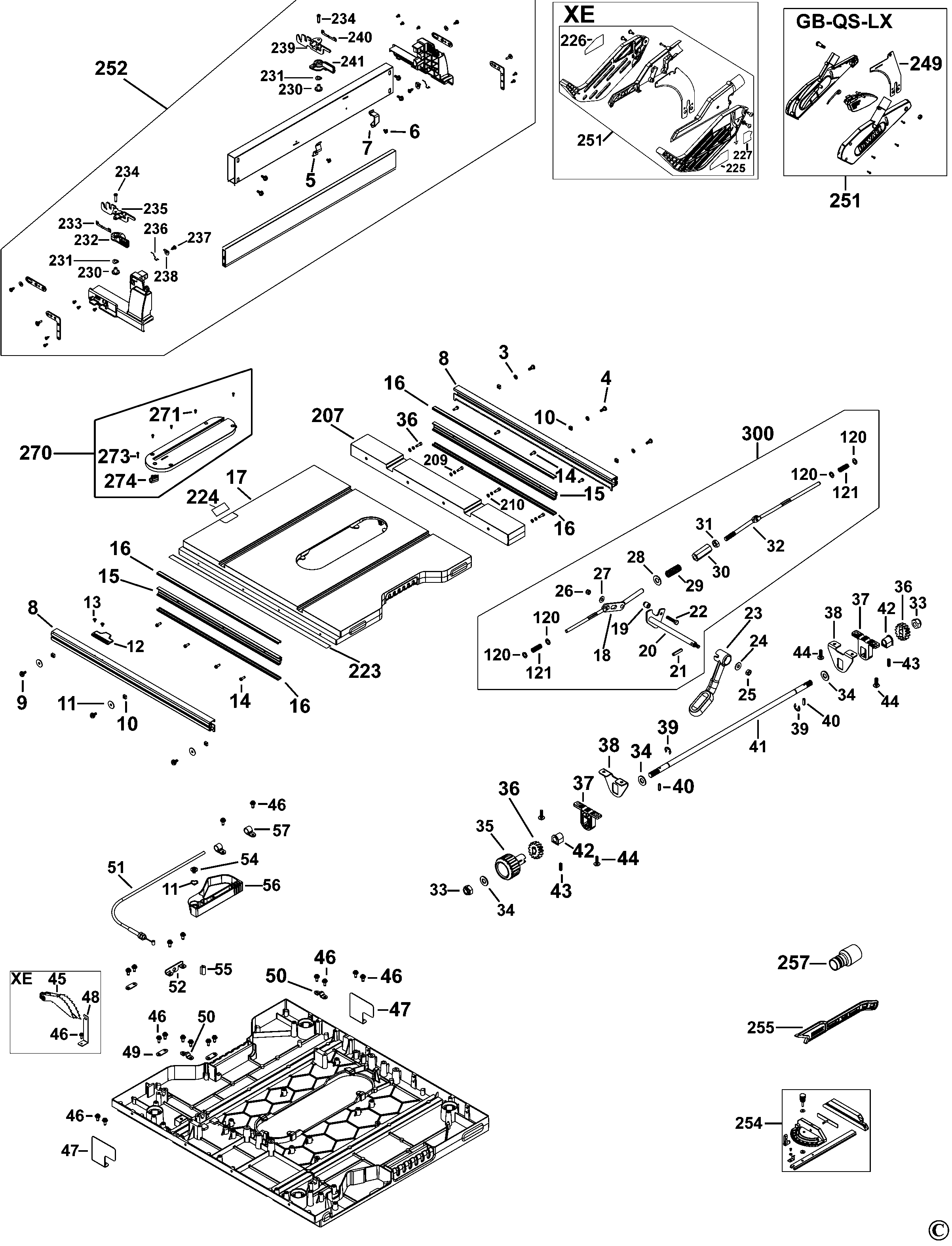

DWE7491 TABLE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 1004695-74 | 3 | WASHER | 6.2 X 13 X 1.5 | LX |  |
|
| 4 | 1004695-73 | 3 | SCREW | LX | |
||
| 5 | 5140134-60 | 1 | CLIP | LX | |
||
| 6 | 5140134-61 | 2 | SCREW | M4x 0.7 x8mm Locking | LX | |
|
| 7 | 5140134-62 | 1 | STRAP | nylon | LX | |
|
| 8 | 5140134-63 | 2 | RAIL | LX | |
||
| 9 | 1004695-71 | 3 | SCREW | LX | |
||
| 10 | 5140032-03 | 6 | NUT M6 | SQUARE M6x1.0 | LX | |
|
| 11 | 1004695-72 | 3 | WASHER | 6 X 24 X1.5 | LX | |
|
| 12 | 5140134-65 | 1 | POINTER | LX | |
||
| 13 | 5140134-66 | 2 | SCREW.SPECIAL | M4 x 0.7P x 8mm | LX | |
|
| 14 | 5140134-67 | 11 | SCREW.SPECIAL | M5 x 0.8P x 16 | LX | |
|
| 15 | 5140134-68 | 2 | RAIL | LX | |
||
| 16 | 5140134-69 | 4 | CAP | LX | |
||
| 17 | 5140134-70 | 1 | TABLE | LX |  |
||
| 18 | 1004705-43 | 1 | LOCKING DEVICE | LX | |
||
| 19 | 1004705-43 | 1 | LOCKING DEVICE | LX | |
||
| 20 | 1004705-43 | 1 | LOCKING DEVICE | LX | |
||
| 21 | 5140032-21 | 1 | PIN | 4mm x 22mm | LX | |
|
| 22 | 1004705-43 | 1 | LOCKING DEVICE | LX | |
||
| 23 | 5140032-23 | 1 | LEVER LOCK | LX | |
||
| 24 | 5140134-74 | 1 | WASHER | M6 x 13mm x 2mm Thk. | LX | |
|
| 25 | 5140032-25 | 1 | NUT M6 | M6 HEX | LX | |
|
| 26 | 1004705-43 | 3 | LOCKING DEVICE | LX | |
||
| 27 | 1004705-43 | 1 | LOCKING DEVICE | LX | |
||
| 28 | 5140032-15 | 2 | WASHER M8 | M8 x 16mm x 1.5 Thk. | LX | |
|
| 29 | 5140134-75 | 1 | SPRING | LX | |
||
| 30 | 5140032-17 | 1 | ADJUSTER | HEX | LX | |
|
| 31 | 5140134-76 | 1 | NUT M8 | M8 x 1.25P | LX | |
|
| 32 | 1004705-44 | 1 | REAR BRACKET | EURO | LX | |
|
| 33 | 5140134-78 | 2 | NUT | M10 x 1.5P | LX | |
|
| 34 | 5140032-27 | 3 | WASHER M10 | M10 | LX | |
|
| 35 | 5140134-79 | 1 | KNOB | LX | |
||
| 36 | 5140032-29 | 5 | PINION GEAR | LX | |
||
| 37 | 5140134-80 | 2 | BRACKET | GEAR ROD SUPPORT | LX | |
|
| 38 | 5140134-81 | 2 | COVER | BRACKET | LX | |
|
| 39 | 5140032-33 | 4 | LOCKING RING | LX | |
||
| 40 | 5140032-34 | 2 | PIN | M4X16MM | LX | |
|
| 41 | 1004695-76 | 1 | ROD | LX | |
||
| 42 | 5140032-36 | 2 | BEARING BLOCK | LX | |
||
| 43 | 5140032-37 | 2 | SPRING | LX | |
||
| 44 | 5140134-83 | 4 | SCREW.SPECIAL | M5 x 0.8P x 18mm | LX | |
|
| 46 | 5140061-77 | 37 | SCREW.SPECIAL | M5x0.8x14 | LX | |
|
| 47 | 5140134-85 | 2 | GUARD | LX | |
||
| 49 | 5140032-77 | 3 | PLATE | FIX | LX | |
|
| 50 | 5140134-87 | 2 | PLATE | LX | |
||
| 51 | 5140134-88 | 1 | CABLE | LX | |
||
| 52 | 5140134-89 | 1 | BRACKET | LX | |
||
| 53 | 5140032-06 | 1 | WASHER M4 | M4 x 10mm x 1mm Thk. | LX | |
|
| 54 | 5140134-90 | 3 | SCREW.SPECIAL | M5x0.8x10mm | LX | |
|
| 55 | 5140134-91 | 1 | BUSHING | LX | |
||
| 56 | 5140134-92 | 1 | HANDLE | Riving Knife | LX | |
|
| 57 | 5140134-93 | 2 | CORD CLAMP | ACC-2 | LX | |
|
| 58 | 5140134-94 | 1 | ARBOR | LX | |
||
| 59 | 5140134-95 | 1 | KEY | 5x5x10 | LX | |
|
| 60 | 5140033-10 | 1 | GEARCASE COVER | LX | |
||
| 61 | 5140033-11 | 1 | O RING | LX | |
||
| 62 | 1004695-91 | 1 | BEARING | 6003 | LX | |
|
| 63 | 5140033-13 | 1 | RING | S-RING STW-17 | LX | |
|
| 64 | 5140010-11 | 1 | RETAINER | LX | |
||
| 65 | 5140134-97 | 1 | GEAR | LX | |
||
| 66 | 1004695-92 | 1 | BEARING | 6001 | LX | |
|
| 67 | 5140033-16 | 1 | O RING | LX | |
||
| 68 | 1004697-15 | 1 | GEARCASE SA | LX | |
||
| 69 | 5140033-18 | 1 | O RING | LX | |
||
| 70 | 1002806-00 | 1 | BRUSH 115-120V | LX | |
||
| 71 | 5140033-20 | 2 | BRUSH HOLDER | LX | |
||
| 72 | 5140033-21 | 2 | BRUSH CAP | LX | |
||
| 73 | 5140033-22 | 1 | FIELD CASE | LX | |
||
| 74 | 5140134-99 | 4 | SCREW.SPECIAL | M5 x 0.8P x 35mm | LX | |
|
| 75 | 5140117-81 | 1 | BEARING | LX | |
||
| 76 | 1004695-93 | 1 | ARMATURE 115/120V | LX | |
||
| 77 | 1004695-94 | 1 | FIELD 115V | LX | |
||
| 78 | 5140135-02 | 2 | SCREW | self tapping w/lock | LX | |
|
| 79 | 1004695-95 | 1 | BUFFER | LX | |
||
| 80 | 5140118-21 | 1 | BEARING | LX | |
||
| 81 | 429991-43 | 1 | GROMMET | SB7R-3 | LX | |
|
| 82 | 5140011-87 | 2 | SCREW | LX | |
||
| 83 | 1004696-74 | 1 | BRACKET | LX | |
||
| 84 | 5140033-39 | 4 | SCREW | M5 X 8 | LX | |
|
| 85 | 1004695-77 | 1 | RIVING KNIFE | LX | |
||
| 86 | 5140135-06 | 1 | SHAFT | LX | |
||
| 87 | 5140135-07 | 1 | PIN | LX | |
||
| 88 | 5140135-08 | 1 | SPRING | LX | |
||
| 89 | 5140135-09 | 1 | HOLDER | LX | |
||
| 90 | 5140135-10 | 1 | BUSHING | LX | |
||
| 91 | 5140135-11 | 3 | SCREW.SPECIAL | M5 x 0.8P x 8mm | LX | |
|
| 92 | 5140135-12 | 1 | SPRING | LX | |
||
| 93 | 5140135-13 | 1 | WASHER | LX | |
||
| 94 | 5140135-14 | 1 | CLIP | ETW-6 | LX | |
|
| 95 | 5140135-15 | 1 | MOUNT | LX | |
||
| 96 | 5140135-16 | 1 | SCREW.SPECIAL | M3 x 0.5P x 3mm | LX | |
|
| 97 | 5140135-17 | 6 | SCREW | M5 x 0.8P x 16mm | LX | |
|
| 98 | 5140135-18 | 1 | BRACKET | LX | |
||
| 99 | 5140135-19 | 2 | CLIP | ETW-4 | LX | |
|
| 100 | 5140135-20 | 1 | SHAFT | LX | |
||
| 101 | 5140135-21 | 1 | LEVER | LX | |
||
| 102 | 1004697-12 | 1 | BLOCK | LX | |
||
| 103 | 5140135-23 | 1 | NUT M5 | M5 x 0.8P | LX | |
|
| 104 | 1004697-13 | 1 | SCREW | M5 0.8P X 20 | LX | |
|
| 105 | 5140135-25 | 1 | BRACKET SA | LX | |
||
| 106 | 5140033-40 | 2 | DOWEL | 4mm x 12mm | LX | |
|
| 107 | 5140135-26 | 16 | SCREW.SPECIAL | M5 x 0.8P x 10mm | LX | |
|
| 108 | 5140135-27 | 1 | BRACKET | LEFT | LX | |
|
| 109 | 5140135-28 | 1 | COVER | LX | |
||
| 110 | 5140135-29 | 4 | SCREW.SPECIAL | M6x1.0 x16mm SHCS | LX | |
|
| 111 | 5140135-30 | 1 | BRACKET SA | LX | |
||
| 112 | 5140135-31 | 4 | SCREW.SPECIAL | M6x1.0Px12mm Locking | LX | |
|
| 113 | 5140034-65 | 1 | COVER | GEAR | LX | |
|
| 114 | 5140135-32 | 1 | CASTING | LX | |
||
| 115 | 5140135-33 | 2 | SCREW.SPECIAL | M5x 0.8 x12mm SHCS | LX | |
|
| 116 | 1004695-83 | 1 | WASHER OUTER CLAMP | LX | |
||
| 117 | 1004695-84 | 1 | LOCK-NUT | BLADE | LX | |
|
| 118 | 5140135-34 | 1 | BRACKET | RIGHT | LX | |
|
| 119 | 5140135-35 | 1 | COVER | LX | |
||
| 120 | 5140135-36 | 4 | WASHER | LX | |
||
| 121 | 5140135-37 | 2 | SPRING | LX | |
||
| 122 | 5140135-38 | 1 | SHAFT | REAR | LX | |
|
| 123 | 5140135-39 | 1 | SHAFT | FRONT | LX | |
|
| 124 | 5140118-05 | 1 | BEVEL GEAR | LX | |
||
| 125 | 5140135-40 | 1 | BRACKET | ELEVATION | LX | |
|
| 126 | 5140135-41 | 2 | WASHER THRUST | LX | |
||
| 127 | 5140135-42 | 1 | CONTROL SCREW | LX | |
||
| 128 | 5140032-50 | 2 | KEY | 4mm x 4mm x 8mm | LX | |
|
| 129 | 5140135-43 | 1 | BUSHING | LEAD SCREW | LX | |
|
| 130 | 5140135-44 | 1 | WASHER SPECIAL | LX | |
||
| 131 | 5140135-45 | 1 | BRACKET | LEAD SCREW | LX | |
|
| 132 | 5140135-46 | 1 | BRACKET | LX | |
||
| 133 | 5140135-47 | 1 | WASHER | LX | |
||
| 134 | 5140135-48 | 1 | POINTER | LX | |||
| 135 | 5140135-49 | 2 | SCREW | M4 x 0.7P x 8mm | LX | |
|
| 136 | 5140135-50 | 1 | WASHER | LX | |
||
| 137 | 5140135-51 | 1 | HANDLE SA | LX | |
||
| 138 | 5140135-52 | 1 | WHEEL SA | LX | |
||
| 142 | 5140032-52 | 1 | RING | S-RING STW-10 | LX | |
|
| 143 | 5140135-54 | 1 | BUSHING | LX | |
||
| 144 | 5140135-55 | 1 | BRACKET | LX | |
||
| 145 | 5140135-56 | 2 | O RING | P7 | LX | |
|
| 146 | 5140135-57 | 1 | SCREW | to dcode wk25-2016 | LX | |
|
| 146 | 5140245-21 | 1 | SCREW | from dcode wk25-2016 | LX | |
|
| 147 | 5140135-58 | 2 | WASHER | LX | |
||
| 148 | 5140135-59 | 1 | LOCK NUT | to dcode wk25-2016 | LX | |
|
| 148 | 5140245-22 | 1 | LOCK NUT | from dcode wk25-2016 | LX | |
|
| 149 | 5140135-60 | 4 | SCREW.SPECIAL | M5x 0.8 x22mm w/Lock | LX | |
|
| 150 | 5140135-61 | 1 | NUT | LX | |
||
| 151 | 5140135-62 | 1 | SHAFT | LX | |
||
| 152 | 5140135-63 | 1 | FRAME | LX | |
||
| 153 | 5140135-64 | 16 | SCREW.SPECIAL | M5 x 0.8P x 43mm | LX | |
|
| 154 | 5140095-74 | 16 | NUT M5 | M5 | LX | |
|
| 155 | 1004696-21 | 4 | FOOT SA | LX | |
||
| 156 | 5140135-66 | 1 | PLATE | LX | |
||
| 157 | 5140135-67 | 2 | SCREW | M5 x 0.8P x 40mm | LX | |
|
| 158 | 5140135-68 | 1 | UPPER MOULDING | LX | |
||
| 159 | 5140135-69 | 1 | UPPER MOULDING | LX | |
||
| 160 | 5140061-66 | 1 | CORD CLAMP | LX | |
||
| 161 | 5140135-70 | 2 | SCREW.SPECIAL | M4 x 1.59P x 10mm | LX | |
|
| 162 | 5140135-71 | 1 | PLATE | FABRIC UPPER | LX | |
|
| 163 | 5140135-72 | 1 | INSERT | BOTTOM | LX | |
|
| 164 | 5140135-73 | 1 | SPRING | LX | |
||
| 165 | 5140135-74 | 4 | SCREW.SPECIAL | M6x 1.0x18mm Locking | LX | |
|
| 166 | 5140135-75 | 4 | BUMPER | LX | |
||
| 167 | 5140135-76 | 4 | PLATE | LX | |
||
| 168 | 5140135-77 | 1 | HANDLE | LX | |
||
| 169 | 1004695-86 | 1 | PLATE | LX | |
||
| 170 | 5140135-79 | 4 | SCREW | M5x0.8Px35mm PAN HD | LX | |
|
| 171 | 5140135-80 | 1 | KNOB | LX | |
||
| 172 | 5140135-81 | 1 | PIN | LX | |
||
| 173 | 5140135-82 | 1 | WASHER | LX | |
||
| 174 | 5140135-83 | 1 | PLATE | LX | |
||
| 175 | 5140135-84 | 1 | SHAFT | LX | |
||
| 176 | 5140135-85 | 1 | SPRING | LX | |
||
| 177 | 5140135-86 | 1 | BRACKET | LX | |
||
| 178 | 5140135-87 | 6 | SCREW | M5 x 2.12P x 12mm | LX | |
|
| 179 | 5140135-88 | 1 | PANEL FRONT | LX | |
||
| 180 | 5140033-04 | 2 | WASHER | ANGLE ADJUST | LX | |
|
| 181 | 5140135-89 | 3 | SCREW | M4 x 0.7P x 6mm | LX | |
|
| 182 | 5140135-90 | 1 | PLATE | LX | |
||
| 183 | 5140135-91 | 2 | SCREW | M5 x 0.8P x 8mm | LX | |
|
| 185 | 1004695-98 | 1 | PADDLE | LX | |
||
| 187 | 5140135-94 | 1 | SWITCH | KJD-17-110 | LX | |
|
| 188 | 5140135-95 | 1 | PIN | LX | |
||
| 189 | 1004696-02 | 1 | SWITCH COVER | LX | |
||
| 190 | 5140135-97 | 1 | SWITCHBOX | LX | |
||
| 191 | 1004696-04 | 4 | SCREW | M4 X1.59 X 16 | LX | |
|
| 192 | 5140061-67 | 1 | SLEEVE | LX | |
||
| 193 | 1004695-89 | 1 | CORDSET | LX | LX | |
|
| 200 | 1004696-00 | 1 | SHAFT | LX | |
||
| 201 | 1004696-03 | 1 | PROTECTOR | LX | |
||
| 202 | 1004696-05 | 1 | PCB | 110V - 220V | LX | |
|
| 203 | 1004696-06 | 1 | LEADWIRE | LX | |
||
| 204 | 1004696-07 | 1 | LEADWIRE | LX | |
||
| 205 | 1004695-79 | 2 | SCREW | LX | |
||
| 206 | 1004695-80 | 2 | WASHER | 5.3 X 12 X 1 | LX | |
|
| 207 | 1004695-78 | 1 | EXTENSION | LX | |
||
| 209 | 1004695-81 | 4 | WASHER LOCK | 5.1 X 9.3 X 1.3 | LX | |
|
| 210 | 1004695-82 | 4 | WASHER | 5.2 X 12 X 1.5 | LX | |
|
| 220 | N406803 | 1 | RATING PLATE | LX | LX | |
|
| 221 | N196813 | 1 | BRAND LABEL | LX | |
||
| 222 | N196812 | 1 | LABEL | LX | |
||
| 223 | N196912 | 1 | SCALE | LX | |
||
| 224 | 1004696-08 | 1 | LABEL | LX | |
||
| 230 | 1004696-09 | 2 | BUSHING | LX | |
||
| 231 | 1004696-10 | 2 | WASHER SPECIAL | 8.5 X 15 X 0.5 | LX | |
|
| 232 | 1004696-11 | 1 | LATCH | FRONT | LX | |
|
| 233 | 1004696-12 | 1 | CLIP | FRONT | LX | |
|
| 234 | 1004696-14 | 2 | SCREW | M5 X 0.8 X 20 | LX | |
|
| 235 | 1004696-13 | 1 | LATCH | FRONT | LX | |
|
| 236 | 1004696-15 | 2 | SPRING | LX | |
||
| 237 | 1004696-16 | 4 | SCREW | M5 X2.12 X 12 | LX | |
|
| 238 | 1004696-17 | 2 | WASHER | LX | |
||
| 239 | 1004696-18 | 1 | LATCH | REAR | LX | |
|
| 240 | 1004696-19 | 1 | CLIP | REAR | LX | |
|
| 241 | 1004696-20 | 1 | LATCH | REAR | LX | |
|
| 249 | 1004695-69 | 1 | RIVING KNIFE | LX | |
||
| 251 | 1004695-68 | 1 | GUARD SA | LX | |
||
| 252 | 1004695-70 | 1 | FENCE SA | LX | |
||
| 254 | 1004696-25 | 1 | MITRE FENCE | LX | |
||
| 255 | 5140033-44 | 1 | PUSHROD | LX | |
||
| 256 | 1004695-85 | 2 | WRENCH SPECIAL | LX | |
||
| 257 | 1004695-90 | 1 | DUST PORT | LX | |
||
| 270 | 5140034-46 | 1 | TABLE INSERT | LX | |
||
| 271 | 5140033-53 | 4 | SCREW | M4 X 8 SELF TAP | LX | |
|
| 273 | 5140033-54 | 1 | SCREW | M4 X 16 SELF TAP | LX | |
|
| 274 | 5140033-55 | 1 | CAM | LX | |
||
| 280 | 1004697-14 | 1 | PLATE | LX | |
||
| 281 | 5140033-39 | 1 | SCREW | M5 X 8 | LX | |
|
| 300 | 1004705-45 | 1 | LOCKING DEVICE | LX | |
