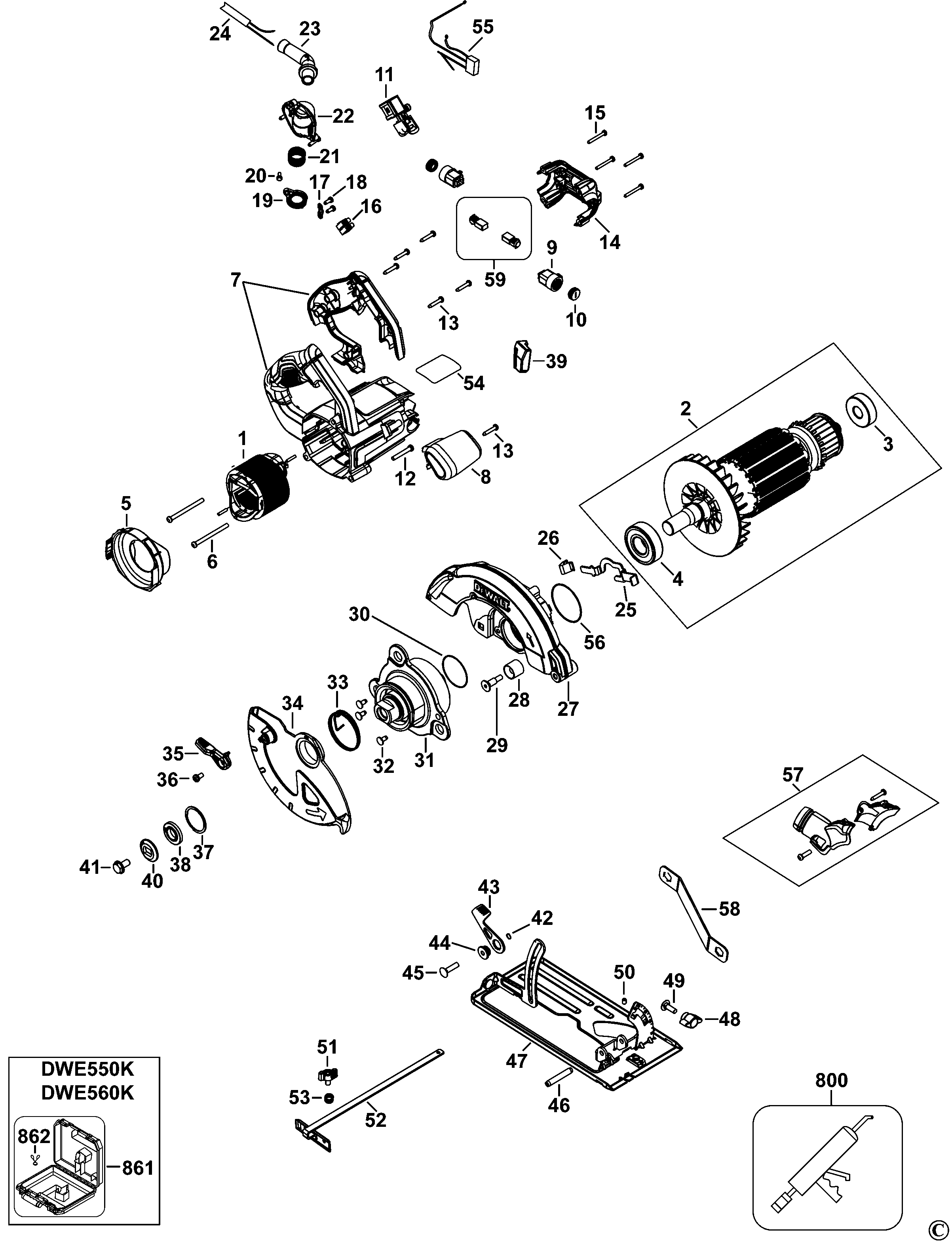

DWE550 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N178802 | 1 | FIELD SA 230V | GB |  |
||
| 2 | N178804 | 1 | ARMATURE SA | 230V | GB | |
|
| 3 | N110359 | 1 | BEARING | GB | |
||
| 4 | N472554 | 1 | BEARING | GB | |
||
| 5 | N083602 | 1 | BAFFLE | GB | |
||
| 6 | 330019-19 | 2 | SCREW | GB | |
||
| 7 | N112960 | 1 | FIELDCASE SA | GB | |
||
| 8 | N086362 | 1 | HANDLE | GB | |
||
| 9 | N024450 | 2 | BRUSH HOLDER | GB | |
||
| 10 | N024448 | 2 | BRUSH CAP | GB | |
||
| 11 | N092201 | 1 | SWITCH | GB | |
||
| 12 | 330045-20 | 1 | SCREW | M5*45 T25 | GB | |
|
| 13 | 330065-31 | 6 | PLASTIC SCREW | GB | |
||
| 14 | N083601 | 1 | END CAP | GB | |
||
| 15 | 330065-27 | 4 | SCREW | M3.5 X 30 TX15 | GB | |
|
| 16 | 320078-00 | 1 | TERMINAL BLOCK | GB | |
||
| 17 | 821070 | 1 | CORD CLAMP | GB | |
||
| 18 | N017542 | 2 | PLASTIC SCREW | GB | |
||
| 19 | N105376 | 1 | PROTECTOR | GB | |
||
| 20 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 21 | N083610 | 1 | SPRING | GB | |
||
| 22 | N102412 | 1 | HOLDER | GB | |
||
| 23 | N083609 | 1 | CORD PROTECTOR | GB | |
||
| 24 | N114590 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 25 | N083584 | 1 | SPINDLE LOCK | GB | |
||
| 26 | N130051 | 1 | SPRING | GB | |
||
| 27 | N195212 | 1 | GEARCASE SA | GB | |
||
| 28 | 381066-00 | 1 | BUMPER | GB | |
||
| 29 | N086355 | 1 | SCREW | GB | |
||
| 30 | N134472 | 1 | O RING | GB | |
||
| 31 | N183366 | 1 | SPINDLE SA | GB | |
||
| 32 | 385915-04 | 3 | SCREW | GB | |
||
| 33 | N083599 | 1 | SPRING | GB | |
||
| 34 | N149208 | 1 | GUARD LOWER | GB | |
||
| 35 | N086628 | 1 | LEVER | GB | |
||
| 36 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | GB | |
|
| 37 | N152544 | 1 | RETAINER | GB | |
||
| 38 | N083595 | 1 | INNER FLANGE | GB | |
||
| 39 | N191811 | 1 | RUBBER SEAL | GB | |
||
| 40 | 644711-00 | 1 | WASHER OUTER CLAMP | GB | |
||
| 41 | 145344-00 | 1 | SCREW.SPECIAL | GB | |
||
| 42 | 152211-00 | 1 | RING | GB | |
||
| 43 | 145347-00 | 1 | LEVER | GB | |
||
| 44 | N111116 | 1 | NUT | GB | |
||
| 45 | N143277 | 1 | CARRIAGE BOLT | M6 | GB | |
|
| 46 | 389562-00 | 1 | PIN | GB | |
||
| 47 | N148240 | 1 | SHOE SA | GB | |
||
| 48 | N116044 | 1 | WING NUT | GB | |
||
| 49 | N038133 | 1 | BOLT | GB | |
||
| 50 | N094309 | 1 | SCREW | M5 | GB | |
|
| 51 | N116069 | 1 | KNOB | GB | |
||
| 52 | N083612 | 1 | FENCE | GB | |
||
| 53 | N170858 | 1 | SPRING | GB | |
||
| 54 | N141343 | 1 | RATING PLATE | GB | |||
| 55 | N106861 | 1 | CAPACITOR | GB | |
||
| 56 | N100358 | 1 | O RING | GB | |
||
| 57 | N195216 | 1 | DUST PORT | GB | |
||
| 58 | N035355 | 1 | SPANNER | GB | |
||
| 59 | N179042 | 1 | BRUSH PAIR 230V | EURO | GB | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 861 | N044228 | 1 | KITBOX | GB | |
||
| 862 | 605265-00 | 1 | SPRING CLIP | GB | |
