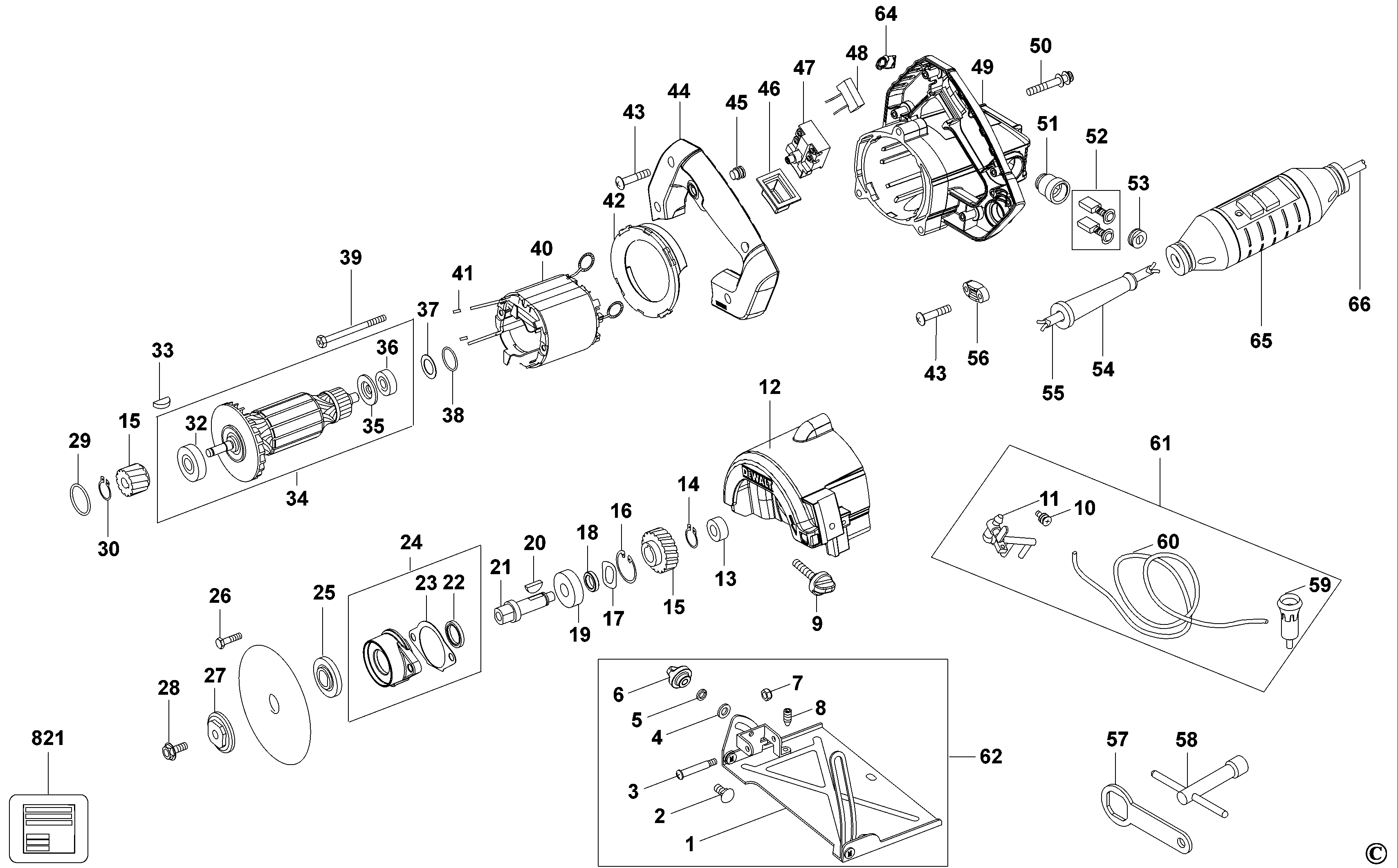

DWC410 TILE CUTTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N016657 | 1 | BASE SA | LX |  |
||
| 2 | N016658 | 1 | SCREW | LX | |
||
| 3 | N016659 | 1 | BOLT | LX | |
||
| 4 | N016660 | 1 | WASHER | LX | |
||
| 5 | N016661 | 1 | WASHER SPRING | LX | |
||
| 6 | N016662 | 1 | WASHER | LX | |
||
| 7 | N017088 | 1 | NUT M5 | LX | |
||
| 8 | N017089 | 2 | NUT | LX | |
||
| 9 | N017178 | 1 | SCREW | LX | |
||
| 10 | N018154 | 1 | SCREW | LX | |
||
| 11 | N018155 | 1 | VALVE | LX | |
||
| 12 | N017179 | 1 | GEARCASE | LX | |
||
| 13 | N017181 | 1 | BEARING | LX | |
||
| 14 | N017182 | 1 | RING | LX | |
||
| 15 | N028885 | 1 | GEAR & SHAFT | LX | |
||
| 16 | N017184 | 1 | WASHER | LX | |
||
| 17 | N017185 | 1 | WASHER | LX | |
||
| 18 | N017186 | 1 | SLEEVE | LX | |
||
| 19 | N017187 | 1 | BEARING | LX |  |
||
| 20 | N017188 | 1 | KEY | LX | |
||
| 21 | N017189 | 1 | OUTPUT SHAFT | LX | |
||
| 22 | N017192 | 1 | SEAL | LX | |
||
| 23 | N017190 | 1 | SEAL | LX | |
||
| 24 | N017191 | 1 | GEARCASE COVER | LX | |
||
| 25 | N017193 | 1 | INNER FLANGE | LX | |
||
| 26 | N017194 | 1 | BOLT | LX | |
||
| 27 | N017197 | 1 | OUTER FLANGE | LX | |
||
| 28 | N017198 | 1 | BOLT | LX | |
||
| 29 | N017200 | 1 | O RING | LX | |
||
| 30 | N017203 | 1 | RETAINER | LX | |
||
| 32 | N017206 | 1 | BEARING | LX | |
||
| 33 | N017208 | 1 | KEY | LX | |
||
| 34 | N028855 | 1 | ARMATURE SA | 110v | LX | |
|
| 35 | N017210 | 1 | SHIELD | LX | |
||
| 36 | N017211 | 1 | BEARING | LX | |
||
| 37 | N017212 | 1 | WASHER | LX | |
||
| 38 | N017213 | 1 | O RING | LX | |
||
| 39 | N017214 | 2 | PLASTIC SCREW | LX | |
||
| 40 | N021066 | 1 | FIELD SA | 110v | LX | |
|
| 41 | N028877 | 2 | TERMINAL | LX | |
||
| 42 | N017631 | 1 | BAFFLE | LX | |
||
| 43 | N017632 | 1 | SCREW | LX | |
||
| 44 | N017633 | 1 | HANDLE COVER | LX | |
||
| 45 | N017634 | 1 | CAP | LX | |
||
| 46 | N017635 | 1 | COVER | LX | |
||
| 47 | N021067 | 1 | SWITCH SA | 110v | LX | |
|
| 48 | N017637 | 1 | CAPACITOR | LX | |
||
| 49 | N017638 | 1 | FIELDCASE | LX | |
||
| 50 | N017639 | 3 | SCREW | LX | |
||
| 51 | N017640 | 2 | BRUSH HOLDER | LX | |
||
| 52 | N028884 | 1 | BRUSH PAIR | LX | |
||
| 53 | N017642 | 2 | BRUSH COVER | LX | |
||
| 54 | N018149 | 1 | CORD PROTECTOR | LX | |
||
| 55 | 633730-00 | 1 | CORD | LX | |
||
| 56 | N018151 | 1 | CORD CLAMP | LX | |
||
| 57 | N016342 | 1 | SPANNER | LX | |
||
| 58 | N016341 | 1 | SOCKET | LX | |
||
| 59 | N018152 | 1 | CONNECTOR | LX | |
||
| 60 | N018153 | 1 | PIPE | LX | |
||
| 61 | N028878 | 1 | KIT SA | LX | |
||
| 62 | N028853 | 1 | BASE SA | LX | |
||
| 64 | N035226 | 1 | SEAL | LX | |
||
| 65 | 633729-00 | 1 | SWITCH SAFETY | PRCD | LX | |
|
| 66 | 637960-00 | 1 | CORDSET | LX MARKET | LX | |
|
| 821 | N068392 | 1 | RATING PLATE | LX | |
