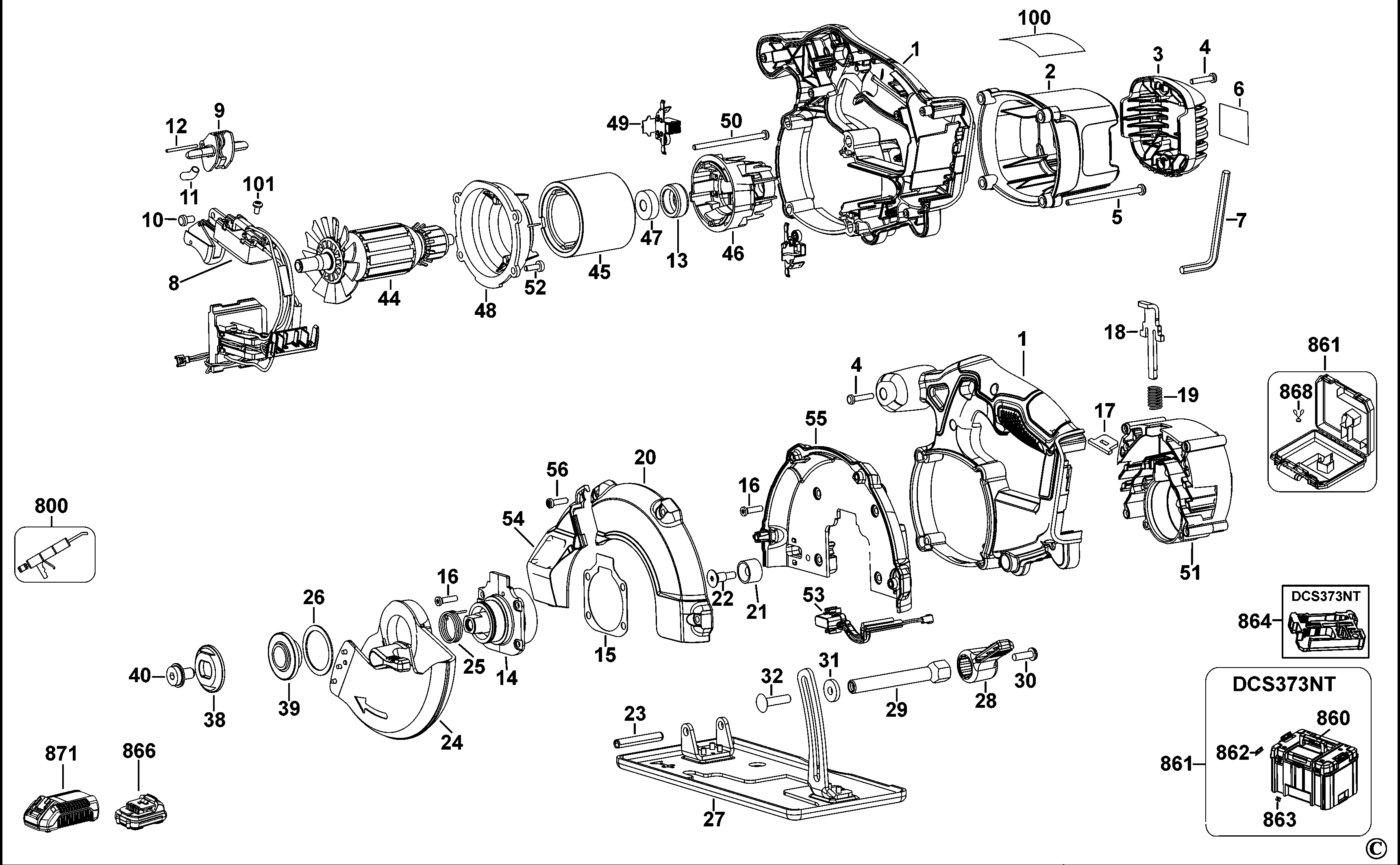

DCS373 CORDLESS CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N064324 | 1 | CLAMSHELL SET | GB | |||
| 2 | N054423 | 1 | MOTOR COVER | GB | |||
| 3 | N173219 | 1 | END CAP | GB |  |
||
| 4 | 90611830 | 8 | SCREW | GB | |
||
| 5 | 398987-00 | 4 | SCREW | GB | |
||
| 6 | N094673 | 1 | BRAND LABEL | GB | |
||
| 7 | 098000-11 | 1 | HEX KEY | GB | |
||
| 8 | N164481 | 1 | SWITCH SA | Euro | GB |  |
|
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | GB | |
||
| 10 | 330019-40 | 1 | SCREW | GB | |
||
| 11 | 389120-00 | 1 | SPRING | GB | |
||
| 12 | 388531-00 | 1 | PIN | GB | |
||
| 13 | 631563-00 | 1 | BOOT | GB | |
||
| 14 | 659417-00SV | 1 | SPINDLE SA | GB | |
||
| 15 | 605081-01 | 1 | GASKET | GB | |
||
| 16 | 613783-00 | 8 | SCREW | GB | |
||
| 17 | 605094-00 | 1 | WIPER | GB | |
||
| 18 | 629444-00 | 1 | SPINDLE LOCK | GB | |
||
| 19 | 58698-00 | 1 | SPRING | GB | |
||
| 20 | N095981 | 1 | GUARD UPPER | GB | |
||
| 21 | 389132-00 | 1 | BUMPER | GB | |||
| 22 | 610134-00 | 1 | SCREW | GB | |
||
| 23 | 614048-00 | 1 | SPIROL PIN | GB | |
||
| 24 | N275619 | 1 | GUARD LOWER | GB | |
||
| 25 | N035365 | 1 | SPRING | GB | |
||
| 26 | 150383-00 | 1 | RETAINER | GB | |
||
| 27 | N132583 | 1 | SHOE SA | GB | |
||
| 28 | 605105-00 | 1 | LEVER | GB | |
||
| 29 | 618901-00 | 1 | SHAFT | GB | |
||
| 30 | 330045-14 | 1 | SCREW | GB | |
||
| 31 | 142013-00 | 1 | WASHER | GB | |
||
| 32 | 098128-85 | 1 | CARRIAGE BOLT | GB | |
||
| 38 | N621119 | 1 | WASHER OUTER CLAMP | GB | |
||
| 39 | 610046-00 | 1 | WASHER INNER CLAMP | GB | |
||
| 40 | 648697-00 | 1 | BLADE BOLT | GB | |
||
| 44 | N301179 | 1 | ARMATURE SA | PKG'D N216140 | GB | |
|
| 45 | 611202-00SV | 1 | MAGNET | GB | |
||
| 46 | N171820 | 1 | SUPPORT BEARING | GB | |
||
| 47 | 330003-60 | 1 | BEARING | GB | |
||
| 48 | 610124-01 | 1 | BAFFLE | GB | |
||
| 49 | 610126-00 | 2 | BRUSHBOX SA | GB | |
||
| 50 | 330019-25 | 2 | SCREW | GB | |
||
| 51 | N225696 | 1 | GEARCASE SA | GB | |
||
| 52 | 330045-45 | 4 | SCREW | GB | |
||
| 53 | N148981 | 1 | LED LIGHT | GB | |
||
| 54 | N218112 | 1 | WINDOW | GB | |
||
| 55 | N095980 | 1 | GUARD UPPER | GB | |
||
| 56 | 330045-06 | 4 | SCREW | GB | |
||
| 100 | N168886 | 1 | RATING PLATE | DCS373 Euro | GB | |
|
| 101 | 384127-01 | 4 | SCREW | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 860 | H1400196008 | 1 | HANDLE | DCS373NT | GB | ||
| 861 | N153976 | 1 | KITBOX | GB | |
||
| 861 | N445186 | 1 | KITBOX | DCS373NT | GB | |
|
| 862 | H1500082520 | 2 | LATCH | DCS373NT | GB | ||
| 863 | P910190 | 2 | LATCH | DCS373NT | GB | |
|
| 864 | MP16983 | 1 | INSERT | TSTAKIV | DCS373NT | GB | |
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCS373M2 | GB | |
| 868 | 605265-00 | 1 | SPRING CLIP | GB | |
||
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
