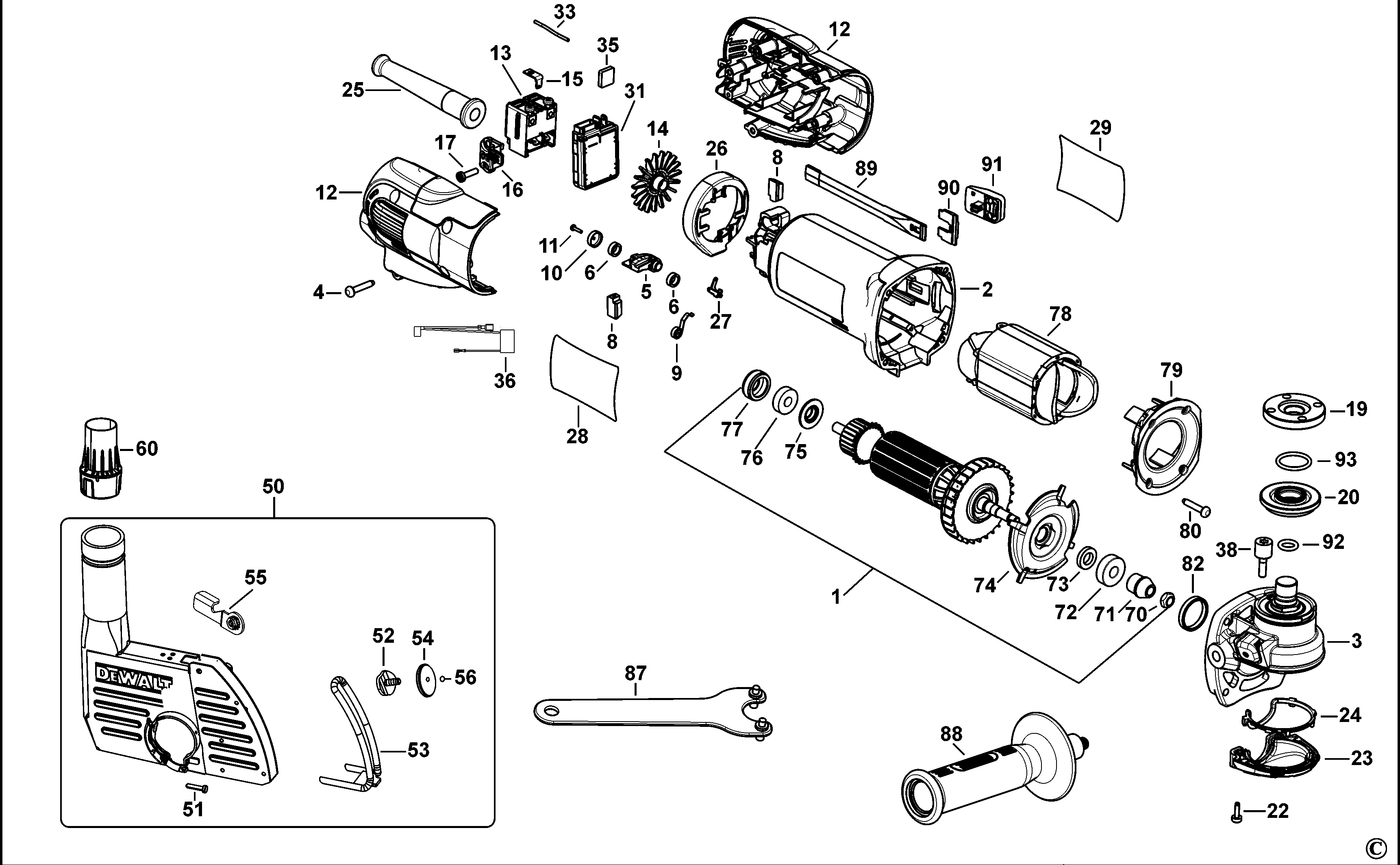

DWE46101 GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N186483 | 1 | ARMATURE SA | PKGD N145701 | LX |  |
|
| 2 | 626992-02 | 1 | FIELDCASE | HP, SLIDER | LX |  |
|
| 3 | N157455 | 1 | GEARCASE SA | LX | |
||
| 4 | 330065-31 | 9 | PLASTIC SCREW | LX | |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | LX | |
|
| 6 | 623592-00 | 4 | FELT SEAL | LX | |
||
| 8 | N378958 | 1 | BRUSH PAIR 115V | LX | |
||
| 9 | 636760-00 | 2 | BRUSH SPRING | LX | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | LX | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | LX | |
|
| 12 | N215273 | 1 | CLAMSHELL SET | LX | |
||
| 13 | 945614-01 | 1 | SWITCH | LX | |
||
| 14 | N055787 | 1 | SEPARATOR | Particle | LX | |
|
| 15 | 634599-00 | 1 | TERMINAL | LX | |
||
| 16 | 628398-00 | 1 | CORD CLAMP | LX | |
||
| 17 | 330019-03 | 1 | SCREW | LX | |
||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | LX | |
|
| 20 | 633257-00SV | 1 | INNER FLANGE SA | LX | |
||
| 22 | 385676-01 | 4 | SCREW | LX | |
||
| 23 | 623562-00 | 1 | GEARCASE COVER | LX | |
||
| 24 | 623618-00 | 1 | GASKET | LX | |
||
| 25 | 562226-60 | 1 | CORDSET | LX | LX | |
|
| 26 | 627283-00 | 1 | BAFFLE | LX | |
||
| 27 | 623593-00 | 2 | TERMINAL | LX | |
||
| 28 | 628885-00 | 1 | BRAND LABEL | LX | |
||
| 29 | N170127 | 1 | RATING PLATE | LX | |
||
| 31 | N215274 | 1 | CONTROL MODULE SA | LX | |
||
| 33 | 631028-00 | 1 | LEAD SA | RED, 80mm, 18GA | LX | |
|
| 35 | 633391-00 | 1 | SEAL | TERMINAL | LX | |
|
| 36 | 637251-00 | 1 | CAPACITOR SA | W/CAPACITOR | LX | |
|
| 38 | N033051 | 1 | SCREW | LX | |
||
| 50 | N175386 | 1 | SHROUD SA | LX | |
||
| 51 | N178989 | 1 | SCREW | LX | |
||
| 52 | N179021 | 1 | BOLT | LX | |
||
| 53 | N179023 | 1 | GUIDE SA | LX | |
||
| 54 | N179024 | 1 | NUT | LX | |
||
| 55 | N179025 | 1 | LEVER SA | LX | |
||
| 56 | N179030 | 1 | LOCKING RING | LX | |
||
| 60 | N071898 | 1 | CONNECTOR | LX | |
||
| 70 | 604484-00 | 1 | NUT | LX | |
||
| 71 | 657180-00 | 1 | PINION | LX | |
||
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | LX | |
|
| 73 | 623617-00 | 1 | FELT SEAL | LX | |
||
| 74 | N422242 | 1 | RETAINER | LX | |
||
| 75 | 623613-00 | 1 | WASHER | LX | |
||
| 76 | 605040-02 | 1 | BEARING | LX | |
||
| 77 | 641823-00 | 1 | SLEEVE | LX | |
||
| 78 | 627125-01 | 1 | FIELD 115V | 115/120V | LX | |
|
| 79 | 623572-00 | 1 | BAFFLE FAN | LX | |
||
| 80 | 330065-25 | 4 | SCREW | LX | |
||
| 82 | 611492-00 | 1 | SLEEVE | LX | |
||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | LX | |
|
| 88 | N421925 | 1 | SIDE HANDLE | LX | |
||
| 89 | 627001-00 | 1 | LINK | LX | |
||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | LX | |
|
| 91 | 623608-00 | 1 | BUTTON START | LX | |
||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | LX | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | LX | |
