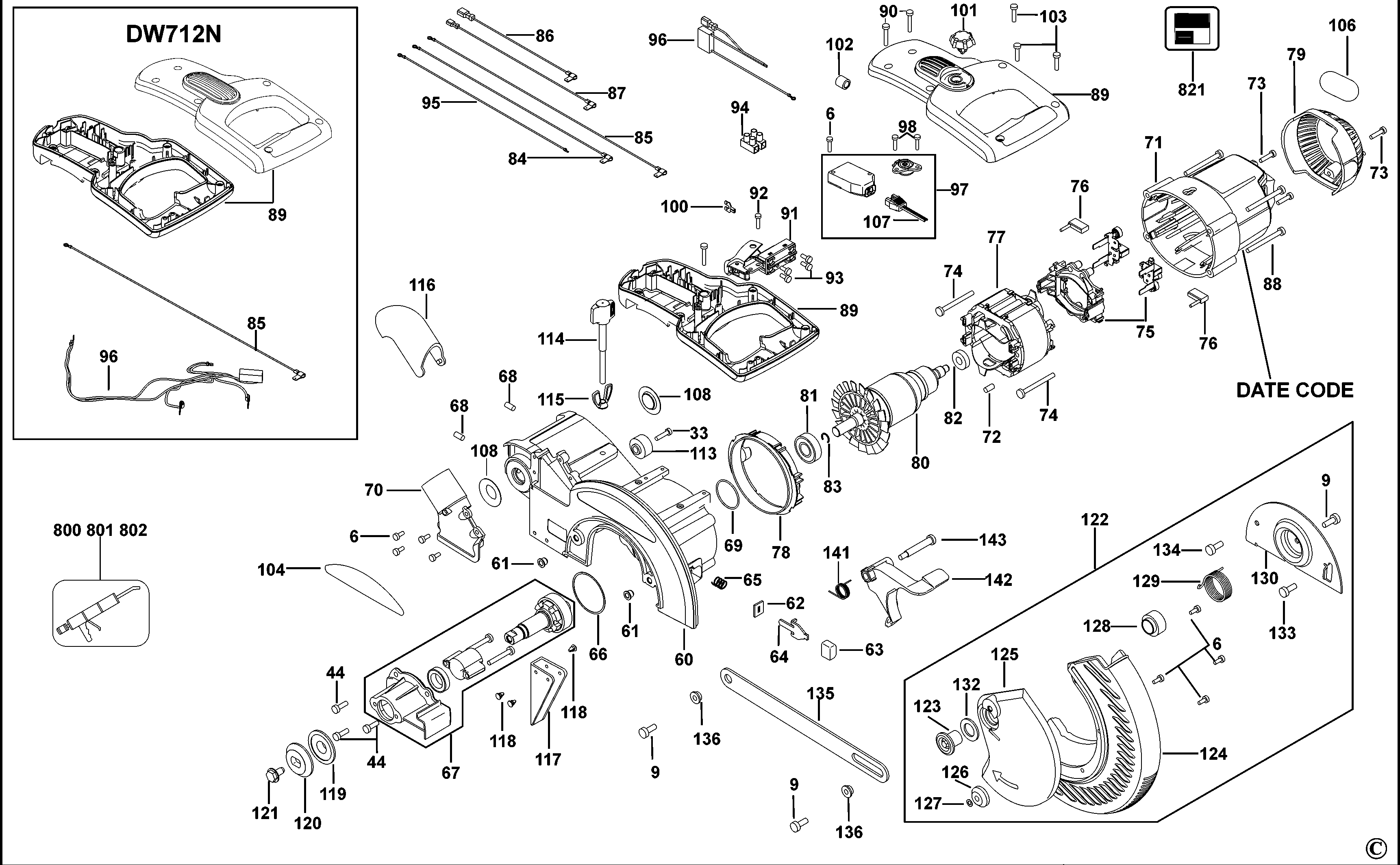

DW712N MITRE SAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 869349-00 | 1 | BASE SA | GB |  |
||
| 3 | N690033 | 1 | SCALE | GB | |
||
| 4 | 604987-00 | 4 | SCREW | GB | |
||
| 6 | 330045-05 | 22 | SCREW | GB | |
||
| 6 | 330045-05 | 25 | SCREW | GB | |
||
| 9 | 330045-23 | 1 | SCREW | GB | |
||
| 10 | 869350-00 | 1 | TABLE SA | GB | |
||
| 11 | 638875-00 | 1 | BOLT | GB | |
||
| 12 | 397062-00 | 1 | PLATE | GB | |
||
| 13 | 330045-55 | 4 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 13 | 330045-55 | 4 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 14 | 397070-00 | 1 | SPRING | GB | |
||
| 15 | 397073-00 | 1 | ACTUATOR | GB | |
||
| 16 | 397075-00 | 1 | CLAMP | GB | |
||
| 17 | 397065-00 | 1 | LEVER | GB | |
||
| 19 | 629395-00 | 1 | LOCK SA | GB | |
||
| 21 | 397063-00 | 1 | PIN | GB | |
||
| 22 | 153576-03 | 3 | SCREW | GB | |
||
| 23 | 397048-00 | 1 | POINTER | GB | |
||
| 24 | 397090-00 | 1 | POINTER | GB | |
||
| 25 | 605153-00 | 1 | LABEL | 33.85 - DEG | GB | |
|
| 26 | 249233-00 | 2 | WASHER | GB | |
||
| 27 | 860085-19 | 1 | SCREW | GB | |
||
| 28 | 860092-05 | 1 | NUT | GB | |
||
| 29 | 153781-00 | 2 | WASHER | GB | |
||
| 30 | 613270-00 | 2 | WASHER | GB | |
||
| 31 | N714363 | 2 | COVERPLATE | GB | |
||
| 32 | 641363-00 | 1 | FENCE SA | Inc 162,163,164 | GB | |
|
| 33 | 330045-33 | 4 | SCREW | GB | |
||
| 35 | 605699-00 | 1 | TRUNNION | GB | |
||
| 36 | 397084-00 | 1 | BEVEL SCALE | GB | |
||
| 37 | 397118-00 | 4 | GUIDE | GB | |
||
| 38 | 153586-00 | 2 | WASHER | GB | |
||
| 39 | 616001-00 | 2 | SCREW | GB | |
||
| 39 | 616001-00 | 2 | SCREW | GB | |
||
| 40 | 153576-04 | 1 | SCREW | GB | |
||
| 41 | 397088-00 | 2 | SPRING | GB | |
||
| 42 | 397083-00 | 1 | PIN | GB | |
||
| 43 | 397086-00 | 1 | KNOB | GB | |
||
| 44 | 330045-14 | 5 | SCREW | GB | |
||
| 45 | 606014-00 | 1 | SPRING | GB | |
||
| 46 | 147107-06 | 2 | KNOB | GB | |
||
| 47 | N016463 | 1 | LABEL | GB | |
||
| 48 | 153603-01 | 1 | PAWL | GB | |
||
| 49 | 153655-00 | 1 | WASHER | GB | |
||
| 50 | 153639-00 | 1 | SCREW | GB | |
||
| 51 | 391358-01 | 1 | HOLDER | GB | |
||
| 54 | 397089-00 | 1 | NUT | GB | |
||
| 55 | 397080-00 | 1 | HANDLE | GB | |
||
| 56 | N040940 | 1 | WRENCH SPECIAL | T30 - T40 | GB | |
|
| 57 | 387130-00 | 1 | LOCKING PIN | GB | |
||
| 58 | 34158-00 | 1 | SEAL | GB | |
||
| 59 | 330060-85 | 1 | CORDSET | GB | |
||
| 60 | 869351-00 | 1 | ARM | GB | |
||
| 61 | 148608-03 | 2 | INSERT | GB | |
||
| 62 | 387732-00 | 1 | FELT | GB | |
||
| 63 | 145350-00 | 1 | BUTTON | GB | |
||
| 64 | 397135-00 | 1 | SPINDLE LOCK | GB | |
||
| 65 | 941586-00 | 1 | SPRING | GB | |
||
| 66 | 616979-00 | 1 | O RING | GB | |
||
| 67 | 397210-00 | 1 | GEARCASE COVER SA | GB | |
||
| 68 | 150075-00 | 2 | SCREW | GB | |
||
| 69 | 696519-00 | 1 | RING | GB | |
||
| 70 | 603726-00 | 1 | DUST PORT | GB | |
||
| 71 | 391317-04 | 1 | FIELD CASE | GB | |
||
| 72 | 145312-00 | 1 | PLUG | GB | |
||
| 73 | 330019-13 | 4 | SCREW | M4X19 T20 | GB | |
|
| 74 | 330019-19 | 2 | SCREW | GB | |
||
| 75 | 389512-08 | 1 | BRUSHPLATE | GB | |
||
| 76 | 381028-07 | 2 | BRUSH & LEAD | GB | |
||
| 77 | 869444-00 | 1 | FIELD SA 230V | FROM DCODE WK46 2016 | GB | ||
| 77 | 869045-00 | 1 | FIELD 230V | 2 Lead | TO DCODE WK46 2016 | GB | |
| 78 | 391375-00 | 1 | BAFFLE FAN | GB | |
||
| 79 | 391933-00 | 1 | END CAP | GB | |
||
| 80 | 869071-00 | 1 | ARMATURE 230V | GB | |
||
| 81 | 330003-13 | 1 | BEARING | GB | |
||
| 82 | 330003-60 | 1 | BEARING | GB | |
||
| 83 | 144803-00 | 1 | CIRCLIP | GB | |
||
| 84 | 145371-00 | 1 | LEAD YELLOW | YELLOW | GB | |
|
| 85 | 660071-00 | 1 | LEAD RED | GB | |
||
| 86 | 398823-00 | 1 | LEAD BLACK | BLACK | GB | |
|
| 87 | 398828-00 | 1 | LEAD WHITE | WHITE | GB | |
|
| 88 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | GB | |
|
| 89 | 397177-00 | 1 | HOUSING & COVER | GB | |
||
| 90 | 330045-08 | 3 | SCREW | GB | |
||
| 91 | N548978V | 1 | SWITCH | GB | |
||
| 92 | 330013-22 | 1 | SCREW | GB |  |
||
| 93 | 384127-01 | 4 | SCREW | GB | |
||
| 94 | 326057-00 | 1 | TERMINAL BLOCK | GB | |
||
| 95 | 660071-00 | 1 | LEAD RED | GB | |
||
| 96 | N012819 | 1 | CAPACITOR | GB | |
||
| 99 | 640146-00 | 1 | PAD | GB | |
||
| 102 | 388414-01 | 1 | BUSH | GB | |
||
| 103 | 330019-13 | 3 | SCREW | M4X19 T20 | GB | |
|
| 104 | 397134-00 | 1 | LABEL | DEWALT | GB | |
|
| 106 | 610722-00 | 1 | LABEL | GB | |||
| 108 | 148296-00 | 2 | WASHER | GB | |
||
| 109 | 397130-00 | 1 | SPRING | TORSION | GB | |
|
| 110 | 397129-00 | 2 | SPACER | SPRING | GB | |
|
| 111 | 397128-00 | 1 | PIVOT SHAFT | GB | |
||
| 112 | 605155-00 | 1 | BUSHING | GB | |
||
| 113 | 146753-00 | 1 | BUSHING | GB | |
||
| 114 | 147107-05 | 1 | DEPTH STOP | GB | |
||
| 115 | 613365-00 | 1 | WING NUT | GB | |
||
| 116 | 148520-00 | 1 | DEFLECTOR | GB | |
||
| 117 | 612788-00 | 1 | CHUTE | DUST | GB | |
|
| 118 | 607491-00 | 4 | RIVET | GB | |
||
| 119 | 397138-00 | 1 | WASHER | GB | |
||
| 120 | 397136-00 | 1 | WASHER OUTER CLAMP | GB | |
||
| 121 | 647776-00 | 1 | BLADE BOLT | M8 X 20 LH T40 | GB | |
|
| 122 | N164918 | 1 | GUARD KIT | GB | |
||
| 123 | 399182-00 | 1 | RETAINER | GB | |
||
| 124 | N164683 | 1 | GUARD LOWER | GB | |
||
| 125 | 613460-00 | 1 | GUARD COVER | GB | |
||
| 126 | 146774-00 | 1 | ROLLER | GB | |
||
| 127 | 604728-00 | 1 | LOCKING RING | GB | |
||
| 128 | 603440-00 | 1 | SLEEVE | PIVOT | GB | |
|
| 129 | 603439-00 | 1 | SPRING | TORSION | GB | |
|
| 130 | N041977 | 1 | PLATE | GB | |
||
| 132 | 612923-00 | 1 | WASHER | GB | |
||
| 133 | 641470-00 | 1 | SCREW | GB | |
||
| 134 | 641470-00 | 1 | SCREW | GB | |
||
| 135 | 397159-00 | 1 | LINK | GB | |
||
| 136 | 146740-02 | 2 | SLEEVE | GB | |
||
| 137 | 640349-00 | 1 | FENCE | GB | |
||
| 138 | 621135-00 | 1 | WARNING LABEL | GB | |
||
| 141 | 398472-00 | 1 | SPRING TORSION | GB | |
||
| 142 | 397150-00 | 1 | LEVER LOCK | GB | |
||
| 143 | 152852-00 | 1 | BOLT | GB | |
||
| 144 | 612008-00 | 1 | SCREW | GB | |
||
| 146 | 613497-00 | 1 | THRUST PLATE | GB | |
||
| 147 | 615851-00 | 1 | BUSHING | GB | |
||
| 162 | 653947-00 | 1 | KNOB | GB | |
||
| 163 | 653948-00 | 1 | BOLT | GB | |
||
| 164 | 634736-00 | 1 | FENCE | GB | |
||
| 166 | 860094-02 | 1 | SCREW | GB | |
||
| 300 | N165958 | 1 | CLAMP SA | GB | |
||
| 301 | 630068-00 | 1 | SUPPORT | GB | |
||
| 302 | 330045-55 | 1 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 303 | 630085-00 | 1 | GRIP | GB | |
||
| 304 | 389750-00 | 1 | RETAINER | GB | |
||
| 305 | 147107-02 | 1 | KNOB LOWER | GB | |
||
| 800 | 610817-00 | 1 | GREASE | THERMAL - 75grams | GB | |
|
| 801 | 5140061-28 | 1 | GREASE | GB | |
||
| 802 | 93488-00 | 1 | GREASE | GB | |
||
| 821 | N162375 | 1 | RATING PLATE | GB | |
