DCF889 IMPACT WRENCH Type 1 | Drawings
Documents

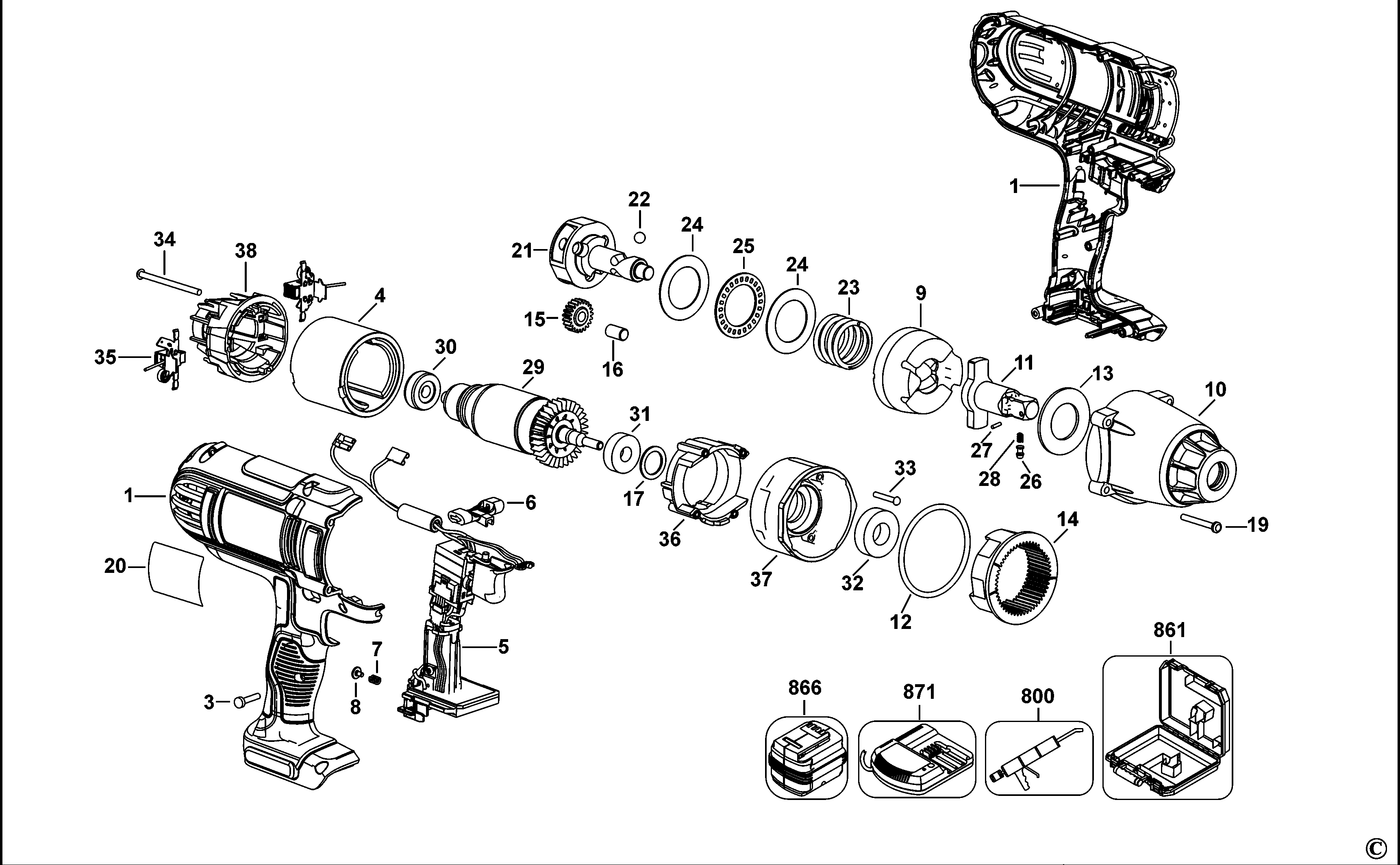

Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N209035 | 1 | CLAMSHELL SET | GB |  |
||
| 3 | 330019-24 | 9 | SCREW | GB |  |
||
| 4 | 611202-00SV | 1 | MAGNET | GB | |
||
| 5 | N417411 | 1 | SERVICE KIT | DCF889 | GB | |
|
| 6 | N124832 | 1 | ACTUATOR FWD/REV | GB | |
||
| 7 | N102647 | 1 | SPRING | GB | |
||
| 8 | N122099 | 1 | BLOCK | GB | |
||
| 9 | 610023-00 | 1 | IMPACTOR | GB | |
||
| 10 | 615803-00SV | 1 | BARREL | GB | |
||
| 11 | 615801-00SV | 1 | ANVIL ASSEMBLY | Inc 26-27-28 | GB | |
|
| 12 | 610542-00 | 1 | O RING | GB | |
||
| 13 | 610539-00 | 1 | WASHER THRUST | GB | |
||
| 14 | 648605-00 | 1 | GEAR | GB | |
||
| 15 | 610545-00 | 3 | GEAR | GB | |
||
| 16 | 611316-00 | 3 | ROLL PIN | 8x15mm | GB | |
|
| 17 | 611488-00 | 1 | WASHER | GB | |
||
| 19 | 330019-06 | 4 | SCREW | GB | |
||
| 20 | N184903 | 1 | RATING PLATE | DCF889 (EURO) | DCF889M2 | GB | |
| 21 | 610544-00 | 1 | CARRIER | CAM / CARRIER | GB | |
|
| 22 | 005190-00 | 2 | BALL STEEL | 9/32 inch | GB | |
|
| 23 | 613461-00 | 1 | SPRING | GB | |
||
| 24 | 613724-00 | 2 | WASHER THRUST | GB | |
||
| 25 | 610541-00 | 1 | BEARING THRUST | GB | |
||
| 26 | N020802 | 1 | DETENT | GB | |
||
| 27 | 099205-07 | 1 | ROLL PIN | GB | |
||
| 28 | 038769-00 | 1 | SPRING | GB | |
||
| 29 | N360879 | 1 | ARMATURE SA | GB | |
||
| 30 | 391032-00 | 1 | BEARING & SEAL | GB | |
||
| 31 | 605040-17 | 1 | BEARING BALL | GB | |
||
| 32 | 605040-25 | 1 | BEARING,BALL | GB | |
||
| 33 | N148194 | 4 | SCREW | ZINC PLATED | GB | |
|
| 34 | 330019-25 | 2 | SCREW | GB | |
||
| 35 | 610126-00 | 2 | BRUSHBOX SA | GB | |
||
| 36 | 610550-00 | 1 | BAFFLE FAN | GB | |||
| 37 | 611205-00 | 1 | GEARCASE | GB | |
||
| 38 | N171820 | 1 | SUPPORT BEARING | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 861 | N142716 | 1 | KITBOX | GB | |
||
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCF889M2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
