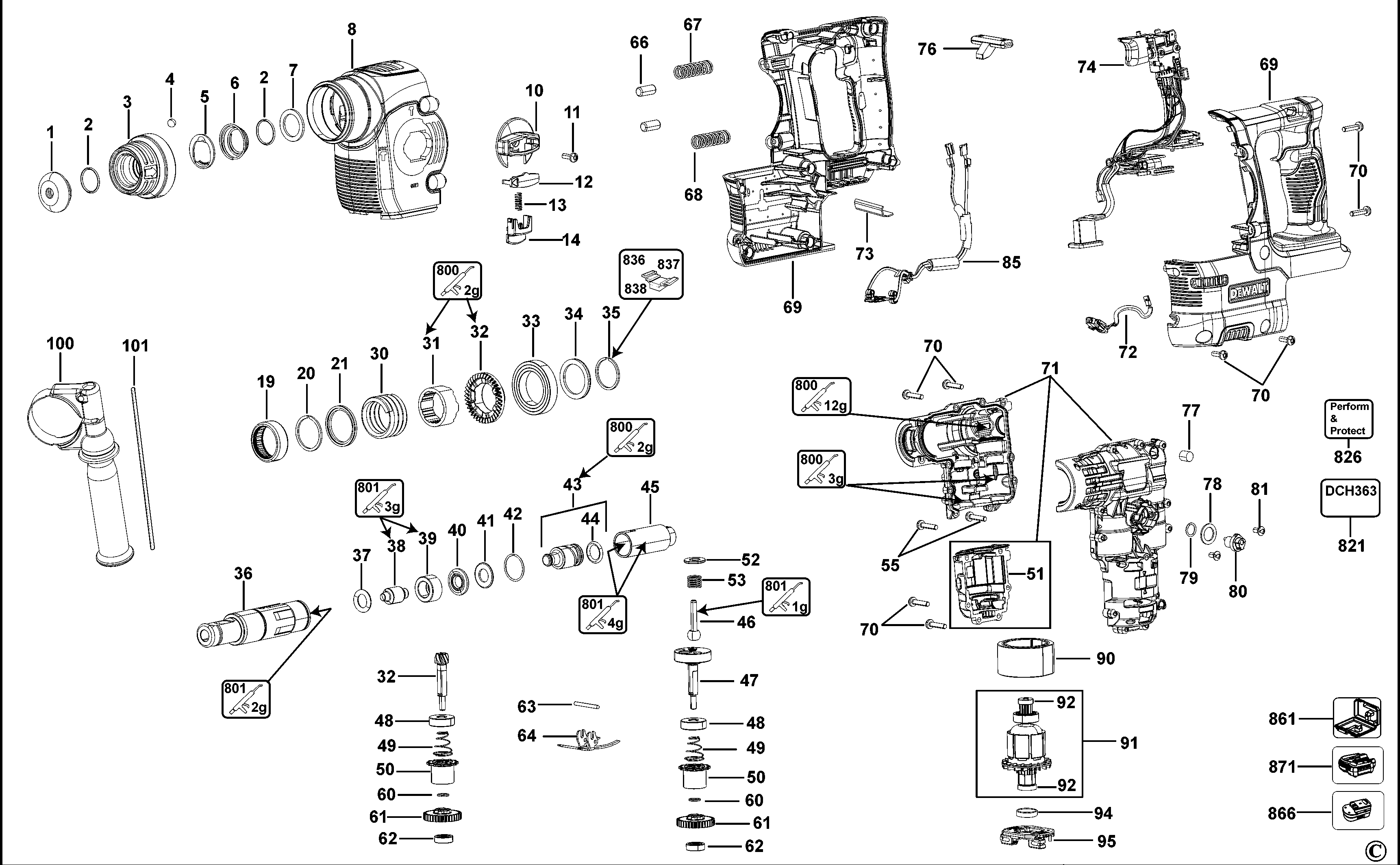

DCH363 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | GB |  |
||
| 2 | 579212-00 | 1 | RING | GB | |
||
| 3 | N774198 | 1 | TUBE SA | GB | |
||
| 3 | N774198 | 1 | TUBE SA | GB | |
||
| 4 | 583890-00 | 1 | BALL | GB | |
||
| 5 | 578387-00 | 1 | WASHER | GB | |
||
| 6 | 871690 | 1 | SPRING | GB | |
||
| 7 | 590306-00 | 1 | FELT SEAL | GB | |
||
| 8 | N137915 | 1 | COVER GEARCASE | GB |  |
||
| 10 | N190510 | 1 | SELECTOR | GB | |
||
| 11 | 324006-16 | 1 | SCREW | GB | |
||
| 12 | N034134 | 1 | COVER | GB | |
||
| 13 | N074923 | 1 | SPRING | GB | |
||
| 14 | N190511 | 1 | BUTTON RELEASE | GB | |
||
| 19 | N149956 | 1 | BEARING NEEDLE | GB | |
||
| 20 | 488105-00 | 1 | CLIP | GB | |
||
| 21 | N043423 | 1 | WASHER | GB | |
||
| 30 | N060009 | 1 | SPRING | GB | |
||
| 31 | N072203 | 1 | RING | GB | |
||
| 32 | N290001 | 1 | GEAR & PINION SA | GB | |
||
| 33 | 479478-00 | 1 | BEARING,BALL | 6906 | GB | |
|
| 34 | N043424 | 1 | WASHER | GB | |
||
| 35 | 488390-00 | 1 | CLIP | SW26 1.5mm | GB | |
|
| 36 | N288224 | 1 | SPINDLE | NQCC | GB | ||
| 37 | 323711-02 | 1 | O RING | GB | |
||
| 38 | 492808-00 | 1 | BEAT PIECE | NQCC | GB | |
|
| 39 | N470388 | 1 | TUBE GUIDE | GB | |
||
| 40 | N451068 | 1 | RETAINER | GB | |
||
| 41 | 327087-00 | 1 | WASHER | GB | |
||
| 42 | 323762-07 | 1 | RING | GB | |
||
| 43 | N178363 | 1 | RAM SA | 19mm; Inc 222+223 | GB | |
|
| 44 | N114827 | 1 | O RING | Dynamic 13x3 | GB | |
|
| 45 | 492822-00 | 1 | PISTON | GB | |
||
| 46 | 492823-00 | 1 | BALL SPINDLE | GB | |
||
| 47 | N288223 | 1 | CRANKSHAFT | GB | |
||
| 48 | N168103 | 2 | BEARING | GB | |
||
| 49 | N466046 | 2 | SPRING COMPRESSION | GB | |
||
| 50 | N150085 | 1 | COLLAR | GB | |
||
| 51 | N307379 | 1 | MOTOR COVER | GB | |
||
| 52 | N108992 | 1 | WASHER | GB | |
||
| 53 | 490286-00 | 1 | SPRING | GB | |
||
| 55 | 330019-81 | 2 | SCREW | GB | |
||
| 60 | 323763-10 | 2 | LOCKING RING | 8; | GB | |
|
| 61 | N450704 | 2 | GEAR SA | GB | |
||
| 62 | N621023 | 2 | BEARING | GB | |
||
| 63 | 590312-00 | 1 | PIN | GB | |
||
| 64 | 575022-00 | 1 | PLATE | GB | |
||
| 66 | 575032-00 | 2 | PIN | GB | |
||
| 67 | 575030-00 | 1 | SPRING | GB | |
||
| 68 | 479313-00 | 1 | SPRING | GB | |
||
| 69 | N392850 | 1 | CLAMSHELL PAIR | GB | |
||
| 70 | 330019-80 | 16 | SCREW | GB | |
||
| 71 | N392851 | 1 | GEARCASE SA | Inc 51 | GB | |
|
| 72 | N280480 | 1 | LED LIGHT | GB | |
||
| 73 | N269419 | 1 | LATCH | GB | |
||
| 74 | N392852 | 1 | ELECTRONIC & SWITCH | GB | |
||
| 76 | N072124 | 1 | LEVER | GB | |
||
| 77 | 582865-00 | 1 | FILTER | GB | |
||
| 78 | 1006725-00 | 1 | WASHER SHIM | 12x18x1.2 | GB | |
|
| 79 | 323711-34 | 1 | O RING | GB | |
||
| 80 | 575025-00 | 1 | LEVER | GB | |
||
| 81 | 330065-04 | 2 | SCREW | GB | |
||
| 85 | N335499 | 1 | SET OF LEAD WIRES | GB | |
||
| 90 | N230576 | 1 | MAGNET | 26mm | GB | ||
| 91 | N392853 | 1 | ARMATURE SA | Inc 92x2 | GB | |
|
| 92 | N217452 | 1 | BEARING,BALL | 695 | GB | ||
| 94 | N076342 | 1 | COVER | GB | |
||
| 95 | N384037 | 1 | BRUSH PLATE SA | GB | |
||
| 100 | N112156 | 1 | HANDLE SIDE SA | GB | |
||
| 101 | N290613 | 1 | DEPTH STOP | GB | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | GB | |
|
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | |
|
| 821 | N387350 | 1 | RATING PLATE | GB | |
||
| 826 | N196274 | 1 | LABEL | PERFORM & PROTECT | GB | |
|
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 837 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | GB | |
||
| 838 | 596007-99 | 1 | S.T.CIRCLIP INSERTER | GB | |
||
| 861 | N383257 | 1 | KITBOX | GB | |
||
| 866 | N394596 | 1 | BATTERY 36V - 2.0AH - 72WH | Li-Ion - DCB361 | DCH363D2 - DCH363D3 | GB | |
| 871 | 1006633-00 | 1 | CHARGER GB | Li-Ion - DE9000 | GB | |
