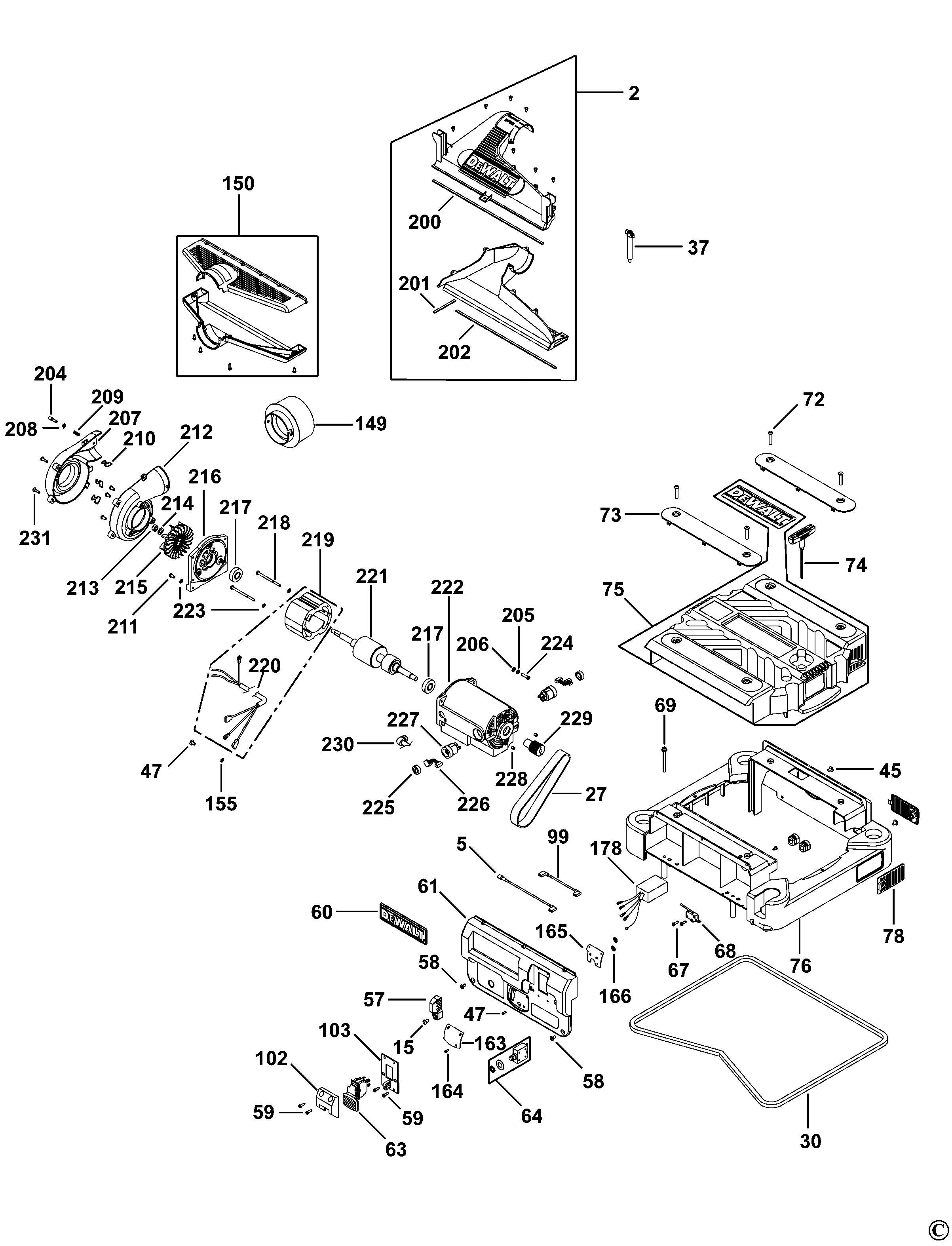

DW735 PLANER THICKNESSER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5140010-00 | 1 | SHROUD | XJ |  |
||
| 3 | 5140010-04 | 6 | PIN | XJ | |||
| 4 | 5140010-05 | 4 | WASHER | 6.1 x 12.3 | XJ | ||
| 5 | 5140010-06 | 1 | LEAD | XJ | |||
| 6 | 5140010-07 | 4 | SCREW | SELF TAPPING | XJ | |
|
| 7 | 5140071-78 | 3 | SCREW | M5x0.8x16 TORX | XJ | |
|
| 8 | 5140010-09 | 1 | COVER | LEFT SIDE | XJ | ||
| 9 | 5140010-10 | 1 | GEAR & PINION | XJ | |
||
| 10 | 5140010-11 | 1 | RETAINER | XJ | |
||
| 11 | 285934-00 | 1 | BEARING | XJ | |
||
| 13 | 5140010-14 | 6 | PIN | XJ | |||
| 14 | 5140010-15 | 1 | KEY | 5x5x10 | XJ | |
|
| 15 | 5140067-11 | 1 | PARTS PACK(KIT) | TORX SCREWS&WRENCH | XJ | |
|
| 16 | 5140010-17 | 3 | BLADE HOLDER | XJ | |
||
| 17 | 5140010-18 | 1 | HEAD | XJ | |
||
| 18 | 5140010-19 | 1 | BEARING | XJ | |
||
| 19 | 5140010-20 | 1 | BUSHING | XJ | |
||
| 20 | 5140010-21 | 1 | RING | XJ | |
||
| 21 | 5140010-22 | 1 | PULLEY | XJ | |
||
| 22 | 5140010-23 | 1 | NUT | XJ | |
||
| 23 | 5140010-24 | 1 | SHAFT | XJ | |||
| 24 | 5140010-25 | 1 | TURRET | XJ | |||
| 25 | 5140011-69 | 1 | SPRING | XJ | |||
| 26 | 5140010-27 | 1 | BALL | XJ | |||
| 27 | 5140010-28 | 1 | V-BELT | XJ | |
||
| 28 | 5140010-29 | 4 | SCREW | CAP, M8x1.25x80 | XJ | ||
| 29 | 5140010-30 | 2 | HANDLE | XJ | |||
| 30 | 5140010-31 | 1 | CHAIN | XJ | |||
| 31 | 5140010-32 | 1 | BRACKET | XJ | |
||
| 32 | 5140007-75 | 1 | WASHER | XJ | |||
| 37 | 5140010-38 | 3 | BOLT | XJ |  |
||
| 40 | 5140007-81 | 1 | SCALE | XJ | |
||
| 45 | 5140010-46 | 8 | SCREW | XJ | |||
| 46 | 5140010-47 | 1 | WHEEL SA | TENSION | XJ | |
|
| 47 | 5140010-48 | 38 | SCREW | M5x0.8x10 | XJ | |
|
| 48 | 5140010-49 | 1 | INDICATOR | ASSY. | XJ | ||
| 49 | 5140010-50 | 1 | PIN | XJ | |||
| 50 | 5140010-51 | 1 | SCREW | M6x1.0x12 | XJ | |
|
| 51 | 5140010-52 | 2 | BRACKET | CORD WRAP | XJ | |
|
| 52 | 5140010-53 | 4 | SCREW | M5x0.8x20 | XJ | ||
| 53 | 5140010-54 | 1 | CORD CLAMP | XJ | |||
| 55 | 5140010-55 | 1 | BRACKET | XJ | |||
| 56 | 5140010-56 | 1 | PLATE | GUIDE, LEFT | XJ | ||
| 57 | 5140010-57 | 1 | LEVER | SPEED SHIFT | XJ | ||
| 58 | 5140010-58 | 2 | SCREW | M5x0.8x10 | XJ | ||
| 59 | 5140010-59 | 4 | SCREW | M4x1.59x12 | XJ | |
|
| 61 | 5140010-61 | 1 | COVER | XJ | |||
| 63 | 5140007-77 | 1 | SWITCH | XJ | |
||
| 64 | 5140007-78 | 1 | CIRCUIT BREAKER | XJ | |
||
| 65 | 5140007-79 | 4 | SCREW | XJ | |||
| 66 | 429989-07 | 1 | NUT | M6 | XJ | |
|
| 67 | 5140007-80 | 1 | SCREW | XJ | |||
| 68 | 5140010-67 | 1 | MICRO SWITCH | XJ | |
||
| 69 | 5140010-68 | 2 | SCREW | XJ | |||
| 70 | 5140010-69 | 1 | WASHER | 6.3x13x1.0 | XJ | |
|
| 71 | 5140010-70 | 2 | WASHER | 6.7x19x2.0 | XJ | |
|
| 72 | 5140078-32 | 4 | SCREW | M6x1.0x32, T30 | XJ | ||
| 73 | 5140010-72 | 2 | PLATE | SKID | XJ | |
|
| 74 | 5140010-73 | 1 | WRENCH SPECIAL | T | XJ | |
|
| 75 | 5140010-74 | 1 | COVER-TOP | XJ | |||
| 76 | 5140010-75 | 1 | COVER SA | XJ | |||
| 78 | 5140010-76 | 2 | COVERPLATE | ASSY. | XJ | |
|
| 80 | 5140010-78 | 2 | COVER | SIDE | XJ | ||
| 81 | 5140010-79 | 4 | SPRING | XJ | |
||
| 82 | 5140010-80 | 2 | RING | XJ | |
||
| 83 | 5140010-81 | 4 | SPROCKET | XJ | |
||
| 84 | 5140010-82 | 2 | WASHER | XJ | |||
| 85 | 5140010-83 | 2 | RING | XJ | |||
| 86 | 5140010-84 | 1 | ROD | SPEED SHIFT | XJ | ||
| 87 | 5140010-85 | 1 | PIN | 3x20 | XJ | ||
| 88 | 5140010-86 | 1 | HOLDER | XJ | |||
| 89 | 5140010-87 | 1 | CARRIAGE | XJ | |
||
| 90 | 5140010-88 | 1 | PAWL | SPEED SHIFT | XJ | |
|
| 91 | 5140010-89 | 1 | PIN | 3x12 | XJ | ||
| 92 | 5140010-90 | 1 | INDICATOR | XJ | |||
| 93 | 5140010-91 | 1 | PLATE | CONTACT | XJ | ||
| 94 | 5140010-92 | 4 | BUSHING | XJ | |
||
| 95 | 5140010-93 | 4 | FELT | XJ | |
||
| 96 | 5140010-94 | 1 | ROLLER | XJ | |
||
| 97 | 5140019-90 | 4 | BRACKET | XJ | |
||
| 98 | 5140010-96 | 1 | ROLLER | FRONT | XJ | |
|
| 99 | 5140010-97 | 1 | LEAD | XJ | |||
| 101 | 5140010-99 | 1 | CHAIN | XJ | |
||
| 102 | 5140011-00 | 1 | SWITCH COVER | XJ | |
||
| 103 | 5140011-01 | 1 | PLATE | XJ | |
||
| 104 | 5140011-02 | 1 | SHAFT | XJ | |||
| 105 | 5140011-03 | 2 | WASHER | 6.5x16x0.8 | XJ | ||
| 106 | 5140011-04 | 2 | SPRING | XJ | |||
| 107 | 5140011-05 | 1 | SHAFT | RIGHT | XJ | ||
| 108 | 5140011-06 | 4 | SCREW | SHOULDER | XJ | ||
| 109 | 5140011-07 | 1 | BEARING | XJ | |
||
| 110 | 5140011-08 | 1 | RING | XJ | |||
| 111 | 5140011-09 | 1 | COVER | RIGHT SIDE | XJ | |
|
| 112 | 5140011-10 | 1 | HANDLE | XJ | |
||
| 113 | 5140011-11 | 4 | BUSHING | XJ | |
||
| 114 | 5140011-12 | 1 | GEAR | XJ | |
||
| 115 | 5140011-13 | 1 | CHAIN | XJ | |
||
| 116 | 5140011-14 | 1 | SHAFT | LEFT | XJ | ||
| 117 | 5140011-15 | 2 | WASHER | XJ | |||
| 118 | 5140011-16 | 3 | PLATE | XJ | |
||
| 119 | 5140011-17 | 3 | SCREW | M6x1.0x85 | XJ | ||
| 120 | 5140011-18 | 1 | SHAFT | XJ | |||
| 121 | 5140011-19 | 4 | SCREW | XJ | |||
| 122 | 5140011-20 | 2 | BUSHING | XJ | |||
| 123 | 5140007-82 | 1 | WASHER | XJ | |||
| 124 | 5140011-22 | 2 | KEY | 4x4x7 | XJ | ||
| 125 | 5140011-23 | 1 | GEAR | XJ | |||
| 126 | 5140011-24 | 1 | GEARCASE | XJ | |||
| 127 | 5140011-25 | 1 | GEAR | XJ | |||
| 128 | 5140011-26 | 1 | GEAR | XJ | |||
| 129 | 5140011-27 | 1 | PAWL | ASSY., SPEED SHIFT | XJ | ||
| 130 | 5140011-28 | 1 | SHIM | XJ | |||
| 131 | 5140011-29 | 1 | SPACER | XJ | |||
| 132 | 5140011-30 | 1 | GEAR | XJ | |||
| 133 | 5140011-31 | 1 | SCREW | SHOULDER | XJ | ||
| 134 | 5140011-32 | 1 | GEARCASE COVER | XJ | |||
| 135 | 5140011-33 | 1 | BUSHING | XJ | |||
| 136 | 5140011-34 | 1 | ROD | XJ | |||
| 137 | 5140011-35 | 1 | KEY | 5x5x40 | XJ | ||
| 138 | 5140011-36 | 1 | GEAR | XJ | |||
| 139 | 5140011-37 | 3 | CAP | POST | XJ | |
|
| 140 | 5140011-93 | 3 | POST | ASSY, DRIVEN SCREW | XJ | |
|
| 141 | 5140011-39 | 1 | PLATE | GUIDE, LEFT | XJ | ||
| 142 | 429989-57 | 1 | NUT | M8x1.25 | XJ | |
|
| 143 | 5140014-58 | 1 | BASE | XJ | |
||
| 144 | 5140011-43 | 1 | SPRING | XJ | |||
| 145 | 5140011-44 | 1 | SPRING | XJ | |||
| 146 | 5140007-83 | 1 | SCALE | XJ | |||
| 147 | 5140011-46 | 2 | SCREW | M4x0.7x6 | XJ | ||
| 148 | 5140011-47 | 1 | SCREW | M8x1.25x25 | XJ | ||
| 149 | 5140011-48 | 1 | ADAPTOR | XJ | |
||
| 150 | 5140011-49 | 1 | CHUTE | XJ | |
||
| 151 | 5140007-84 | 4 | SCREW | XJ | |||
| 154 | 5140011-51 | 1 | PLATE | XJ | |||
| 155 | 5140011-52 | 2 | WASHER | EXTERNAL TOOTH | XJ | ||
| 156 | 5140011-53 | 1 | SCREW | SHOULDER | XJ | ||
| 157 | 5140011-54 | 4 | SCREW | XJ | |||
| 159 | 5140011-55 | 1 | BUSHING | XJ | |||
| 160 | 5140011-56 | 1 | CAP | POST | XJ | |
|
| 161 | 5140011-57 | 1 | INDICATOR | XJ | |||
| 163 | 5140007-85 | 1 | SCALE | XJ | |||
| 164 | 5140011-60 | 4 | SCREW | M3x0.5x10 | XJ | ||
| 165 | 5140011-61 | 1 | PLATE | XJ | |||
| 166 | 5140011-62 | 2 | RING | XJ | |||
| 175 | 5140007-86 | 1 | SHAFT | XJ | |
||
| 176 | 5140007-87 | 33 | ANTI KICK BACK | XJ | |
||
| 177 | 5140007-88 | 34 | COLLAR | XJ | |
||
| 178 | 5140006-47 | 1 | CAPACITOR | XJ | |
||
| 200 | 5140010-01 | 1 | PAD | TOP | TOP | XJ | |
| 201 | 5140010-02 | 1 | PAD | BOTTOM | BOTTOM | XJ | |
| 202 | 5140010-03 | 1 | PAD | MIDDLE | MIDDLE | XJ | |
| 203 | 5140014-58 | 1 | BASE | XJ | |
||
| 204 | 5140011-64 | 1 | PIN | XJ | |||
| 205 | 5140011-65 | 4 | WASHER LOCK | 5.1x9.3 | XJ | |
|
| 206 | 5140011-66 | 4 | WASHER | XJ | |||
| 207 | 5140011-67 | 1 | FAN COVER | LEFT | XJ | |
|
| 208 | 5140011-68 | 1 | RING | XJ | |
||
| 209 | 5140011-69 | 1 | SPRING | XJ | |||
| 210 | 5140011-70 | 3 | SPRING CLIP | XJ | |
||
| 211 | 5140010-48 | 4 | SCREW | M5x0.8x10 | XJ | |
|
| 212 | 5140103-77 | 1 | HOUSING | SET | XJ | |
|
| 212 | 5140103-77 | 1 | HOUSING | SET | XJ | |
|
| 213 | 5140011-72 | 1 | NUT | NYLON | XJ | ||
| 214 | 5140007-89 | 1 | WASHER | XJ | |||
| 215 | 5140011-74 | 1 | FAN | ASSEMBLY | XJ | |
|
| 216 | 5140011-75 | 1 | CAP | MOTOR | XJ | |
|
| 217 | 5140011-76 | 2 | BALL | XJ | |
||
| 218 | 5140011-77 | 2 | SCREW | XJ | |||
| 221 | 5140007-99 | 1 | ARMATURE | XJ | |
||
| 222 | 5140011-81 | 1 | MOTOR COVER | XJ | |
||
| 223 | 5140011-52 | 3 | WASHER | EXTERNAL TOOTH | XJ | ||
| 224 | 5140011-83 | 4 | SCREW | M5x0.8x20 | XJ | ||
| 225 | 5140011-84 | 2 | BRUSH CAP | XJ | |
||
| 226 | 5140008-17 | 2 | BRUSH | XJ | |
||
| 227 | 5140011-86 | 2 | BRUSH HOLDER | XJ | |
||
| 228 | 5140011-87 | 2 | SCREW | XJ | |
||
| 229 | 5140011-88 | 1 | PULLEY | XJ | |
||
| 230 | 5140011-89 | 1 | GROMMET | XJ | |||
| 231 | 5140071-78 | 1 | SCREW | M5x0.8x16 TORX | XJ | |
|
| 232 | 5140011-92 | 1 | POST | ASSY, DRIVE SCREW | XJ | |
|
| 233 | 5140010-34 | 4 | NUT | XJ | |
||
| 234 | 5140010-35 | 4 | WASHER LOCK | EXTERNAL TOOTH | XJ | |
|
| 235 | 5140010-36 | 4 | SPROCKET | XJ | |
||
| 236 | 5140011-58 | 4 | PLATE | DUST PROOF | XJ | ||
| 237 | 5140010-39 | 3 | KEY | 3x3x10 | XJ |
