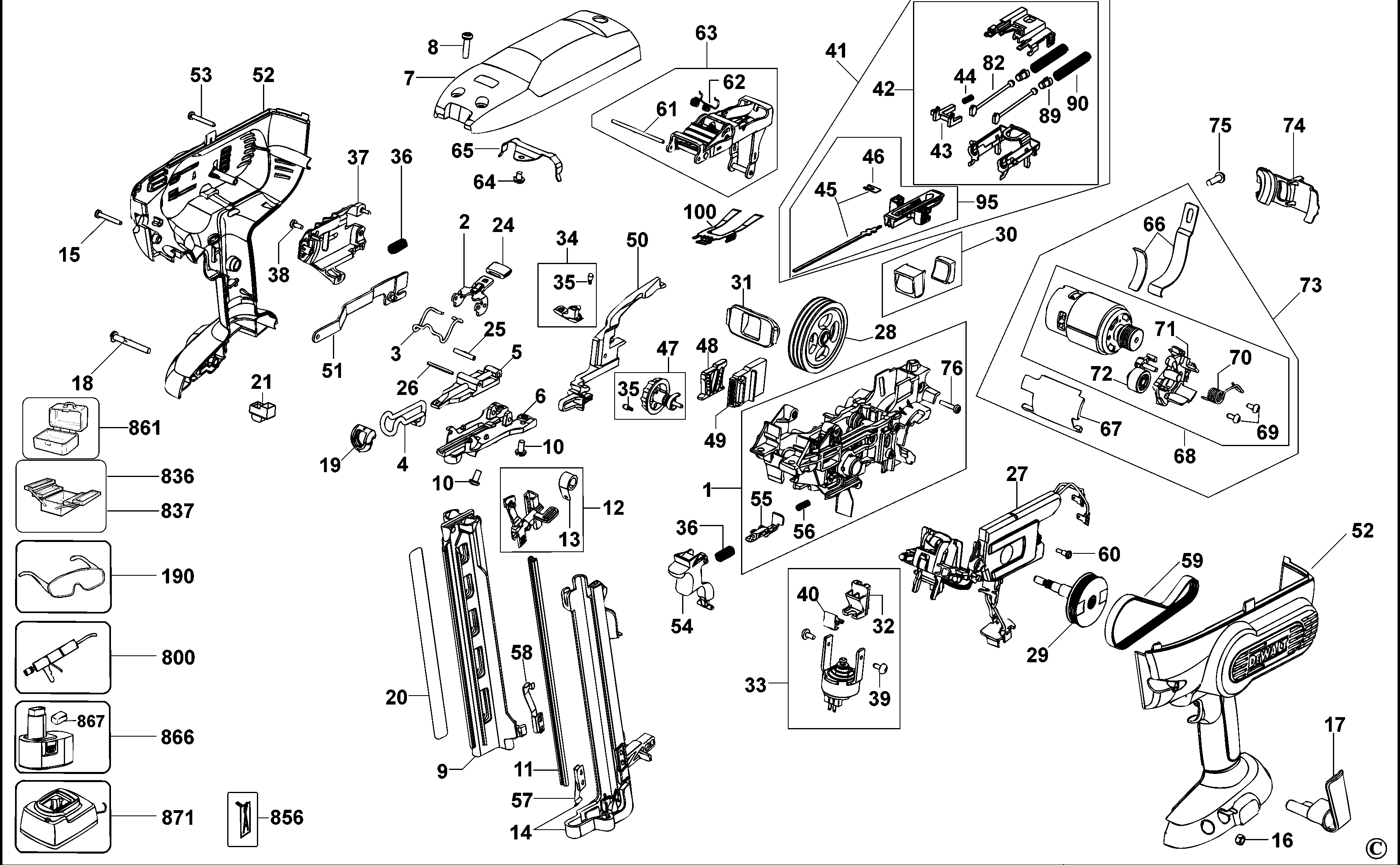

DC617 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613852-00 | 1 | HOUSING SA | Inc items 55-56-76 | XJ |  |
|
| 2 | 395123-00 | 1 | LATCH | XJ | |
||
| 3 | 392216-00 | 1 | WIRE STEEL | XJ | |
||
| 4 | 392198-00 | 1 | ACTUATOR | XJ | |
||
| 5 | 392210-00 | 1 | COVER | XJ |  |
||
| 6 | 392209-00 | 1 | NOSE | STRAIGHT | XJ | |
|
| 7 | 633518-00SV | 1 | COVER-TOP | XJ | |
||
| 8 | 609932-02 | 3 | SCREW | XJ | |
||
| 9 | 392227-01 | 1 | MAGAZINE | LOWER, STRAIGHT | XJ | |
|
| 10 | 609932-00 | 4 | SCREW | XJ | |
||
| 11 | 392193-01 | 1 | LINER | STRAIGHT | XJ | |
|
| 12 | 624748-01 | 1 | PUSH BLOCK | PUSHER & SPRING | XJ | |
|
| 13 | 392195-00 | 1 | SPRING | XJ | |
||
| 14 | 613818-01 | 1 | MAGAZINE | UPPER, STRAIGHT | XJ | |
|
| 15 | 330019-07 | 1 | SCREW | XJ | |
||
| 16 | 330015-04 | 1 | NUT | XJ | |
||
| 17 | 394102-00 | 1 | HOOK | XJ | |
||
| 18 | 330045-19 | 2 | SCREW | XJ | |
||
| 19 | 616938-00 | 1 | RUBBER BOOT | XJ | |
||
| 21 | 616939-00 | 1 | LOCK BUTTON | Sequential lock | XJ | ||
| 24 | 395093-00 | 1 | GRIP | XJ | |
||
| 25 | 330036-27 | 1 | ROLL PIN | XJ | |
||
| 26 | 330036-21 | 1 | ROLL PIN | XJ | |
||
| 27 | 643115-01 | 1 | CONTROL MODULE SA | XJ | |
||
| 28 | 623947-00 | 1 | FLYWHEEL | XJ | |
||
| 29 | 613835-00 | 1 | SPINDLE SA | XJ | |
||
| 30 | 613869-00 | 1 | DAMPER | XJ | |||
| 30 | 613869-00SV | 1 | BUMPER | XJ | |||
| 31 | 392240-00 | 1 | BUMPER | XJ | |
||
| 32 | 392244-00 | 1 | CLUTCH | XJ | |
||
| 33 | 624709-00SV | 1 | SOLENOID ASSEMBLY | Inc items 32-39-40 | XJ | |
|
| 33 | 624709-00SV | 1 | SOLENOID ASSEMBLY | Inc items 32-39-40 | XJ | |
|
| 34 | N001917 | 1 | PADDLE | Inc item 35 | XJ | |
|
| 35 | 326467-00 | 2 | DETENT | XJ | |
||
| 36 | 653099-00 | 1 | SPRING | XJ | |
||
| 37 | 604480-00 | 1 | CAGE | XJ | |
||
| 38 | 613619-01 | 5 | SCREW | XJ | |
||
| 39 | 330045-60 | 2 | SCREW | XJ | |
||
| 40 | 621980-00 | 1 | CLIP | XJ | |
||
| 41 | N391357 | 1 | RETURN DEVICE ASSEMBLY | Inc items 42-45 | XJ | |
|
| 42 | 393217-00 | 1 | RETURN DEVICE ASSEMBLY | Inc items 43-44 | XJ | |
|
| 43 | 614577-00 | 1 | STOP | XJ | |
||
| 44 | 610243-00 | 1 | SPRING | XJ | |
||
| 45 | 624742-00SV | 1 | BLADE SA | Inc item 46 | XJ | |
|
| 46 | 392206-00 | 1 | CLIP | XJ | |
||
| 47 | 613874-00 | 1 | KNOB SA | Inc item 35 | XJ | |
|
| 48 | 392437-00 | 1 | ADJUSTER PLATE | XJ | |
||
| 49 | 392438-00 | 1 | SLIDER | XJ | |
||
| 50 | 393220-00SV | 1 | CONTACT BAR | XJ | |
||
| 51 | 396657-00 | 1 | LINK | XJ | |
||
| 52 | 623375-00 | 1 | CLAMSHELL SET | HOUSING ASSY. | XJ | |
|
| 53 | 330019-05 | 3 | SCREW | XJ | |
||
| 54 | 613670-00 | 1 | TRIGGER | (STRAIGHT) | XJ | |
|
| 55 | 392201-00 | 1 | LINKAGE SA | XJ | |
||
| 56 | 394314-00 | 1 | SPRING COMPRESSION | XJ | |
||
| 57 | 392252-00 | 1 | CLIP | XJ | |
||
| 58 | 392229-00 | 1 | RETAINER | XJ | |
||
| 59 | 392246-00 | 1 | BELT DRIVE | XJ | |
||
| 60 | 623407-00 | 1 | SCREW | XJ | |
||
| 61 | 395932-00 | 1 | PIN | XJ | |
||
| 62 | 394045-00 | 1 | SPRING TORSION | XJ | |
||
| 63 | 624717-00SV | 1 | ARM | Inc items 61-62 | XJ | |
|
| 64 | 330045-12 | 1 | SCREW | XJ | |
||
| 66 | 606837-01 | 1 | STRAP | XJ | |
||
| 67 | 623181-00 | 1 | RUBBER PAD | XJ | |
||
| 68 | 613834-00SV | 1 | MOTOR SA | XJ | |
||
| 69 | 330045-44 | 2 | SCREW | XJ | |
||
| 70 | N044593 | 1 | SPRING | XJ | |
||
| 71 | 397762-00 | 1 | SUPPORT PLATE | XJ | |
||
| 72 | 630664-00SV | 1 | IDLER ASSEMBLY | XJ | |
||
| 73 | 624740-00 | 1 | MOTOR SA | Inc items 66-67-68 | XJ | |
|
| 74 | 5140160-26 | 1 | CABLE GUIDE | KIT | XJ | |
|
| 75 | 609932-01 | 1 | SCREW | XJ | |
||
| 76 | 613619-00 | 5 | SCREW | XJ | |
||
| 82 | 392243-00 | 2 | BAND | XJ | |
||
| 89 | 392242-00 | 2 | STOP | XJ | |
||
| 90 | 392236-02 | 2 | SPRING | XJ | |
||
| 95 | 392204-00SV | 1 | DRIVER SA | XJ | |
||
| 100 | N015432 | 1 | PLATE | XJ | |
||
| 190 | 629042-01 | 1 | SAFETY GLASSES | XJ | |
||
| 800 | 5140024-25 | 1 | GREASE | XJ | |
||
| 861 | 633527-00 | 1 | KITBOX | XJ | |
||
| 867 | 608522-00 | 1 | SAFETY CAP | XJ | |
