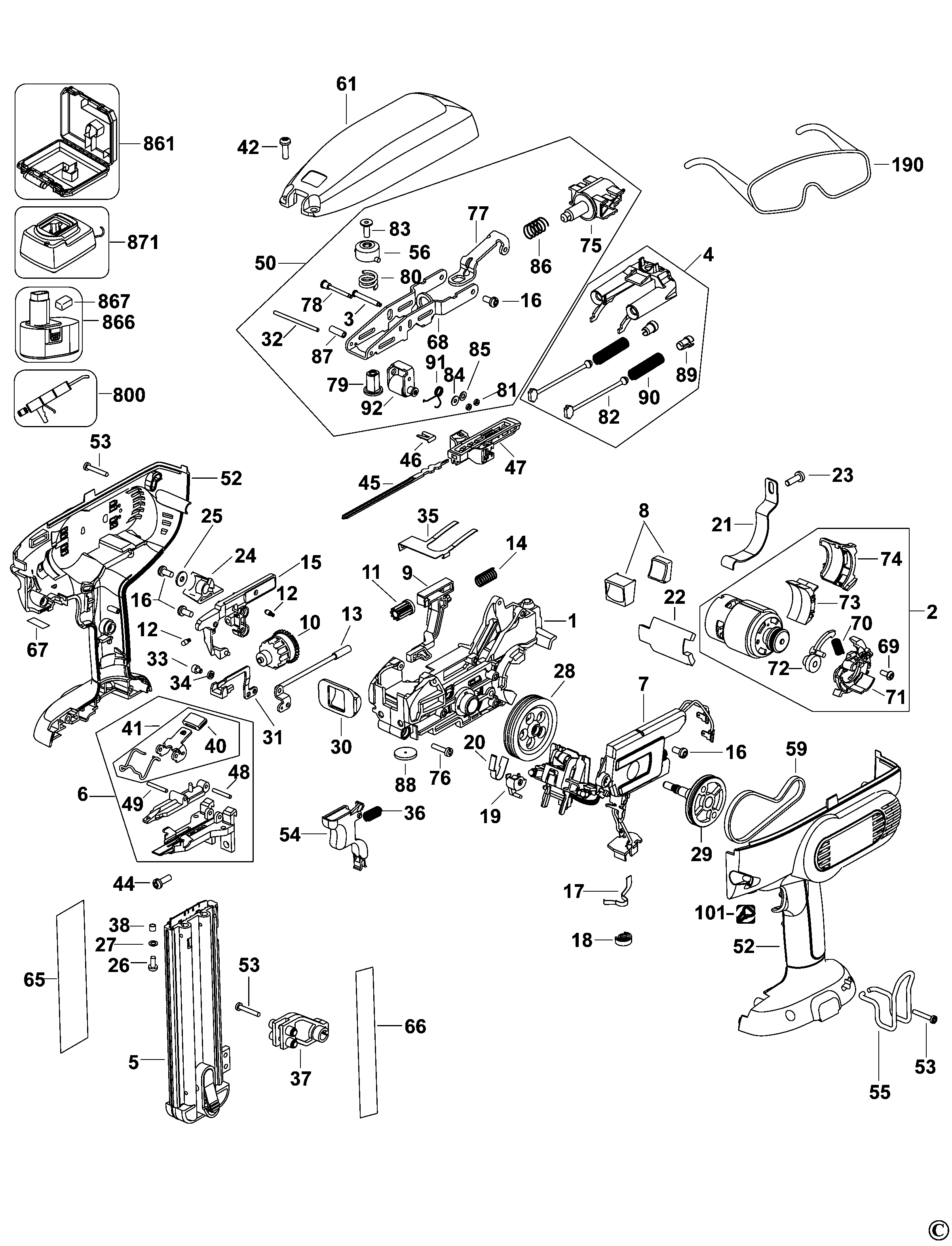

DC602 CORDLESS NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 631990-00 | 1 | HOUSING SA | INCL 35 | GB |  |
|
| 2 | 647712-01SV | 1 | MOTOR & PINION | GB | |
||
| 3 | 633207-00 | 1 | PIN | GB |  |
||
| 4 | 648024-00SV | 1 | RETURN DEVICE ASSEMBLY | GB | |
||
| 5 | 646665-00 | 1 | MAGAZINE SA | GB | |
||
| 6 | 646666-00 | 1 | NOSE SA | GB | |
||
| 7 | N010050 | 1 | CONTROL MODULE SA | CUT LOOP ON 12 VOLT | GB | |
|
| 8 | 613869-00 | 1 | DAMPER | GB | |||
| 8 | 613869-00SV | 1 | BUMPER | GB | |||
| 9 | 637597-00 | 1 | CONTACT | GB | |
||
| 10 | 637596-00 | 1 | KNOB | GB | |
||
| 11 | 637599-00 | 1 | PINION | GB | |
||
| 12 | 326467-00 | 2 | DETENT | GB | |
||
| 13 | 639284-00 | 1 | CONTACT | GB | |
||
| 14 | 644507-00 | 1 | SPRING | GB | |||
| 15 | 637601-00 | 1 | COVER | GB | |
||
| 16 | 613619-03 | 10 | SCREW | GB | |
||
| 17 | 638317-00 | 1 | LINK | GB | |
||
| 18 | 639070-00 | 1 | HUB | GB | |
||
| 19 | 639246-00 | 1 | LINK | GB | |
||
| 20 | 639247-00 | 1 | SPRING | GB | |
||
| 21 | 638678-00 | 1 | STRAP | GB | |
||
| 22 | 640432-00 | 1 | PAD | GB | |
||
| 23 | 609932-01 | 1 | SCREW | GB | |
||
| 24 | 641296-00 | 1 | PADDLE | GB | |
||
| 25 | 651644-00 | 1 | WASHER | GB | |
||
| 26 | 330045-69 | 2 | SCREW | M4 X 10 T20 | GB | |
|
| 27 | 398218-00 | 2 | WASHER | PLAIN 4 X 8 | GB | |
|
| 28 | 631987-00 | 1 | FLYWHEEL | GB | |
||
| 29 | 631995-00 | 1 | PULLEY SA | GB | |
||
| 30 | 638469-00 | 1 | BUMPER | GB | |||
| 31 | 646254-00 | 1 | CONTACT | GB | |
||
| 32 | 330041-61 | 1 | ROLLER SPINDLE | GB | |
||
| 33 | 330045-68 | 1 | SCREW | GB | |
||
| 34 | 98197-03 | 1 | WASHER | GB | |
||
| 35 | 650225-00 | 1 | PLATE | GB | |
||
| 36 | 653099-00 | 1 | SPRING | GB | |
||
| 37 | 639696-00 | 1 | CONNECTOR | GB | |
||
| 38 | 395505-00 | 2 | BUSHING | GB | |
||
| 40 | 395093-00 | 1 | GRIP | GB | |
||
| 41 | 607178-00 | 1 | LATCH | GB | |
||
| 42 | 609932-01 | 1 | SCREW | GB | |
||
| 44 | 613619-02 | 2 | SCREW | GB | |
||
| 45 | 635241-00 | 1 | BLADE SA | GB | |
||
| 46 | 392206-00 | 1 | CLIP | GB | |
||
| 47 | 632232-00 | 1 | PROFILE | GB | |
||
| 48 | 330036-24 | 1 | ROLL PIN | GB | |
||
| 49 | 330036-22 | 1 | ROLL PIN | GB | |
||
| 50 | 633204-01 | 1 | SOLENOID ASSEMBLY | 12 Volt | GB | |
|
| 52 | 648060-01 | 1 | CLAMSHELL SET | GB | |
||
| 53 | 330019-05 | 5 | SCREW | GB | |
||
| 54 | 640344-00 | 1 | TRIGGER | GB | |
||
| 55 | 632382-00 | 1 | HOOK | GB | |
||
| 56 | 644209-00 | 1 | SPRING | GB | |
||
| 59 | 650935-00 | 1 | BELT DRIVE | GB | |
||
| 61 | 639123-00 | 1 | COVER | GB | |
||
| 65 | N050558 | 1 | RATING PLATE | DC602-EC Type 1 | GB | |
|
| 66 | 623351-00 | 1 | LABEL | GB | |
||
| 67 | 632383-00 | 1 | LABEL | GB | |
||
| 68 | 633206-00 | 1 | CARRIAGE | GB | |
||
| 69 | 330045-05 | 2 | SCREW | GB | |
||
| 70 | 639189-00 | 1 | SPRING | GB | |
||
| 71 | 639186-00 | 1 | TRANSMISSION ASSEMBLY | GB | |
||
| 72 | 647713-00 | 1 | IDLER ASSEMBLY | GB | |
||
| 73 | 640444-00 | 1 | GUIDE | GB | |
||
| 74 | 640455-00 | 1 | GUIDE | GB | |
||
| 75 | 633021-01 | 1 | SOLENOID ASSEMBLY | 12 volt | GB | |
|
| 76 | 613619-00 | 5 | SCREW | GB | |
||
| 77 | 644206-00 | 1 | SPRING | GB | |
||
| 78 | 638872-00 | 1 | PIN | GB | |
||
| 79 | 644205-00 | 1 | POST | GB | |
||
| 80 | 644213-00 | 1 | SPRING | GB | |
||
| 81 | 391814-00 | 2 | GROMMET | GB | |
||
| 82 | 392243-00 | 2 | BAND | GB | |
||
| 83 | N001440 | 1 | SCREW | GB | |
||
| 84 | 330016-26 | 1 | WASHER | GB | |
||
| 85 | 330016-25 | 1 | WASHER | GB | |
||
| 86 | 644210-00 | 1 | SPRING | GB | |
||
| 87 | 645151-00 | 1 | SLEEVE | GB | |
||
| 88 | 624913-00 | 1 | DISC | GB | |
||
| 89 | 392242-00 | 2 | STOP | GB | |
||
| 90 | 392236-02 | 2 | SPRING | GB | |
||
| 91 | N009845 | 1 | SPRING TORSION | GB | |
||
| 92 | 647895-00 | 1 | CARRIER SA | GB | |
||
| 101 | N015371 | 1 | LABEL | GB | |
||
| 190 | 629042-01 | 1 | SAFETY GLASSES | GB | |
||
| 800 | 5140024-25 | 1 | GREASE | GB | |
||
| 861 | 650354-00 | 1 | KITBOX | GB | |
||
| 866 | 582806-00 | 1 | BATTERY 12V - 2.0AH | DC602KA | GB | |
|
| 867 | 608522-00 | 1 | SAFETY CAP | GB | |
||
| 871 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
