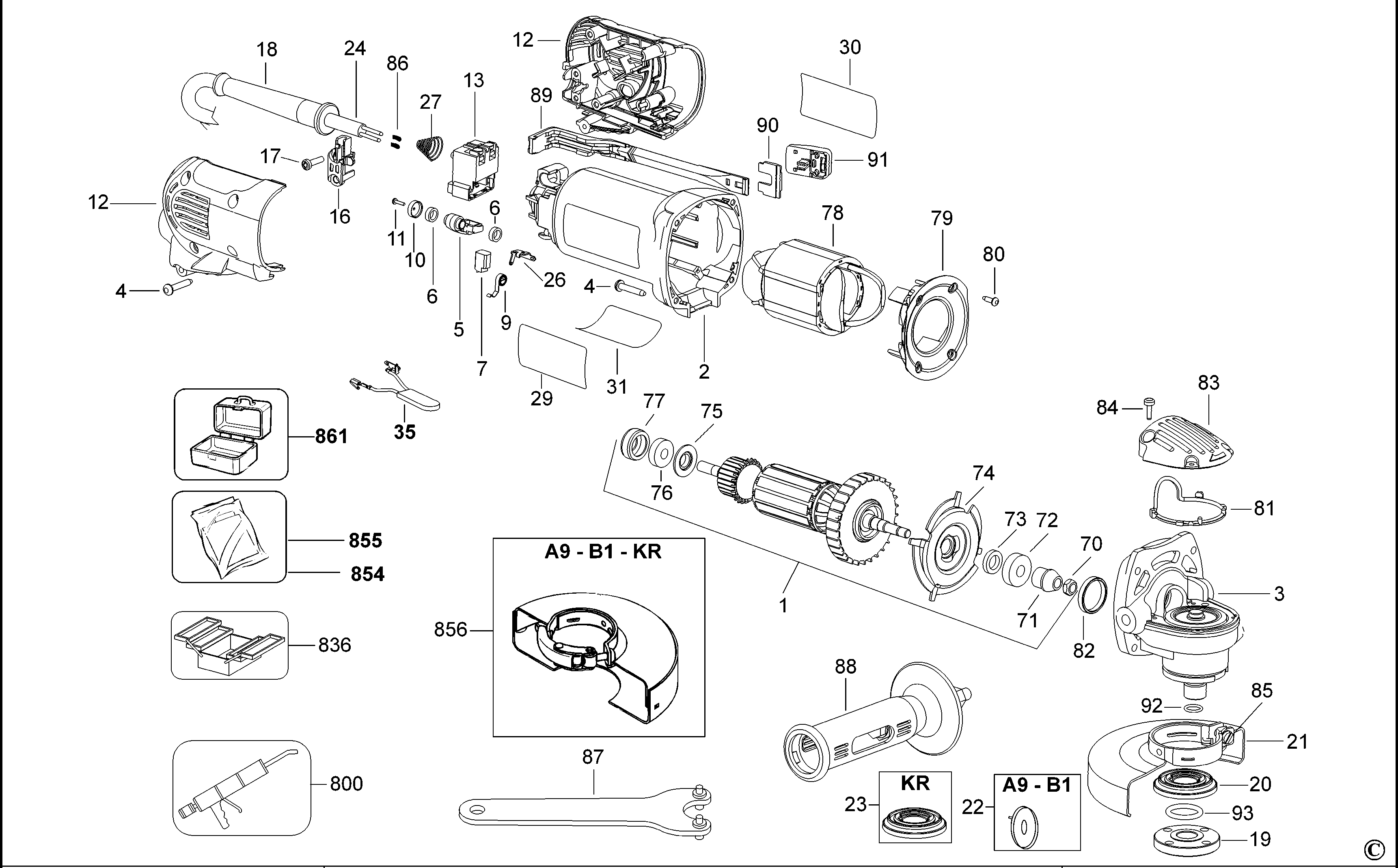

D28111 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 661409-00 | 1 | ARMATURE 120V | Powdered Metal | LX |  |
|
| 2 | 650994-00 | 1 | FIELDCASE | LX |  |
||
| 3 | N015541 | 1 | GEARCASE SA | M14 - Warm Compact | LX | |
|
| 4 | 330065-31 | 8 | PLASTIC SCREW | LX | |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | LX | |
|
| 6 | 623592-00 | 4 | FELT SEAL | LX | |
||
| 7 | N378957 | 1 | BRUSH PAIR 120V | 650916-01 X 2 | LX | |
|
| 9 | 623589-00 | 2 | BRUSH SPRING | LX | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | LX | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | LX | |
|
| 12 | 625243-05 | 1 | HANDLE SA | LX | |
||
| 13 | 641889-03 | 1 | SWITCH SA | W/CAPACITOR | Inc 27 | LX | |
| 16 | 636963-00 | 1 | CORD CLAMP | LX | |
||
| 17 | 330019-03 | 2 | SCREW | LX | |
||
| 18 | 401088-03 | 1 | CORD PROTECTOR | LX | |
||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | LX | |
|
| 20 | 633257-00SV | 1 | INNER FLANGE SA | LX | |
||
| 21 | 629358-00 | 1 | GUARD SA | LX | |
||
| 24 | 562226-55 | 1 | CORDSET | LX | LX | |
|
| 26 | 623593-00 | 2 | TERMINAL | LX | |
||
| 27 | 628396-00 | 1 | SPRING | LX | |
||
| 29 | 660689-00 | 1 | NAMEPLATE | D28111-LX TY1 | LX | |
|
| 30 | 635892-00 | 1 | BRAND LABEL | LX | |
||
| 31 | 626891-00 | 1 | WARNING LABEL | LX | |
||
| 35 | 637543-00 | 1 | CHOKE SA | LX | |
||
| 70 | 604484-00 | 1 | NUT | LX | |
||
| 71 | 623564-00 | 1 | PINION | 9 TOOTH | LX | |
|
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | LX | |
|
| 73 | 623617-00 | 1 | FELT SEAL | LX | |
||
| 74 | N422242 | 1 | RETAINER | LX | |
||
| 75 | 623613-00 | 1 | WASHER | LX | |
||
| 76 | 605040-02 | 1 | BEARING | LX | |
||
| 77 | 641823-00 | 1 | SLEEVE | LX | |
||
| 78 | N016046 | 1 | FIELD SA 115V | LX | |
||
| 79 | 650997-00 | 1 | BAFFLE FAN | LX | |
||
| 80 | 626360-00 | 4 | SCREW | M3 x 10 | LX | |
|
| 81 | 623618-00 | 1 | GASKET | LX | |
||
| 82 | 611492-00 | 1 | SLEEVE | LX | |
||
| 83 | 623562-00 | 1 | GEARCASE COVER | LX | |
||
| 84 | 385676-01 | 4 | SCREW | LX | |
||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | LX | |
|
| 87 | 401680-00 | 1 | WRENCH | LX | |
||
| 88 | N401305 | 1 | SIDE HANDLE | LX | |
||
| 89 | 626999-00 | 1 | LINK | LX | |
||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | LX | |
|
| 91 | 623608-00 | 1 | BUTTON START | LX | |
||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | LX | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | LX | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | LX | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | LX | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | LX | ||
| 861 | 638758-00 | 1 | KITBOX | LX | |
