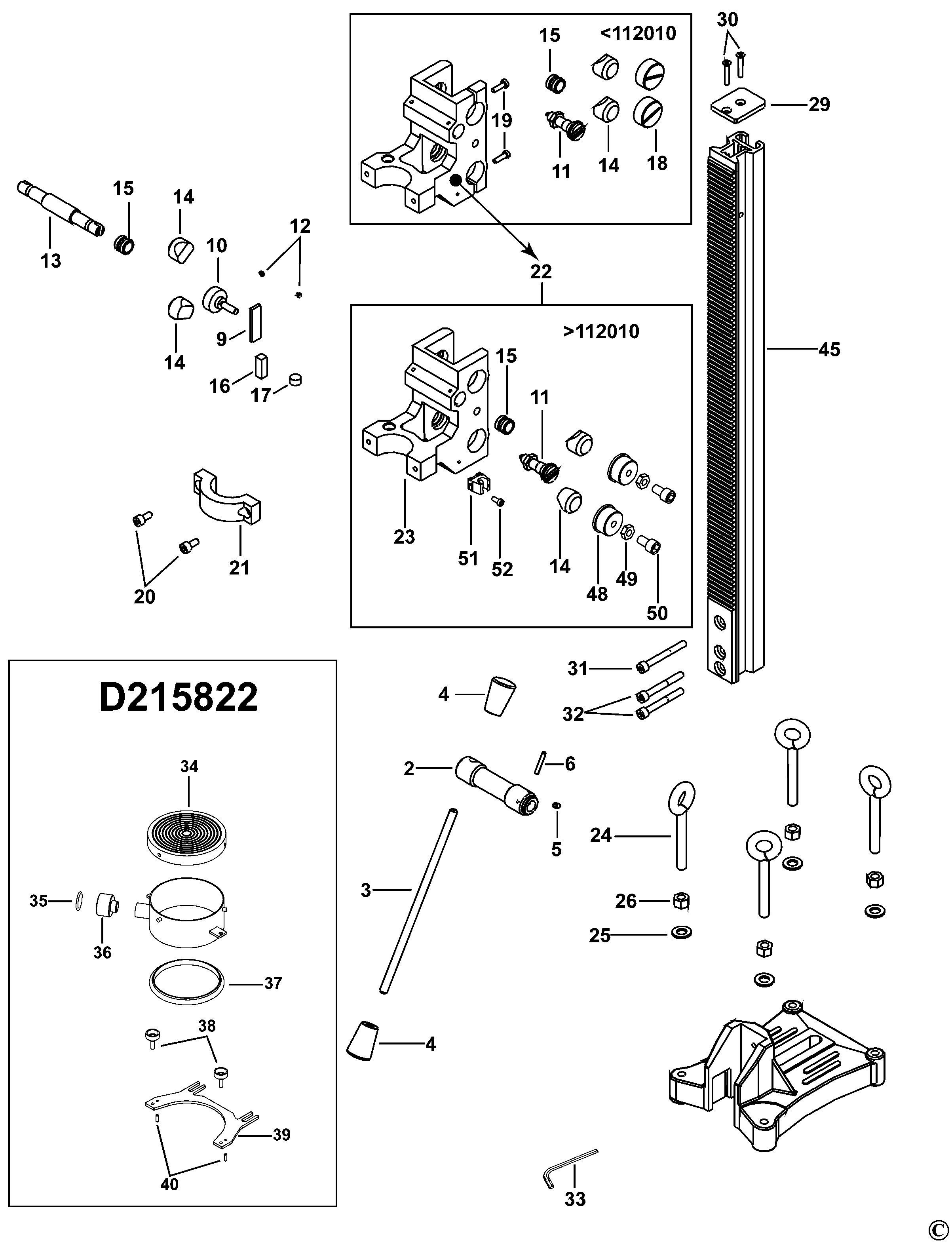

D215821 DRILL STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 1002936-00 | 1 | HANDLE | GB |  |
||
| 3 | 1002937-00 | 1 | LEVER | GB | |
||
| 4 | 1002935-00 | 2 | CONE | GB | |
||
| 5 | 1002933-00 | 1 | CLIP | GB | |
||
| 6 | 1002927-00 | 1 | PIN | GB | |
||
| 9 | 1002944-00 | 1 | PLATE | GB | |
||
| 10 | 1002934-00 | 1 | LOCKING SCREW | M8 x 25 | GB | |
|
| 11 | 1002942-00 | 1 | BOLT | GB | |
||
| 12 | 1002945-00 | 2 | GRUB SCREW | M5 x 5 | GB | ||
| 13 | 1002943-00 | 1 | PINION | GB | |
||
| 14 | 1002938-00 | 2 | THRUST PLATE | GB | |
||
| 15 | 1002939-00 | 2 | BEARING BUSH | GB | |
||
| 16 | 1002931-00 | 1 | LEVEL | GB | |||
| 17 | 1002932-00 | 1 | LEVEL | GB | |
||
| 18 | 1002956-00 | 2 | SCREW.SPECIAL | <112010 | GB | |
|
| 19 | 1002947-00 | 2 | SCREW.SPECIAL | M6 x 20 | <112010 | GB | |
| 20 | 1002948-00 | 2 | SCREW.SPECIAL | M8 x 25 | GB | |
|
| 21 | 1002955-00 | 1 | PLATE | GB | |
||
| 22 | 1004529-00 | 1 | REPAIR KIT | inc23,48,49,50,51,52 | <112010 | GB | |
| 23 | 1004529-01 | 1 | SLIDER | >112010 | GB | |
|
| 24 | 1002929-00 | 4 | BOLT | M12 x 85 | GB | ||
| 25 | 1002930-00 | 4 | WASHER | GB | |
||
| 26 | 1002928-00 | 4 | NUT | M12 | GB | |
|
| 29 | 1002957-00 | 1 | CAP | GB | |
||
| 30 | 1002940-00 | 2 | SCREW | M6 x 30 | GB | |
|
| 31 | 1002941-00 | 1 | BOLT | M8 x 70 | GB | |
|
| 32 | 1002946-00 | 1 | BOLT | M8 x 65 | GB | |
|
| 33 | 1003202-00 | 1 | HEX KEY 6 MM | GB | |
||
| 34 | 1003358-00 | 1 | RUBBER SEAL | GB | |
||
| 35 | 1002971-00 | 1 | RING | GB | |
||
| 36 | 1002673-00 | 1 | ADAPTOR | For dust exhauster | GB | |
|
| 37 | 1002972-00 | 1 | SEAL | GB | |
||
| 38 | 1002934-00 | 2 | LOCKING SCREW | M8 x 25 | GB | |
|
| 39 | 1003359-00 | 1 | BRACKET | GB | |
||
| 40 | 1002958-00 | 2 | PIN | 5 x 18 | GB | |
|
| 45 | 1004565-00 | 1 | COLUMN | GB | |
||
| 48 | 1002979-00 | 2 | CAP | >112010 | GB | |
|
| 49 | 1002961-00 | 2 | NUT | M10 | >112010 | GB | |
| 50 | 1002964-00 | 2 | SCREW | M10 x 16 | >112010 | GB | |
| 51 | 1004529-02 | 1 | CABLE CLAMP | >112010 | GB | |
|
| 52 | 1004529-03 | 1 | SCREW | >112010 | GB | |
