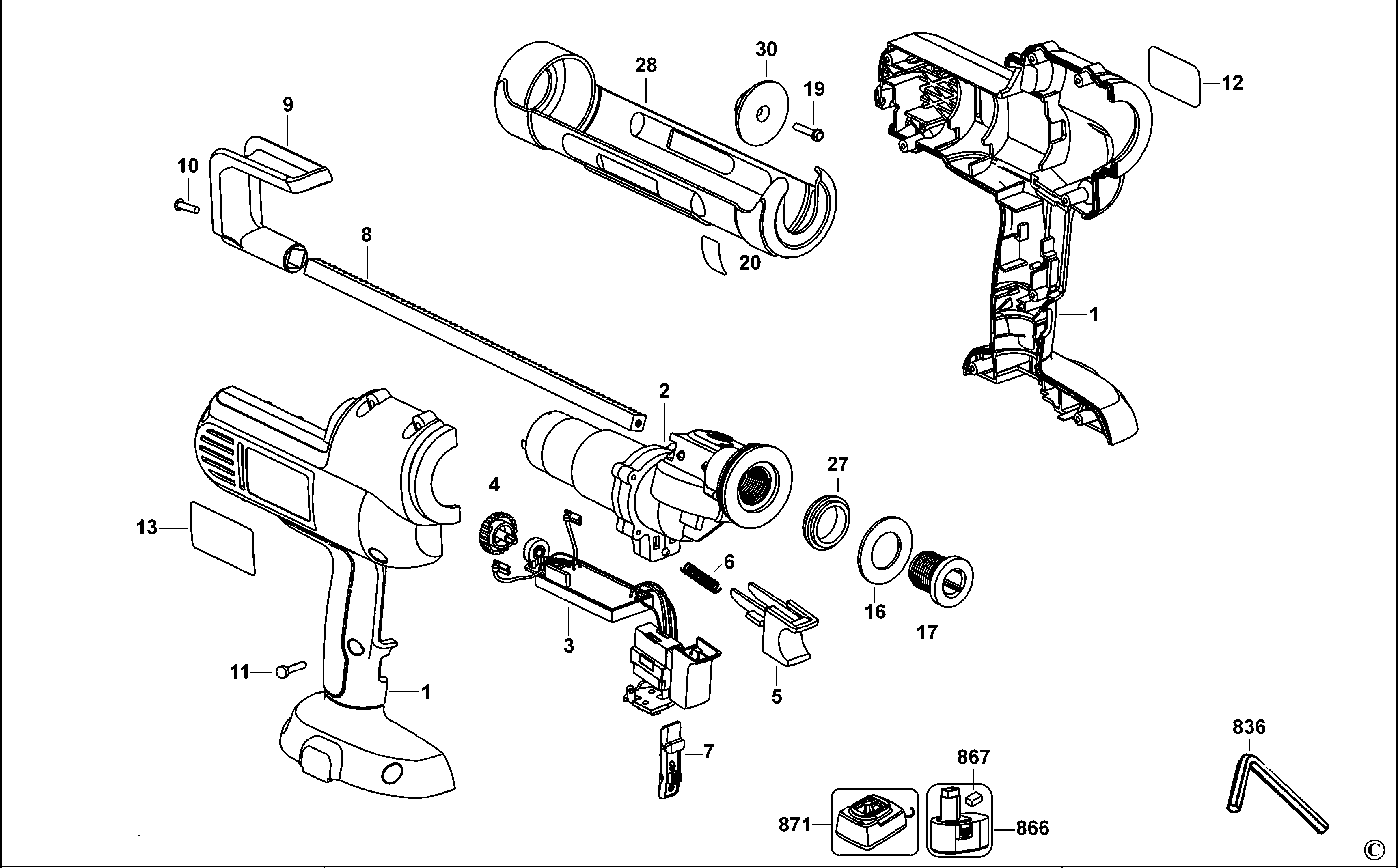

DC540K CAULK GUN Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 636610-00 | 1 | CLAMSHELL SET | 12V | GB |  |
|
| 1 | N381291 | 1 | BLADE 14" | GB | |||
| 2 | 639717-00 | 1 | MOTOR & GEARCASE | GB |  |
||
| 2 | 1004545-14 | 1 | WASHER | GB | |||
| 3 | N082382 | 1 | REPAIR KIT | 12V | GB | |
|
| 3 | 1004687-00 | 1 | SUPPORT | GB | |||
| 4 | 639011-00 | 1 | SPEED REGULATOR | GB | |
||
| 4 | N432808 | 1 | ACTUATOR FWD/REV | GB | |
||
| 5 | 636615-00 | 1 | TRIGGER | GB | |
||
| 6 | 642413-00 | 1 | SPRING | GB | |
||
| 6 | N763827 | 1 | SWITCH SA | GB | |
||
| 7 | 636614-00 | 1 | SWITCH LOCK OFF | GB | |
||
| 8 | 642410-00 | 1 | PUSHROD | 310 ml | GB | |
|
| 8 | 90601870 | 1 | LEVER | GB | |
||
| 9 | 639061-00 | 1 | HANDLE | GB | |
||
| 10 | 642474-00 | 1 | SCREW | GB | |
||
| 11 | 90611830 | 8 | SCREW | GB | |
||
| 12 | 642732-00 | 1 | IDENTITY LABEL | GB | |
||
| 12 | N442752 | 1 | BRUSH LEAD | 230v | GB | |
|
| 13 | 650058-00 | 1 | RATING PLATE | EURO | GB | |
|
| 15 | 5170002-82 | 1 | HANDLE SA | GB | |
||
| 16 | 640827-00 | 1 | WASHER | GB | |
||
| 17 | 641739-00 | 1 | LOCK SCREW | GB | |
||
| 18 | 90604273 | 1 | SHROUD SA | GB | |
||
| 19 | 642414-00 | 1 | SCREW | GB | |
||
| 20 | 648980-00 | 1 | WARNING LABEL | 310 ml | GB | |
|
| 20 | 90568411 | 1 | SWITCHBOX & CABLE | EMAX42i/Ri | GB | ||
| 21 | N095262 | 1 | FIELD SA 115V | GB | |
||
| 25 | 2041101-09010 | 2 | O RING | GB | |
||
| 27 | 640207-00 | 1 | SPACER | GB | |
||
| 28 | 637823-00 | 1 | TUBE SUPPORT | GB | |
||
| 30 | 639729-00 | 1 | PLUNGER | GB | |
||
| 40 | 90580111 | 1 | HANDLE SA | GB | |
||
| 100 | N361321 | 1 | SPANNER | GB | |
||
| 101 | N381728 | 1 | BASE PLATE | GB | |
||
| 836 | 559694-99 | 1 | S.T.WRENCH | GB | |
||
| 866 | 1006626-00 | 1 | BATTERY 12V - 2.4AH | NiMH - DE9501 | GB | |
|
| 867 | 608522-00 | 1 | SAFETY CAP | GB | |
||
| 871 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
