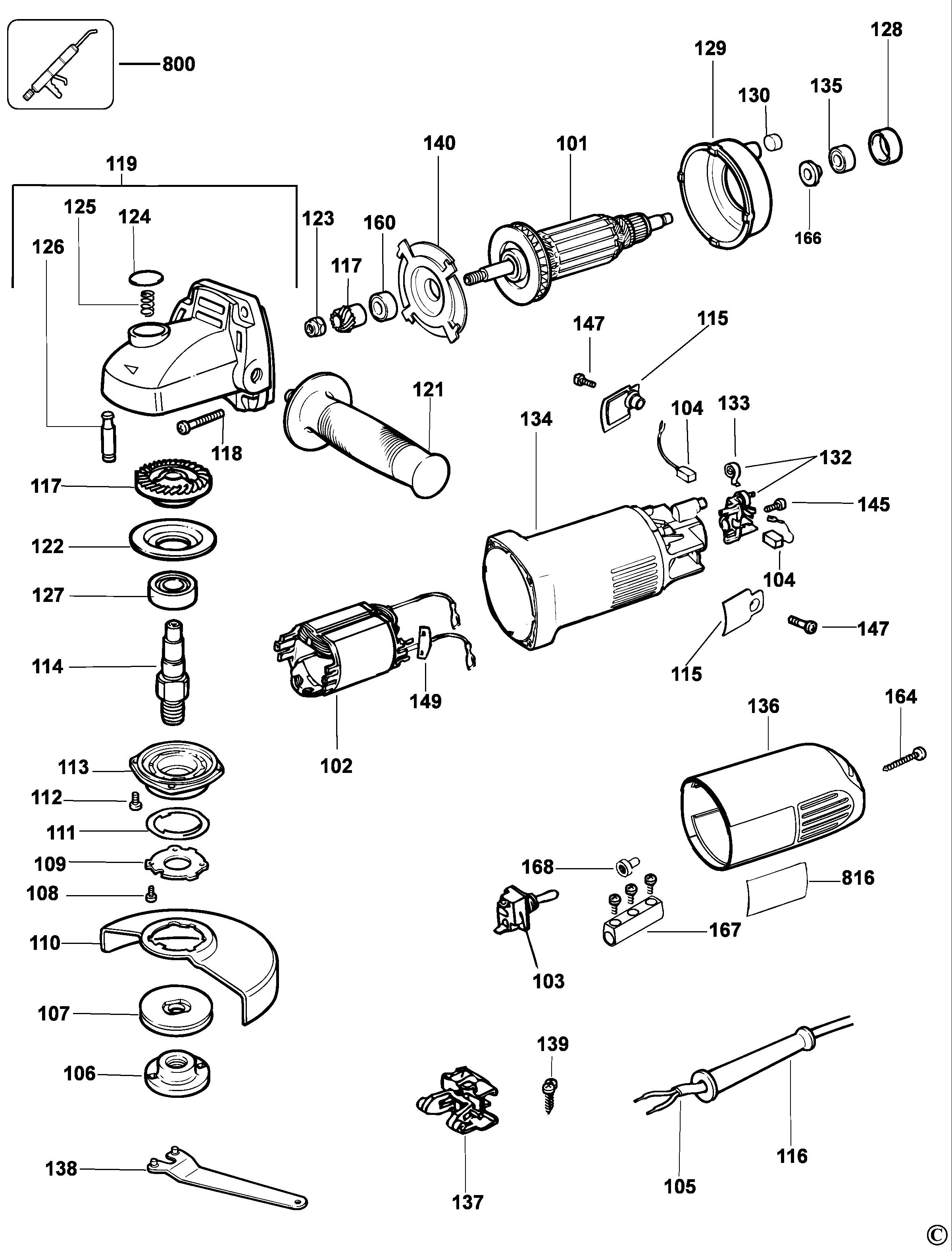

DW812 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 106 | 622613-02 | 1 | OUTER FLANGE | M14 | XJ |  |
|
| 107 | 391969-00 | 1 | INNER FLANGE | XJ | |
||
| 108 | 562160-06 | 3 | SCREW | XJ | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | XJ |  |
||
| 110 | 944685-00 | 1 | GUARD | XJ | |
||
| 111 | 393576-00 | 1 | RING | XJ | |
||
| 112 | 562160-01 | 4 | SCREW | XJ | |||
| 113 | 945298-00 | 1 | GEARCASE COVER | XJ | |
||
| 114 | 391971-00 | 1 | SPINDLE | XJ | |
||
| 115 | 945279-01 | 2 | BRUSH COVER | XJ | |
||
| 116 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 116 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 117 | 661243-00 | 1 | GEAR & PINION | XJ | |
||
| 118 | 562097-01 | 4 | SCREW | XJ | |
||
| 119 | 562304-01SV | 1 | GEARCASE SA | XJ | |
||
| 122 | 945299-00 | 1 | FLANGE | XJ | |
||
| 123 | 945292-00 | 1 | NUT | XJ | |
||
| 124 | 944575-00 | 1 | BUTTON | XJ | |
||
| 125 | 562210-00 | 1 | SPRING | XJ | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | XJ | |
||
| 127 | 605040-22 | 1 | BEARING | XJ | |
||
| 128 | 930275-00 | 1 | SLEEVE | XJ | |
||
| 129 | 401623-00 | 1 | BAFFLE | XJ | |
||
| 130 | 949638-01 | 2 | BUFFER | XJ | |
||
| 132 | 949880-05 | 2 | BRUSH HOLDER SA | INCL. SPRING | XJ | |
|
| 133 | 562204-00 | 2 | SPRING | XJ | |
||
| 135 | 605040-02 | 1 | BEARING | XJ | |
||
| 136 | 944671-04 | 1 | END CAP | XJ | |
||
| 137 | 397701-00 | 1 | SWITCH SUPPORT | XJ | |
||
| 138 | 401680-00 | 1 | WRENCH | XJ | |
||
| 139 | 562097-05 | 1 | SCREW | XJ | |
||
| 140 | 401622-01 | 1 | FLANGE | XJ | |
||
| 145 | 562097-00 | 2 | SCREW | XJ | |
||
| 147 | 945280-00 | 2 | SCREW | XJ | |
||
| 149 | 402489-00 | 2 | PAD | XJ | |
||
| 160 | N110359 | 1 | BEARING | XJ | |
||
| 164 | 562097-02 | 2 | SCREW | XJ | |
||
| 166 | 398906-00 | 1 | SPACER INSULATING | XJ | |
||
| 167 | 930187-00 | 1 | TERMINAL | XJ | |
||
| 168 | 943254-00 | 1 | SWITCH COVER | XJ | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XJ | |
|
| 816 | 946194-00 | 1 | BRAND LABEL | XJ | |
||
| 821 | 569037-00 | 1 | RATING PLATE | XJ | |
