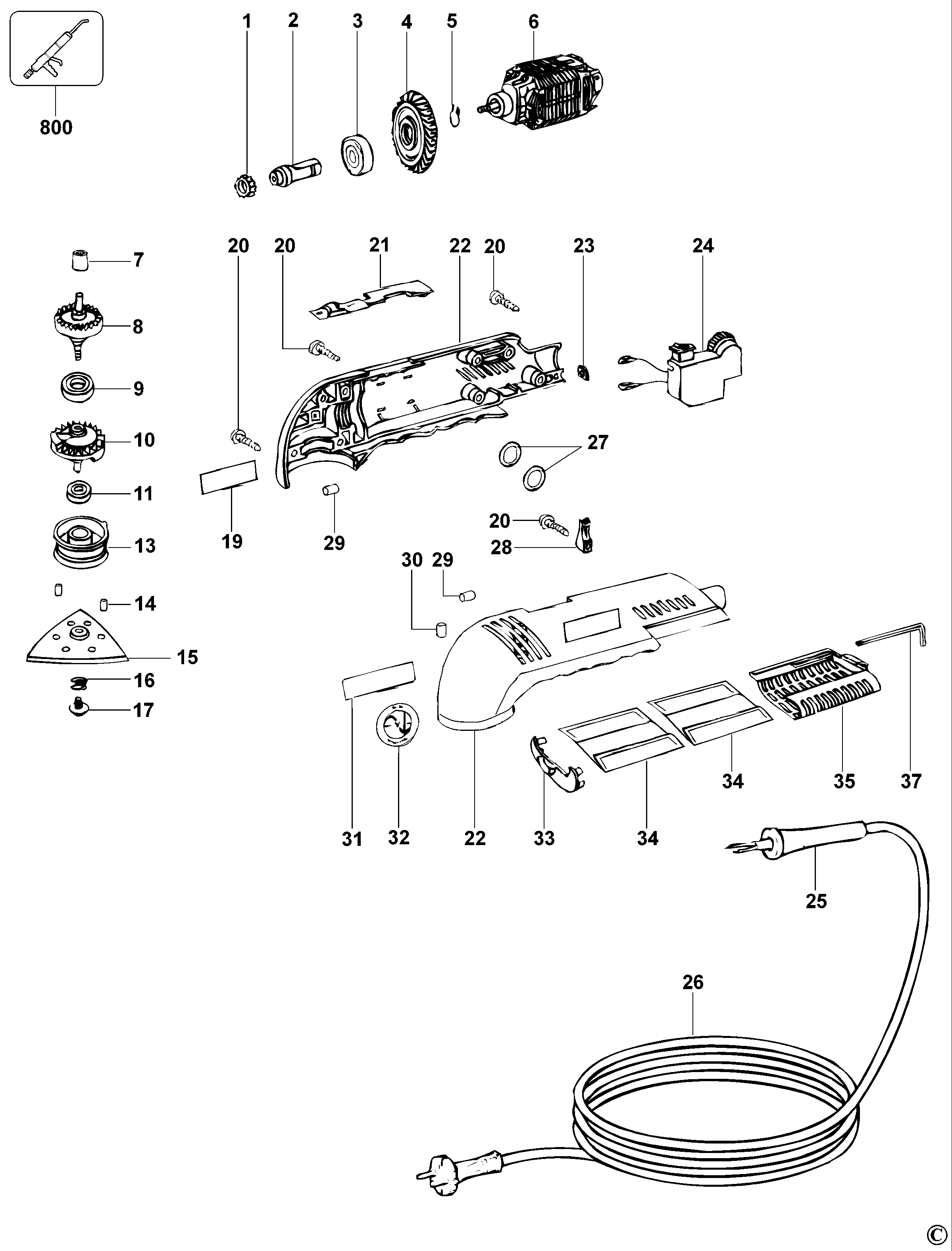

D26430 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596566-00 | 1 | PINION | GB |  |
||
| 2 | 596567-00 | 1 | SPINDLE | GB | |
||
| 3 | 596568-00 | 1 | BEARING | 10 x 26 x 8 | GB | |
|
| 4 | 596569-00 | 1 | FAN | GB | |
||
| 5 | 596570-00 | 2 | CIRCLIP | GB | |
||
| 6 | 596571-00 | 1 | MOTOR SA 230V | GB | |
||
| 7 | 596572-00 | 1 | BEARING NEEDLE | GB | |
||
| 8 | 596573-00 | 1 | GEARSHAFT SA | GB | |
||
| 9 | 596574-00 | 1 | BEARING | GB | |
||
| 10 | 596575-00 | 1 | FAN SA | GB | |
||
| 11 | 596576-00 | 1 | BEARING | GB | |
||
| 13 | 596577-00 | 1 | PLATE SA | GB | |
||
| 14 | 596578-00 | 2 | PIN | GB | |
||
| 15 | 596579-00 | 1 | BASEPLATE | GB | |
||
| 16 | 596580-00 | 1 | SPRING | GB | |
||
| 17 | 596581-00 | 1 | SCREW | GB | |
||
| 19 | N045121 | 1 | RATING PLATE | GB | |||
| 20 | 596101-00 | 9 | SCREW | GB | |
||
| 21 | 596583-00 | 1 | SLIDER | GB | |
||
| 22 | 596584-00 | 1 | CLAMSHELL | GB | |
||
| 23 | 596585-00 | 1 | NUT | GB | |
||
| 24 | 596586-00 | 1 | ELECTRONIC 230V | GB | |
||
| 25 | 596587-00 | 1 | CORD PROTECTOR | GB | |
||
| 26 | 596599-00 | 1 | CORDSET | GB | |
||
| 27 | 596588-00 | 2 | O RING | GB | |
||
| 28 | 596128-00 | 1 | CORD CLAMP | GB | |
||
| 29 | 596589-00 | 2 | DAMPER | GB | |
||
| 30 | 596590-00 | 1 | DAMPER | GB | |
||
| 31 | 596600-00 | 1 | BRAND LABEL | GB | |
||
| 32 | 596601-00 | 1 | LABEL ELECTRONIC | GB | |
||
| 33 | 596591-00 | 1 | END CAP | GB | |
||
| 34 | 596592-00 | 2 | FILTER | GB | |
||
| 35 | 596593-00 | 1 | EXTRACTOR | GB | |
||
| 37 | 596594-00 | 1 | HEX KEY | GB | |
||
| 800 | 596595-00 | 1 | GREASE 50 GMS | GB | |
