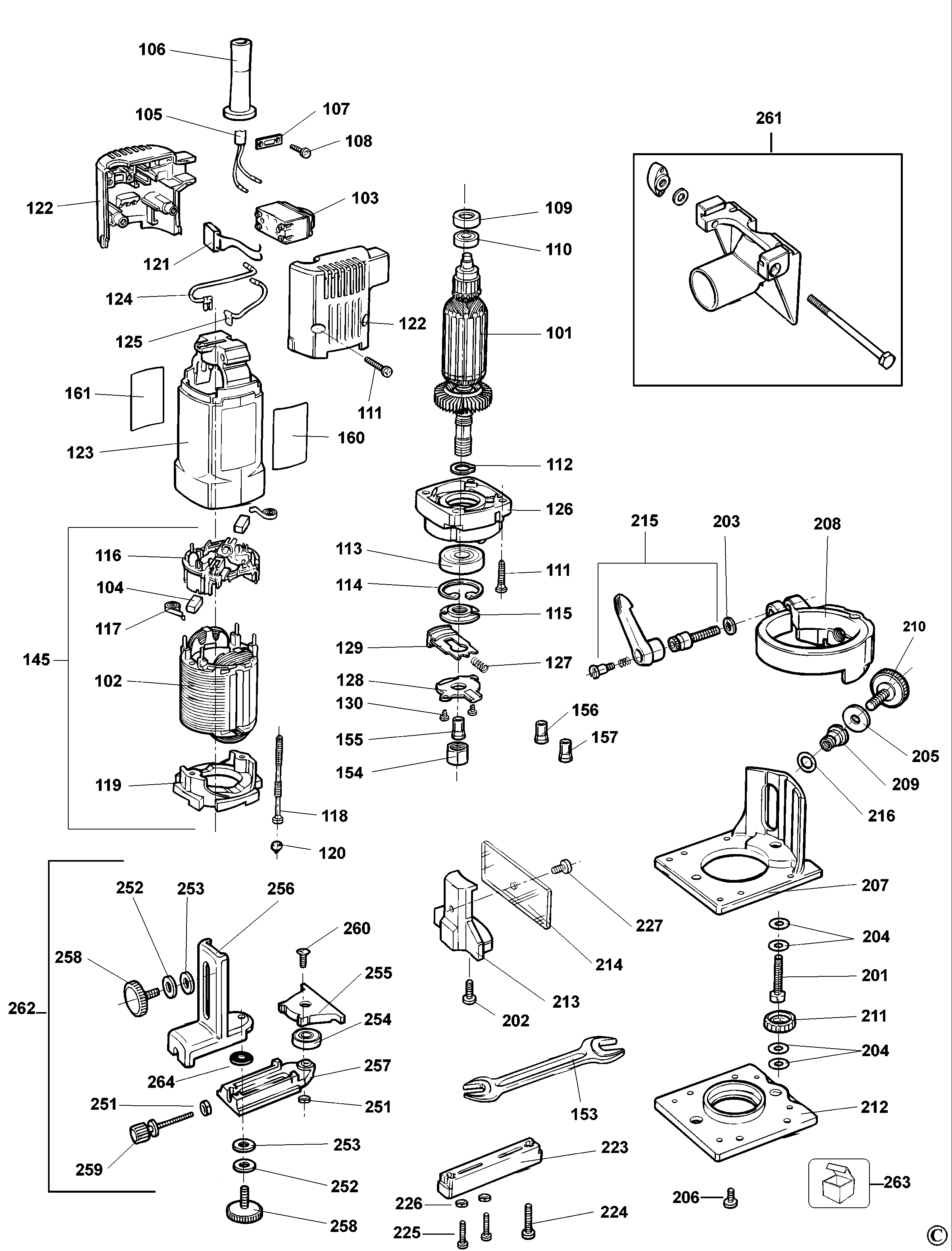

DW670K TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 868630-01 | 1 | ARMATURE 120V | LX |  |
||
| 102 | 868629-03 | 1 | FIELD | LX | |
||
| 103 | N566709 | 1 | SWITCH | LX |  |
||
| 104 | 930802-00 | 2 | BRUSH | LX | |
||
| 105 | 330061-14 | 1 | CORDSET | LX | |
||
| 106 | 949835-01 | 1 | PROTECTOR | LX | |
||
| 107 | 930103-00 | 1 | CORD CLAMP | LX | |
||
| 108 | 860084-10 | 2 | SCREW | LX | |
||
| 109 | 930029-00 | 1 | HOLDER BEARING | LX | |
||
| 110 | 330003-34 | 1 | BEARING | LX | |
||
| 111 | 930079-01 | 6 | SCREW | LX | |
||
| 112 | 930098-00 | 1 | RETAINER | LX | |
||
| 113 | 868768-02 | 1 | BEARING | LX | |
||
| 114 | 949729-02 | 1 | CIRCLIP | LX | |
||
| 115 | 944484-00 | 1 | LOCKING RING | LX | |
||
| 116 | 930749-01 | 1 | BRUSH HOLDER PLATE | LX | |
||
| 117 | 930090-00 | 2 | BRUSH SPRING | LX | |
||
| 118 | 930077-00 | 2 | SCREW | LX | |
||
| 119 | 943173-00 | 1 | BAFFLE | LX | |
||
| 120 | 933657-00 | 2 | CAP | LX | |
||
| 121 | 949877-01 | 1 | CAPACITOR | LX | |
||
| 122 | 943172-02 | 1 | HANDLE SA | LX | |
||
| 123 | 943169-02 | 1 | FIELDCASE | LX | |
||
| 124 | 949801-11 | 1 | LEAD | LX | |
||
| 125 | 949801-10 | 1 | LEAD | LX | |
||
| 126 | 943178-01 | 1 | HOUSING | LX | |
||
| 127 | N406641 | 1 | SPRING COMPRESSION | LX | |
||
| 128 | 944386-00 | 1 | COVER | LX | |
||
| 129 | 947048-00 | 1 | BUTTON SA | LX | |
||
| 130 | 249424-02 | 2 | SCREW | LX | |
||
| 145 | 868629-01 | 1 | FIELD SA | LX | |
||
| 153 | 945393-00 | 1 | WRENCH | LX | |
||
| 154 | 943270-00 | 1 | COLLET NUT | LX | |
||
| 155 | 943269-01 | 1 | COLLET 6.35MM | LX | |
||
| 156 | 943269-00 | 1 | COLLET 6MM | LX | |
||
| 157 | 943269-02 | 1 | COLLET 8MM | LX | |
||
| 161 | N050171 | 1 | RATING PLATE | LX | |
||
| 201 | 860085-26 | 1 | SCREW.TEMP | LX | |
||
| 202 | 930770-00 | 1 | SCREW | LX | |
||
| 203 | 720959-00 | 1 | WASHER | LX | |
||
| 204 | 932892-00 | 2 | SPACER | LX | |
||
| 205 | 942555-00 | 1 | WASHER | LX | |
||
| 206 | 949894-12 | 4 | SCREW | LX | |
||
| 207 | 947922-00 | 1 | BASE | LX | |
||
| 208 | 947923-00 | 1 | SUPPORT | LX | |
||
| 209 | 947924-00 | 1 | BUSH | LX | |
||
| 210 | 947925-00 | 1 | SCREW | LX | |
||
| 211 | 402043-00 | 1 | THUMBSCREW | LX | |
||
| 212 | 947927-00 | 1 | BASEPLATE | LX | |
||
| 213 | 868996-00 | 1 | BRACKET | FROM 37-2004 | LX | |
|
| 214 | 868950-01 | 1 | GUARD SA | BEFORE 37-2004 | INC 213 - 227 | LX | |
|
| 214 | 947938-02 | 1 | GUARD | FROM 37-2004 | LX | |
|
| 215 | 949723-04 | 1 | LOCK HANDLE | LX | |
||
| 216 | 949876-18 | 1 | WASHER SHIM | LX | |
||
| 223 | 401029-00 | 2 | SKID | LX | |
||
| 224 | 330045-05 | 4 | SCREW | LX | |
||
| 225 | 930770-00 | 2 | SCREW | LX | |
||
| 226 | 860083-10 | 2 | NUT | LX | |
||
| 227 | 868995-00 | 1 | RIVET | FROM 37-2004 | LX | |
|
| 251 | 860083-10 | 2 | NUT | LX | |
||
| 252 | 931407-00 | 2 | WASHER | LX | |
||
| 253 | 937545-00 | 2 | WASHER SPRING | LX | |
||
| 254 | 330003-02 | 1 | BEARING | LX | |
||
| 255 | 946292-00 | 1 | GUIDE FENCE | LX | |
||
| 256 | 947936-00 | 1 | BRACKET | LX | |
||
| 257 | 947937-00 | 1 | SUPPORT | LX | |
||
| 258 | 947939-00 | 2 | SCREW | LX | |
||
| 259 | 947940-00 | 1 | SCREW | LX | |
||
| 260 | 949889-01 | 1 | SCREW | LX | |
||
| 261 | 401365-00 | 1 | DUST EXTRACTOR | LX | |
||
| 262 | 947934-00 | 1 | COPY FOLLOWER | LX | |
||
| 263 | 947889-01 | 1 | FIXED BASE - TRIMMER | LX | |
||
| 264 | 933220-00 | 1 | O RING | LX | |
