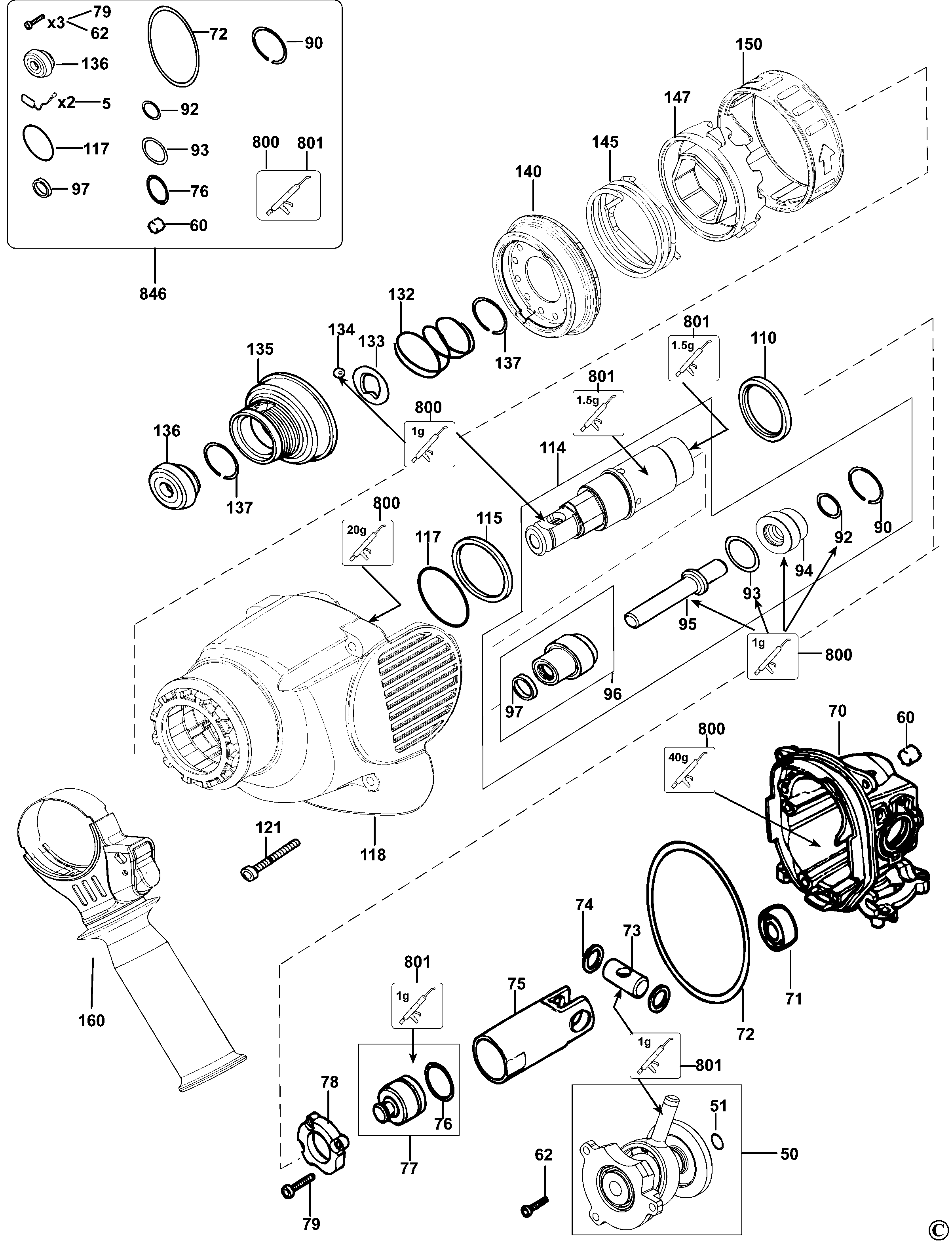

D25330K CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 477225-00 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 576690-05 | 1 | FIELD 230V | GB |  |
||
| 3 | 588724-00 | 1 | SWITCH 240V | GB | |
||
| 4 | 577805-03 | 2 | BRUSH HOLDER 230V | GB | |
||
| 5 | 584429-00 | 1 | BRUSH KIT | 230 VOLT | GB | |
|
| 6 | 320842-19 | 1 | CAPACITOR | GB | |
||
| 7 | 584090-00 | 1 | CORD PROTECTOR | GB | |||
| 8 | 582319-18 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 12 | 584304-10 | 1 | LEAD BLUE | GB | |
||
| 16 | 582064-16 | 1 | LEAD BLUE | GB | |
||
| 17 | 589456-04 | 1 | LEADWIRE | GB | |
||
| 18 | 930026-01 | 1 | BUMPER | GB | |
||
| 19 | 588902-00 | 1 | SLIDER | GB | |
||
| 20 | 578220-00 | 1 | LEVER | GB | |
||
| 21 | 870052 | 1 | SLEEVE | GB | |
||
| 22 | 579720-00 | 1 | BUSH | GB | |
||
| 23 | 326519-03 | 2 | SCREW | GB | |
||
| 24 | 330003-19 | 1 | BEARING | GB | |
||
| 25 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | GB | |
|
| 28 | 582877-00 | 1 | INSERT | GB | |
||
| 30 | 577986-20 | 1 | HOUSING | GB | |
||
| 31 | 581808-00 | 1 | BAFFLE FAN | GB | |
||
| 32 | 577993-00 | 1 | FIELD CASE | DeWALT | GB | |
|
| 33 | 584041-00 | 1 | END CAP SA | GB | |
||
| 34 | 588675-00 | 1 | HANDLE COVER | GB | |
||
| 35 | 330065-08 | 6 | SCREW | M4x18 T20 | GB | |
|
| 36 | 821070 | 1 | CORD CLAMP | GB | |
||
| 37 | 330065-09 | 1 | SCREW | GB | |
||
| 39 | 330065-26 | 4 | SCREW | GB | |
||
| 40 | 330065-25 | 2 | SCREW | GB | |
||
| 50 | 1006350-00 | 1 | INTERSHAFT | GB | |
||
| 51 | 580908-00 | 1 | O RING | 7.5x1.0 | GB | |
|
| 60 | 582865-00 | 1 | FILTER | GB | |
||
| 62 | 583981-00 | 3 | SCREW | 4x16 | GB | |
|
| 70 | 477212-00 | 1 | HOUSING BEARING | GB | |
||
| 71 | 330003-81 | 1 | BEARING | GB | |
||
| 72 | 578229-00 | 1 | SEAL | GB | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | GB | |
||
| 74 | 577802-00 | 1 | WASHER SHIM | GB | |
||
| 75 | 477213-00 | 1 | PISTON | GB | |
||
| 76 | 579699-00 | 1 | O RING | GB | |
||
| 77 | 477214-00 | 1 | RAM SA | GB | |
||
| 78 | N042808 | 1 | BEARING BUSH | GB | |
||
| 79 | 324006-15 | 3 | SCREW | GB | |
||
| 90 | 577793-00 | 1 | CLIP | GB | |
||
| 92 | 580990-00 | 1 | O RING | GB | |
||
| 93 | 577135-00 | 1 | O RING | GB | |
||
| 94 | 477215-00 | 1 | BUSH | GB | |
||
| 95 | 584424-01 | 1 | BEAT PIECE | GB | |
||
| 96 | 477216-00 | 1 | BEARING & SEAL | GB | |
||
| 97 | 577139-00 | 1 | SEAL | GB | |
||
| 110 | 577797-00 | 1 | WASHER | GB | |||
| 114 | 477217-00 | 1 | SPINDLE SA | GB | |
||
| 115 | 577814-00 | 1 | WASHER | GB | |
||
| 117 | 589186-00 | 1 | O RING | 32 x 3 | GB | |
|
| 118 | 477218-00 | 1 | GEARCASE SA | GB | |||
| 121 | 330065-28 | 4 | SCREW | GB | |
||
| 132 | 871690 | 1 | SPRING | GB | |
||
| 133 | 578387-00 | 1 | WASHER | GB | |
||
| 134 | 583890-00 | 1 | BALL | GB | |
||
| 135 | N504215 | 1 | TUBE | GB | |
||
| 136 | 323489-00 | 1 | CAP | GB | |
||
| 137 | 579212-00 | 2 | RING | GB | |
||
| 140 | 586892-00 | 1 | SLEEVE | GB | |
||
| 145 | 586893-00 | 1 | SPRING | GB | |
||
| 147 | 586894-00 | 1 | LOCKING RING | GB | |
||
| 150 | 586891-00 | 1 | SLEEVE | GB | |
||
| 160 | 589467-00 | 1 | SIDE HANDLE | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | |
|
| 821 | 569037-00 | 1 | RATING PLATE | GB | |
||
| 846 | 477245-00 | 1 | SERVICE KIT 230V | GB | |
||
| 861 | 578005-00 | 1 | KITBOX | GB | |
