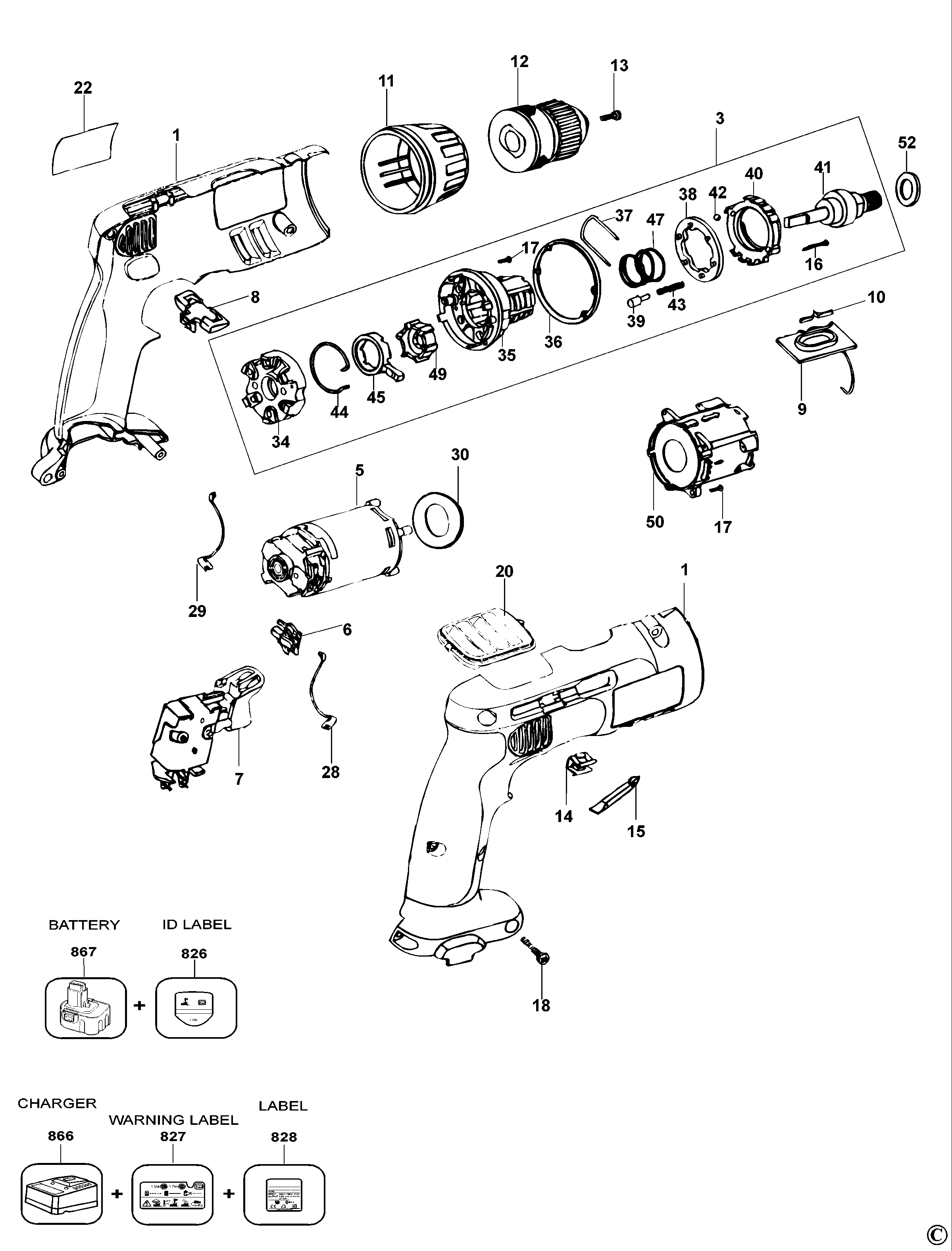

DW998 CORDLESS DRILL Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 151791-21 | 1 | CLAMSHELL PAIR | GB |  |
||
| 3 | 391106-12 | 1 | COMBI MODULE | GB | |
||
| 5 | 393111-15 | 1 | MOTOR & PINION | GB | |
||
| 6 | 389025-00 | 2 | BRUSH PAIR | GB | |||
| 7 | 152274-19SV | 1 | SWITCH | GB | |
||
| 8 | 151678-00 | 1 | BUTTON | GB | |
||
| 9 | 150939-01 | 1 | ACTUATOR | GB | |
||
| 10 | 144658-00 | 1 | SPRING | GB | |
||
| 11 | 799013-01 | 1 | RING | GB | |
||
| 12 | 586200-02 | 1 | CHUCK | 3/8 | GB |  |
|
| 13 | 605256-02 | 1 | SCREW | GB | |
||
| 14 | 148354-03 | 2 | HOLDER | GB | |
||
| 15 | 297757-02 | 1 | BIT PHILLIPS | GB | |
||
| 16 | 330019-00 | 4 | SCREW | M3x16 T10 PLASTITE | GB | |
|
| 17 | 98091-10 | 6 | SCREW | GB | |
||
| 18 | 90611830 | 7 | SCREW | GB | |
||
| 20 | 151681-04 | 1 | VENT | GB | |
||
| 22 | 395657-00 | 1 | BRAND LABEL | GB | |
||
| 28 | N180562 | 1 | LEAD SA | w/EMI Beads | GB | |
|
| 28 | 389042-00 | 1 | LEAD RED | GB | |
||
| 29 | 389041-00 | 1 | LEAD BLACK | GB | |
||
| 29 | N180562 | 1 | LEAD SA | w/EMI Beads | GB | |
|
| 30 | 152482-00 | 1 | SEAL | GB | |
||
| 34 | 370506-01 | 1 | END CAP SA | GB | |
||
| 35 | 798966-01 | 1 | HOUSING SA | GB | |
||
| 36 | 805004-00 | 1 | WASHER | GB | |
||
| 37 | 798959-00 | 1 | CLIP | GB | |
||
| 38 | 380792-00 | 1 | PLATE | GB | |
||
| 39 | 387058-00 | 6 | PIN | GB | |
||
| 40 | 798709-00 | 1 | NUT | GB | |
||
| 41 | 391486-00 | 1 | SPINDLE SA | GB | |
||
| 42 | 386690-00 | 7 | BALL | STEEL, 5MM | GB | |
|
| 43 | 152347-00 | 6 | SPRING | GB | |
||
| 44 | 395300-00 | 1 | SPRING | GB | |
||
| 45 | 384917-00 | 1 | CAM | GB | |
||
| 47 | 799981-00 | 1 | SPRING | GB | |
||
| 49 | 384919-00 | 1 | RATCHET FIXED | GB | |
||
| 50 | 390629-01 | 1 | GEARBOX | GB | |
||
| 52 | 395468-00 | 1 | WASHER | GB | |
||
| 826 | 578763-00 | 1 | IDENTITY LABEL | GB | |
||
| 827 | 643500-00 | 1 | WARNING LABEL | GB | |
||
| 828 | 583471-05 | 1 | NAMEPLATE | GB | |
||
| 866 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
||
| 867 | 582627-00 | 1 | BATTERY 18V - 2.4AH | GB | |
