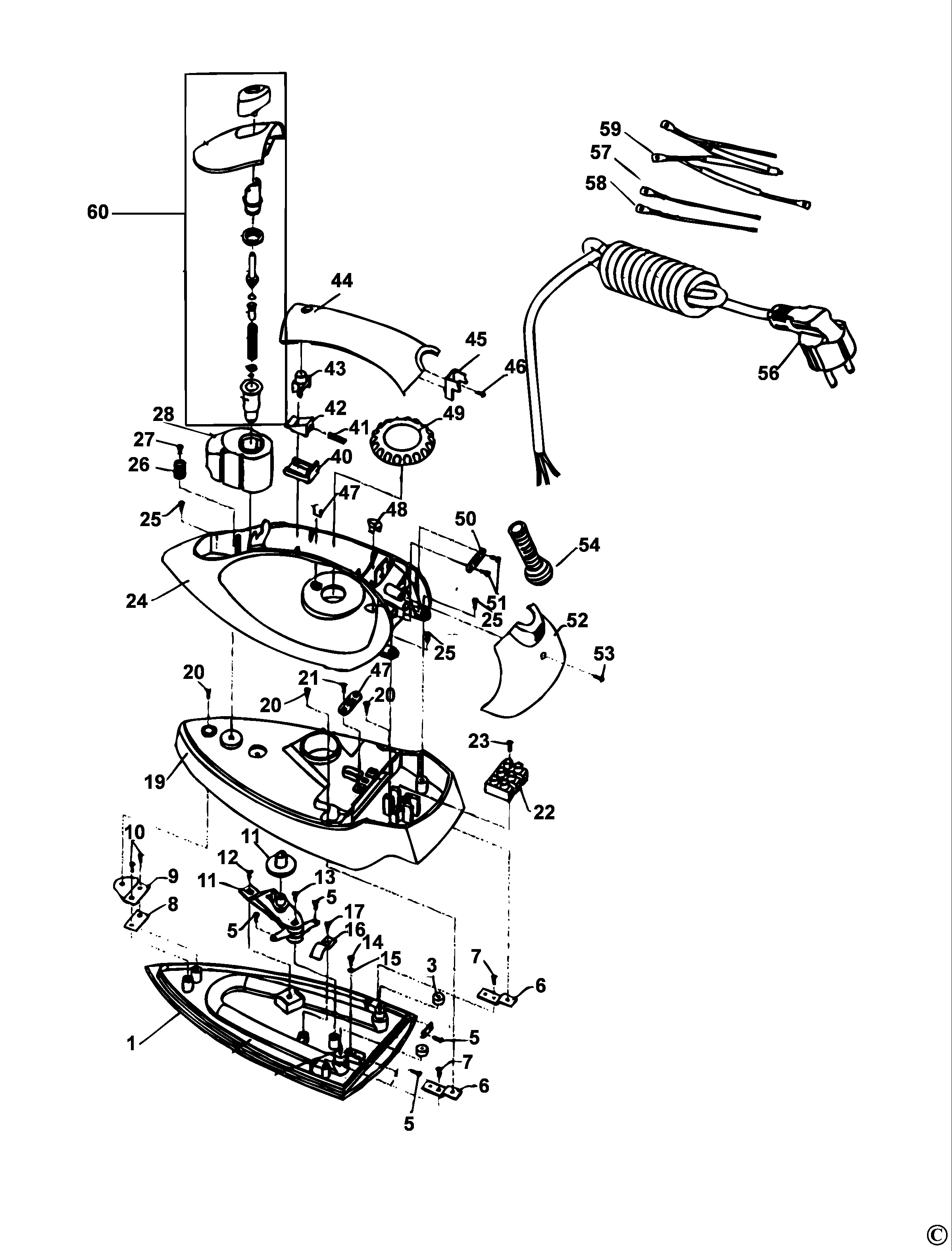

F125 SPRAY IRON Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010021-01 | 1 | SOLE PLATE SA | F125-1 | XJ |  |
|
| 3 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 5 | 6010021-05 | 1 | SCREW | F125-5 | XJ | ||
| 6 | 6010021-06 | 1 | SUPPORT | BACK SUPPORT | F125-6 | XJ | |
| 7 | 6010021-07 | 1 | SCREW | F125-7 | XJ | ||
| 8 | 6010021-08 | 1 | PLATE | HEAT-PROOF SLICE | F125-8 | XJ | |
| 9 | 6010021-09 | 1 | SUPPORT. FRONT | F125-9 | XJ | ||
| 10 | 6010021-10 | 1 | SCREW | F125-10 | XJ | ||
| 11 | 6010021-11 | 1 | THERMOSTAT SA | F125-11 | XJ | |
|
| 12 | 6010021-12 | 1 | SCREW | F125-12 | XJ | ||
| 13 | 6010021-13 | 1 | SCREW | F125-13 | XJ | ||
| 14 | 6010021-14 | 1 | SCREW | F125-14 | XJ | ||
| 15 | 6010021-15 | 1 | GASKET | SPRING GASKET | F125-15 | XJ | |
| 16 | 6010021-16 | 1 | FRAME | FIXED FRAME | F125-16 | XJ | |
| 17 | 6010021-17 | 1 | SCREW | F125-17 | XJ | ||
| 19 | 6010021-19 | 1 | PLATE | HEAT-PROOF PLATE | F125-19 | XJ | |
| 20 | 6010021-20 | 1 | SCREW | F125-20 | XJ | ||
| 21 | 6010021-21 | 1 | SCREW | F125-21 | XJ | ||
| 22 | 6010021-22 | 1 | CONNECTOR | CONNECTING BAR | F125-22 | XJ | |
| 23 | 6010021-23 | 1 | SCREW | F125-23 | XJ | ||
| 24 | 6010021-24 | 1 | HANDLE | F125-24 | XJ | |
|
| 25 | 6010002-21 | 1 | SCREW | CD-S30A14 | XJ | ||
| 25 | 6010021-25 | 1 | SCREW | F125-25 | XJ | ||
| 26 | 6010021-26 | 1 | SPRING | F125-26 | XJ | ||
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 28 | 6010021-28 | 1 | TANK | WATER TANK | F125-28 | XJ | |
| 40 | 6010021-40 | 1 | SLIDE | GUIDING SLIDE | F125-40 | XJ | |
| 41 | 6010021-41 | 1 | SPRING | F125-41 | XJ | ||
| 42 | 6010021-42 | 1 | HOLDER | INCLINATION BOD | F125-42 | XJ | |
| 43 | 6010021-43 | 1 | BUTTON | F125-43 | XJ | ||
| 44 | 6010021-44 | 1 | HANDLE COVER | F125-44 | XJ | ||
| 45 | 6010021-45 | 1 | SWIVEL SUPPORT | F125-45 | XJ | ||
| 46 | 6010021-46 | 1 | SCREW | F125-46 | XJ | ||
| 47 | 6010021-47 | 1 | SPRING | F125-47 | XJ | ||
| 48 | 6010021-48 | 1 | COVER | NEON COVER | F125-48 | XJ | |
| 49 | 6010021-49 | 1 | KNOB | F125-49 | XJ | |
|
| 50 | 6010021-50 | 1 | CLIP | F125-50 | XJ | ||
| 51 | 6010021-51 | 1 | SCREW | F125-51 | XJ | ||
| 52 | 6010021-52 | 1 | COVER REAR | F125-52 | XJ | |
|
| 53 | 6010021-53 | 1 | SCREW | F125-53 | XJ | ||
| 54 | 6010021-54 | 1 | CORD PROTECTOR | SWIVEL | F125-54 | XJ | |
| 56 | 6010021-56 | 1 | CORDSET | F125-56 | XJ | |
|
| 57 | 6010021-57 | 1 | LEAD BROWN | LEAD WIRE BROWN | F125-57 | XJ | |
| 58 | 6010021-58 | 1 | LEAD YELLOW | LEAD WIRE YELLOW | F125-58 | XJ | |
| 59 | 6010021-59 | 1 | LEADWIRE | LED & LEAD WIRES | F125-59 | XJ | |
| 60 | 6010021-60 | 1 | PUMP SA | SPRAY PUMP ASSEMBLY | F125-60 | XJ | |
