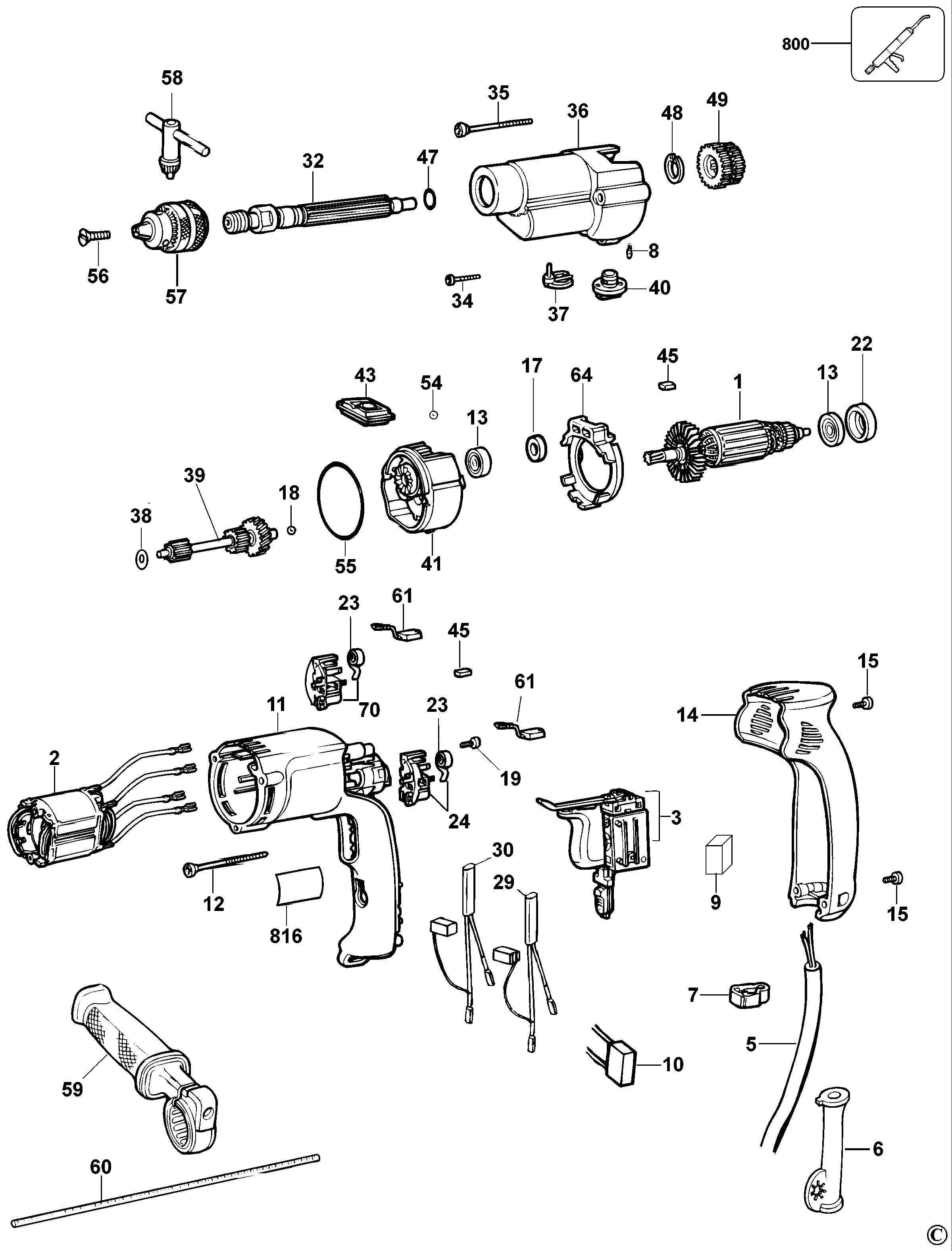

DW241 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 387614-03 | 1 | ARMATURE 115V | XW |  |
||
| 2 | 387817-03 | 1 | FIELD 115V | XW | |
||
| 3 | 494637-01 | 1 | SWITCH 115V | Tyco | XW | |
|
| 5 | 330061-14 | 1 | CORDSET | XW |  |
||
| 6 | 401751-00 | 1 | CORD PROTECTOR | XW | |
||
| 7 | 402649-00 | 1 | CORD CLAMP | XW | |
||
| 8 | 326467-00 | 2 | DETENT | XW | |
||
| 9 | 930026-01 | 1 | BUMPER | XW | |
||
| 10 | 93585-13 | 1 | CAPACITOR | XW | |
||
| 11 | N019317 | 1 | FIELD CASE | XW | |
||
| 12 | 390198-00 | 2 | SCREW | XW | |
||
| 13 | 605040-06 | 2 | BEARING,BALL | XW | |
||
| 14 | 176900-01 | 1 | HANDLE COVER | XW | |
||
| 15 | 330065-08 | 3 | SCREW | M4x18 T20 | XW | |
|
| 17 | 402763-00 | 1 | SEAL | XW | |
||
| 18 | 936840-00 | 1 | BALL STEEL | XW | |||
| 19 | 330065-06 | 2 | SCREW | XW | |
||
| 22 | 132332-00 | 1 | SLEEVE | XW | |
||
| 23 | 402759-00 | 2 | BRUSH SPRING | XW | |
||
| 24 | 390523-00 | 1 | BRUSH HOLDER SA | XW | |
||
| 29 | 387822-02 | 1 | BRUSH LEAD SA | XW FROM DC 9930 | XW | |
|
| 30 | 387822-03 | 1 | BRUSH LEAD SA | XW FROM DC 9930 | XW | |
|
| 32 | 581235-00 | 1 | SPINDLE | 1/2" x 20 UNF | XW | |
|
| 34 | 330065-13 | 1 | SCREW | XW | |
||
| 35 | 330065-10 | 2 | SCREW | XW | |
||
| 36 | 1006352-00 | 1 | GEARCASE | XW | |
||
| 37 | 401735-00 | 1 | SELECTOR FORK | XW | |
||
| 38 | 932933-00 | 1 | WASHER | XW | |
||
| 39 | 581234-00 | 1 | INTERSHAFT | XW | |
||
| 40 | 628891-00 | 1 | SELECTOR FORK | SPEED | XW | |
|
| 41 | 401843-00 | 1 | COVER SA | XW | |
||
| 43 | 401839-00 | 1 | PLATE | XW | |
||
| 45 | 949638-02 | 2 | DAMPER | XW | |
||
| 47 | 930028-00 | 1 | O RING | XW | |
||
| 48 | 144803-00 | 1 | CIRCLIP | XW | |
||
| 49 | 397239-01 | 1 | GEAR | XW | |
||
| 54 | 000903-00 | 1 | BALL | XW | |
||
| 55 | 401847-00 | 1 | SEAL | XW | |
||
| 56 | 448847-01 | 1 | SCREW | XW | |
||
| 57 | 5140071-68 | 1 | CHUCK 13MM | XW | |
||
| 58 | 330034-07 | 1 | CHUCK KEY | XW | |
||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | XW | |
||
| 60 | 940357-00 | 1 | DEPTH STOP | XW | |
||
| 61 | 176949-17 | 2 | BRUSH | XW UPTO DC 9929 | XW | |
|
| 64 | 176811-00 | 1 | BAFFLE | XW | |
||
| 70 | 390524-00 | 1 | BRUSH HOLDER | XW | |
||
| 800 | 870889-02 | 1 | GREASE | XW | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | XW | |
