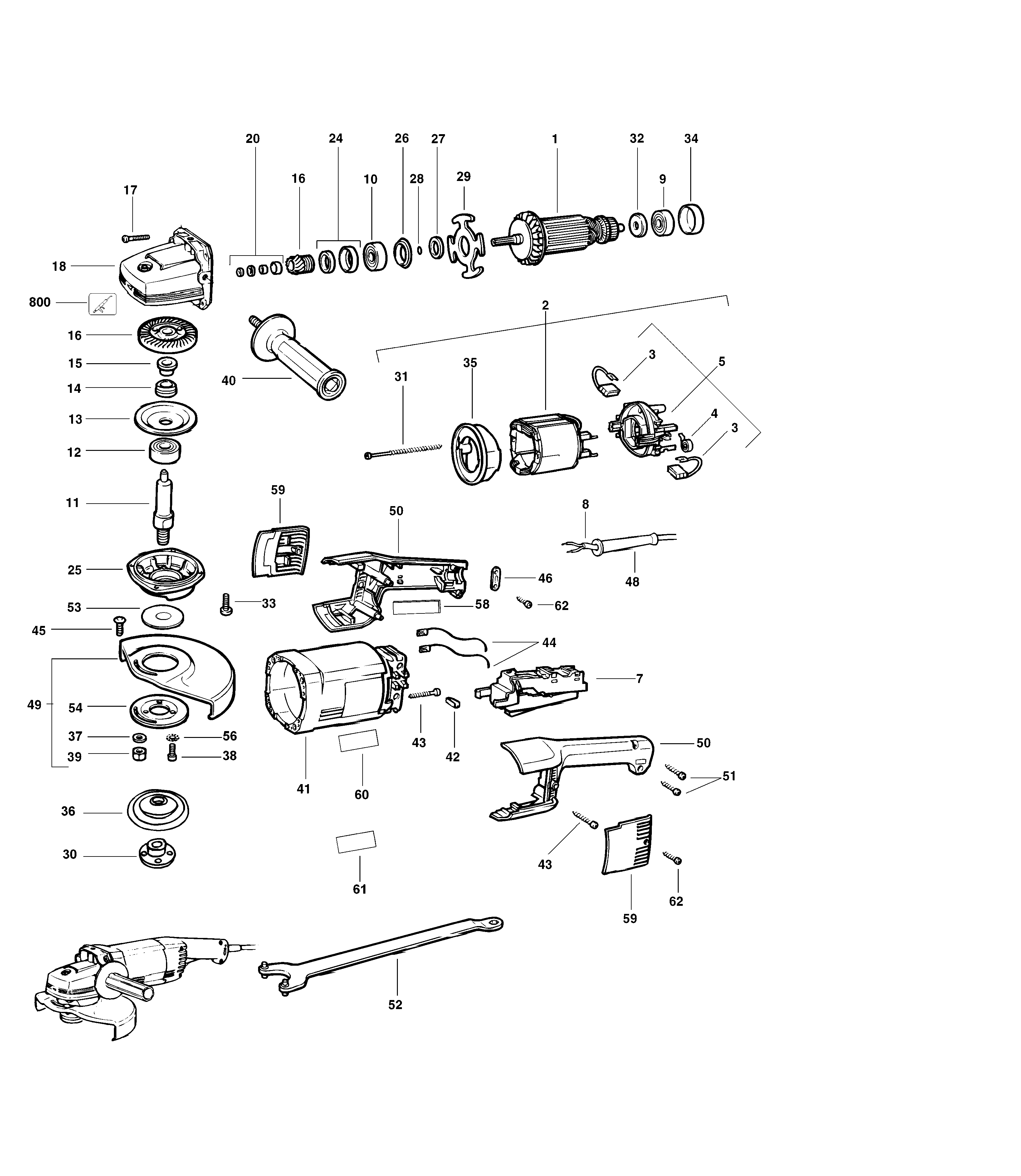

DW474 ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 402816-00 | 2 | SPRING | XJ |  |
||
| 5 | 949405-00 | 1 | BRUSHBOX SA | XJ | |
||
| 7 | 949825-07 | 1 | SWITCH LOCK-ON | XJ | |
||
| 8 | 330079-08 | 1 | CABLE | XJ | |
||
| 9 | 577745-00 | 1 | BEARING | XJ |  |
||
| 10 | 330003-14 | 1 | BEARING | XJ | |
||
| 11 | 931681 | 1 | SPINDLE | XJ | |
||
| 12 | 930566 | 1 | BEARING | XJ | |
||
| 13 | 930924 | 1 | FLANGE | XJ | |
||
| 14 | 930923 | 1 | SEAL | XJ | |
||
| 15 | 930922 | 1 | SPACER | XJ | |
||
| 16 | 932522 | 1 | GEAR & PINION SA | XJ | |
||
| 17 | 930930 | 4 | SCREW | XJ | |
||
| 18 | 401048-00 | 1 | GEARCASE SA | XJ | |
||
| 20 | 937098-49 | 1 | CLIP SA | XJ | |
||
| 24 | 930909 | 1 | SEAL SA | XJ | |
||
| 25 | 947962-00 | 1 | GEARCASE COVER | XJ | |
||
| 26 | 931067-00 | 1 | SEAL SA | XJ | |
||
| 27 | 931062 | 1 | SPACER | XJ | |||
| 28 | 930028-00 | 1 | O RING | XJ | |
||
| 29 | 931066-00 | 1 | FLANGE | XJ | |
||
| 31 | N412453 | 2 | SCREW | XJ | |
||
| 32 | N174055 | 1 | SPACER | XJ | |
||
| 33 | 949887-01 | 4 | SCREW | XJ | |
||
| 34 | 938332-00 | 1 | SLEEVE | XJ | |
||
| 35 | 402808-00 | 1 | BAFFLE | XJ | |
||
| 36 | 54339 | 1 | FLANGE | XJ | |
||
| 37 | 930925 | 1 | WASHER | XJ | |
||
| 38 | 933058-00 | 3 | SCREW | XJ | |
||
| 39 | 860083-03 | 1 | NUT | XJ | |
||
| 40 | 939815 | 1 | HANDLE SIDE SA | XJ | |
||
| 41 | 576185-02 | 1 | FIELDCASE SA | Yellow | XJ | |
|
| 42 | 930934-00 | 4 | SHOCK ABSORBER | XJ | |
||
| 43 | 931297-00 | 1 | SCREW | XJ | |
||
| 44 | 940988-79 | 2 | LEAD | XJ | |
||
| 45 | 949892-07 | 1 | SCREW | XJ | |
||
| 46 | 931477-00 | 1 | CORD CLAMP | XJ | |
||
| 48 | 947964-01 | 1 | CORD PROTECTOR | XJ | |
||
| 49 | 933903 | 1 | GUARD | XJ | |
||
| 50 | N097875 | 1 | HANDLE & COVER | XJ | |
||
| 51 | 930284-01 | 2 | SCREW | XJ | |
||
| 52 | 938733 | 1 | WRENCH PIN | XJ | |
||
| 53 | 445928-00 | 1 | WASHER | XJ | |
||
| 54 | 930929 | 1 | FLANGE | XJ | |
||
| 56 | 930248-00 | 3 | WASHER | XJ | |
||
| 58 | 946194-00 | 1 | BRAND LABEL | XJ | |
||
| 59 | 933364-02 | 2 | COVER | XJ | |
||
| 60 | 571652-68 | 1 | NAMEPLATE | XJ | |
||
| 61 | 946157-00 | 2 | BRAND LABEL | XJ | |
||
| 62 | 931469-02 | 4 | SCREW | XJ | |
||
| 800 | 575762-02 | 1 | GREASE 100 GMS | XJ |
